LiftMaster CAPXL & CAPXLV Replacement Parts

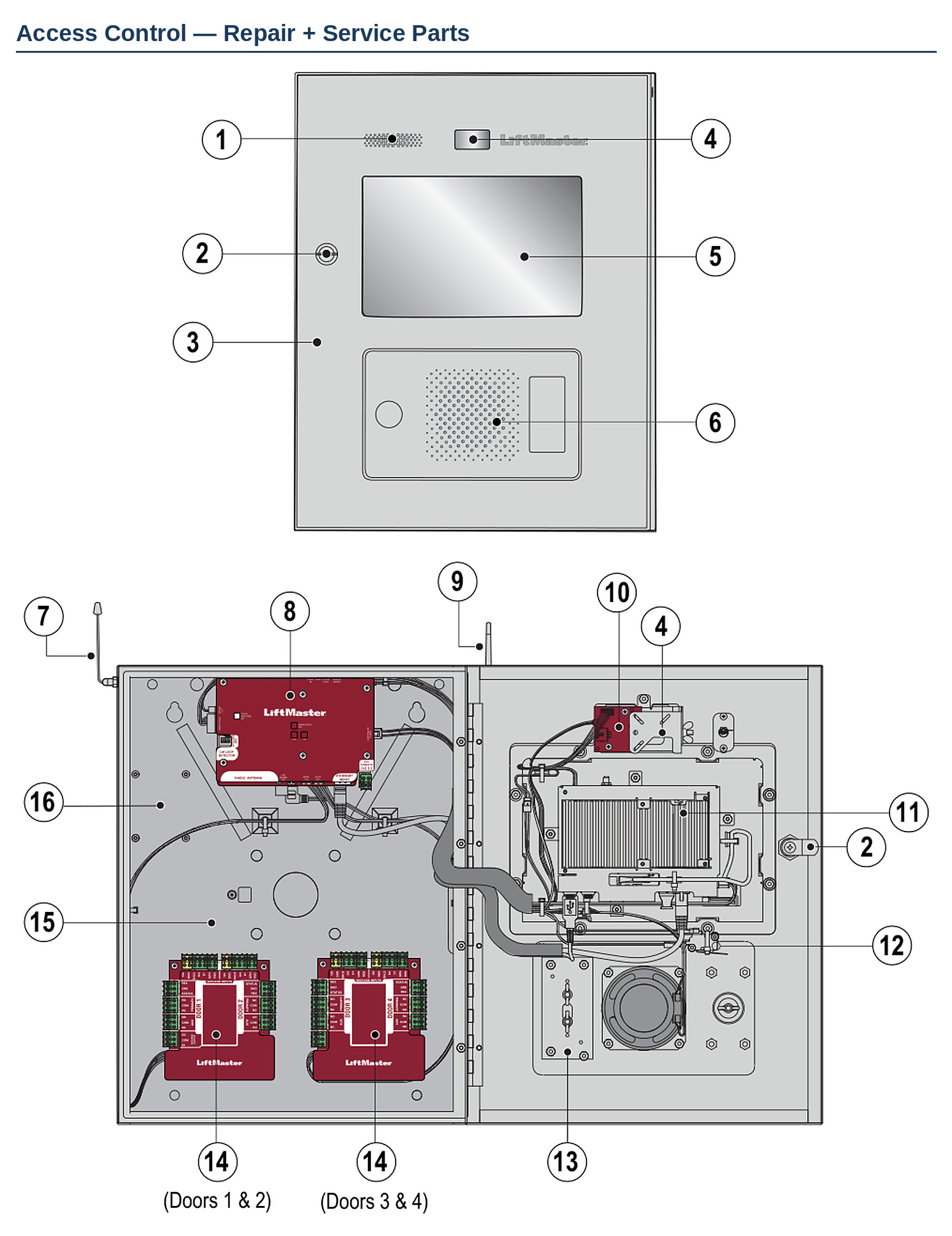

Genuine LiftMaster replacement parts for the CAPXL and CAPXLV Connected Access Portals — the touchscreen entry system with built-in video, Wi-Fi and up to four door controllers. Use the exploded diagram above to find the key number for the part you need, then click any part number in the tables below.
CAPXL or CAPXLV? The camera window differs. The video-equipped CAPXLV takes K41-0110-000; the standard CAPXL takes K41-38476. Everything else on this page fits both.
Faceplate with or without the display? K41-0117-000 is the faceplate with the display already fitted. K76-38327 and K41-0104-000 are faceplate kits without it, and K41-0103-000 is the touchscreen on its own.
Four boards, four jobs. The control board (K41-0112-000) runs the portal, the power/internet board (K001D8439MC) handles supply and networking, the sensor board (K001D8592) reads the front panel, and each pair of doors takes its own door board (K001D8478).
Adding video to a non-video unit? CAPXLCAM is the retrofit camera kit.
Common CAPXL Faults
| Symptom | Usual cause | Parts to check |
|---|---|---|
| Unit dead, no display or lights | Power supply or internal wiring | K002A1978 power supply, K94-38407 wiring kit |
| Screen blank but unit powered | Touchscreen or sensor board | K41-0103-000 touchscreen, K001D8592 sensor board |
| Visitor cannot be heard or heard poorly | Mic cable or speaker | 041B0692 mic cable, K002B1910 speaker |
| Video image cloudy, blurred or wet | Camera window or gasket | K41-38476 or K41-0110-000 camera window and gasket |
| Offline or dropping off the network | Wi-Fi antenna or power/internet board | K76-38957 Wi-Fi antenna, K001D8439MC board |
| Remotes not working | Radio antenna kit | K76-38958 radio antenna kit |
| One door relay not firing, others fine | Door board for that pair | K001D8478 door board and covers |
| Postal lock not releasing | Postal lock switch | K041B0996-1 postal lock switch |
Access Portal Repair & Service Parts
| Ref | Part # | Description |
|---|---|---|
| 1 | 041B0692 | Mic Cable |
| 2 | K002B0799-3 | Cam and Lock Kit |
| 3 | K41-0117-000 | Faceplate with Display, CAPXL |
| 3 | K76-38327 | Faceplate Kit, CAPXL |
| 4 | K41-0110-000 | Camera Window and Gasket — CAPXLV |
| 4 | K41-38476 | Camera Window and Gasket — CAPXL |
| 5 | K41-0104-000 | Faceplate Kit, CAPXL |
| 5 | K41-0103-000 | Touchscreen Display, CAPXL |
| 6 | K002B1910 | Speaker, CAPXL |
| 7 | K76-38958 | Radio Antenna Kit |
| 8 | K001D8439MC | Power / Internet Board, CAPXL |
| 9 | K76-38957 | Wi-Fi Antenna Kit |
| 10 | K001D8592 | Sensor Board, CAPXL |
| 11 | K41-0112-000 | Control Board, CAPXL |
| 12 | K041B0996-1 | Postal Lock Switch, CAPXL |
| 13 | K012B1067 | Reader Mounting Plate, CAPXL |
| 14 | K001D8478 | Door Board and Covers |
| 15 | K75-38330 | Rear Housing Assembly, CAPXL |
Parts Not Shown in Diagram
| Ref | Part # | Description |
|---|---|---|
| — | CAPXLCAM | Video Camera Kit, CAPXL |
| — | K002A1978 | Power Supply |
| — | K94-38407 | Wiring Kit, CAPXL |
Accessories
| Ref | Part # | Description |
|---|---|---|
| — | LMMC-MINI | Multi-Class SE RP10 Mini Mullion Reader |
| — | CAP2D | Connected Access Portal 2-Door Controller |
| — | CAPXLTK | Trim Kit and Back Kit |
| — | LMSC1000 | RFID Long-Range Reader |
| — | KPR2000 | Wired Keypad and Proximity Reader |
| — | PED42 | 42" Pad-Mount Pedestal |
| — | PED72 | 72" Pad-Mount Pedestal |
| — | PED4272 | 42"/72" Dual Height Pad-Mount Pedestal |
