Sliding Gate Hardware — Wheels, Rollers, Chain and Catches

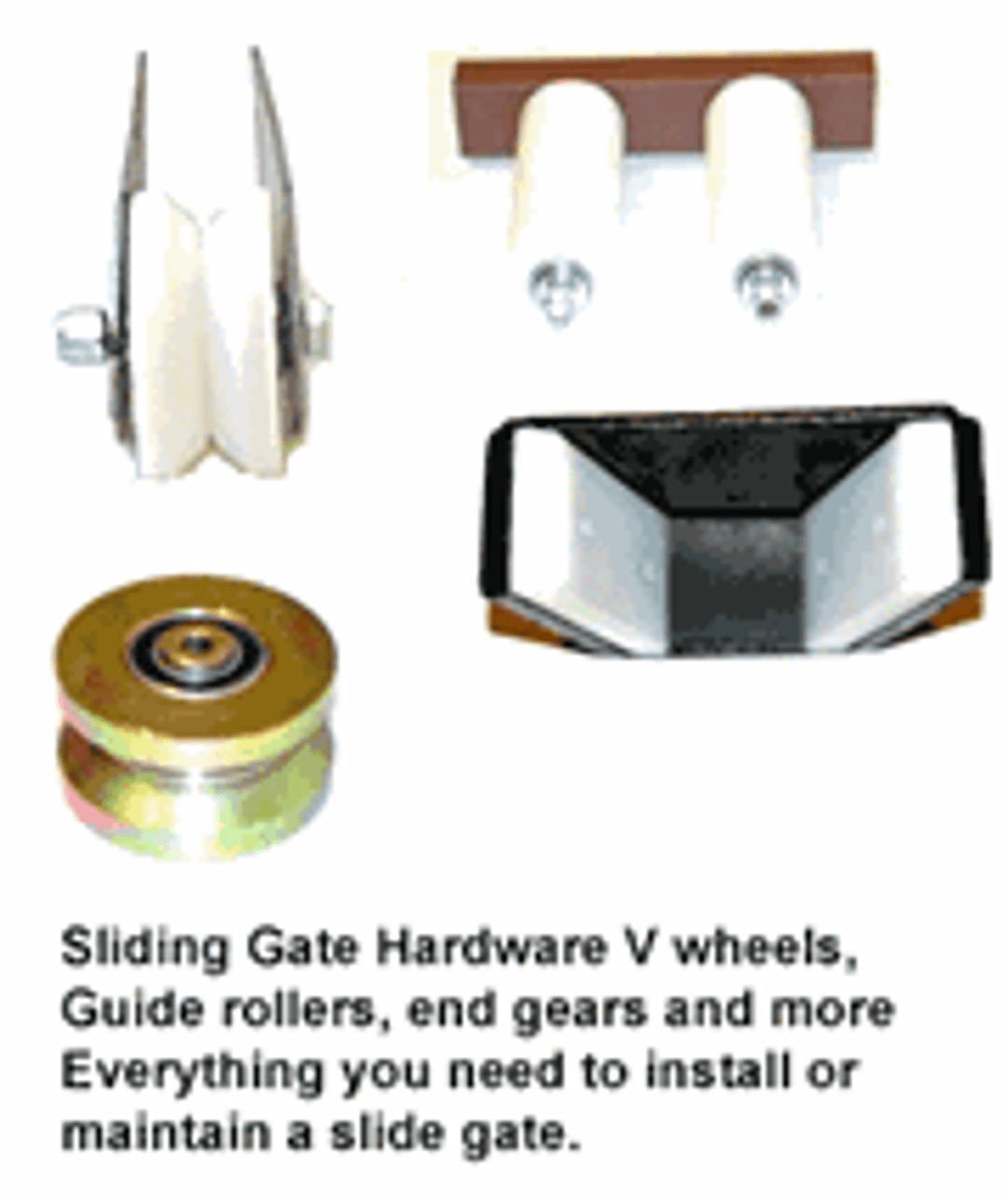

Replacement hardware for sliding, rolling and roller gates — the wheels the gate rides on, the guide rollers that keep it upright, the catch it lands in, and the roller chain that drives it. Everything below is stocked and sized. If you are replacing one worn part, match the size you have; if you are building or rehanging a gate, work down the list in order.
The Parts of a Sliding Gate, and What Each One Is Called
Most sliding gate problems come down to five components. Knowing the right name for each makes the part far easier to find.
| Part | Also called | What it does |
|---|---|---|
| V-groove wheel | V-wheel, gate wheel, roller wheel | Carries the weight of the gate and rides in the V of the track. Two or four per gate. |
| Track | rail, V-track, pipe track | The steel the wheels run on. V-groove wheels run on inverted angle iron; pipe track wheels run on round schedule 40 pipe. Track is normally cut and welded on site, not bought as a kit. |
| Guide roller | guide post roller, gate guide | Mounted on a post either side of the gate. Stops the gate leaning off the track. Usually fitted in pairs. |
| Gate catch | end catch, gate catcher, end stop | Receives the leading edge of the gate at the closed position and takes the side load off the wheels. |
| Drive chain | roller chain, gate chain | Runs from the operator sprocket to a chain bolt at each end of the gate. Sized by pitch — #40 and #41 are the common ones. |
| Chain bolt | chain bracket, chain anchor | Bolts through the gate frame and anchors each end of the drive chain. |
V-Groove Wheels
Match the wheel diameter to the one you are replacing, and the material to the load. UHMW polyurethane runs quieter and will not rust; steel carries more weight and lasts longer on heavily used commercial gates.
| Part Number | Description | Size |
|---|---|---|

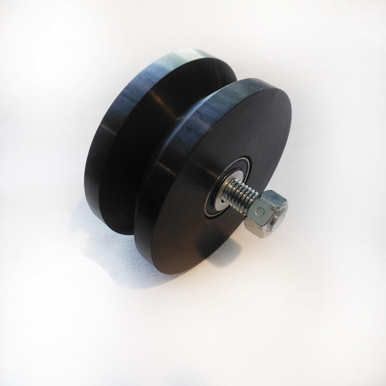

| 1201-006 | UHMW V-wheel with bearings | 4 in. |
| 1201-004 | UHMW sleeve bearing wheel, 500 lb max | 4 in. |
| 1201-000 | Steel V-wheel with bearings | 6 in. |

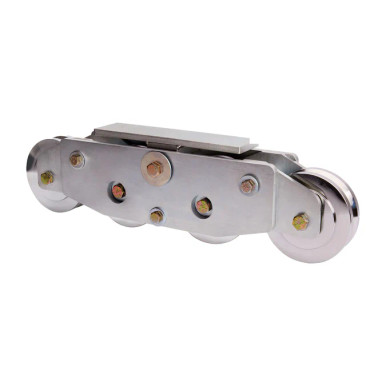

| 1201-250 | DoorKing heavy-duty quad V-wheel assembly | 6 in. |
| AH107 | Elite power V-wheel, pair | 4 in. |
| AH108 | Elite power V-wheel, single | 4 in. |
| AH110 | Elite power wheel | 6 in. |
| vwmp | V-wheel mounting plates, pair | — |
| pwrptw | Pipe track wheel assembly — for round pipe track, not V-track | 5 in. |
Wheels come as the wheel, or as an assembly. A bare wheel replaces a worn roller on an axle you already have. An assembly includes the axle and mounting plates and is what you want if the bracket is rusted through or you are hanging a new gate.
Guide Rollers
Fitted to the posts either side of the gate to keep it vertical. Choose the length by how far the roller has to reach the gate frame, and the colour to suit the gate. Order in pairs.
| Part Number | Description | Length |
|---|---|---|

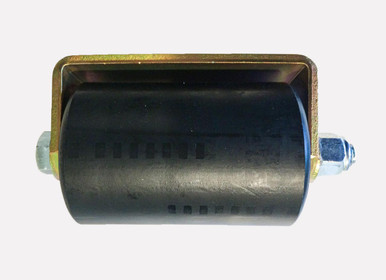

| 800-83-30 | Ramset guide roller, black | 4 in. |

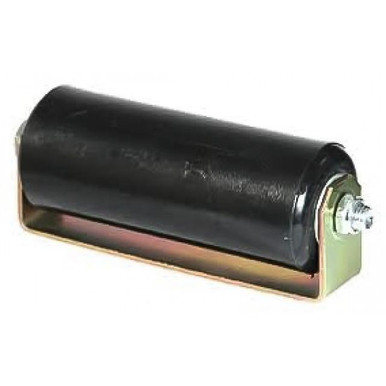

| 800-83-35 | Ramset guide roller, black | 6 in. |

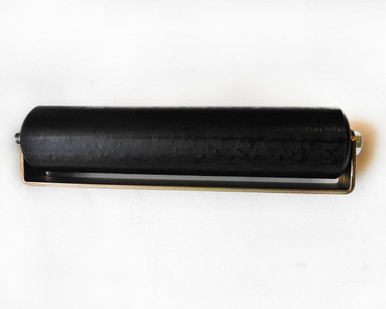

| 800-83-40 | Ramset guide roller, black | 12 in. |

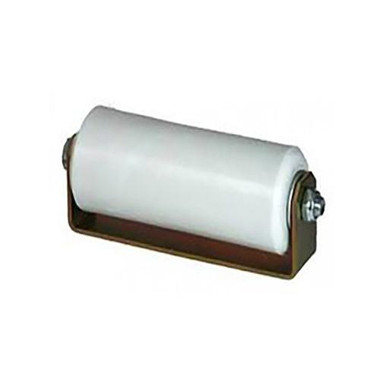

| 800-83-31 | Ramset guide roller, white | 4 in. |

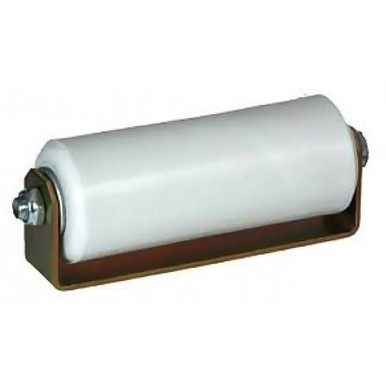

| 800-83-36 | Ramset guide roller, white | 6 in. |

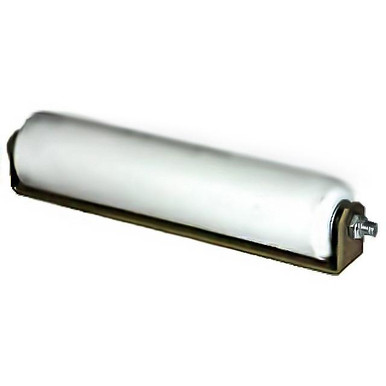

| 800-83-41 | Ramset guide roller, white | 12 in. |
Gate Catch and Safety Signage
| Part Number | Description |
|---|---|
| GC | Gate catch — end catch for the closed position |
| Caution Sign | Warning sign for slide gates — required by UL 325 |

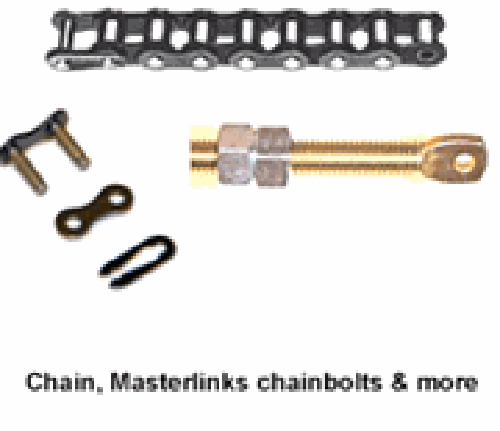

Drive Chain and Master Links
Match the chain pitch to your operator's sprocket. Nickel plated resists corrosion in wet or coastal installs; stainless is for the harshest sites. Every chain run needs a master link to join it, and a chain bolt at each end of the gate.
| Size | Chain | Master Link |
|---|---|---|
| #25 | Chain 25 — 2 ft section | Masterlink 25 |
| #35 | RC-#35/10FT — 10 ft, 2 free links | — |
| #40 carbon | Chain 40 | Masterlink 40 |
| #40 nickel plated | RC-#40NP/10FT — 10 ft | Masterlink 40 |
| #40 stainless | RC-#40SS/10FT — 10 ft | X-40SS-ML |
| #41 carbon | Chain 41 | Masterlink 41 |
| #41 nickel plated | RC-#41NP/10FT — 10 ft | Masterlink 41 |
| #41 stainless | — | X-41SS-ML |
| #65 (aka #48) | Chain 65 | Masterlink 48 or 65 |
Chain Bolts and Tools
| Part Number | Description |
|---|---|
| 007-001 | Chain bolt, 3/8 in. |
| Q003 | Chain bolt, 1/2 in. (K07-50637) |

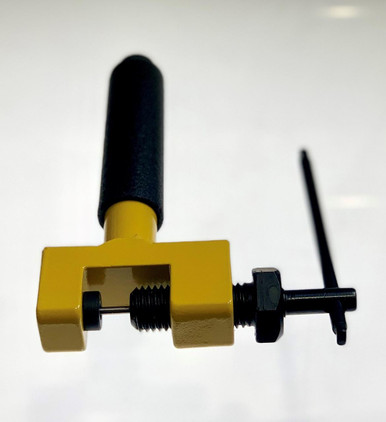

| T DCB3 | Denco chain breaker tool — for cutting chain to length |
Common Sliding Gate Problems and the Parts That Fix Them
| Symptom | Usual cause | Parts |
|---|---|---|
| Gate grinds, judders or drags along the track | Worn or seized V-wheel bearings | 4 in. 1201-006 or 6 in. 1201-000 |
| Gate leans away from the posts as it travels | Guide rollers worn or missing | 800-83-35 or the length that reaches your frame |
| Gate overshoots or slams at the closed position | No end catch, or a broken one | GC gate catch |
| Operator runs but the gate does not move | Chain stretched, broken or off the sprocket | Chain in your pitch, plus the matching master link |
| Chain keeps coming loose at the gate | Chain bolt pulled or bent | 007-001 3/8 in. or Q003 1/2 in. |
| Chain rusting through within a season | Carbon steel chain in a wet or coastal site | Nickel plated or stainless chain |
