Pedestrian Door Hardware

Pedestrian Gate Hardware — Closers, Keyless Locks, Lock Boxes and Panic Bars

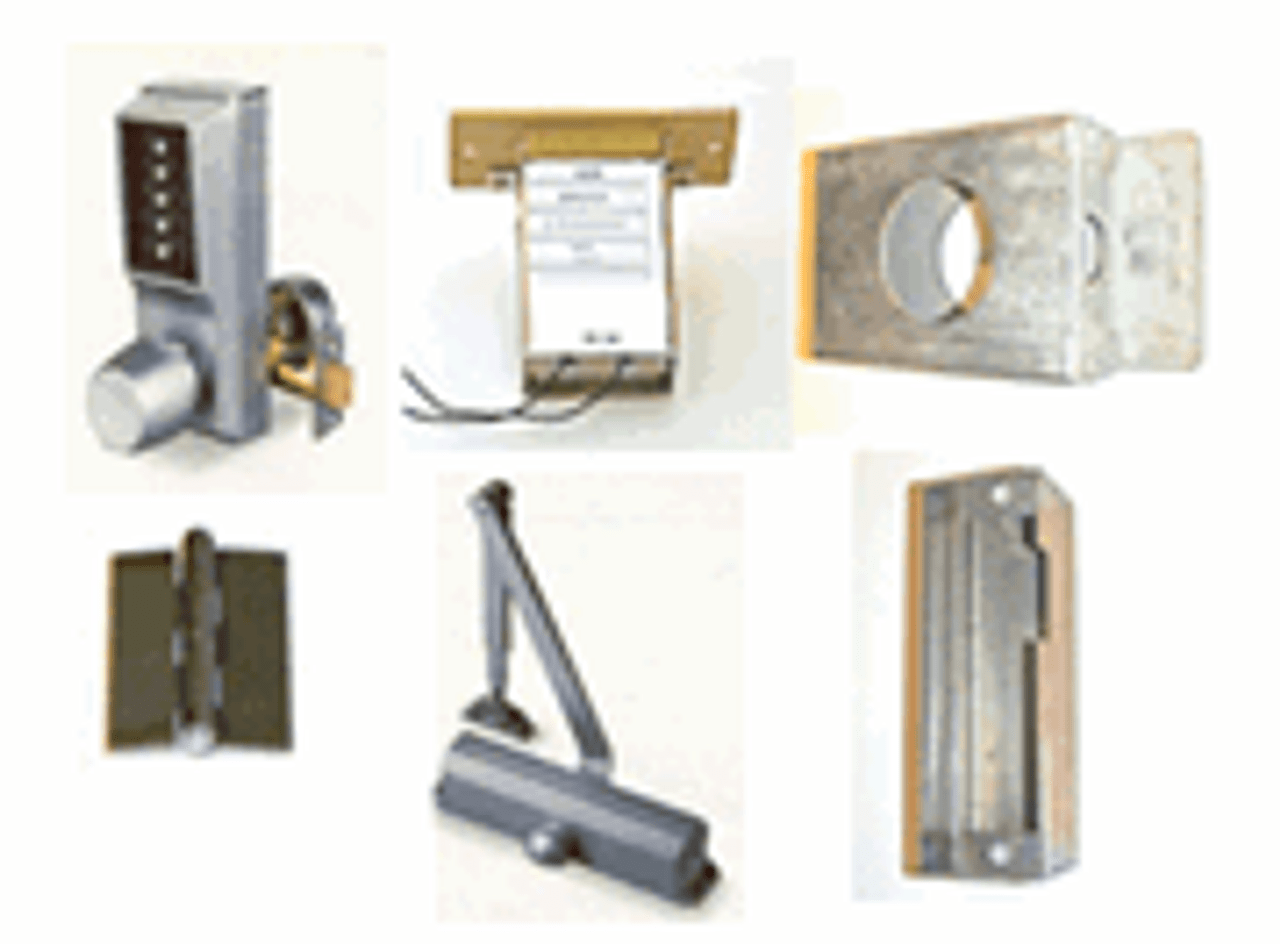

Hardware for walk gates and steel pedestrian doors: hydraulic closers that shut the gate every time, mechanical keyless locks that need no wiring, weld-on lock boxes for standard knobs, levers and deadbolts, electric strike boxes, and panic exit devices for emergency egress. Work down the page in the order a gate is built — closer, lock, box, strike.

Match the lock box to the lock before you order. A weld-on box is drilled for one backset and one hole pattern. Standard residential knobs and deadbolts use a 2-1/8 in. hole; Lockey and Codelocks mechanical locks, mortise locks and panic trims each need their own box, listed with the lock below.

Hydraulic Gate Closers

A closer pushes the gate shut at a controlled speed so it latches without slamming. Choose by gate weight and width. Hinge-closers replace one hinge and close the gate in the same unit.

Part Number Description Gate weight / width
LKTB100 Lockey TB100 Turtle Back closer, adjustable speed, black 125 lb / 54 in.
LKTB175-WHT Lockey TB175 flush mount closer, hold open, white 125 lb
LKTB200 Lockey TB200 pedestrian gate closer, black 50-125 lb / 36-52 in.
LKTB400 Lockey TB400 pedestrian gate closer, black 75-175 lb / 40-64 in.
LKTB600 Lockey TB600 pedestrian gate closer, black 150-250 lb / 44-72 in.
LKTB250PLUS Lockey TB250+ adjustable speed closer, PVC coated to 125 lb
LKTB450PLUS Lockey TB450+ adjustable speed closer, PVC coated 75-175 lb
LKTB950 Lockey TB950 heavy duty closer and hinge in one 250 lb / 48 in.
LKTB950-180 Lockey 180 degree adapter for TB950 —
INTSWINGER300 International Swinger 300 heavy duty hydraulic closer and hinge 300 lb / 48 in.
75057124M D&D SureClose 57 self-closing hinge, center mount 125 lb
75057224M D&D SureClose 57 self-closing hinge, flush mount 125 lb
75108124M D&D SureClose 108 self-closing hinge with final snap, center mount 238 lb
75108224M D&D SureClose 108 self-closing hinge with final snap, flush mount 238 lb
CR441DU Cal-Royal 441 Grade 1 surface door closer, ADA, size 1-6, dark bronze 30-260 lb doors
GIBC16-BLK Gibraltar KC16HD spring door closer, UL listed, black 150 lb
852 International 852 hydraulic door closer, light duty —
853 International 853 hydraulic door closer, medium duty —
855 International 855 hydraulic door closer, heavy duty —
KS Kant-Slam hydraulic door closer —

Locinox closers and hinge-closers (Lion, Tiger, Mammoth, Verticlose, Samson) are listed in this category as well — use the product filter or search by model.

Lockey Mechanical Keyless Gate Locks

Push-button combination locks with no batteries or wiring. Single sided (SC) has a code outside and a free handle inside; double sided (DC) needs the code on both sides. MG is the marine grade silver finish, JB jet black, OB oil rubbed bronze.

Part Number Description Gate box
LK2835-MG 2835 lever lock, single sided, marine grade JSBOXLK2800 or K-BXDIG23-AL
LK2835-JB 2835 lever lock, single sided, jet black JSBOXLK2800
LK2835-OB 2835 lever lock, single sided, oil rubbed bronze JSBOXLK2800
LK2835DC-MG 2835DC lever lock, double sided, marine grade JSBOXLK2800
LK2835DC-JB 2835DC lever lock, double sided, jet black JSBOXLK2800
LK2835DC-OB 2835DC lever lock, double sided, oil rubbed bronze JSBOXLK2800
LK2830-MG 2830 knob lock, single sided, marine grade JSBOXLK2800
LK2830DC-MG 2830DC knob lock, double sided, marine grade JSBOXLK2800
LK1150-MG 1150 heavy duty lever lock, single sided, marine grade K-BXDIG-1150
LK1150-JB 1150 heavy duty lever lock, single sided, jet black K-BXDIG-1150
LK1150DC-MG 1150DC heavy duty lever lock, double sided, marine grade K-BXDIG-1150
LK1150DC-JB 1150DC heavy duty lever lock, double sided, jet black K-BXDIG-1150
LK2900-MG 2900 narrow stile deadbolt, single sided LKGB900
LK2900DC-MG 2900DC narrow stile deadbolt, double sided LKGB900
LK2950-MG 2950 narrow stile hook bolt (sliding gates), single sided LKGB900
LK2950DC-MG 2950DC narrow stile hook bolt, double sided LKGB900
LK2930-MG 2930 narrow stile latch bolt with knob, single sided LKGB900-AL
LK2930DC-MG 2930DC narrow stile latch bolt with knob, double sided LKGB900-AL
LK2985-MG 2985 narrow stile latch bolt with lever, single sided LKGB900-AL
LK2985DC-MG 2985DC narrow stile latch bolt with lever, double sided LKGB900-AL
CL610-BS Codelocks CL610 heavy duty mechanical lock with key override K-BXCL500

Lockey parts and accessories

Part Number Description
LK2835LATCH Replacement latch for 2835 series, 2-3/8 to 2-3/4 in. backset
LK2835EXTKIT 2835 extension kit for doors up to 5 in. thick
LK1150EXTKIT 1150 extension kit for doors up to 5 in. thick
LK2835LEVER-MG Replacement lever for 2800 series, marine grade
LK28KNOB-MG Replacement knob for 2800 series, marine grade
LKTPS Torx tamper proof screw kit, single sided 2800 series
LKTPS-DC Torx tamper proof screw kit, double sided 2800 series

Deadbolts and Deadlatches for Gate Lock Boxes

Standard 2-1/8 in. hole locks that drop into a single or double hole weld-on box. A deadlatch locks itself every time the gate closes; a deadbolt is thrown by key or thumb turn.

Part Number Description
KW665X26D Kwikset 665 double cylinder deadbolt, satin chrome
KW665X11P Kwikset 665 double cylinder deadbolt, venetian bronze
KW665X5 Kwikset 665 double cylinder deadbolt, antique brass
KW660X11P Kwikset 660 single cylinder deadbolt, venetian bronze
KW660X5 Kwikset 660 single cylinder deadbolt, antique brass
CRLSD01X10B Cal-Royal LSD01 single cylinder deadbolt, adjustable backset, oil rubbed bronze
CRLSDD88X10B Cal-Royal LSDD88 double cylinder deadbolt, adjustable backset, oil rubbed bronze
CRGL220X10B Cal-Royal GL220 single cylinder deadlatch, 2-3/8 in. backset, oil rubbed bronze
CRGL330X10B Cal-Royal GL330 double cylinder deadlatch, 2-3/8 in. backset, oil rubbed bronze
CRGL234X3 Cal-Royal 2-3/4 in. backset latch for GL220 and GL330
JSLH106TSCH Hook bolt lock for sliding gates, single cylinder with thumb turn, Schlage C keyway

Weld-On Lock Boxes

Economy Jansen boxes for standard knobs and deadbolts; Keedex boxes for specific lever, mortise, keypad and exit-device locks. Width is the gate frame tube width the box is made for.

Part Number Description Fits
JSLH102STD Economy single hole box, 1-5/8 in. wide Knob or deadbolt, 2-1/8 in. hole
JSLH102SL Economy single hole box, 1 in. wide (slim) Knob or deadbolt
JSLH1021 Economy single hole box, 1-1/4 in. wide Knob or deadbolt
LH102SL Heavy duty single hole box, 1-3/16 in. wide Knob or deadbolt
LH275 Heavy duty single hole box, 2-3/4 in. backset Knob or deadbolt
JSLH103STD Economy double hole box, 1-5/8 in. wide Knob plus deadbolt
JSLH103SL Economy double hole box, 1 in. wide (slim) Knob plus deadbolt
JSLH1031 Economy double hole box, 1-1/4 in. wide Knob plus deadbolt
K-BXSGL234-2W Keedex single hole box, 2 in. wide, 2-3/4 in. backset Knob or lever
K-BXSGL234-AL Keedex single hole box, aluminum Knob or lever, aluminum gates
K-BXDBL234 Keedex double hole box, 1-3/4 in. wide Lever plus deadbolt
K-BXDBL234-2W Keedex double hole box, 2 in. wide Lever plus deadbolt
K-BXRHO Keedex Rhodes lever box, 1-3/4 in. wide Schlage Rhodes and large-rose levers
K-BXRHO-2W Keedex Rhodes lever box, 2 in. wide Schlage Rhodes and large-rose levers
K-BXMOR1 Keedex mortise box, 1-3/4 in. wide Schlage L series mortise
K-BXMOR1-2 Keedex mortise box, 2 in. wide Schlage L series mortise
K-BXSIM-EE Keedex box, steel Kaba Simplex EE1000
K-BXSIM-AL Keedex box, aluminum Simplex 5000
K-BXCL500 Keedex box, steel Codelocks 500/600/610
K-BXDIG-1150 Keedex box, steel Lockey 1150
K-BXDIG23-AL Keedex box, aluminum Lockey 2835, Codelocks 410/415
JSBOXLK2800 Jansen economy box, steel Lockey 2800/2835, Codelocks 400
LKGB900 Lockey steel gate box Lockey 2900/2950
LKGB900-AL Lockey aluminum gate box Lockey 2930/2985
LKGB2900-LINX Lockey stainless chain link box Lockey 2900/2985 on chain link
K-BX458175 Keedex blank box 8 x 4-1/2 in., drill to suit Cal-Royal 2200 panic trim
K-BX515175 Keedex blank box 15 x 5 in., drill to suit Cal-Royal 9800 panic trim
K-GRD-LVR Keedex weld-on lever guard Any lever lock

Electric Strike Boxes and Strike Plates

Part Number Description
ELBX Weld-on box for Trine 005 and S-005 strikes
7140BOX Weld-on box for Adams Rite 7140 strike
K-BXES3A Keedex strike box for Adams Rite 7100/7140 and HES 5000
K-BXES-EN400 Keedex strike box for Trine EN400
K-BXSTR Keedex weldable bracket for large ANSI strike
STRIKE Steel strike plate 7 x 1 in. for deadbolts and latches

The strikes themselves are under Electric Gate Locks & Maglocks.

Panic Exit Devices and Trims

Grade 1 rim panic bars for gates that are a required exit. The bar is exit-only; add an outside trim for keyed or keyless entry, a Lockey panic shield to close the reach-through gap, and the matching Keedex blank box to mount the trim.

Part Number Description
CR2220EO48AL Cal-Royal 2220 panic exit device, 48 in., aluminum
CR9800EO3632D Cal-Royal 9800 heavy duty panic exit device, 36 in., stainless
CR9820EO4832D Cal-Royal 9820 heavy duty panic exit device, 48 in., stainless
CR2200NLAL Outside pull trim with cylinder for 2200 and 9800 series
CR9800NLX32D Outside pull trim with cylinder for 9800 series
CRENT00LX26D Entrance lever trim for 2200 series
CRSTR05LX26D Storeroom lever trim for 2200 and 9800 series
CRNESC9800X26D Entrance escutcheon lever trim for 9800 series
CRNESC9805X26D Storeroom escutcheon lever trim for 9800 series
LK285P-MG Lockey 285P keyless passage lever trim for 2200 series
LK115P-MG Lockey 115P heavy duty keyless lever trim for 9800 series
CL5000PK-BS Codelocks CL5000PK electronic keypad trim for 9800 series
LKPS-24-S Lockey PS-24 panic shield, 28-54 in. gates, silver
LKPS-24-B Lockey PS-24 panic shield, 28-54 in. gates, black
LKPS-SB-S Lockey panic bar strike bracket, silver
LKPS-SB-B Lockey panic bar strike bracket, black
CRMF6341X26D Cal-Royal lever extension flush bolt, 12 in.

The Cal-Royal 2200 36 in. panic bar (2200EO36) is available by quote — call (866) 965-5599.

Related Parts

Hinges are under Swing Gate Hinges; latches, cane bolts and gate springs under Gate Latches & Cane Bolts; electric strikes, maglocks and exit buttons under Electric Gate Locks & Maglocks; strike transformers under Transformers.

!
