DoorKing Phone Entry System Replacement Parts
Genuine DoorKing replacement parts for every 1800 series telephone entry system — circuit boards, keypads, LCD displays, memory chips, faceplates, speakers and microphones. Pick your model below and you will get the factory parts breakdown for that unit, with every part number linked.
Not sure which model you have? Open the panel and read the number printed on the main circuit board, or check the model number on the label inside the door. If the board reads 1871-010, 1971-010 or 1970-010 you have an 1812. If it reads 1834-010, 1835-010 or 1837-010 you have the matching commercial unit. Call us with the board number and we will point you at the right page.
Which DoorKing Phone Entry System Do You Have?
The quickest way to tell the 1800 series apart is the display. Everything else — the keypad, the speaker, the microphone board, the lock — is shared across most of the range.
| Model | What It Is | Display | Main Board |
|---|---|---|---|

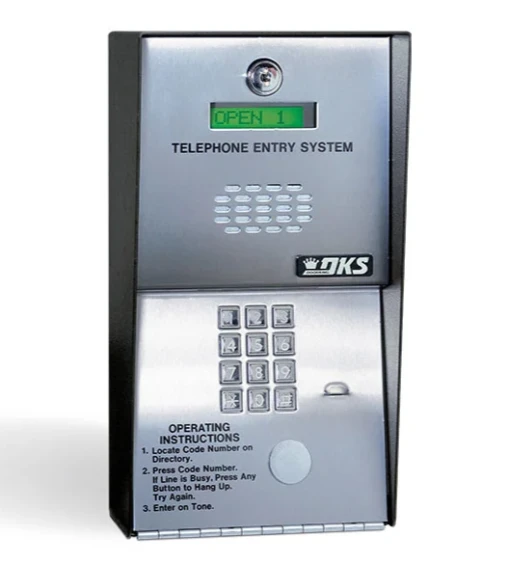

| 1802 | Surface mount, hands free, electronic directory | 16 x 1 (1902-010) | 1862-010 |

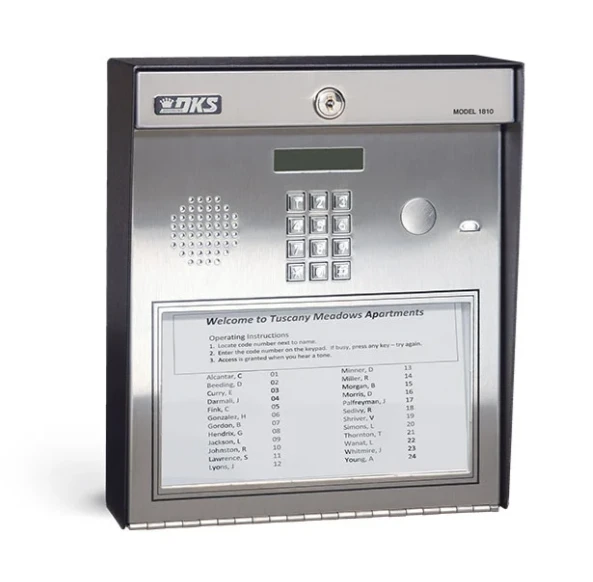

| 1810 | Surface mount, 1000 number directory | 8 character (1890-010) | 1862-010 |

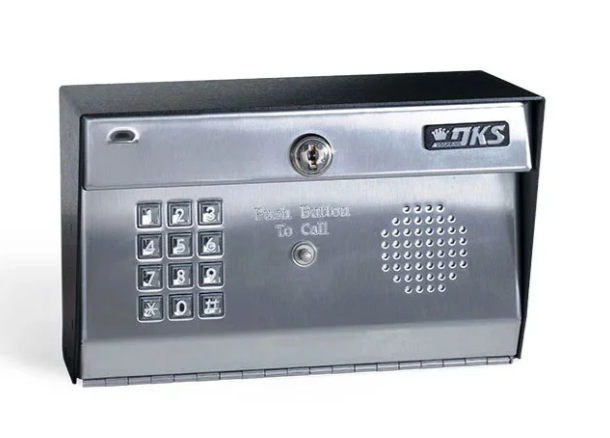

| 1812 | Residential, Classic / Plus / Access Plus, surface or curved | None | 1871-010, 1971-010 or 1970-010 |

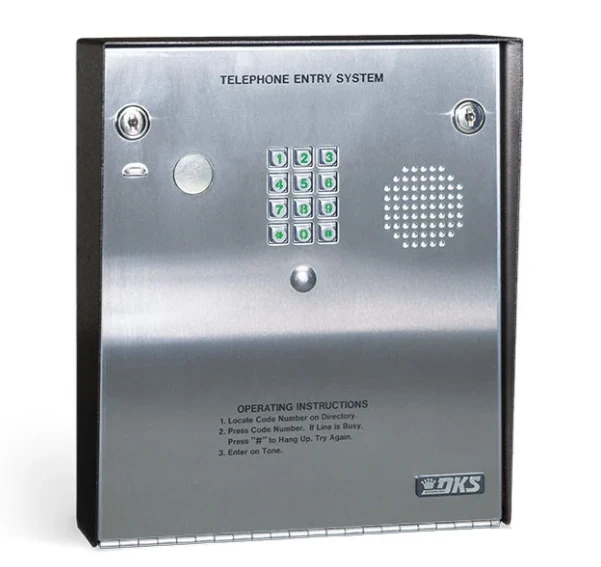

| 1833 | Commercial, modem programmable, no display | None | 1833-010 |

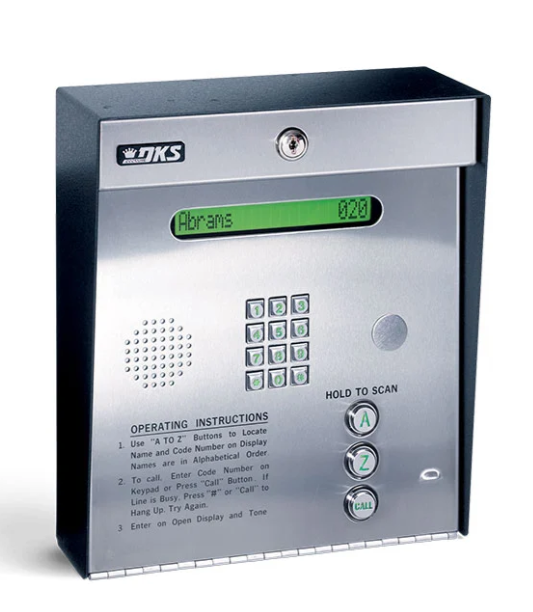

| 1834 | Commercial, 3000 name electronic directory | Single line (1891-010) | 1834-010 or 1834-009 |

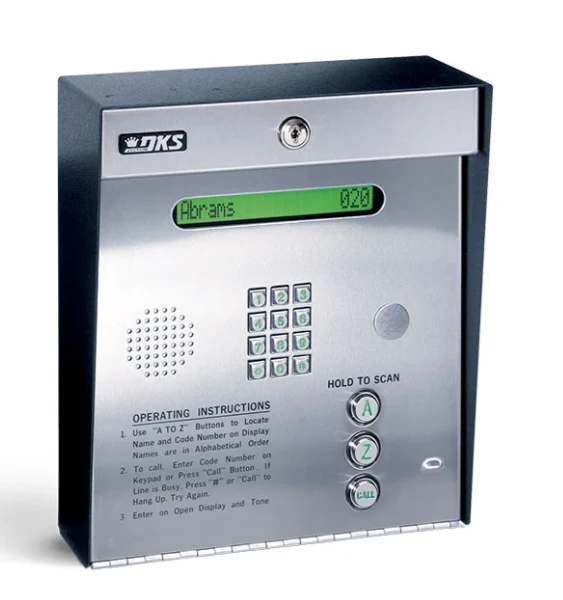

| 1835 | Commercial, single line directory | Single line (1891-010) | 1835-010 |

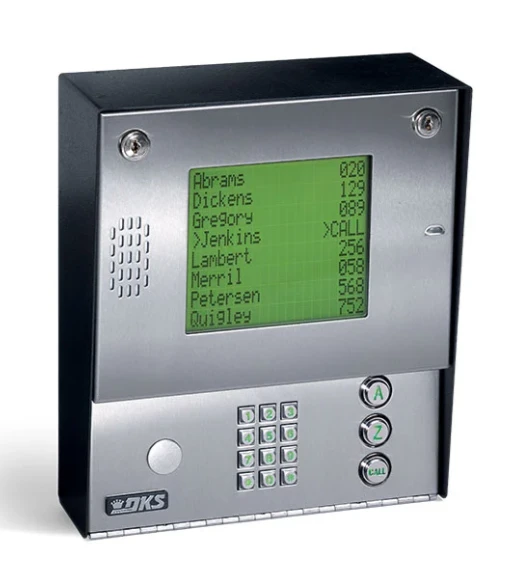

| 1837 | Commercial flagship, eight line directory | 8 line (1896-012) | 1837-010 |

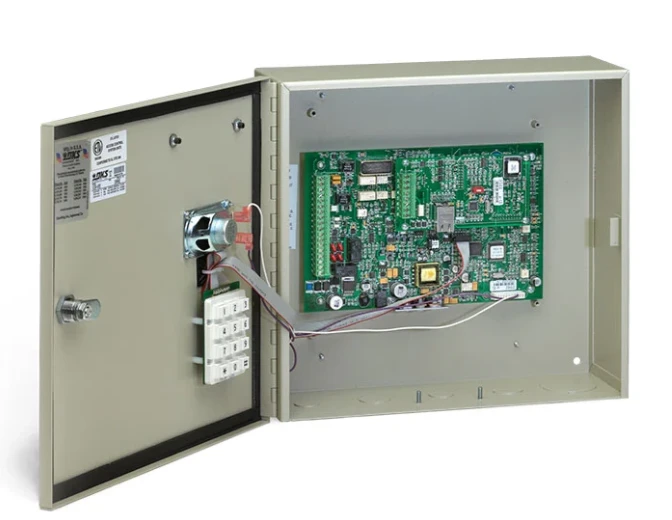

| 1838 | Multi-door access controller — not a telephone entry panel | None | 1838-010 or 1970-010 |
Common DoorKing Phone Entry Repairs
Most service calls on an 1800 series panel come down to one of a handful of parts, and they are the same parts across nearly every model.
- Panel completely dead — check the transformer before condemning the board. The 1833, 1834, 1835, 1837 and the 1838-081 all run two transformers, so test both. The 1837 pairs a 40 VA with a 20 VA.
- Visitor cannot be heard — the 1998-010 microphone board, fitted to almost the entire range, plus its 1897-053 gasket.
- Resident cannot be heard — the speaker. The 1804-290 square speaker on the 1833, 1834 and 1835; the 1817-190 oval on the 1802, 1837 and 1838.
- Display blank or garbled — on the 1837 check the 1892-010 driver board before the 1896-012 LCD; the driver is a fraction of the price and DoorKing leaves it off the parts list.
- Resident names lost — the memory chip, not the board. The chip is always a separate purchase: 1810-068, 1810-075, 1834-157, 1835-147 or 1830-404 depending on the model.
- Keypad worn or vandalised — the 1895-017 numeric keypad covers most of the range. The older alphanumeric 1895-016 has been discontinued; call us and we will confirm the current retrofit.
- Water inside the enclosure — 1800-018 weather strip and the 1897-050 support gaskets.
Parts Breakdowns for Every Model
Each model page carries the factory Illustrated Parts Breakdown drawing with every reference number linked straight to the part, so you can identify what you need from the exploded view rather than guessing from a description. Where DoorKing has superseded a part number, or left a part off their own parts list, the pages say so and point at the current item.
