Elite SL 3000 Parts
Elite SL 3000 Replacement Parts

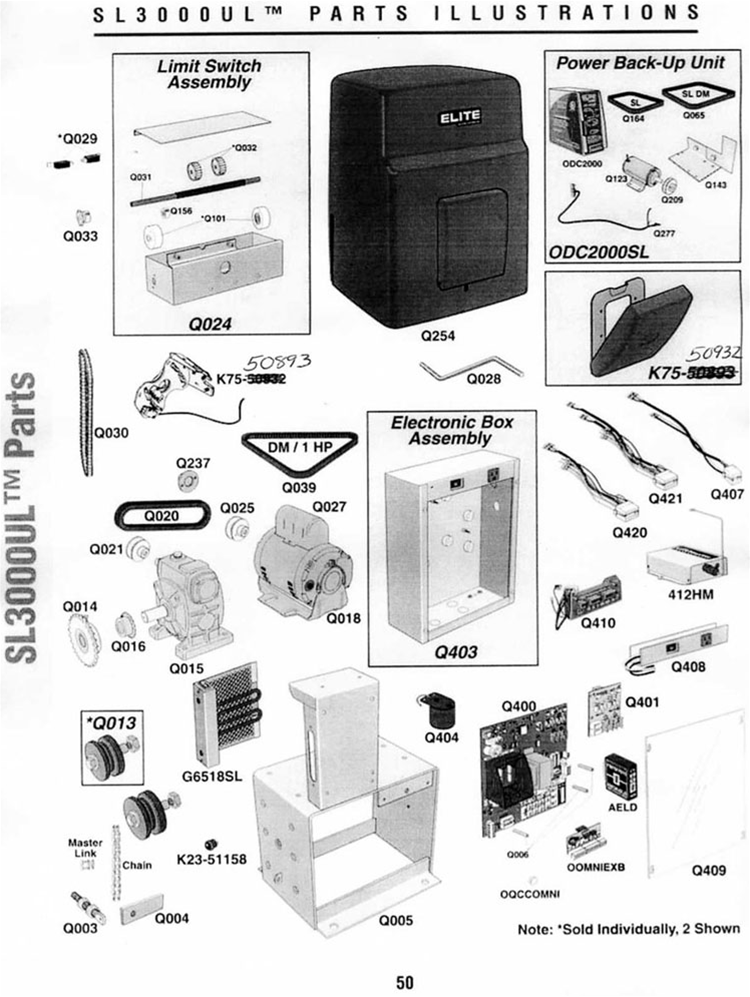

Genuine replacement parts for the Elite SL 3000 commercial slide gate operator. Find your part on the breakdown above, then match the Q number to the tables below. Every part number is a link — click it to see price, stock and full details.
Elite Q numbers are the original part numbers. Elite Access Systems built the SL 3000 before LiftMaster acquired the line, so the diagram is keyed by Q number. After the acquisition most of these same parts were re-labelled with LiftMaster K numbers — both are listed below, and in most cases they are the same part. Order by whichever number is on your old part.
Four different drive belts — check your configuration before ordering. This is the most common wrong order on this operator. Q020 (AX20, 220) is the standard 1/2 HP belt. Q039 (AX32, 340) fits DM and 1 HP units. Q164 (4L370) is for units with DC battery backup. Q065 (4L400) is for DC backup with dual motors.
Omni board or non-UL board? Current units run the Q400 Omni main board. The earlier non-UL Q019 board is discontinued — the Omniup kit is the upgrade path for those operators.
1/2 HP or 1 HP? The motor, belt, board and electronic box all differ by horsepower. Check the motor plate before ordering the Q401 1 HP board or the Q403 1 HP electronic box.
Common Elite SL 3000 Repairs
| Symptom | Usual cause | Parts to check |
|---|---|---|
| Motor runs but gate doesn't move | Slipped or broken drive belt | Q020 / Q039 / Q164 / Q065 belt, Q021 gear pulley, Q025 motor pulley |
| Gate won't stop at the right place | Limit switch out of adjustment or worn | Q029 limit switch, Q032 adjustment nuts, Q024 limit assembly, Q016 sprocket |
| Grinding or howling from the gearbox | Gear reducer wear | Q015 gear reducer, Q209 reducer pulley |
| Motor hums but won't start | Failed start capacitor | Q027 motor capacitor, Q018 motor |
| Chain jumping or slapping | Stretched chain, worn sprocket | Chain #40/#41, Q014 drive sprocket, Q013 idler sprocket, Q003 chain bolt |
| Dead after a lightning storm | Surge damage at the terminal block | Q410 surge suppressor, Q400 Omni board |
| No backup operation in a power cut | Battery or backup motor failure | ABT12 / Yuasa NP7-12 battery, Q123 backup motor |
| Gate creeps or won't hold position | Manual release left engaged | Q028 manual crank, Q237 crank input, K75-50893 interlock kit |
Drive & Mechanical Parts
| Q # | LiftMaster # | Description |
|---|---|---|
| Q003 | K07-50637 | Chain bolt, 1/2 in. |
| Q004 | — | Chain bracket |
| Q005 | K09-50087 | SL3000 chassis (no longer available) |
| Q006 | K80-50044 | PC board nuts, 1 set |
| Q013 | K75-50090 | Idler sprocket assembly |
| Q014 | K15-41B26LGH | Drive sprocket |
| Q015 | K32-50091 | Gear reducer |
| Q016 | K15-35B17LGF | Limit switch drive sprocket |

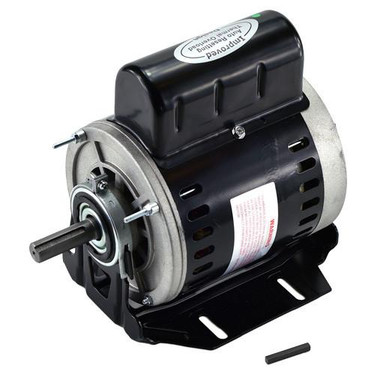

| Q018 | K20-1050B-1RL | Motor, 1/2 HP |
| Q020 | K16-50094 | Drive belt 220 (AX20) — standard 1/2 HP |
| Q021 | K17-50095 | Gear pulley |
| Q024 | K75-50097 | Limit assembly |
| Q025 | K17-50098 | Motor pulley |
| Q027 | K29C-65AU2415 | Motor capacitor |
| Q028 | K07-50303 | Manual crank |
| Q029 | K23-50099 | Limit switch |
| Q030 | K19-35052 | Limit switch chain (no longer available) |
| Q031 | K11-50100 | Limit switch bolt (no longer available) |
| Q032 | K75-50101 | Limit switch adjustment nuts |
| Q033 | K15-35B09AXR | Limit switch sprocket (no longer available) |
| Q039 | K16-50105 | Drive belt 340 (AX32) — DM and 1 HP units |
| Q101 | K75-50156 | Limit switch bearing holder (no longer available) |
| Q108 | K27-50294 | Heater for gear reducer — cold-climate option |
| Q156 | K07-50180 | Collar, 3/8 in. (no longer available) |
| Q151 | K77-50174 | Motor mounting plate |
| Q160 | K71-50183 | Long gate kit (chain and sprocket) (no longer available) |
| Q209 | K17-50223 | Gear reducer pulley |
| Q237 | K75-50242 | Crank input |
| Q254 | K75-51048 | UL cover, HD polyethylene (no longer available) |
| Q523 | K77-50289 | Dual motor service kit |
Omni Control Board & Electronic Box
| Q # | LiftMaster # | Description |
|---|---|---|
| Q019 | — | Control board, non-UL (no longer available — use the Omniup kit) |
| Q400 | Q400E | Omni main circuit board |
| Q400E-1 | — | Omni control board, current revision |
| Q400 MAU | K74-50276 | Maglock relay |
| Q401 | K-001A5872 | Omni 1 HP board |
| Q403 | K74-50278 | Electronic box assembly, 1 HP |
| Q407 | K94-50281 | Omni motor harness, 1 HP |
| Q408 | K74-50282 | Omni switch channel |
| Q409 | K41-50283 | Electronic access panel |
| Q410 | K70-51060 | Surge suppressor terminal block |
| Q420 | K94-50286-1 | Omni motor harness (no longer available) |
| Q421 | K94-50287-1 | Omni motor harness, DM (no longer available) |
| — | OMNIEXB | Omni expansion board |
| — | Omniup | Omni upgrade kit — replaces the discontinued Q019 non-UL board |
| — | QCC-Omni | Quick close circuit (no longer available) |
DC Battery Backup
| Q # | LiftMaster # | Description |
|---|---|---|
| Q065 | K16-50123 | Drive belt 4L400 — DC backup with dual motors |
| Q123 | K20-9012B-1 | Backup motor, DC 12V |
| Q143 | K75-50170 | Battery backup mounting assembly (no longer available) |
| Q164 | K16-50187 | Drive belt 4L370 (AX35) — DC backup |
| Q177 | K94-50196 | Wire harness, DC-1000 (no longer available) |
| Q277 | K94-50262 | Wire harness, DC-2000 (no longer available — DC-1000 units use Q177) |
| — | ABT12 | Replacement battery, 12V 7Ah |
| — | Yuasa NP7-12 | Replacement battery, 12V 7Ah SLA |
| — | DC-1000 | Battery backup unit (no longer available) |
| — | ODC1000 | Battery backup unit (no longer available) |
| — | ODC2000 | Battery backup unit (no longer available) |
Chain, Master Links & Tools
| Part # | Type | Description |
|---|---|---|
| Chain 40 | #40 | Roller chain, carbon steel |
| Chain 41 | #41 | Roller chain, carbon steel |

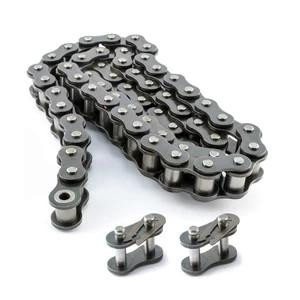

| RC-#35/10FT | #35 | Roller chain, 10 ft, with 2 connecting links |
| RC-#40NP/10FT | #40 | Nickel plated roller chain, 10 ft, anti-corrosion |
| RC-#40SS/10FT | #40 | Stainless steel roller chain, 10 ft |

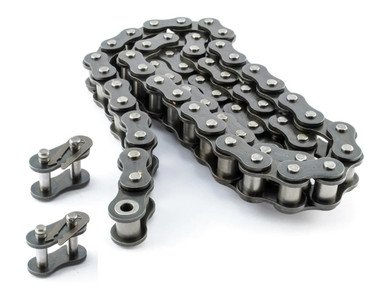

| RC-#41NP/10FT | #41 | Nickel plated roller chain, 10 ft, anti-corrosion |
| Masterlink 40 | #40 | Master link |
| Masterlink 41 | #41 | Master link |

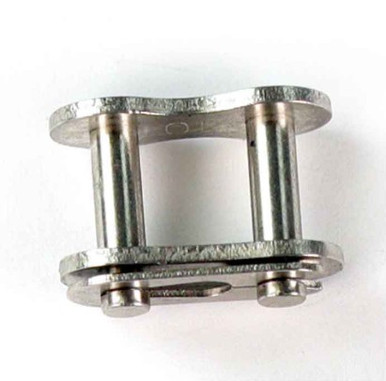

| X-40SS-ML | #40 | Master link, stainless steel |
| X-41SS-ML | #41 | Master link, stainless steel |
| T DCB3 | Tool | Denco chain breaker tool |
Parts Not Shown in Diagram & Accessories
| Part # | Also known as | Description |
|---|---|---|
| 08-50850 | K08-50850 | Interlock bracket kit, cast end cap, safety interlink |
| K75-50893 | — | Crank interlock kit |
| K75-50932 | — | Hand crank pocket (no longer available) |
| K71-33445 | — | Reset switch |
| K23-51158 | — | Reset button assembly (no longer available) |
| 02-51227 | — | Stop / reset switch (no longer available) |
| G6518sl | — | Gearbox heater (no longer available — see Q108) |
| 312HM | G312HM | Coax receiver, 315 MHz |
| AELD | A-ELD | Plug-in loop detector |
| LH | R-57 / EMX-5111-1 | Loop detector wire harness |
| ACP17 | — | Fire access box with cable release (no longer available) |
| Caution Sign | — | Warning sign for slide gates |
Replacing the Operator
If the SL 3000 is beyond economical repair, the LiftMaster SL3000501UL 1/2 HP slide gate operator is the current UL325-compliant successor. Parts for the later LiftMaster units are on our LiftMaster SL3000U / SL3000UL / SL3000501U parts page.
