Elite / LiftMaster OMNIUP Omni Upgrade Kit — the factory route to keep an older Elite SL3000, CSW200 or Hercules (HCT) operator running once its original Q019 control board fails. The Q019 is no longer available and a Q400 board will not drop into a Q019 chassis on its own; the kit supplies the Q400E Omni main board with the Q410 surge suppressor terminal block and reset button so the newer board can be fitted and wired in place of the old one. Limited supply.
Dual gates: upgrade both. A Q400 will not talk master / slave to a Q019. On a paired installation order two kits or one kit plus a Q400 for the second operator. Not for the Robo Slide / Robo Swing (Q206 board) or the Miracle (Q222) — those take their own boards.
Specifications
| Part number | OMNIUP (UPC 012381131884) |
|---|---|

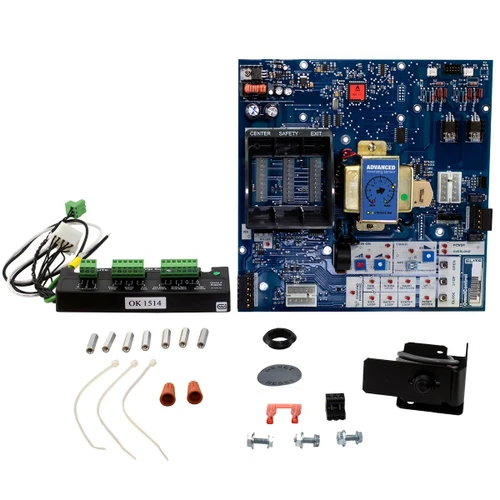

| Kit contents | Q400E Omni main control board, Q410 surge suppressor terminal block, reset button, upgrade instructions |
| Upgrades | Elite SL3000 / SL3000UL slide, CSW200 / CSW200UL swing, HCT Hercules operators originally built with the Q019 (and Q017) Omni board |
| Replaces | Q019 control board — obsolete, no longer made |
| Board features | Omni logic with built-in Security+ receiver, timer-to-close, loop detector plugs, master / slave, optional OMNIEXB expansion board |
| Condition | Genuine, new |
Fits
| Operator | Original board | Upgrade |
|---|---|---|
| Elite SL3000 / SL3000UL | Q019 / Q017 | OMNIUP |
| Elite CSW200 / CSW200UL | Q019 / Q017 | OMNIUP |
| Elite HCT Hercules | Q019 | OMNIUP |
| Elite SL3000 / CSW200 already on a Q400 | Q400 / Q400E | Q400 or Q400E-1 board only — no kit needed |
| Robo Slide / Robo Swing | Q206 | Q206 / K001A5867 — not this kit |
| Miracle | Q222 | Q222 / K001A5868 — not this kit |
Common questions
How do I know which board I have?
Open the control box. Q019 is printed on the old green Omni board; if it already says Q400 or Q400E you only need a replacement board, not the kit.
Do the old loop detectors and photo eyes carry over?
Plug-in loop detectors and 24 V photo eyes re-connect to the Q400. The instruction sheet in the kit maps every terminal from the Q019 to the Q400.
Is programming the same?
No. The Q400 uses the Omni menu and a different timer and limit set-up; allow an hour for the first one. We can talk you through it on the phone.
Related
Q400 board · Q400E-1 board · Q410 surge suppressor · OMNIEXB expansion board · SL3000 parts · CSW200 parts
Send a photo of the board in your control box to parts@gatehousesupplies.com or call 866-965-5599. We would rather confirm it than have you order twice.
