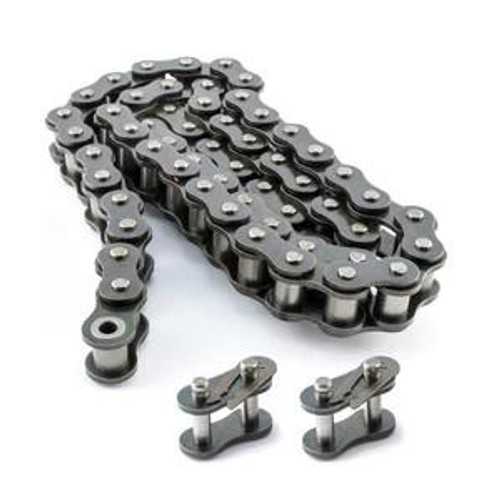

Chain #35 - Drive chain sold in 10' lengths only
#35 Roller Chain x 10 feet
ANSI Chain No.: #35
Length: 10 feet
Pitch (P): 0.375 inch (9.525 mm)
Roller Diameter (d1 max): 0.2 inch (5.08 mm)
Width Between Inner Plates (b1 min): 0.188 inch (4.77 mm)
Pin Diameter (d2 max): 0.141 inch (3.58 mm)
Pin Length (L max): 0.488 inch (12.40 mm)
Pin Length (Lc max): 0.518 inch (13.17 mm)
Inner Plate Depth (h2 max): 0.354 inch (9.0 mm)
Plate Thickness (T max): 0.051 inch (1.30 mm)
Ultimate Tensile Strength (Q min): 7.90/1795 kN/LB
Average Tensile Strength (Qo): 10.8 kN
Weight (q): 0.221749 lb/ft (0.33 kg/m)
