Miller Sensing Edge MGS20

(No reviews yet)
SKU:
MGS20
Availability:
In Stock

Product Price: $168.20
Condition:
New
The Miller Sensing Edge MGS20 is a top-notch safety solution for motorized gates, offering unparalleled protection and peace of mind. With its innovative three-sided activation design, the MGS20 ensures that your gate is safeguarded from all angles, minimizing the risk of accidents or damage.

One of the standout features of the MGS20 is its effortless installation – simply mount it directly to a 2-inch post without the need for a mounting channel. The versatility of the product is evident in its two variants – the MGR20 for round applications and the MGS20 for square applications, both customizable in color, length, and outlet location to suit your specific needs.

Crafted with precision in the USA, the Miller Sensing Edge MGS20 boasts a range of premium features that set it apart from the competition. From its sealed assembly that keeps out dust and debris to the patented Alumaglas™ technology for superior performance, this sensing edge is a reliable choice for any gate system. Moreover, being a UL 325 Recognized Component with a 1-year warranty, you can trust in the quality and longevity of this product.

Whether your gate is a slide or swing type, the MGS20 is designed to provide optimum safety and convenience. Choose the Miller Sensing Edge MGS20 for a robust, dependable, and customizable solution to enhance the security of your motorized gate system.

The MGR20 and MGS20 sensing edges offer three-sided activation for an added measure of protection. They directly mount to a 2 inch post by wrapping around the leading edge of a gate; no mounting channel required. MGR20 is designed for round applications and MGS20 is designed for square applications. Both models are custom manufactured to user specifications for color, length, and outlet location.

APPLICATIONS · Motorized gates- Slide gates- Swing gates

FEATURES · 3-sided activation · Easy to install · Optimum size for 2 inch gate posts · No mounting channel needed · Standard and custom lengths available · Mounts vertically or horizontally · Sealed assembly impervious to dust and debris · Custom manufactured to user specifications  for color, length, and outlet location · Patented Alumaglas™ for superior performance · UL 325 Recognized Component · 1-year warranty · Made in USA

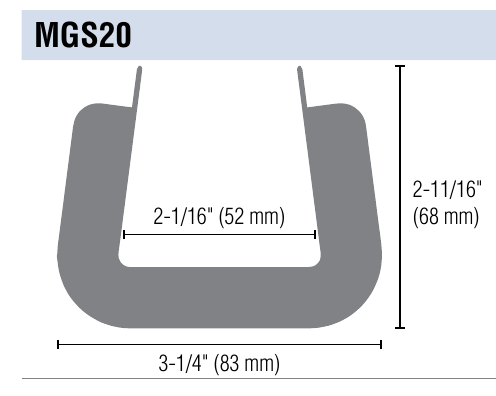

Dimensions









Monitored Devices Guidelines  For UL325 Listed Operators Built After August 29th, 2010 that have a Monitored Circuit
For older units Prior and other applications in most cases a Non Monitored edge is used

Please confirm with manufacture before ordering as edges are all edges are custom made and Not returnable



Monitored Sensing Edge Designator


T1  is a 8.2K Ohm Resistor Green Color Code    Typically used for European Operators



T2 is a 10K Ohm Resistor Blue Color Code Typically used by the Following Manufactures

Cornell / US Gear,  Liftmaster / Chamberlain,  Linear,  Manaras,  Micanan / Napoleon Lynx,

Raynor,  VE Power Door,  Cookson,, Lawrence



T3  Diode Capacitor  Red Color Code  Used for Overhead Door Corporation units



T4  Capacitor  White Color Code for Linear (Transmitter)



T5  6.8K Ohm Resistor  Orange Color Code   Custom Applications

T6  270K Ohm Resistor Violet Color Code Liftmaster CPS Board



Complete Ordering Guide for Monitored Openers (Click Here)
