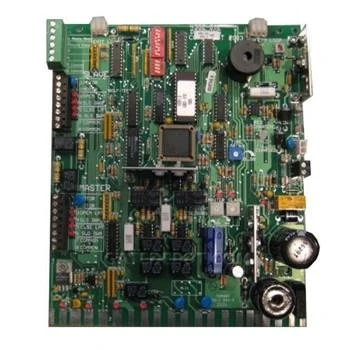

Genuine DoorKing 4405-010 control board — one board number that runs four operators: the 6500 swing (1/2 HP and 1 HP), the 6550, the 9000 series slide and the 1175. Do not be put off if you have seen it listed under a different model; it is the same board.
Two versions — choose your Date of Manufacture above. DoorKing revised this board in January 2016. The base number is 4405-010; the suffix identifies the version: -018 for operators built January 2016 or later (current, with the UL325 monitored-device input) and -012 for operators built before January 2016. You do not order those numbers separately: pick the date from the dropdown. If you are unsure, read the number on the board currently fitted — it ends in -012 or -018.
Not the DC models. The 6524 and 9024 DC operators take the 4100-018 family, not this board.
Specifications
| Part number | 4405-010 (-012 or -018 by build date) |
|---|---|
| DoorKing description | PCB, Gate Operator |
| Fits | DoorKing 6500, 6550, 9000, 1175 |
| Condition | Genuine DoorKing OEM, new |
Is the board actually the problem?
| Symptom | Check first |
|---|---|
| Operator dead, no board lights | Incoming power at the terminals and the fuse before the board |
| Powers up but ignores every input — remotes, loops, keypad | The board |
| Board lights but the motor will not run | Motor, capacitor and the terminal strip before the board |
| Gate opens but will not close | A loop detector or photo eye holding it open, not the board |
| Failed after a storm | Surge damage — the board, plus the 4001-093 MOV, which usually shows heat damage too |
| Burnt smell, scorching or a bulged capacitor on the board | The board — replace it |
After fitting
The new board arrives unprogrammed. Set the limits and force, relearn every remote and transmitter, re-enter timer, loop and accessory settings, and re-test every entrapment protection device before returning the gate to service.
Fit surge protection at the same time. Storm damage is a leading cause of gate operator board failure. If this board died after a storm, the replacement is at the same risk unless the installation is protected.
Related
6500 parts · 9000 parts · safety equipment, sensors & loops
Not sure which board you need? Send a photo of your existing board to parts@gatehousesupplies.com or call 866-965-5599. We would rather confirm it than have you fit the wrong board.
