Liftmaster RSW12V & RSW12VH Swing Gate Parts
LiftMaster RSW12V & RSW12VH Replacement Parts

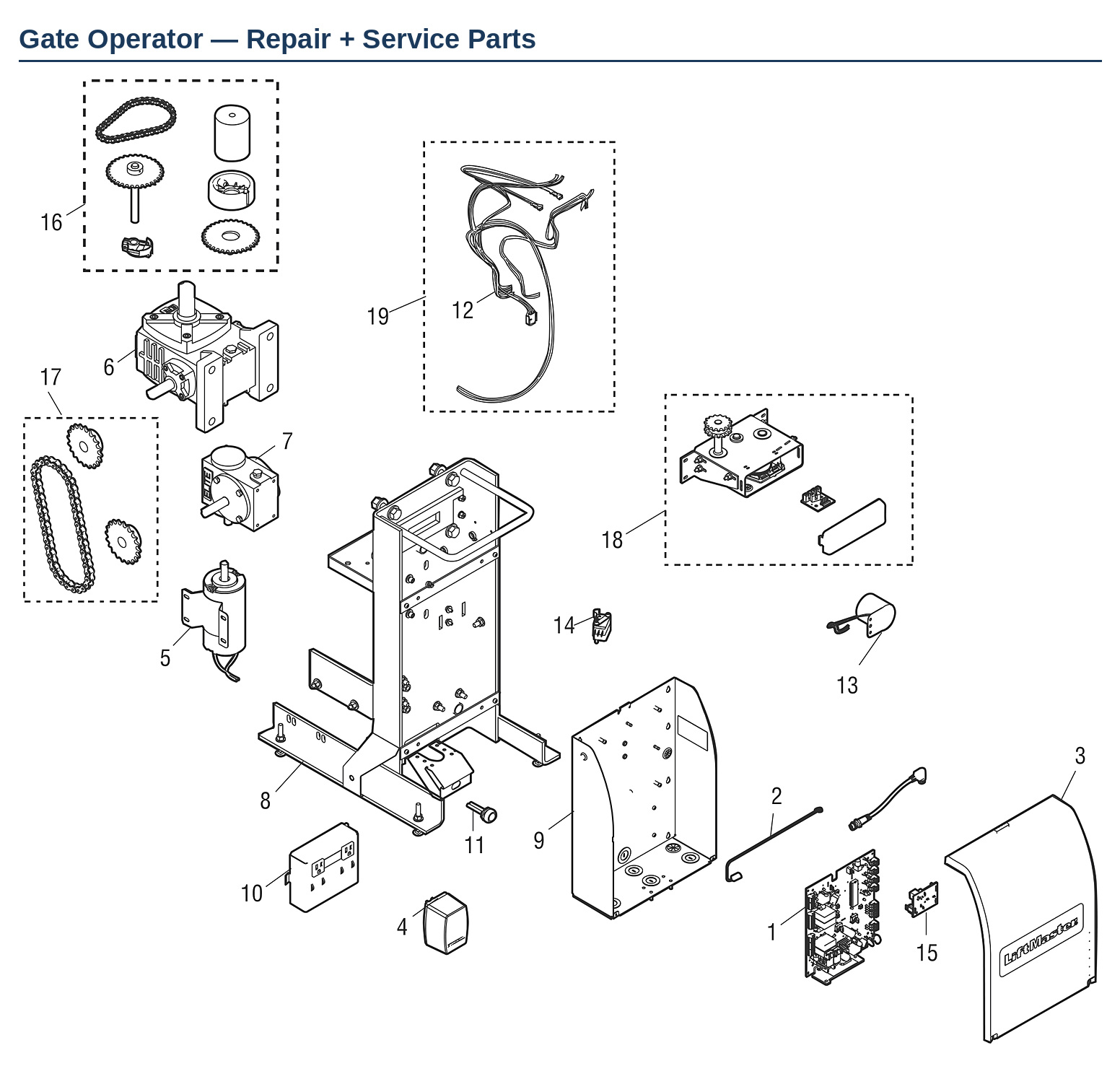

Genuine LiftMaster replacement parts for the RSW12V and RSW12VH residential swing gate operators — the 12 VDC chain-drive swing operator with a separate control box, two gear reducers and a mechanical limit shaft. Use the exploded diagram above to find the key number for the part you need, then click any part number in the tables below to go straight to that product.
Not the same machine as the RSW12U. The RSW12V runs a K001A6426-2 control board in a separate control box with a mechanical limit shaft. The RSW12U, RSW12UL and RSW12VDC use an integrated e-box and an APS encoder, and share almost no parts with this model.
Two gear reducers, two chain sizes. Ref 6 is the #60 reducer and Ref 7 is the #40 — both are fitted, so check which one has failed before ordering.
Diagram numbering note: the dashed boxes numbered 16–19 on the diagram are the four service kits, listed in their own table below.
Common RSW12V Repairs
| Symptom | Usual cause | Parts to check |
|---|---|---|
| Gate overruns or stops short | Limit switch or limit shaft out of adjustment | K23-50099 limit switch, K70-35677 limit shaft kit |
| Motor runs but the gate does not move | Gear reducer or drive chain | K32-34656-1 and K32-35618 reducers, K70-35678-1 sprocket kit |
| Operator dead, no board lights | Power supply or control board | K204B0195-1 power supply, K001A6426-2 control board |
| No response to remotes, wired controls work | Antenna or RF board | K001C3196-7 antenna, K001A6636 low power RF board |
| Gate will not reset after an obstruction | Reset switch | K76-35228-1 reset switch |
| Cannot release the gate by hand | Cludge arm clamp, thumb screw or cover | K75-50121 clamp and handle, K45-50676 thumb screw |
| Gate position drifts over time | Absolute encoder logic board | K001A6407-1 logic board, K76-35321 limit passpoint kit |
| Battery not charging or holding | Battery wire harness | K94-35225 battery wire harness kit |
Gate Operator Repair & Service Parts
| Ref | Part # | Description |
|---|---|---|
| 1 | K001A6426-2 | Control Board, RSL12V / RSW12V |
| 2 | K001C3196-7 | Antenna — no longer available |
| 3 | K13-34729 | E-Box Cover |
| 4 | K204B0195-1 | Power Supply, 14.5V |
| 5 | K20-9012B-1 | Motor, 12 VDC |
| 6 | K32-34656-1 | Gear Reducer, 30:1, #60 |
| 7 | K32-35618 | Gear Reducer, 30:1, #40 |
| 8 | K73-34637 | Chassis |
| 9 | K75-34709-1 | Control Box with Hardware |
| 10 | K76-34743 | Access Panel with Receptacles |
| 11 | K76-35228-1 | Reset Switch |
| 12 | K94-35225 | Battery Wire Harness Kit |
| 13 | K29-50279-1 | Alarm — discontinued, shown as K29-50279 (Q404) |
| 14 | K23-50099 | Limit Switch |
| 15 | K001A6636 | Control Board, Low Power RF, 315MHz |
Service Kits
| Ref | Part # | Description |
|---|---|---|
| 16 | K70-35677 | Limit Shaft Kit |
| 17 | K70-35678-1 | Sprocket Kit |
| 18 | K76-35321 | Limit Passpoint Kit |
| 19 | K94-35658 | Wiring Harness Kit |
Parts Not Shown in Diagram
| Ref | Part # | Description |
|---|---|---|
| — | K07-50199 | Coupling, 1" OD, Q180 |
| — | K001A6407-1 | Logic Board, Absolute Encoder |
| — | K001A6636-1 | Receiver Module, 390MHz — no longer available |
| — | K75-35343-1 | Access Door with Lock and Key |
| — | K75-35400-1 | Cover with Access Door |
| — | K77-37332 | Cover, RSW 12VDC |
| — | K80-50142 | Lock and Keys |
| — | K80-50295 | Access Door Keys, Qty 2, Q118 |
| — | K75-50121 | Cludge Arm Clamp and Handle, Q061 |
| — | K09-50119 | Output Arm, Q059 |
| — | K45-50676 | Cludge Thumb Screw |
| — | K13-50260 | Cludge Cover, Q268 |
| — | K09-50122 | Cludge Cover, Q062 |
| — | K75-50292 | Swivel Arm Kit, Q103 |
