Liftmaster CAPXM Access Control Parts
LiftMaster CAPXM Replacement Parts

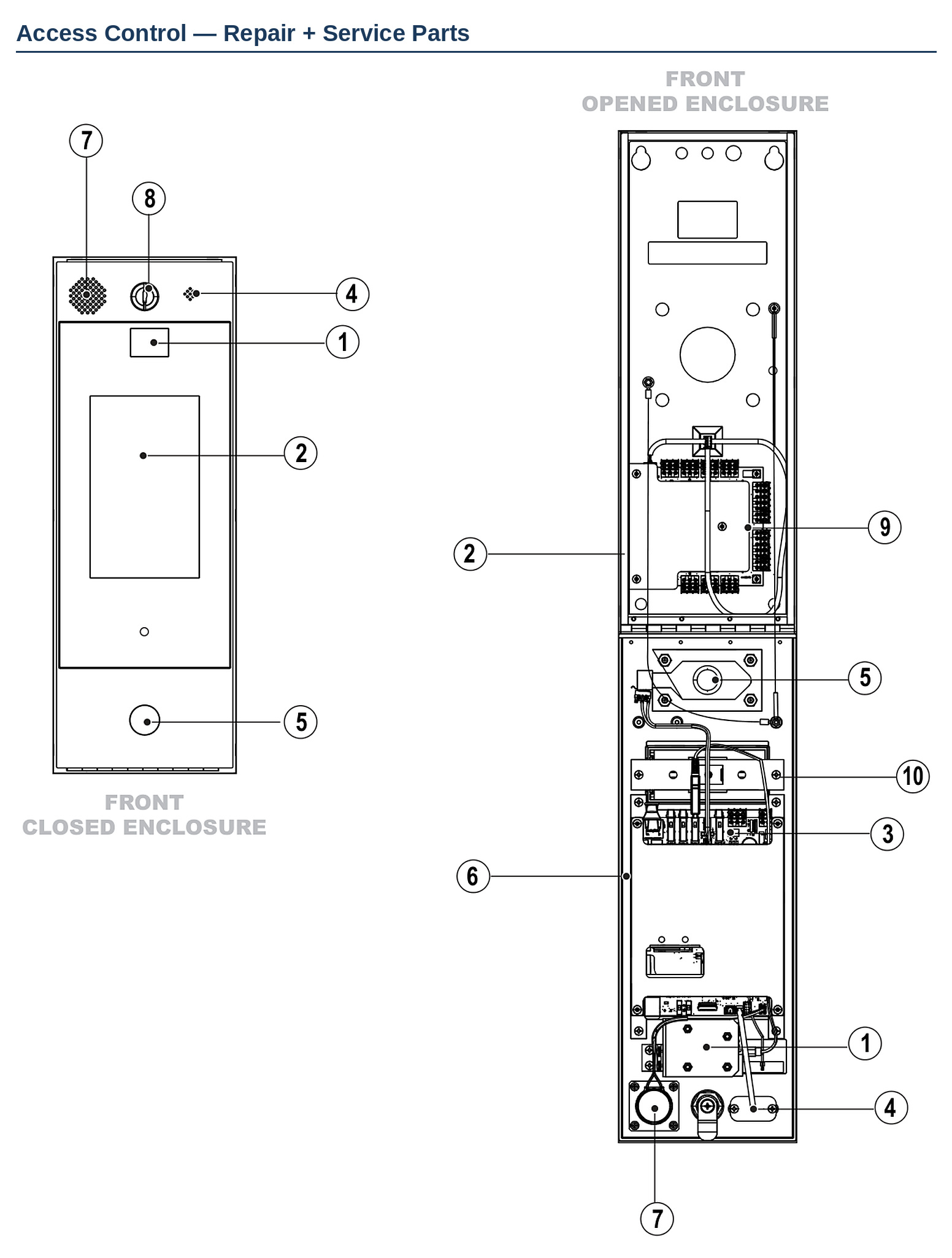

Genuine LiftMaster replacement parts for the CAPXM Smart Video Intercom — the slim surface or flush-mount access portal with video, Wi-Fi and door control. Use the diagram above to find the key number for the part you need, then click any part number in the tables below.
The front panel is now supplied as K41-0216-001. The guide lists K41-0216-000; LiftMaster superseded it and the -001 revision is what ships.
Adding card or fob entry? The XMRDRKIT internal prox reader kit mounts inside the enclosure on the K41-0218-000 reader mounting plate, so you do not need a separate external reader.
Weak Wi-Fi on a recessed install? Try the WFBTEXT external antenna kit before replacing the internal K76-38957 antenna. Poor signal on a flush-mounted unit is nearly always the mounting, not a failed antenna.
Shares its door board with the CAPXL. K001D8478 fits both, as does the CAPXLCAM camera kit.
Common CAPXM Faults
| Symptom | Usual cause | Parts to check |
|---|---|---|
| Unit dead, no display | Power supply or internal wiring | K41-0227-000 power supply, K41-0221-000 wiring kit |
| Screen blank or unresponsive | Front panel with display | K41-0216-001 front panel with display kit |
| Visitor cannot be heard, or no audio out | Microphone or speaker kit | K41-0223-000 microphone kit, K41-0222-000 speaker kit |
| Offline or dropping off the network | Wi-Fi antenna or mounting position | K76-38957 Wi-Fi antenna, WFBTEXT external antenna kit |
| Remotes not working | Radio antenna kit | K76-38958 radio antenna kit |
| Door relay not firing | Door board | K001D8478 door board and covers |
| Postal lock not releasing | Postal lock switch | K41-0219-000 postal lock switch |
| Boards unresponsive but panel lit | Carrier board | K41-0217-000MC carrier board kit |
Intercom Repair & Service Parts
| Ref | Part # | Description |
|---|---|---|
| 1 | CAPXLCAM | Video Camera Kit |
| 2 | K41-0216-000 | Front Panel with Display Kit — supplied as K41-0216-001 |
| 3 | K41-0217-000MC | Carrier Board Kit, CAPXM |
| 4 | K41-0223-000 | Microphone Kit, CAPXM |
| 5 | K41-0219-000 | Postal Lock Switch, CAPXM |
| 6 | K41-0220-000 | Rear Housing Assembly, CAPXM |
| 7 | K41-0222-000 | Speaker Kit, CAPXM |
| 8 | K41-0215-000 | Cam and Lock Kit, CAPXM |
| 9 | K001D8478 | Door Board and Covers, CAPXL / CAPXM |
| 10 | K41-0218-000 | Reader Mounting Plate |
Parts Not Shown in Diagram
| Ref | Part # | Description |
|---|---|---|
| — | K41-0221-000 | Wiring Kit, CAPXM |
| — | K41-0227-000 | Power Supply, CAPXM / CAPXLV |
| — | K76-38957 | Wi-Fi Antenna Kit |
| — | K76-38958 | Radio Antenna Kit |
Accessories
| Ref | Part # | Description |
|---|---|---|
| — | LMMC-MINI | Multi-Class SE RP10 Mini Mullion Reader |
| — | CAP2D | Smart Access 2-Door Controller |
| — | CAPCELL | Cellular 4G/LTE Modem with Wi-Fi |
| — | KPR2000 | Wired Keypad and Proximity Reader |
| — | LMSC1000 | RFID Long-Range Reader |
| — | PPK3PHMMC | Passport 3-Button Keychain Remote with Prox |
| — | CAPXMTK | CAPXM Trim Kit |
| — | XMRDRKIT | Internal Prox Reader Kit |
| — | WFBTEXT | Wi-Fi / BT External Antenna Kit |
