Everything between the motor head and the door: replacement belts, trolleys, pulleys, tensioners, connectors, door arms and complete rail assemblies for LiftMaster belt drive garage door openers.
Most people who come here looking for a whole rail assembly do not need one. A snapped belt, a failed trolley or a worn tensioner all look like "the rail is broken" from the ground. The table below sorts it out in about a minute, and in most cases the fix is a part that costs a fraction of a rail and ships in a normal box.
Work out what actually failed
| What you are seeing | What it usually is | Order |
|---|---|---|
| Motor runs, door does not move. Belt visibly slack, frayed or snapped. | The belt | A replacement belt — tables below |
| Belt is intact but has come off the pulley, or will not hold tension | Tensioner or belt clip | 41B4103 tensioner or 041B5669 belt clip & link |
| Door releases on the emergency cord but will not re-engage. Belt fine. | The trolley | 41B3869-1 trolley assembly |
| Belt has pulled out of its anchor at the trolley end | Belt clip | 109B33 trolley belt clip |
| Grinding or squealing along the rail, but everything moves | Dry rail | 83A11-2 rail grease |
| Belt is wandering or wearing on one edge | Pulley bracket | 041B5424 (2500/2580/2280/3280/3500D) or 041A3588-1 (1270/1280/1280R) |
| Door moves but the arm is bent or the connection is loose | Door arm | 041A8094 door arm kit |
| The rail itself is bent, twisted or corroded, or you are changing door height | The rail | A complete rail assembly — see below |
Only the last row genuinely needs a rail. If you are unsure, send us a photo — it takes us a minute and it is the difference between a $10 part and a freight shipment.
Replacement belts — which family fits my opener?
Two checks. Look at the belt first — the part number is usually printed on it. If it has worn off, go by the opener model.
| Opener era / model | Belt family |
|---|---|
| 2500, 2500B, 2500D, 3500, 3850, 8550, 8550W, 8550WL and most current belt drives | 41A5434 |
| 1270, 1280, 1280R and other legacy belt drives of that era | 41A3589 |
| Square rail openers — Chamberlain LW2000, LW3500, HD520EV, LW3500EV | 041A5250 |
The 041A5250 is the square rail belt. If your rail is square in section rather than the standard LiftMaster profile, that is the family you need — and it is normally found on Chamberlain-badged openers. This is the most common belt ordering mistake. See Chamberlain belt drive belts & rail parts.
Belt length by door height
Length is set by the door, not the opener. Measure the door opening — if someone previously fitted the wrong length, measuring the old belt repeats the mistake.
| Door height | 41A5434 family | 41A3589 family | 041A5250 square rail |
|---|---|---|---|
| 7 ft | 41A5434-11 | 41A3589-3 | 041A5250 |
| 8 ft | 41A5434-13 | 41A3589-1 | 041A5250-1 |
| 10 ft | 41A5434-14 | 41A3589-2 | 041A5250-2 |
Factory or aftermarket?
Every belt here comes in both. The aftermarket version is the same length and fitment at roughly a third of the price. Genuine LiftMaster is the choice where a warranty or specification requires OEM; on an opener out of warranty, most installers fit the aftermarket belt.
| Belt | Door | Genuine LiftMaster | Aftermarket |
|---|---|---|---|
| 41A5434 | 7 ft | 41A5434-11 | 41A5434-11 aftermarket |
| 8 ft | 41A5434-13 | 41A5434-13 aftermarket | |
| 10 ft | 41A5434-14 | 41A5434-14 aftermarket | |
| 41A3589 | 7 ft | 41A3589-3 | 41A3589-3 aftermarket |
| 8 ft | 41A3589-1 | 41A3589-1 aftermarket | |
| 10 ft | 41A3589-2 | 41A3589-2 aftermarket | |
| 041A5250 square rail |
7 ft | 041A5250 | 041A5250 aftermarket |
| 8 ft | 041A5250-1 | 041A5250-1 aftermarket | |
| 10 ft | 041A5250-2 | 041A5250-2 aftermarket |
Complete rail assemblies
If the rail itself is damaged, a complete assembly comes with the belt, trolley and hardware ready to fit to your existing motor head. Order by door height.
| Part | Door height | Also known as |
|---|---|---|
| 2770BD | 10 ft | G2770 |
| 2777BD | 7 ft | G2777 |
| 2778BD | 8 ft | G2778 |
Rails ship as oversized freight. A 7 to 10 foot rail cannot go by normal parcel service, so shipping costs a good deal more than on any other part on this page. That is worth knowing before you order one — and it is the main reason we would rather help you confirm the rail is genuinely the problem first. Call 866-965-5599 for a freight quote before ordering a rail, and if you are local we can often arrange collection instead.
Trolleys, pulleys and belt hardware
| Part | What it is |
|---|---|
| 004A1008 | Master link kit |
| 29B129 | Belt connector for splicing 41A3589 series belts |
| 29B130 | Belt connector for splicing |

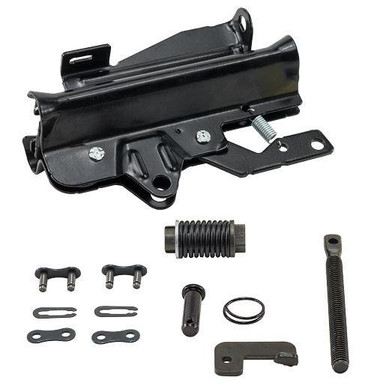

| 41B3869-1 | Complete trolley assembly |
| 041B5424 | Belt pulley bracket — 2500, 2580, 2280, 3280, 3500D |
| 041A3588-1 | Belt pulley bracket — 1270, 1280, 1280R |

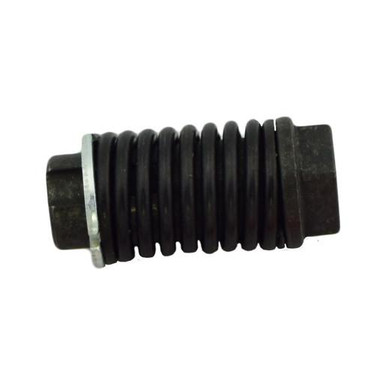

| 41B4103 | Belt tensioner |
| 041B5669 | Belt clip & link |
| 41A2770-6 | Installation hardware kit |
| 83A11-2 | Rail grease — the cheapest fix for a noisy rail |

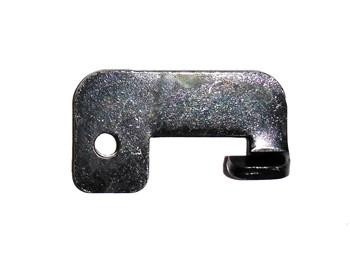

| 109B33 | Trolley belt clip |
Door arms
| Part | What it is |
|---|---|
| 041A8094 | Door arm kit |
| 178B35 | Curved door arm |
| 178B34 | Straight door arm section |
Check these while the opener is apart
| Part | Why |
|---|---|
| 041-0365-000 safety sensors | Current sensor kit for 1997-onward openers. Replaces the 41A5034 and 041-0136. |
| 41B873 sunblocker bracket | If the door fails to close in daylight but works at night |
| 041A3504 antenna extender | Poor remote range, or a metal building |
| 041A3504-1 | Antenna extender with adapter |
| Spray lube | Also in blue |
Common questions
Do I need a whole rail or just the belt? Nine times out of ten, just the belt. A rail is only needed if the rail itself is bent, twisted or corroded, or if you are changing door height. Work through the table at the top of this page.
How much does a rail cost to ship? More than the part on many orders — a 7 to 10 foot rail is oversized freight, not parcel. Call us for a quote before ordering, and check first whether a belt or trolley would fix it.
What is the difference between the 41A5434 and the 41A3589? Generation. The 41A5434 is the current family, fitted to the 2500, 3500, 3850 and 8550 series. The 41A3589 is the earlier family for the 1270, 1280 and 1280R era. They are not interchangeable.
My rail is square, not the usual shape. Then you need the 041A5250 family. Square rail is normally a Chamberlain-badged opener — see Chamberlain belt drive parts.
Is the aftermarket belt as good? For fitment and length, yes — same dimensions, same mounting. Genuine LiftMaster is the choice where warranty or specification requires OEM.
The belt keeps coming loose. Check the tensioner and the belt clip & link before assuming the belt has failed. A failed tensioner produces the same symptom for a tenth of the price.
Can I splice a belt? There are connectors for it — 29B129 for the 41A3589 series and 29B130 otherwise — but a spliced belt is a repair, not a fix. If it has stretched enough to need splicing, it is due for replacement.
What does the number on my belt mean? The first part identifies the family, the suffix the length. On a 41A5434-13, the 41A5434 is the family and the -13 means 8 ft.
Related
all LiftMaster garage door opener parts · Chamberlain belt drive belts & rail parts · chain & masterlinks · all garage door opener parts
Not sure whether you need a belt or the whole rail? Send a photo of the rail and the belt to parts@gatehousesupplies.com, or call 866-965-5599 with your opener model and door height. We install and service this equipment and would rather work it out with you than have you pay freight on a rail when a $10 tensioner would have done it. Since 1993.
