Genuine DoorKing replacement parts for the 6050 swing gate operator, model 6050-080, drawing 6050-880 Rev K. Find your part on the diagram, match the reference number in the table below it, and click any part number to order.

Circuit Board — the most replaced part on the 6050

4502-010 — PCB Gate Operator

This is the control board for the 6050 (reference 95 on the control panel diagram below), and the same board runs the 6100 and 6300. If the operator is dead after a storm, powers up but ignores every input, or behaves erratically, this is the part.

Read this before ordering: your board’s part number depends on when the operator was built. DoorKing revised this board in January 2016. The base part number is 4502-010 and the suffix identifies the version:
  • 4502-018 — operators manufactured January 2016 or later (current production)
  • 4502-012 — operators manufactured prior to January 2016

You do not order those numbers separately. Open the 4502-010 product page and choose your Date of Manufacture from the dropdown — that selects the correct board. If you are unsure, read the number printed on the board currently fitted; it will end in -012 or -018.

Check the varistor at the same time. A surge that kills a board usually takes the 4001-093 MOV assembly with it — fitting a new board without replacing the MOV invites the same failure again.

Older 600 series operators: if your unit is a 601, 602, 605, 610, 615, 620, 625 or 630 — the generation before the 6050 — the correct board is the 4502-009 instead.

The 6050 shares most of its parts with the 6100 and 6300. The housing is literally the 6100-040, the wire set 2600-698 covers all three models, and the 7 in. clutch pad 2801-002 fits the 605, 610 and 6100 as well. What is specific to the 6050 is the 1/3 HP drivetrain: the 2600-126 motor, the 7 in. 2600-567 pulley, the 28 in. 2600-086 belt and the 30 uF 2600-234 capacitor.

Cover, Crank Arm & Gate Bracket

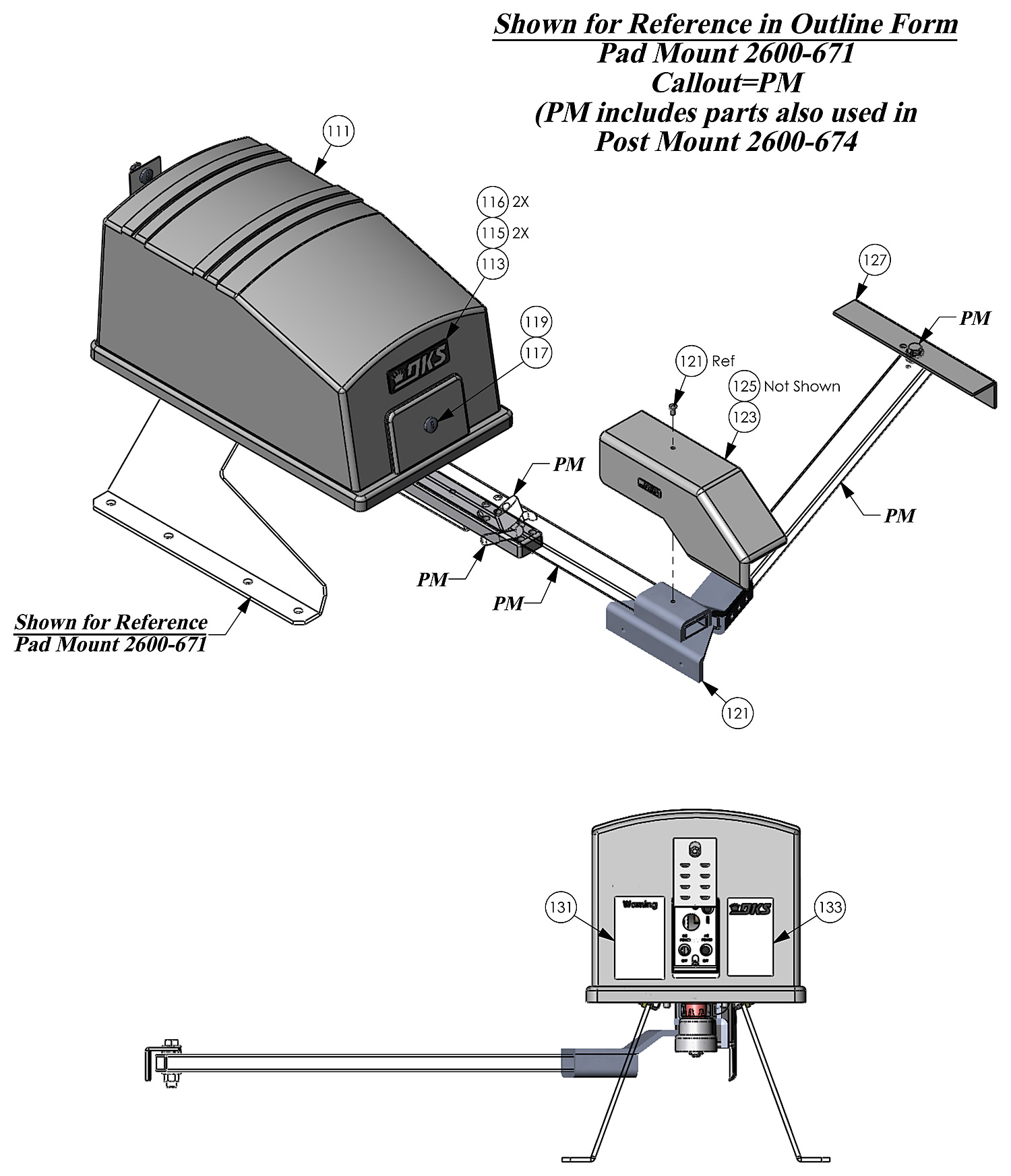

DoorKing 6050 swing gate operator cover, crank arm and gate bracket parts diagram
Ref Part Number Description Qty
111 2600-721 Cover, model 6050 / 6100 1
113 2600-732 Nameplate, plastic DKS 1
115 2802-040 Washer, push-on clamp 2
116 1897-052 Gasket, support 2
117 1702-507 Cam, “J” hook 1
119 4001-035 Lock, N16058BDxSF with 2 keys, 16120 keyway 1
121 2600-720 Crank arm joint assembly 1
123 2600-630 Joint cover, swinger left 1
125 2600-631 Joint cover, swinger right 1
127 2600-711 Bracket, 3/16 x 2 x 12 in. gate mount 1
131 2599-034 Label, gate operator 1
133 2599-199 Label, universal 1

Baseplate, Motor, Belt Drive & Housing

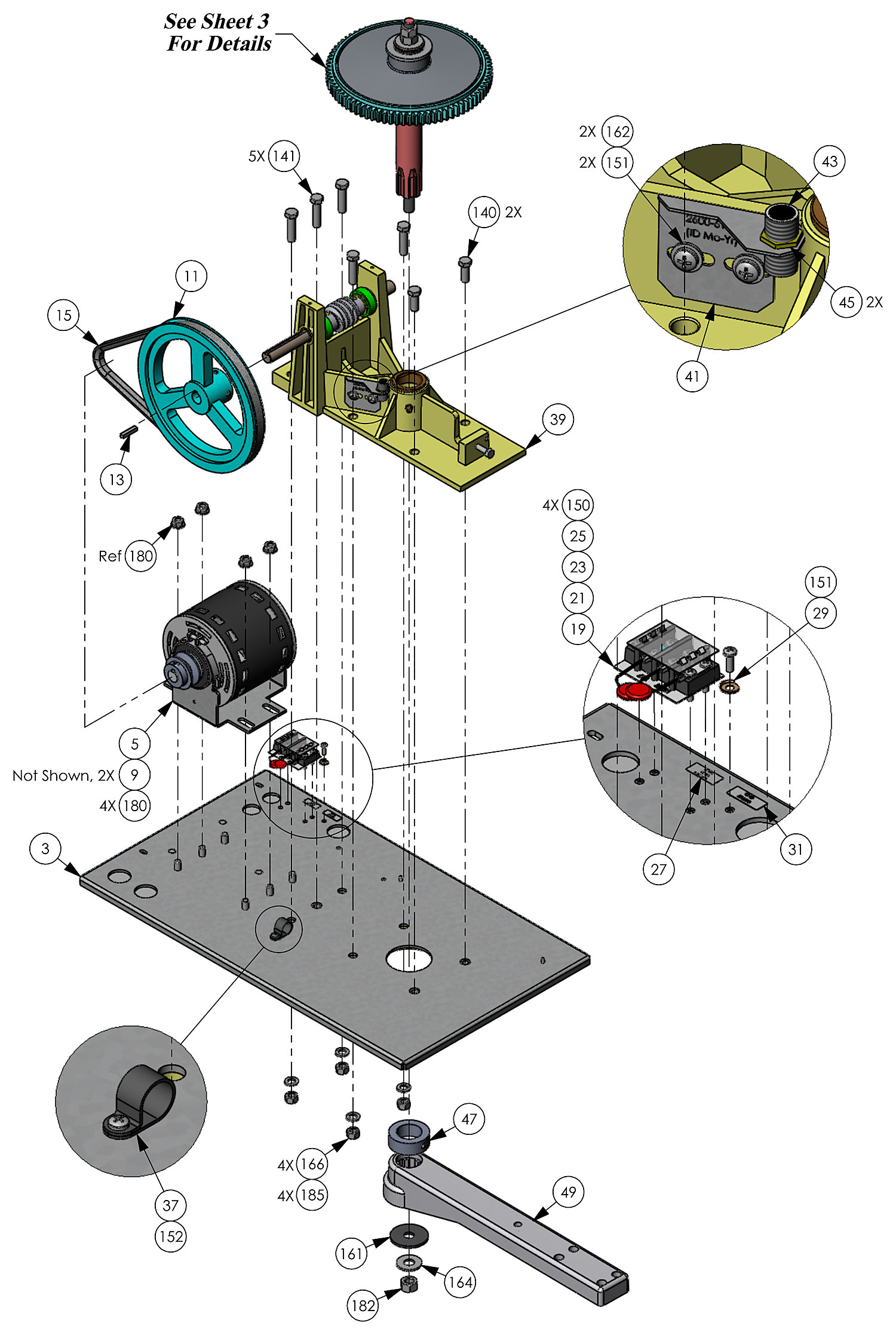

DoorKing 6050 swing gate operator baseplate, motor, pulley, belt and housing parts diagram
Ref Part Number Description Qty
3 2600-643 Baseplate 1
5 2600-126 Motor assembly 1
9 1215-018 Wire nut, #71B 2
11 2600-567 Pulley, 7 in. cast iron AC70 x 5/8 1
13 1601-019 Keyway, 3/16 x 3/16 x 1 in. 1
15 2600-086 Belt, 28 in. (AX-26) — a wear item 1
19 2600-410 Marker strip, silkscreened both sides — not currently available from DoorKing 1
21 2600-414 Terminal block, 2 position 1
23 3129-002 Terminal block cover, 2 position 1
25 4001-093 MOV assembly, 130 VAC varistor 1
27 2599-014 Decal, copper wire only 1
29 2600-439 Washer, cup brass 1
31 2599-006 Decal, supply ground 1
37 2600-619 Wire clip, 5/8 in. 1
39 6100-040 Housing assembly 1
41 2600-613 Bracket, magnetic counter potted 1
43 3004-020 Magnetic counter kit — replaces the 3004-010 shown on the drawing 1
45 3004-051 Nut, panel 1/4-18 2
47 2600-061 Collar, 2 in. OD x 1-1/4 in. ID 1
49 2600-779 Swing crank arm, extended 1
140 2615-052 Bolt, hex head 3/8-16 x 1 in. 2
141 2615-055 Bolt, hex head 3/8-16 x 1-1/2 in. 5
150 2616-019 Screw, Phillips head 8-32 x 3/4 in. 4
151 2616-018 Screw, Phillips head 8-32 x 1/2 in. 3
152 2616-017 Screw, Phillips head 8-32 x 3/8 in. 2
161 2620-131 Washer, 1-7/8 in. OD x 1/2 in. ID 2
162 2802-003 Washer, #8 SAE 2
164 2620-021 Washer, 1/2 in. SAE 2
166 2620-019 Washer, 3/8 in. SAE 4
180 2620-411 Nut, hex flange lock 5/16-18 4
182 2620-320 Nut, center lock 1/2-13 1
185 2620-405 Nut, hex 3/8-16 4

Clutch Stack, Main Shaft & Worm Gear

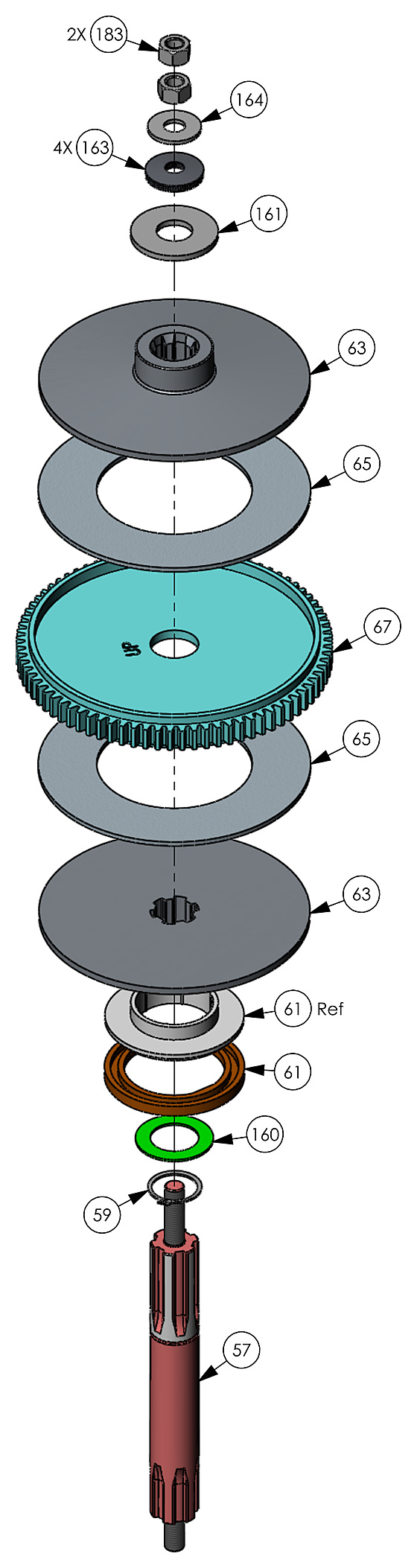

DoorKing 6050 swing gate operator clutch stack, main shaft and worm gear exploded parts diagram
Ref Part Number Description Qty
57 2600-675 Shaft assembly 1
59 2630-010 Snap ring, 1.25 in. 1
61 2600-360 Counter wheel, magnetic assembly 1
63 2600-680 Clutch plate, 7 in. 2
65 2801-002 Clutch pad, 7 in. OD — the usual cause of a slipping gate 2
67 2600-323 Worm gear, 80 tooth Delrin 1
160 2620-220 Washer, 1.25 x 2 x .0625 in. 1
161 2620-131 Washer, 1-7/8 in. OD x 1/2 in. ID 2
163 2600-183 Washer, Belleville 1.5 in. OD x .5 in. ID — sets clutch tension 4
164 2620-021 Washer, 1/2 in. SAE 2
183 2620-420 Nut, hex 1/2-13 2

Control Panel — Circuit Board, Switches & Capacitor

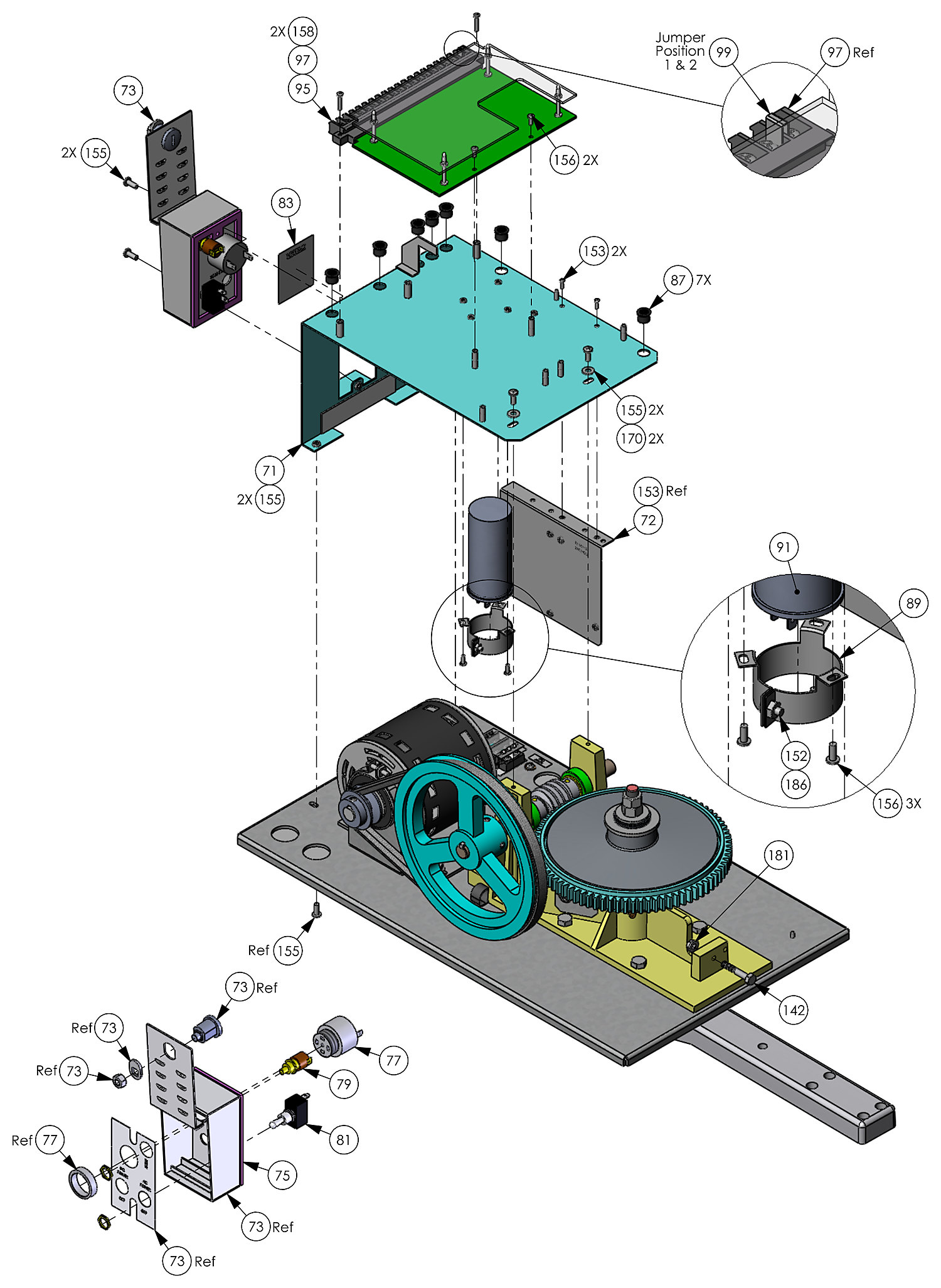

DoorKing 6050 swing gate operator control panel parts diagram — 4502-010 circuit board, switch cover, capacitor and terminals
Ref Part Number Description Qty
71 2600-668 Bracket, circuit board support 1
72 2600-638 Bracket, radio 1
73 2600-533 Switch cover, lockable 1
75 2600-731 Gasket, switch cover 1
77 1506-071 Tone generator, loud 1
79 1812-005 Switch, push button N.O. 1
81 1601-041 Switch, toggle SPST 2 position 1
83 2599-008 Label, patent 1
87 2600-820 Bushing, 1/2 in. 7
89 2600-239 Capacitor clamp 1
91 2600-234 Capacitor, 30 uF 370 VAC — fit this when the motor hums but will not start 1
95 4502-010 PCB gate operator — the 6050 control board. Choose your Date of Manufacture on the product page; see the panel at the top. 1
97 4001-020 Terminal, 20 pin 1
99 2600-830 Jumper, ring tongue 1
142 2615-008 Bolt, hex head 1/4-20 x 1-1/2 in. 1
152 2616-017 Screw, Phillips head 8-32 x 3/8 in. 2
153 / 156 2616-001 Screw, Phillips head 6-32 x 3/8 in. 2 / 5
155 2616-052 Screw, Phillips head 10-32 x 1/2 in. 6
158 2616-003 Screw, Phillips head 6-32 x 3/4 in. 2
170 2620-010 Washer, #10 SAE 2
181 2620-409 Nut, hex flange lock 1/4-20 1
186 2620-401 Nut, hex 8-32 1

Parts Not Shown on the Diagrams

Ref Part Number Description Qty
200 1804-031 Tie wrap, 4 in. 10
201 2600-698 Wire set — 6050, 6100 and 6300 1
205 7082-137 Wire, 5 in. green stranded 14 AWG 1
209 2599-100 Sign, warning 2
210 6100-065 Manual, installation 1

Superseded Part Numbers

These changes were made in Rev K of the factory drawing. If you are working from an older parts list, order the current part instead.

Ref Old Number Current Part Qty
43 3004-010 3004-020 Magnetic counter kit 1
151 2616-016 2616-018 Screw, Phillips head 8-32 x 1/2 in. 3
153 2904-002 2616-001 Screw, Phillips head 6-32 x 3/8 in. 2
180 2902-007 2620-411 Nut, hex flange lock 5/16-18 4
154 2616-051 Deleted in Rev K — no longer used on this operator —

Common 6050 Problems and the Parts That Fix Them

Symptom Usual Cause Parts
Dead operator after a storm, no response to any input Surge-damaged control board 4502-010 control board (choose your build date), 4001-093 MOV assembly
Powers up but ignores every input, or behaves erratically Failed control board 4502-010 — check the panel at the top of this page for the right build date
Motor hums but the gate does not move Failed run capacitor 2600-234 capacitor, 2600-239 clamp
Motor runs but the gate barely moves, or squeals on start Glazed or stretched belt 2600-086 belt, 2600-567 pulley
Gate slips under load or will not hold position Worn clutch pads 2801-002 pads (2), 2600-680 plates (2), 2600-183 Belleville washers (4)
Grinding from the gearbox, or gate stops mid-travel Stripped worm gear 2600-323 worm gear, 2600-675 shaft assembly
Gate loses its position count or over-travels Magnetic counter fault 3004-020 counter kit, 2600-360 counter wheel, 2600-613 bracket
Play or clunking at the gate connection Worn crank arm joint 2600-720 joint assembly, 2600-779 crank arm
Cover cracked or faded after years outdoors UV damage 2600-721 cover, 2600-630 / 2600-631 joint covers

Related DoorKing Pages

Other DoorKing swing gate operator parts: 6003 · 6006 · 6100 · 6300 · 6500 · 6524 DC · all DoorKing gate operator parts. Need a complete unit? See DoorKing swing gate operators.
