Genuine DoorKing replacement parts for the 6300 swing gate operator, covering both the 6300-080 (1/2 HP, 115V) and the 6300-084 (1 HP, 115V), both Rev K. The two builds share almost every part, so they are listed together with a quantity column for each. The reference numbers match the callout numbers on the diagrams — find the number on the drawing, then click the part number in that row.
Circuit Board — the most replaced part on the 6300
4502-010 — PCB Gate Operator
The same board runs the 6050, 6100 and 6300 swing gate operators. Replace it when the operator is dead with power confirmed at the terminals, when it powers up but ignores every input (radio, keypad, loop, push button), when only one direction works, or after a lightning or surge event.
Check your date of manufacture before you order. DoorKing revised this board in January 2016. The base part number is 4502-010 and the suffix identifies the version:
- -018 — operators built January 2016 or later (current board, UL325 monitored device input)
- -012 — operators built prior to January 2016
You do not order those numbers separately. Open the 4502-010 product page and choose your Date of Manufacture from the dropdown — the two choices read "Unit manufactured before Jan 2016" and "Unit manufactured after Jan 2016 with UL325 monitored device input". If you are unsure, read the number printed on the board currently fitted; it will end in -012 or -018.
Replace the 4001-093 MOV / varistor assembly (ref 24) at the same time. A surge big enough to kill the board almost always takes the varistor with it, and a spent varistor leaves the new board unprotected.
1/2 HP vs 1 HP — what actually differs. Only six things: the motor (2600-129 vs 2600-162), the run capacitor and its clamp (2600-102 and 2600-875, fitted to the 1/2 HP only), the 2615-870 button socket bolt and the 8-32 hex nut 2620-401 (one on each build), and the quantities of four hardware items. Everything else — housing, clutch, worm gear, shaft, board, cover — is identical. A dash in a quantity column means that part is not used on that build.

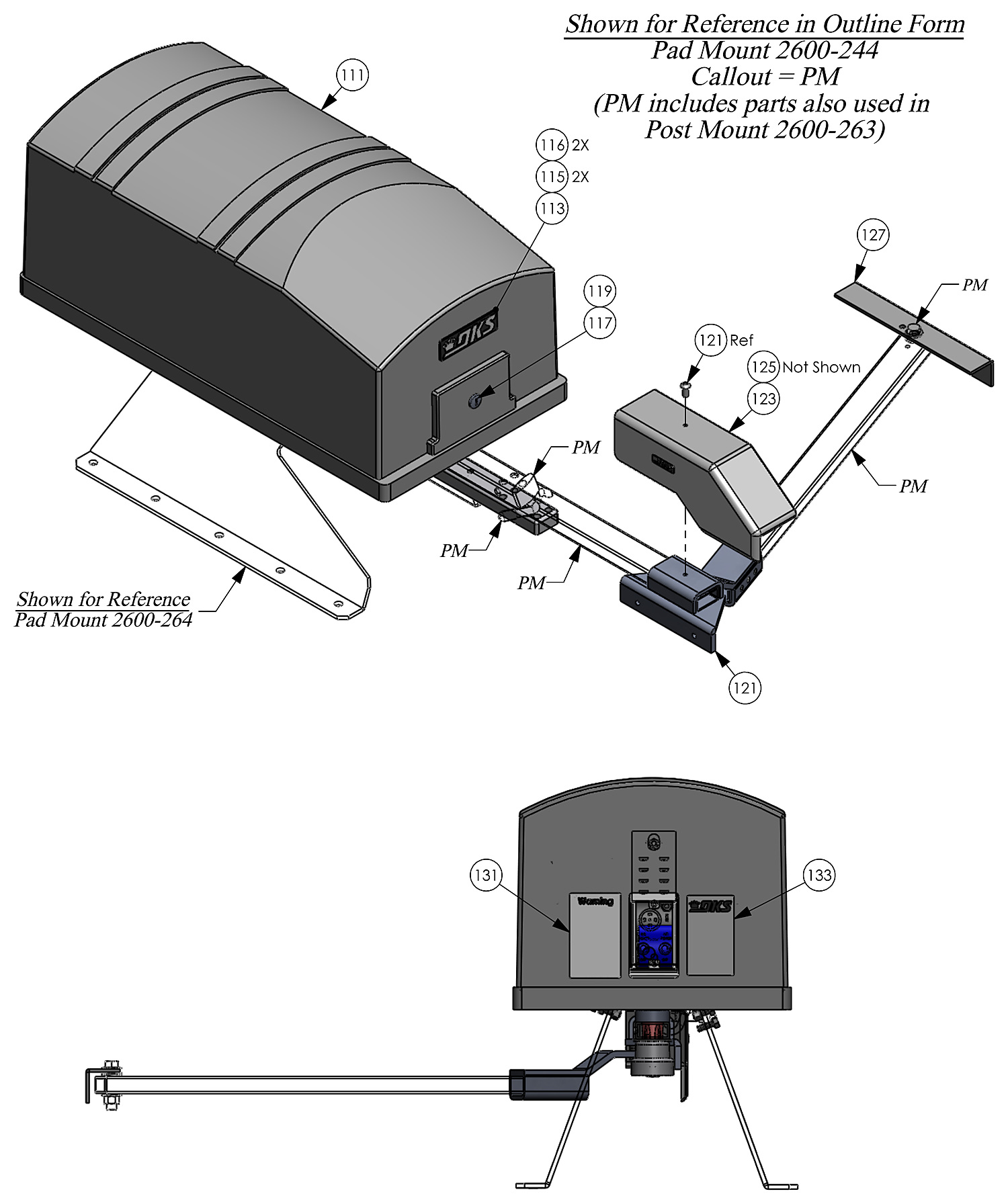

Cover, Crank Arm & Mounting
| Ref | Part Number | Description | Qty 1/2 HP | Qty 1 HP |
|---|---|---|---|---|
| 111 | 2600-725 | Cover, model 6300 | 1 | 1 |
| 113 | 2600-732 | Nameplate, plastic DKS | 1 | 1 |
| 115 | 2802-040 | Push-on washer | 2 | 2 |
| 116 | 1897-052 | Gasket, microphone support | 2 | 2 |
| 117 | 1702-507 | Cam, "J" hook | 1 | 1 |
| 119 | 4001-035 | Lock cylinder with 2 keys | 1 | 1 |
| 121 | 2600-720 | Crank arm joint assembly, black | 1 | 1 |
| 123 / 125 | 6500-220 | Joint cover, swinger (replaces 2600-630 left / 2600-631 right) | 2 | 2 |
| 127 | 2600-711 | Bracket, 3/16 x 2 x 12 in. | 1 | 1 |
| 131 | 2599-034 | Label, gate operator | 1 | 1 |
| 133 | 2599-199 | Label, universal | 1 | 1 |

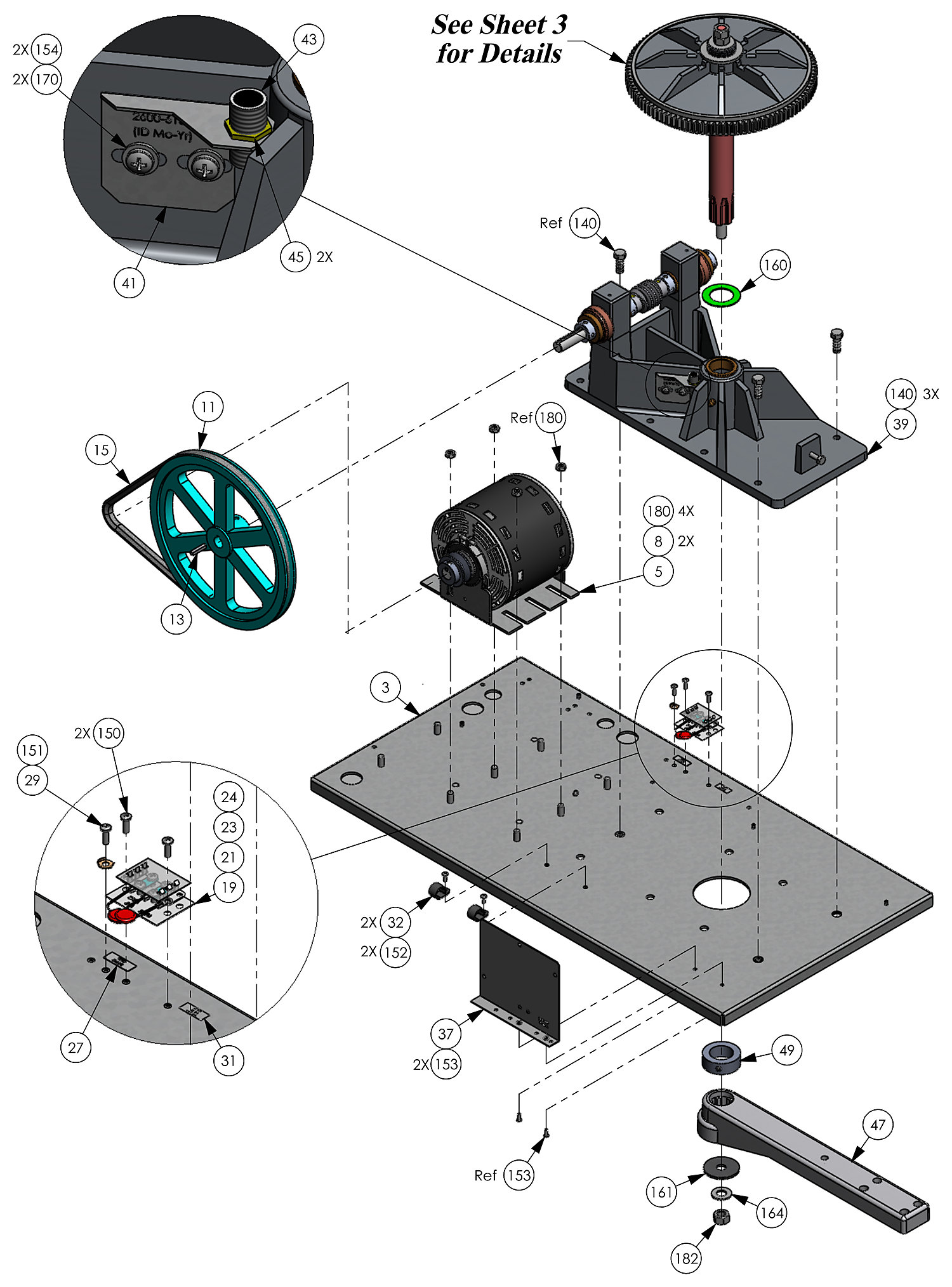

Base Panel, Motor & Housing Assembly
| Ref | Part Number | Description | Qty 1/2 HP | Qty 1 HP |
|---|---|---|---|---|
| 3 | 2600-705 | Base panel bracket, model 630 | 1 | 1 |
| 5 | 2600-129 | Motor assembly, 1/2 HP — 1/2 HP (6300-080) | 1 | — |
| 5 | 2600-162 | Motor assembly, 1 HP — 1 HP (6300-084) | — | 1 |
| 8 | 1215-018 | Wire nut #71B | 2 | 2 |
| 11 | 2600-569 | Pulley, 10 in. cast iron AC100 x 5/8 | 1 | 1 |
| 13 | 1601-019 | Keyway, 3/16 x 3/16 x 1 in. | 1 | 1 |
| 15 | 2600-428 | Belt, cogged AX-34 | 1 | 1 |
| 19 | 2600-410 | Marker strip, silkscreened both sides | 1 | 1 |
| 21 | 2600-414 | Terminal block, 2 position | 1 | 1 |
| 23 | 3129-002 | Terminal block cover, 2 position | 1 | 1 |
| 24 | 4001-093 | MOV assembly, 130 VAC | 1 | 1 |
| 27 | 2599-014 | Decal, copper wire only | 1 | 1 |
| 29 | 2600-439 | Cup washer, brass | 1 | 1 |
| 31 | 2599-006 | Decal, supply ground | 1 | 1 |
| 32 | 2600-619 | Wire clamp, 5/8 in. | 2 | 2 |
| 37 | 2600-638 | Bracket, radio / battery backup | 1 | 1 |
| 39 | 6300-042 | Housing assembly, 6300 | 1 | 1 |
| 41 | 2600-613 | Bracket, magnetic counter (potted) | 1 | 1 |
| 43 | 3004-020 | Magnetic counter kit (was 3004-010, threaded counter) | 1 | 1 |
| 45 | 3004-051 | Panel nut, 1/4-18 | 2 | 2 |
| 47 | 2600-779 | Swing crank arm, extended | 1 | 1 |
| 49 | 2600-061 | Collar, 2 in. OD x 1-1/4 in. ID x 5/8 in. L | 1 | 1 |
| 140 | 2615-052 | Hex head bolt, 3/8-16 x 1 in. | 3 | 3 |
| 150 | 2616-019 | Phillips head screw, 8-32 x 3/4 in. | 2 | 2 |
| 151 | 2616-018 | Phillips head screw, 8-32 x 1/2 in. | 1 | 1 |
| 152 | 2616-017 | Phillips head screw, 8-32 x 3/8 in. | 3 | 2 |
| 153 | 2616-001 | Phillips head screw, 6-32 x 3/8 in. | 2 | 2 |
| 154 | 2616-051 | Phillips head screw, 10-32 x 3/8 in. | 2 | 2 |
| 161 | 2620-131 | Washer, 1-7/8 in. OD x 1/2 in. ID | 2 | 2 |
| 164 | 2620-021 | Washer, 1/2 in. SAE | 2 | 2 |
| 170 | 2620-010 | Washer, #10 SAE | 4 | 2 |
| 180 | 2620-411 | Hex flange lock nut, 5/16-18 | 4 | 6 |
| 182 | 2620-320 | Center lock nut, 1/2-13 | 1 | 1 |

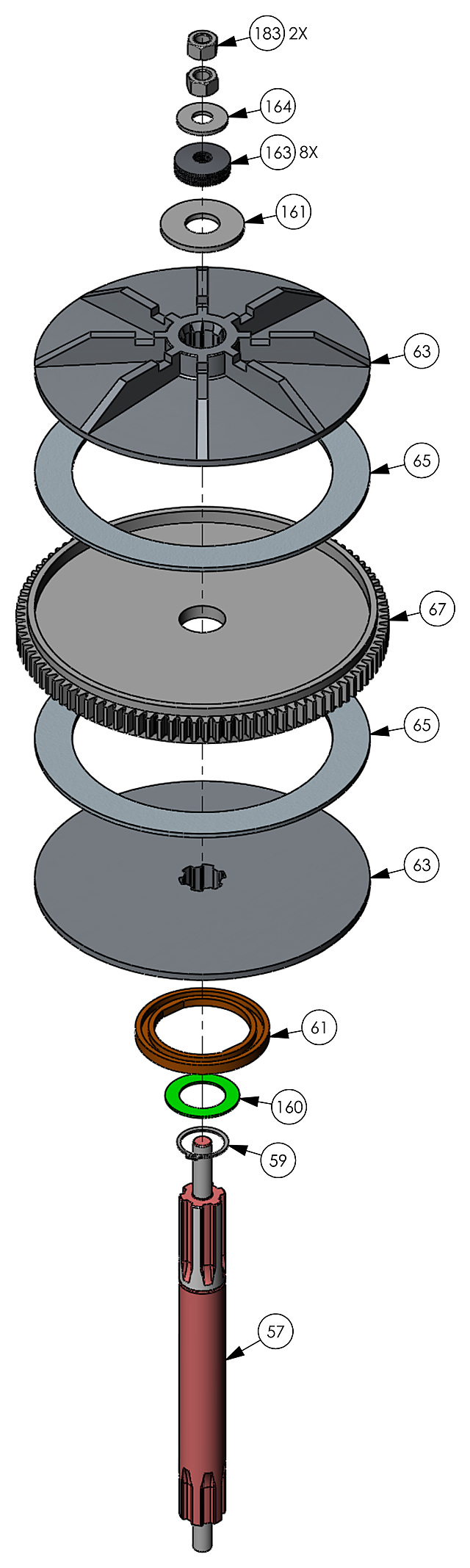

Clutch & Worm Gear Assembly
| Ref | Part Number | Description | Qty 1/2 HP | Qty 1 HP |
|---|---|---|---|---|
| 57 | 2600-174 | Main shaft assembly, model 630 | 1 | 1 |
| 59 | 2630-010 | Snap ring, 1.25 in. | 1 | 1 |
| 61 | 2600-073 | Magnet counter ring | 1 | 1 |
| 63 | 2600-681 | Clutch plate, 9 in. die cast | 2 | 2 |
| 65 | 2801-003 | Clutch pad, 9 in. OD (620/625, 630) | 2 | 2 |
| 67 | 2600-644 | Worm gear, 100 tooth Delrin | 1 | 1 |
| 160 | 2620-220 | Washer, 1.25 x 2 x .0625 in. | 2 | 2 |
| 161 | 2620-131 | Washer, 1-7/8 in. OD x 1/2 in. ID | 2 | 2 |
| 163 | 2600-183 | Belleville washer, 1.5 in. OD x .5 in. ID | 8 | 8 |
| 164 | 2620-021 | Washer, 1/2 in. SAE | 2 | 2 |
| 183 | 2620-420 | Hex nut, 1/2-13 | 2 | 2 |

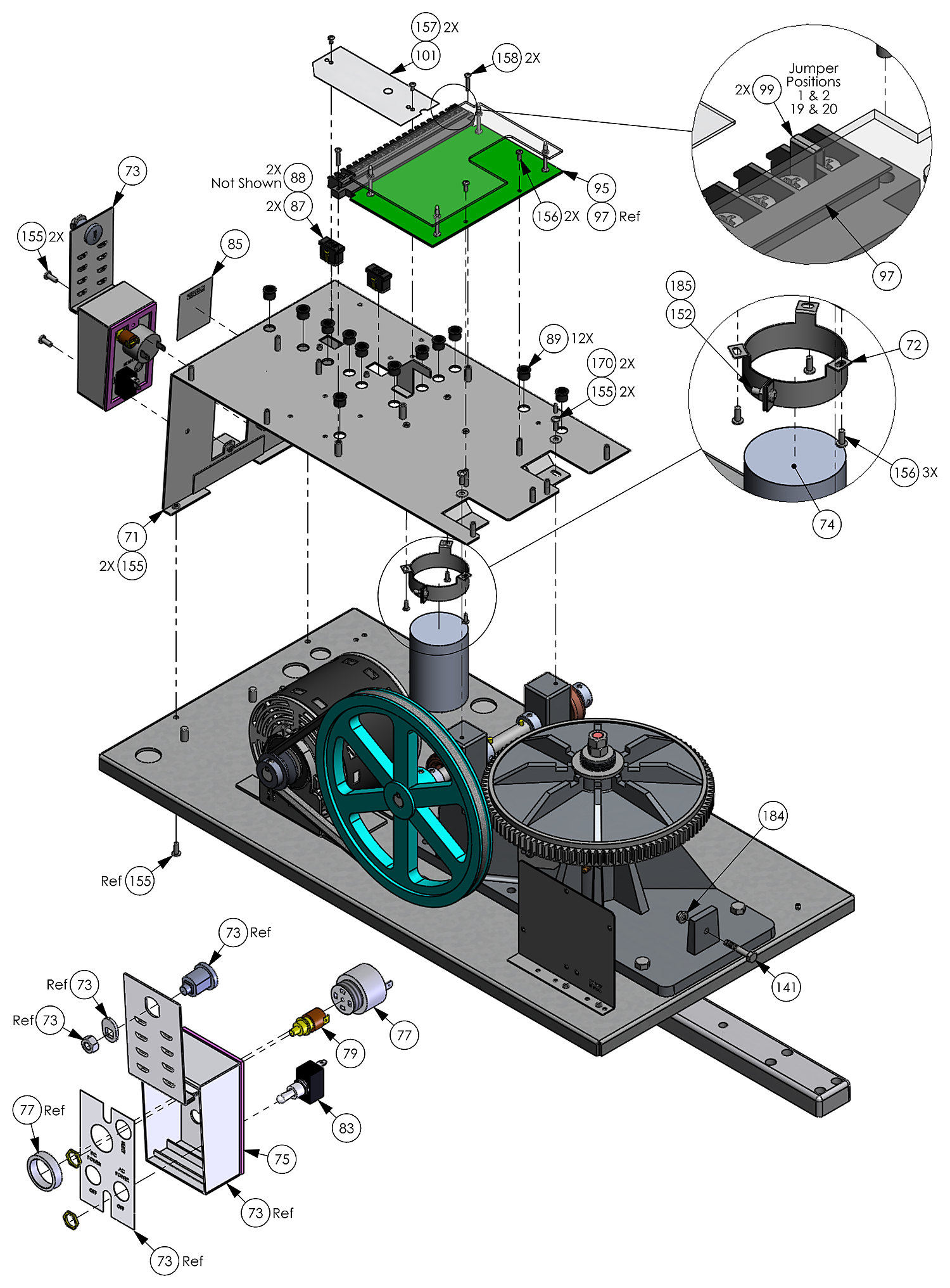

Control Board & Electrical
| Ref | Part Number | Description | Qty 1/2 HP | Qty 1 HP |
|---|---|---|---|---|
| 71 | 2600-773 | Bracket, board mounting panel 630 | 1 | 1 |
| 72 | 2600-102 | Capacitor, 50 uF 370 VAC | 1 | — |
| 73 | 2600-533 | Switch cover, lockable | 1 | 1 |
| 74 | 2600-875 | Capacitor mounting clamp | 1 | — |
| 75 | 2600-731 | Gasket, switch cover | 1 | 1 |
| 77 | 1506-071 | Tone generator, loud | 1 | 1 |
| 79 | 1812-005 | Push button switch, N.O. | 1 | 1 |
| 83 / 81 | 1601-041 | Toggle switch, SPST 2 position (ref 83 on the 1/2 HP, ref 81 on the 1 HP) | 1 | 1 |
| 85 | 2599-008 | Patent label | 1 | 1 |
| 87 | 1200-028 | Snap-in outlet (Leviton 1306) | 2 | 2 |
| 88 | 2600-749 | Wire connector, STA-KON RC6 | 2 | 2 |
| 89 | 2600-820 | Bushing / grommet, 1/2 in. | 12 | 12 |
| 95 | 4502-010 | PCB, gate operator (control board) — see the Date of Manufacture note at the top of this page before ordering | 1 | 1 |
| 97 | 4001-020 | Terminal, 20 pin | 1 | 1 |
| 99 | 2600-840 | Jumper, ring tongue #8 screw | 2 | 2 |
| 101 | 2600-945 | Cover, plastic insulator | 1 | 1 |
| 141 | 2615-008 | Hex head bolt, 1/4-20 x 1-1/2 in. | 1 | 1 |
| 142 | 2615-870 | Button socket bolt, 3/8-16 x 3/4 in. | — | 1 |
| 155 | 2616-052 | Phillips head screw, 10-32 x 1/2 in. | 6 | 6 |
| 156 | 2616-001 | Phillips head screw, 6-32 x 3/8 in. | 5 | 2 |
| 157 | 2600-887 | Nylon Phillips screw, 6-32 x 1/4 in. | 2 | 2 |
| 158 | 2616-003 | Phillips head screw, 6-32 x 3/4 in. | 2 | 2 |
| 170 | 2620-010 | Washer, #10 SAE | 4 | 2 |
| 184 | 2620-409 | Hex flange lock nut, 1/4-20 | 1 | 1 |
| 185 | 2620-401 | Hex nut, 8-32 | 1 | — |
Not Shown on the Diagrams
| Ref | Part Number | Description | Qty 1/2 HP | Qty 1 HP |
|---|---|---|---|---|
| 200 | 1804-031 | Tie wrap, 4 in. | 15 | 15 |
| 201 | 2600-698 | Wire set, model 6050 / 6100 / 6300 | 1 | 1 |
| 205 | 7082-137 | Wire, 5 in. green stranded 14 AWG | 1 | 1 |
| 209 | 2599-100 | Warning sign | 2 | 2 |
| 211 | 6300-065 | Installation manual | 1 | 1 |
Superseded Part Numbers
| Old Part Number | Current Part Number | Notes |
|---|---|---|
| 3004-010 | 3004-020 | Ref 43 — the threaded magnetic counter is now supplied as the 3004-020 magnetic counter kit |
| 2600-630 / 2600-631 | 6500-220 | Refs 123 and 125 — the separate left and right swinger joint covers were replaced by a single cover, two required |
Common 6300 Problems and the Parts That Fix Them
| Symptom | Usual Cause | Parts |
|---|---|---|
| Motor hums but the gate will not move (1/2 HP units) | Failed run capacitor | 2600-102 capacitor, 2600-875 clamp |
| Gate slips, will not hold position, or stalls in wind | Worn 9 in. clutch pads | 2801-003 pads (2), 2600-681 plates (2) |
| Squealing on start, or motor runs and the gate barely moves | Glazed or stretched cogged belt | 2600-428 belt, 2600-569 pulley |
| Gate loses its open or close position | Magnetic counter or counter ring fault | 3004-020 counter kit, 2600-073 counter ring |
| Grinding or chattering from the gearbox | Stripped worm gear | 2600-644 worm gear, 6300-042 housing assembly |
| Powers up but ignores every input, or only one direction works | Failed control board | 4502-010 board — check your date of manufacture first |
| Dead operator after a storm, no response to any input | Surge-damaged control board | 4502-010 board, 4001-093 MOV assembly |
| Play or clunking at the gate connection | Worn crank arm joint | 2600-720 joint assembly, 2600-779 crank arm |
