DoorKing 6100 Swing Gate Operator Parts
DoorKing 6100 Swing Gate Operator Replacement Parts

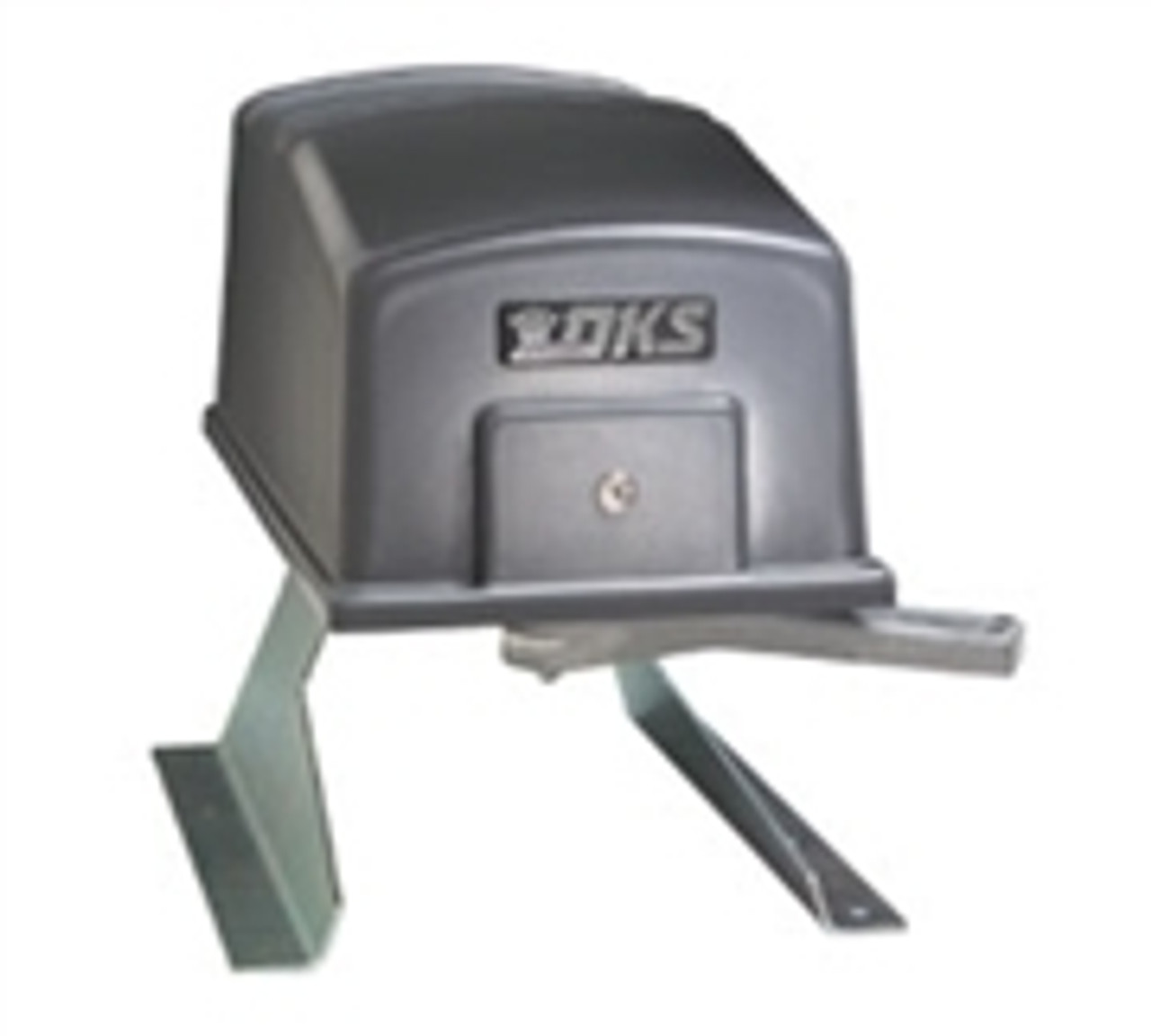

Genuine DoorKing replacement parts for the 6100 swing gate operator (model 6100-080, 1/2 HP primary, drawing 6100-880 Rev N). The reference numbers in the tables below match the callout numbers on each diagram, so find the number on the drawing first, then click the part number in the matching row to go straight to that product page. Indented rows are the individual pieces inside a larger assembly — you can buy the whole assembly or just the worn part.
The 6100 is the 1/2 HP version of the same machine as the DoorKing 6050, which uses a 1/3 HP motor. They share the housing, clutch stack, control board and most hardware. What differs: the 6100 uses the 2600-129 motor, the 8 in. 2600-568 pulley, the 30 in. 2600-089 belt and a 50 uF 2600-102 capacitor. The pad mount (2600-671) and post mount (2600-674) shown in outline are separate assemblies, not part of the operator.
Circuit Board — the most replaced part on the 6100
4502-010 — PCB Gate Operator
The same board runs the 6050, 6100 and 6300 swing gate operators. Replace it when the operator is dead with power confirmed at the terminals, when it powers up but ignores every input (radio, keypad, loop, push button), when only one direction works, or after a lightning or surge event.
Check your date of manufacture before you order. DoorKing revised this board in January 2016. The base part number is 4502-010 and the suffix identifies the version:
- -018 — operators built January 2016 or later (current board, UL325 monitored device input)
- -012 — operators built prior to January 2016
You do not order those numbers separately. Open the 4502-010 product page and choose your Date of Manufacture from the dropdown — the two choices read "Unit manufactured before Jan 2016" and "Unit manufactured after Jan 2016 with UL325 monitored device input". If you are unsure, read the number printed on the board currently fitted; it will end in -012 or -018.
Replace the 4001-093 MOV / varistor assembly at the same time. A surge big enough to kill the board almost always takes the varistor with it, and a spent varistor leaves the new board unprotected.

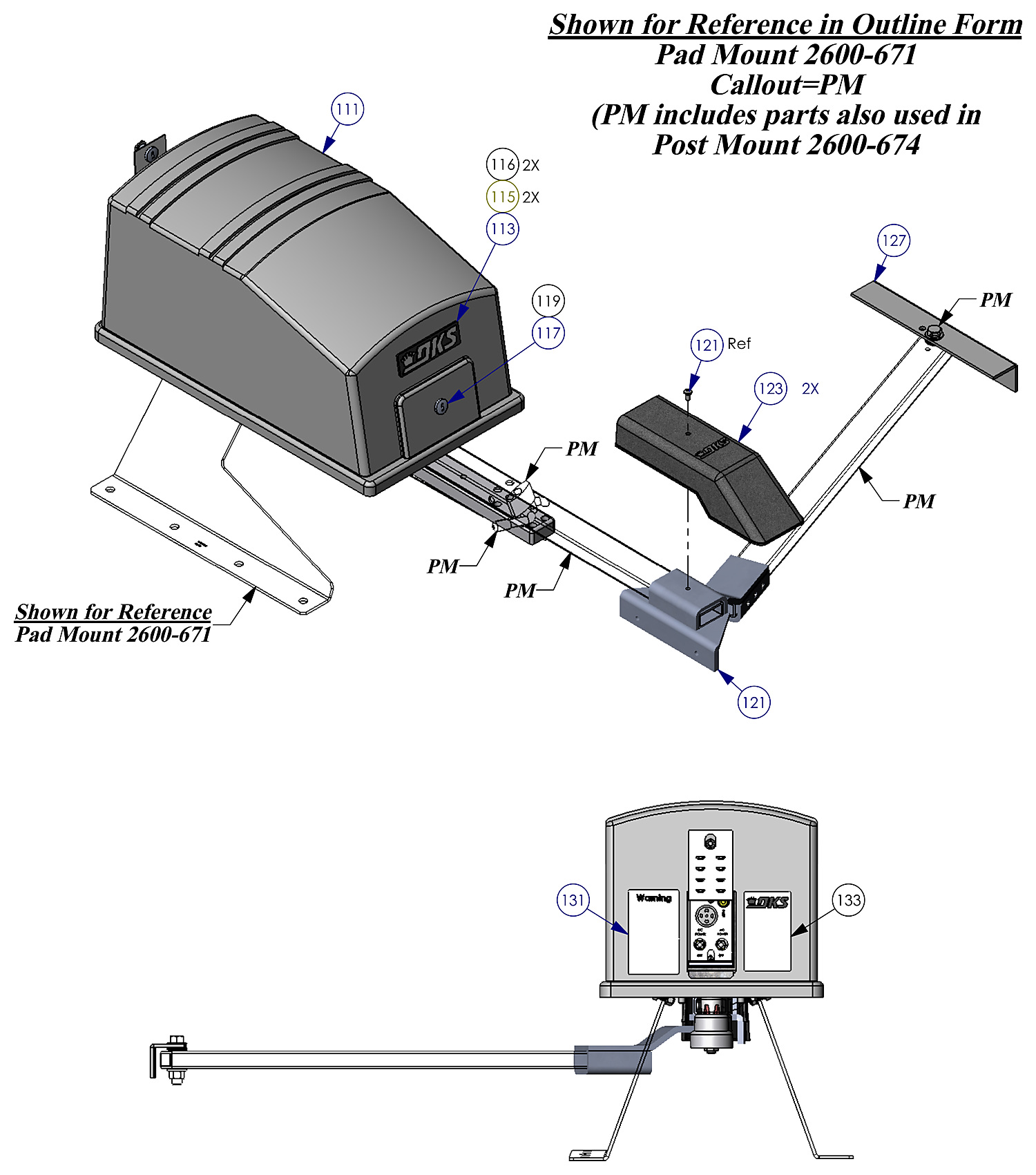

Cover, Crank Arm & Mounting
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 111 | 2600-721 | Cover, model 6050 / 6100 | 1 |
| 113 | 2600-732 | Nameplate, plastic DKS (big) | 1 |
| 115 | 2802-040 | Push-on washer | 2 |
| 116 | 1897-050 | Gasket support, thick 1/16 in. | 2 |
| 117 | 1702-507 | Cam, "J" hook | 1 |
| 119 | 4001-035 | Lock with key 16120 | 1 |
| 121 | 2600-720 | Crank arm joint assembly, black (complete — sub-parts below) | 1 |
| 121-1 | 2600-507 | • Connector arm clamp, plated black | 1 |
| 121-2 | 2600-506 | • Flange bracket, plated black | 1 |
| 121-3 | 2600-856 | • Bronze bearing, 7/8 in. OD x 5/8 in. ID x 1/2 in. | 1 |
| 121-4 | 2616-100 | • Set screw, stainless 3/8-16 x 1/2 in. | 6 |
| 121-5 | 2620-022 | • Washer, 5/8 in. USS | 3 |
| 121-6 | 2620-350 | • Center lock nut, 5/8-11 | 1 |
| 121-7 | 2905-065 | • Phillips head screw, 1/4-20 x 1/2 in. | 1 |
| 123 | 6500-220 | Joint cover, swinger (replaces 2600-630 / 2600-631) | 2 |
| 127 | 2600-711 | Bracket, 3/16 x 2 x 12 in. | 1 |
| 131 | 2599-034 | Label, gate operator | 1 |
| 133 | 2599-199 | Label, universal | 2 |

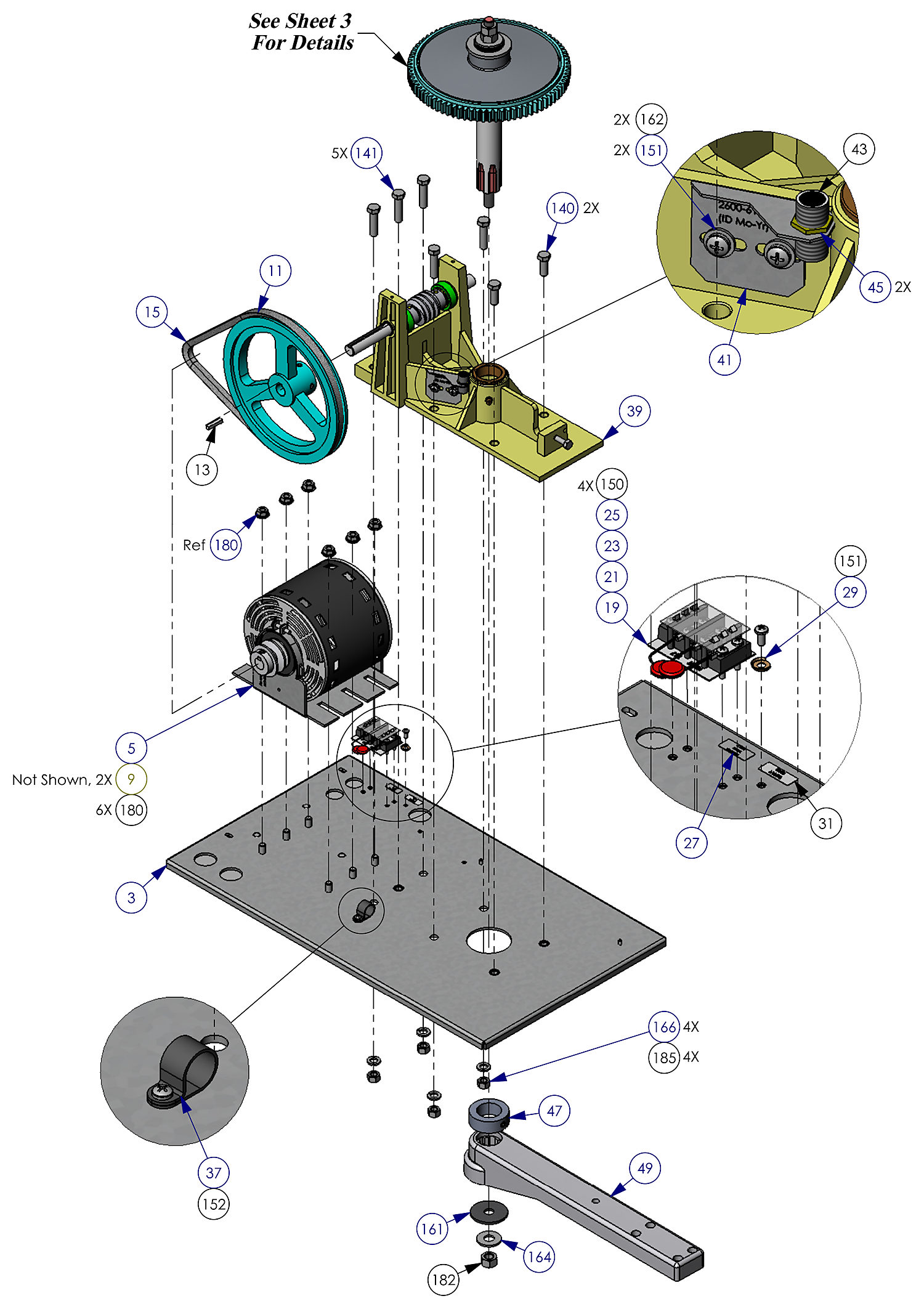

Baseplate, Motor & Housing Assembly
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 3 | 2600-643 | Baseplate, 6050 / 6100 regular | 1 |
| 5 | 2600-129 | Motor assembly, 1/2 HP (6100 / 9100) | 1 |
| 9 | 1215-018 | Wire nut #71B | 2 |
| 11 | 2600-568 | Pulley, 8 in. cast iron AC80 x 5/8 | 1 |
| 13 | 1601-019 | Keyway, 3/16 x 3/16 x 1 in. | 1 |
| 15 | 2600-089 | Belt, 30 in. | 1 |
| 19 | 2600-410 | Marker strip, silkscreened both sides | 1 |
| 21 | 2600-414 | Terminal block, 2 position | 1 |
| 23 | 3129-002 | Terminal block cover, 2 position | 1 |
| 25 | 4001-093 | MOV assembly, 130 VAC | 1 |
| 27 | 2599-014 | Decal, copper wire only | 1 |
| 29 | 2600-439 | Cup washer, brass | 1 |
| 31 | 2599-006 | Decal, supply ground | 1 |
| 37 | 2600-619 | Wire clamp, 5/8 in. | 1 |
| 39 | 6100-040 | Housing assembly, 6100 (complete — sub-parts below) | 1 |
| 39-15 | 1601-032 | • Bushing, 1-1/2 in. OD x 1-1/4 in. ID x 5/8 in. L | 2 |
| 39-20 | 2600-032 | • Spirol pin, 3/16 in. D x 1 in. L stainless | 2 |
| 39-25 | 2600-049 | • Bronze bearing, 3/4 in. OD x 5/8 in. ID x 3/4 in. L | 2 |
| 39-30 | 2600-084 | • Thrust bearing, 5/8 in. ID | 2 |
| 39-35 | 2600-287 | • Worm, 2 shoulder | 1 |
| 39-45 | 2600-090 | • Shim, 1-1/8 in. OD x 5/8 in. ID x 1/16 in. thick | 2 |
| 39-50 | 2600-091 | • Shim, 1-1/8 in. OD x 5/8 in. ID x 1/32 in. thick | 2 |
| 39-55 | 2600-092 | • Shim, 1-1/8 in. OD x 5/8 in. ID x 1/64 in. thick | 2 |
| 39-60 | 2600-166 | • Cross keyed shaft, 6100 | 1 |
| 39-65 | 2600-178 | • Grease (Zerk) fitting | 1 |
| 41 | 2600-613 | Bracket, magnetic counter (potted) | 1 |
| 43 | 3004-020 | Magnetic counter kit (was 3004-010, threaded counter) | 1 |
| 45 | 3004-051 | Panel nut, 1/4-18 | 2 |
| 47 | 2600-061 | Collar, 2 in. OD x 1-1/4 in. ID x 5/8 in. L | 1 |
| 49 | 2600-779 | Swing crank arm, extended | 1 |
| 140 | 2615-052 | Hex head bolt, 3/8-16 x 1 in. | 2 |
| 141 | 2615-055 | Hex head bolt, 3/8-16 x 1-1/2 in. | 5 |
| 150 | 2616-019 | Phillips head screw, 8-32 x 3/4 in. | 4 |
| 151 | 2616-018 | Phillips head screw, 8-32 x 1/2 in. | 3 |
| 161 | 2620-131 | Washer, 1-7/8 in. OD x 1/2 in. ID | 2 |
| 162 | 2802-003 | Washer, #8 SAE | 2 |
| 164 | 2620-021 | Washer, 1/2 in. SAE | 2 |
| 166 | 2620-019 | Washer, 3/8 in. SAE | 4 |
| 180 | 2620-411 | Hex flange lock nut, 5/16-18 | 6 |
| 182 | 2620-320 | Center lock nut, 1/2-13 | 1 |
| 185 | 2620-405 | Hex nut, 3/8-16 | 4 |

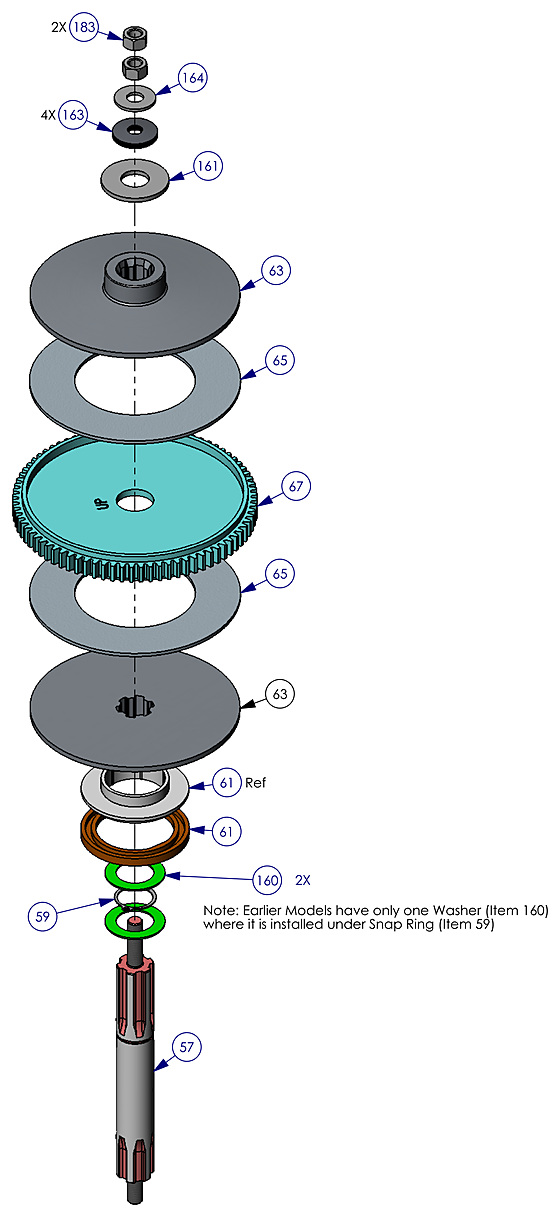

Clutch & Worm Gear Assembly
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 57 | 2600-675 | Shaft assembly, 6050 / 6100 | 1 |
| 59 | 2630-010 | Snap ring, 1.25 in. | 1 |
| 61 | 2600-360 | Counter wheel, magnetic assembly | 1 |
| 63 | 2600-680 | Clutch plate, 7 in. | 2 |
| 65 | 2801-002 | Clutch pad, 7 in. OD (605 / 610, 6100) | 2 |
| 67 | 2600-323 | Worm gear, 80 tooth Delrin | 1 |
| 160 | 2620-220 | Washer, 1.25 x 2.25 x 0.05 in. | 2 |
| 161 | 2620-131 | Washer, 1-7/8 in. OD x 1/2 in. ID | 2 |
| 163 | 2600-183 | Belleville washer, 1.5 in. OD x .5 in. ID | 4 |
| 164 | 2620-021 | Washer, 1/2 in. SAE | 2 |
| 183 | 2620-420 | Hex nut, 1/2-13 | 2 |

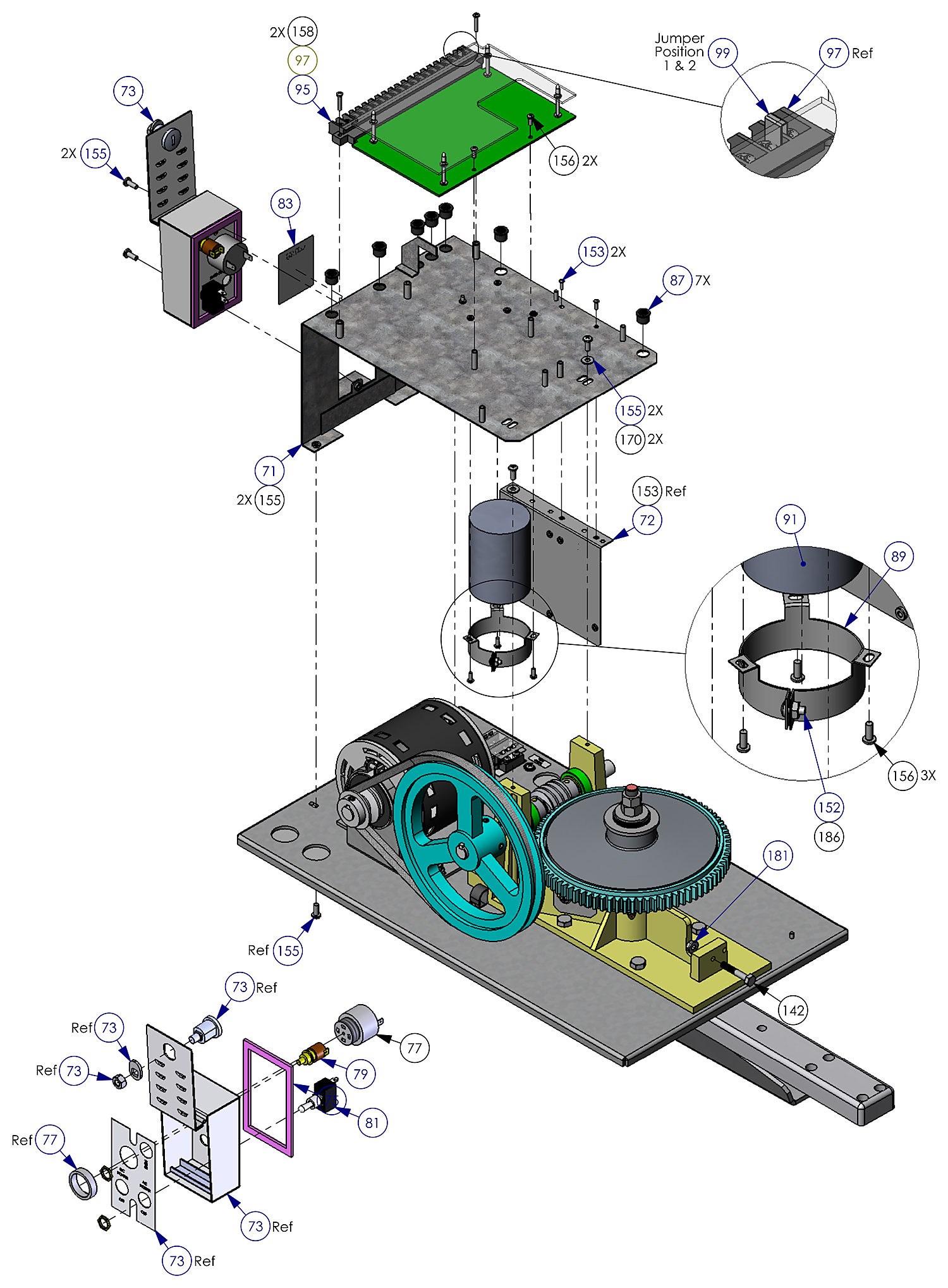

Control Board & Electrical
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 71 | 2600-668 | Bracket, 6050 / 6100 PCB support | 1 |
| 72 | 2600-638 | Bracket, radio / 610 battery backup | 1 |
| 73 | 2600-533 | Switch cover, lockable | 1 |
| 75 | 2600-731 | Gasket, switch cover | 1 |
| 77 | 1506-071 | Tone generator, loud | 1 |
| 79 | 1812-005 | Push button switch, N.O. | 1 |
| 81 | 1601-041 | Toggle switch, SPST 2 position | 1 |
| 83 | 2599-008 | Patent label | 1 |
| 87 | 2600-820 | Bushing / grommet, 1/2 in. | 7 |
| 89 | 2600-875 | Capacitor mounting clamp | 1 |
| 91 | 2600-102 | Capacitor, 50 uF 370 VAC | 1 |
| 95 | 4502-010 | PCB, gate operator (control board) — see the control board box above and choose your date of manufacture | 1 |
| 97 | 4001-020 | Terminal, 20 pin | 1 |
| 99 | 2600-830 | Jumper, ring tongue | 1 |
| 142 | 2615-008 | Hex head bolt, 1/4-20 x 1-1/2 in. | 1 |
| 153 | 2616-001 | Phillips head screw, 6-32 x 3/8 in. | 2 |
| 155 | 2616-052 | Phillips head screw, 10-32 x 1/2 in. | 6 |
| 156 | 2616-001 | Phillips head screw, 6-32 x 3/8 in. | 5 |
| 158 | 2616-003 | Phillips head screw, 6-32 x 3/4 in. stainless | 2 |
| 170 | 2620-010 | Washer, #10 SAE | 2 |
| 181 | 2620-409 | Hex flange lock nut, 1/4-20 | 1 |
| 186 | 2620-401 | Hex nut, 8-32 | 1 |
Not Shown on the Diagrams
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 200 | 1804-031 | Tie wrap, 4 in. | 10 |
| 201 | 2600-698 | Wire set, model 6050 / 6100 / 6300 | 1 |
| 205 | 7082-137 | Wire, 5 in. green stranded 14 AWG | 1 |
| 209 | 2599-100 | Warning sign | 2 |
| 210 | 6100-065 | Installation manual | 1 |
| 211 | 9200-190 | Resistor kit, UL325 | 1 |
Superseded Part Numbers
| Old Part Number | Current Part Number | Notes |
|---|---|---|
| 3004-010 | 3004-020 | Ref 43 — the threaded magnetic counter is now supplied as the 3004-020 magnetic counter kit |
| 2600-630 / 2600-631 | 6500-220 | Ref 123 — the left and right swinger joint covers were replaced in Rev N by a single cover, two required |
Common 6100 Problems and the Parts That Fix Them
| Symptom | Usual Cause | Parts |
|---|---|---|
| Motor hums but the gate will not move | Failed run capacitor | 2600-102 capacitor, 2600-875 clamp |
| Gate slips, will not hold position, or stalls in wind | Worn clutch pads | 2801-002 pads (2), 2600-680 plates (2) |
| Squealing on start, or motor runs and the gate barely moves | Glazed or stretched drive belt | 2600-089 belt, 2600-568 pulley |
| Gate loses its open or close position | Magnetic counter or counter wheel fault | 3004-020 counter kit, 2600-360 wheel |
| Grinding or chattering from the gearbox | Stripped worm gear or worn worm bearings | 2600-323 worm gear, 2600-287 worm, 2600-049 bearings |
| End play or knocking in the housing after a rebuild | Wrong shim stack on the worm shaft | 2600-090, 2600-091, 2600-092 shims |
| Operator powers up but ignores every input — radio, keypad, loop and push button all dead | Failed control board logic | 4502-010 board (choose your date of manufacture), 4001-020 20-pin terminal |
| Dead operator after a storm, no response to any input | Surge-damaged control board | 4502-010 board, 4001-093 MOV assembly |
| Play or clunking at the gate connection | Worn crank arm joint bearing | 2600-720 joint assembly, 2600-856 bronze bearing |
