DoorKing 6006 Swing Gate Actuator Parts
DoorKing 6006 Swing Gate Actuator Replacement Parts
Genuine DoorKing replacement parts for the 6006 linear swing gate actuator, drawing 6006-380 Rev A, covering the 6006-380 primary and 6006-381 secondary actuators. Part numbers on the diagrams are called out by number rather than by reference key, so the tables below list them in numeric order. Click any part number to go straight to that product page.
Circuit Board — it lives in the control box, not the actuator
4302-010 — PCB, DC Swing Gate Operator
The 6006 is an actuator only — there is no board inside it. All of the electronics sit in the separate 4302 control box mounted nearby, and this is the board inside that box. It is the same board used across DoorKing’s DC swing range (6003, 6004, 6005, 6006 and 6400). If the gate is dead, the actuator is usually fine and the fault is in the control box.
- 4302-018 — control boxes manufactured January 2016 or later (current production)
- 4302-012 — control boxes manufactured prior to January 2016
You do not order those suffixes separately. Open the 4302-010 product page and pick your Date of Manufacture from the dropdown. If you are unsure, read the number printed on the board already fitted — it will end in -012 or -018.
Blown fuse before a dead board. The 4302-010 uses the 4601-058 5A fuse — check it first, it costs a fraction of the board.
Need the whole control box?
| Part Number | Control Box |
|---|---|
| 4302-311 | 115 VAC Standard — includes two 3.5 Ah batteries, photocell, receiver and two transmitters |
| 4302-312 | 115 VAC Deluxe — as above plus three 115 VAC convenience outlets |
| 4302-313 | 24 VDC Solar — no batteries supplied |
| 4302-314 | 24 VDC Solar — with two 18 Ah batteries |
| 4302-315 | 24 VDC Solar — with two 35 Ah batteries |

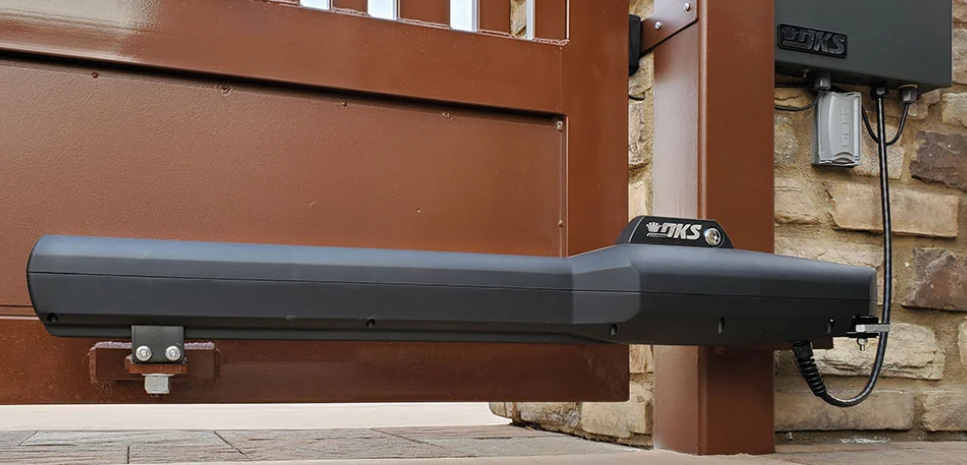

The 6006 is a 24 VDC linear actuator — a sealed screw-drive arm, not a cabinet operator. It has no belt, chain, clutch or gearbox in the usual DoorKing sense: the motor turns a worm and bevel gear set, which turns a drive screw, which pushes a travel nut along the arm. The wear items are the travel nut assembly, drive screw, bronze bushings and thrust bearing.
Parts marked (hardware kit) ship in the mounting hardware kit with a new actuator and are also sold individually.

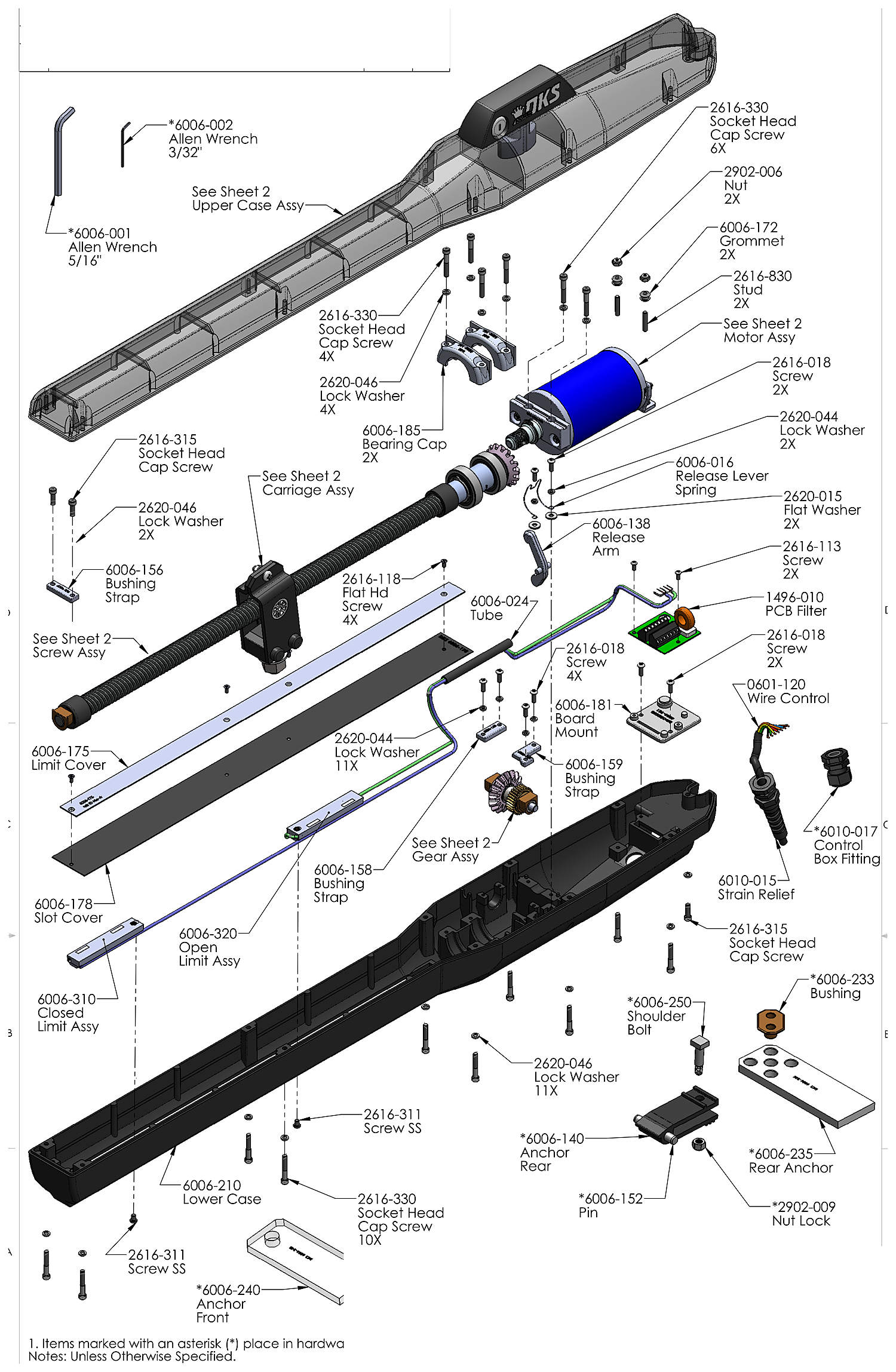

Actuator Assembly — Cases, Limits, Wiring & Mounting
| Part Number | Description | Qty |
|---|---|---|
| 0601-120 | Wire, control cable | 1 |
| 1496-010 | PCB filter (hash filter) | 1 |
| 2616-018 | Screw, Phillips head 8-32 x 1/2 in. | 2X / 4X |
| 2616-113 | Screw, No. 6 for plastic | 2X |
| 2616-118 | Screw, flat head 6-32 x 5/16 in. | 4X |
| 2616-311 | Screw, socket head low profile 10-32 x 1/4 in. SS | 2X |
| 2616-315 | Screw, socket head 10-32 x 5/8 in. | 1 |
| 2616-330 | Screw, socket head cap 10-32 x 1-1/4 in. | 6X / 4X / 10X |
| 2616-830 | Stud / set screw, 10-32 x 1-1/8 in. SS | 2X |
| 2620-015 | Washer, flat .20 ID x .50 OD | 2X |
| 2620-044 | Lock washer, #8 | 2X / 11X |
| 2620-046 | Lock washer, split #10 SS | 2X / 4X / 11X |
| 2902-006 | Nut, nylon lock 10-32 | 2X |
| 2902-009 | Nut, nylon lock 5/16-18 (hardware kit) | 1 |
| 6006-001 | Allen wrench, 5/16 in. (hardware kit) — not currently available from DoorKing | 1 |
| 6006-002 | Allen wrench, 3/32 in. (hardware kit) — not currently available from DoorKing | 1 |
| 6006-016 | Spring, release lever | 1 |
| 6006-024 | Tube — not currently available from DoorKing | 1 |
| 6006-138 | Release arm | 1 |
| 6006-140 | Rear anchor (hardware kit) | 1 |
| 6006-152 | Pin, dowel stainless (hardware kit) | 1 |
| 6006-156 | Bushing strap — not currently available from DoorKing | 1 |
| 6006-158 | Bushing strap, straight | 1 |
| 6006-159 | Bushing strap, offset | 1 |
| 6006-172 | Grommet — not currently available from DoorKing | 2X |
| 6006-175 | Limit cover | 1 |
| 6006-178 | Slot cover, urethane | 1 |
| 6006-181 | Connector board mount | 1 |
| 6006-185 | Bearing cap | 2X |
| 6006-210 | Actuator lower case | 1 |
| 6006-233 | Bushing, bronze sintered (hardware kit) | 1 |
| 6006-235 | Post mount bracket (hardware kit) | 1 |
| 6006-240 | Gate mount bracket (front anchor) (hardware kit) | 1 |
| 6006-250 | Shoulder bolt (hardware kit) | 1 |
| 6006-310 | Closed limit assembly | 1 |
| 6006-320 | Open limit assembly | 1 |
| 6010-015 | Strain relief, liquid tight | 1 |
| 6010-017 | Strain relief, dome fitting (control box) (hardware kit) | 1 |

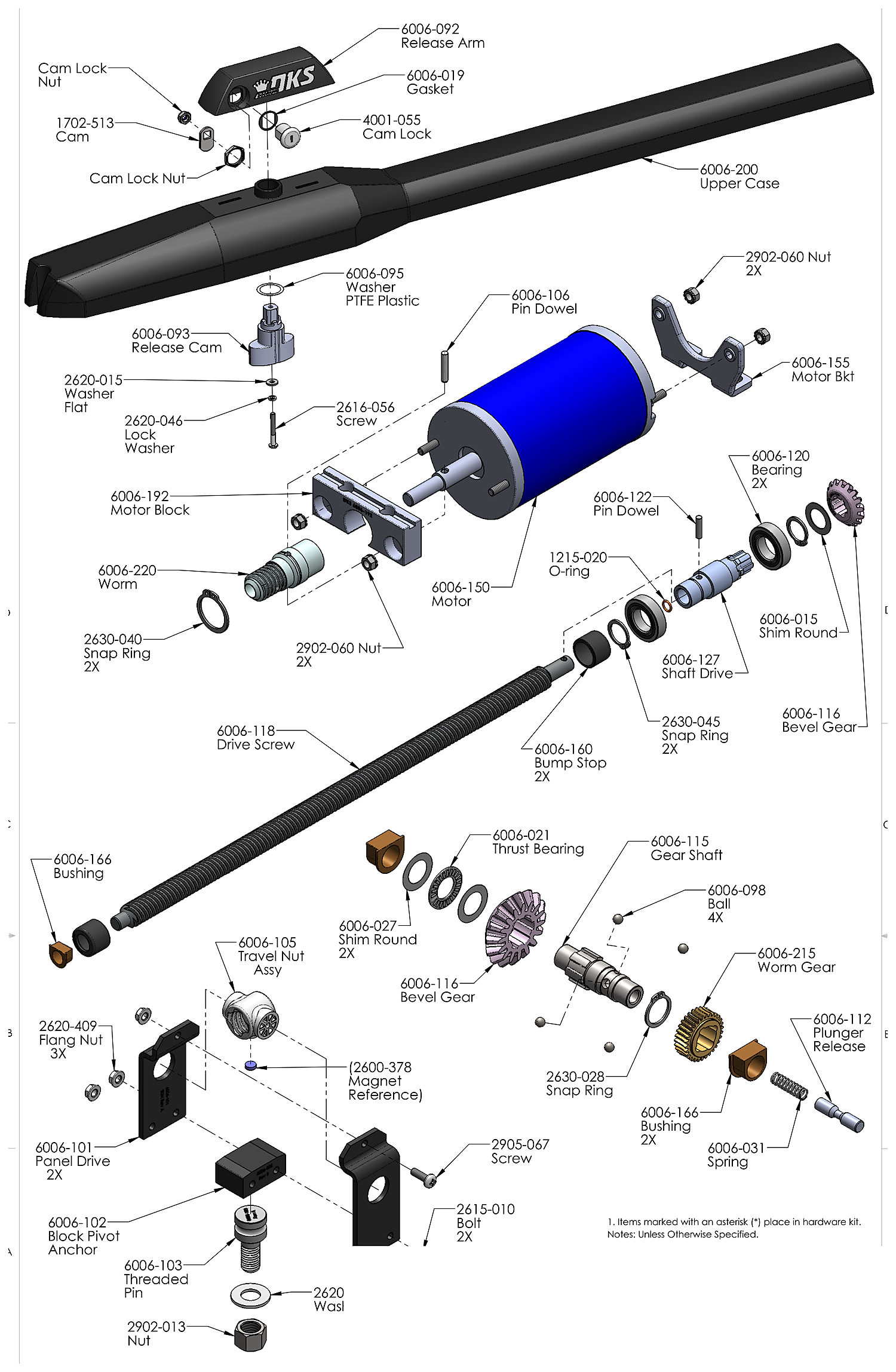

Internal Assembly — Motor, Gear Train, Drive Screw & Release
| Part Number | Description | Qty |
|---|---|---|
| 1215-020 | O-ring — not currently available from DoorKing | 1 |
| 1702-513 | Cam, 3/4 in. | 1 |
| 2600-378 | Magnet, .375 d x .100 in. th (reference) | 1 |
| 2615-010 | Bolt, hex head 1/4-20 x 2 in. Gr8 | 2X |
| 2616-056 | Screw, Phillips head 10-32 x 1-1/2 in. | 1 |
| 2620-023 | Washer, 5/8 in. SAE | 1 |
| 2620-409 | Nut, hex flange lock 1/4-20 | 3X |
| 2630-028 | Snap ring — not currently available from DoorKing | 1 |
| 2630-040 | Snap ring — not currently available from DoorKing | 2X |
| 2630-045 | Snap ring — not currently available from DoorKing | 2X |
| 2902-013 | Nut, nylon lock 5/8-11 | 1 |
| 2902-060 | Nut, kep 5 mm | 2X |
| 2905-067 | Screw, Phillips head 1/4-20 x 3/4 in. | 1 |
| 4001-055 | Cam lock | 1 |
| 6006-003 | Cap, bolt head 1/4-20 (hardware kit) | 2X |
| 6006-015 | Shim, round | 1 |
| 6006-019 | Gasket, cam lock | 1 |
| 6006-021 | Thrust bearing, needle | 1 |
| 6006-027 | Shim, round 5/8 ID x 1 OD x .005 thk | 2X |
| 6006-031 | Spring | 1 |
| 6006-092 | Release handle / arm | 1 |
| 6006-093 | Release cam | 1 |
| 6006-095 | Washer, PTFE plastic | 1 |
| 6006-098 | Ball, steel alloy 6 mm | 4X |
| 6006-101 | Drive pivot panel | 2X |
| 6006-102 | Block pivot anchor | 1 |
| 6006-103 | Threaded pin | 1 |
| 6006-105 | Travel nut assembly | 1 |
| 6006-106 | Pin, dowel — not currently available from DoorKing | 1 |
| 6006-112 | Release plunger | 1 |
| 6006-115 | Gear cross shaft | 1 |
| 6006-116 | Bevel gear | 2X |
| 6006-118 | Drive screw shaft | 1 |
| 6006-120 | Bearing, sealed 25 mm | 2X |
| 6006-122 | Pin, drive shaft | 1 |
| 6006-127 | Drive screw connector shaft | 1 |
| 6006-150 | Motor, 24 VDC PMDC | 1 |
| 6006-155 | Motor bracket, rear | 1 |
| 6006-160 | Bump stop | 2X |
| 6006-166 | Bushing, bronze sintered | 2X |
| 6006-192 | Motor block mount | 1 |
| 6006-200 | Actuator upper case | 1 |
| 6006-215 | Worm gear, bronze | 1 |
| 6006-220 | Worm, motor attachment | 1 |
Common 6006 Problems and the Parts That Fix Them
| Symptom | Usual Cause | Parts |
|---|---|---|
| Nothing happens at all — no motor noise, no lights | Control box fuse or board, not the actuator | 4601-058 5A fuse first, then the 4302-010 control board — check your build date |
| Motor runs but the arm does not extend or retract | Stripped travel nut | 6006-105 travel nut assembly, 6006-118 drive screw |
| Grinding or clicking from inside the case | Stripped worm or bevel gear | 6006-215 bronze worm gear, 6006-220 worm, 6006-116 bevel gears (2) |
| Arm has play, or the screw rumbles under load | Worn bushings or thrust bearing | 6006-166 bronze bushings (2), 6006-021 thrust bearing, 6006-120 sealed bearings (2) |
| Gate will not stop at the open or closed position | Failed limit assembly | 6006-310 closed limit, 6006-320 open limit, 6006-175 limit cover |
| Manual release will not disengage the arm | Worn release cam, plunger or spring | 6006-093 release cam, 6006-112 plunger, 6006-031 spring, 6006-092 handle |
| Actuator dead but the control box is powered | Failed motor or hash filter | 6006-150 24 VDC motor, 1496-010 PCB filter, 0601-120 control cable |
| Water inside the case, corrosion on the screw | Perished slot cover or strain relief | 6006-178 slot cover, 6010-015 strain relief, 6006-019 cam lock gasket |
| Actuator loose at the gate or post | Worn mounting hardware | 6006-240 gate bracket, 6006-235 post bracket, 6006-233 bushing, 6006-250 shoulder bolt |
