Miller Edge ME120 – Gate Sensing Edge for 1-1/2″ Surfaces
The Miller Edge ME120 is a touch-sensitive sensing edge sized for 1-1/4″ to 1-3/8″ gate surfaces, measuring 1-7/16″ wide by 1-11/16″ high. It provides reliable entrapment protection by instantly stopping or reversing motion on contact.
Paired with the optional ME120-C5 mounting channel, it forms a compliant sweep edge for the entrapment zone over driveways and curbs beneath swinging gates.
Before you order — five things to confirm
1. Length. Mounted horizontally, measure the gate width less post caps. Mounted vertically, measure the post height less caps — not required to exceed 6 ft. Ordered in 1/4 inch increments.
2. Cord location. Left, right, end, or top — see below.
3. Color. Black or yellow.
4. Monitoring. Monitored if your gate operator was built after January 2016. Gate operators use the T2 (10K resistive) designator.
5. Mounting channel. ME120-C, ME120-PC, or ME120-C5 for a sweep edge — see below.
Not sure this is the right model? See Which Miller Edge Sensing Edge Do I Need? Or call (866) 965-5599.

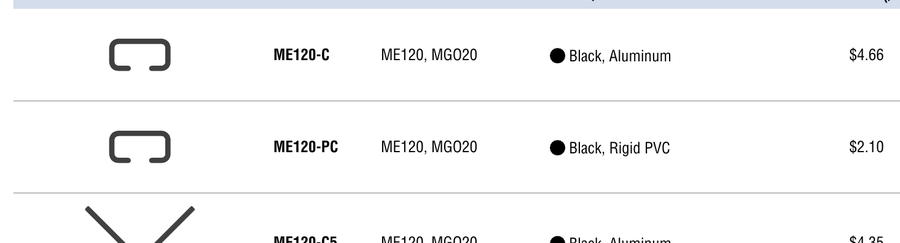

Mounting Channel Options
| Option | Material | Notes |
|---|---|---|
| NONE | — | Edge only, for replacement in an existing channel |
| ME120-C | Black aluminum | Standard mount |
| ME120-PC | Black rigid PVC | Lower-cost alternative |
| ME120-C5 | Black aluminum | Sweep edge profile for swing gate entrapment zones |
A standalone ME120-C aluminum channel in 5 ft sections is also available separately.
Does Your Gate Operator Need a Module?
Most gate operators take a T2 edge with no module. Some brands need an interface module between the edge and the controller:
| Module | Operator Brands |
|---|---|
| GEM-102 | IQ Gate (2/4-wire) |
| GEM-103 | Eagle Access Control, IQ Gate, Nice, PPA America |
| GEM-104 | All-O-Matic, Beninca, Byan Systems, FAAC, HySecurity, Maximum Controls, Ramset, SEA USA, V-Mag |
AutoGate, B&B ARMR, BFT, DoorKing, GTO/Linear, Power Master, VE Power, Rotary, Torxun, USAutomatic and Viking need no module. For a wireless install, use the RBand monitored wireless system.
Cord Location
The cord location is where the lead exits the edge. Facing the operator side of the gate:
- Mounted horizontally — is the operator on the left or the right?
- Mounted vertically — should the wire outlet be at the top or the bottom?
- End is also available
Get this wrong and the lead runs the opposite way across the opening — and the edge is built to order. See the Gate Edge Handing Guide if you are unsure.
Dimensions
Key Features
- 1-7/16″ W × 1-11/16″ H — ideal size for 1-1/2 inch gate surfaces
- Mounts vertically or horizontally
- Three mounting channel options, including ME120-C5 for a sweep edge
- Custom manufactured to your specifications (color, length, cord location)
- Sealed assembly – impervious to dust and debris
- Flexible PVC exterior, available in black or yellow
- Patented Alumaglas™ contact element for superior performance (electric option)
- UL 325 Recognized Component
- 1-year warranty
- Made in USA
Common Applications
- Slide gates
- Swing gate sweep edges (with the ME120-C5 channel)
- Cantilever and vertical lift gates
- Commercial motorized doors and rolling shutters
Available Configurations
- 2-wire monitored — T2 (10K) for gate operators
- 4-wire monitored
- Non-monitored — 2-wire, Air-Wave, or pneumatic
- Bumper — no sensor
The designator is set by your operator, not by the edge. See the full designator guide for the T1 through T6 reference table.
Important: Edges are custom-made and non-returnable. Confirm compatibility with your gate operator manufacturer before ordering.
