Elite Miracle One Replacement Parts

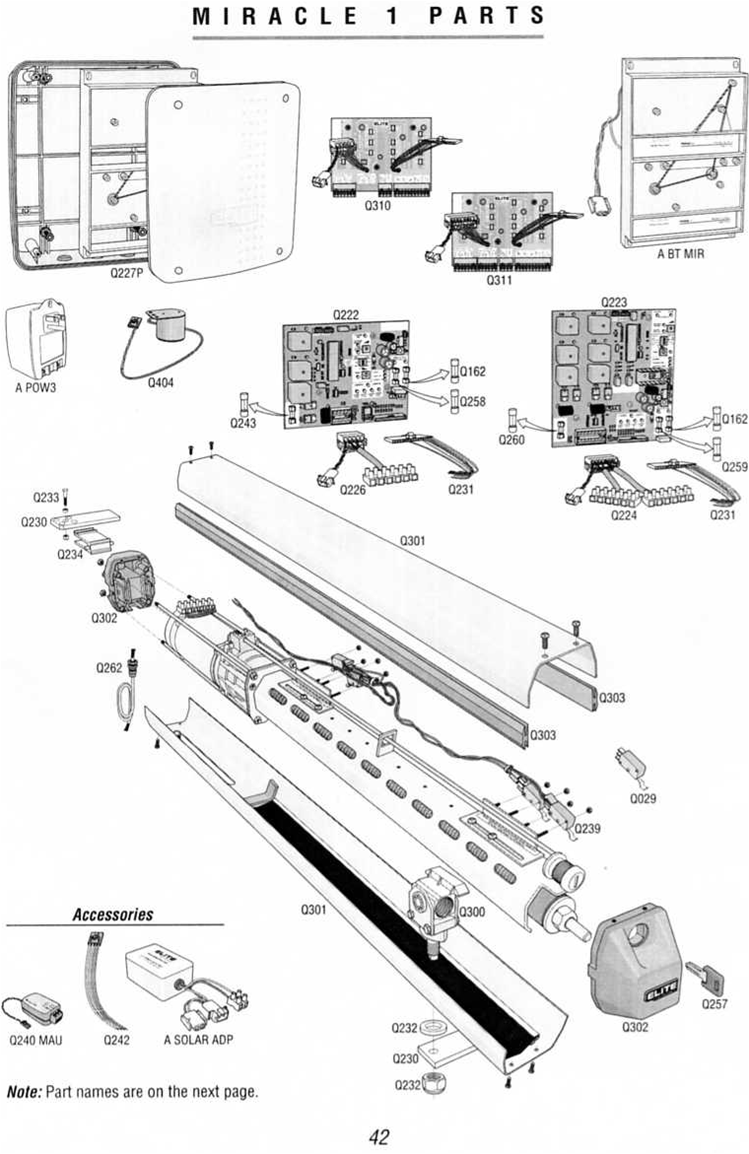

Genuine replacement parts for the Elite Miracle swing gate operator, sold as the Miracle One and Miracle 1, and as the Miracle M/S master and secondary pair. Find your part on the breakdown above, then match the Q number to the tables below. Every part number is a link.
Both Miracle control boards are discontinued. Neither the Q222 single-operator board nor the Q223 master/secondary board is manufactured any more, and there is no direct substitute. If the board has failed, the operator has to be replaced rather than repaired. Everything else on this page is still serviceable, so it is worth confirming the board really is the fault before writing the unit off — start with the fuses.
Which fuse? It depends on your model. The Miracle 1 takes the Q243 8 amp (GMA) and the Q258 2 amp. The Miracle M/S takes the Q259 3 amp and the Q260 15 amp. The Q162 1.5 amp is common to both. Fitting the wrong rating is the most common mistake on this operator.
Release key changed in March 1999. The Q257-key fits operators built after 3/14/99 only. Earlier units use a different key.
Mounting brackets are shared with the LA500. The Q230 brackets fit both the Miracle and the LiftMaster LA500, so if they are out of stock here, check that page too.
Common Elite Miracle Repairs
| Symptom | Usual cause | Parts to check |
|---|---|---|
| Completely dead, no LEDs | Blown fuse — check this before anything else | Q243 / Q259 / Q260 / Q162 fuse to suit your model |
| Dead after a storm | Surge damage | Q310 Miracle 1 surge protection, then the control board |
| Weak, slow or intermittent | Battery at end of life | ABT12 / Yuasa NP7-12 battery, ABTMIR rack and battery set |
| No power at the operator | Transformer or power harness failure | APOW3 24 VAC transformer, Q226 power harness |
| Gate binds or travels roughly | Traveler carriage wear | Q300 traveler carriage, Q232 bottom washer and nut |
| Operator loose on its mount | Bracket or mounting bolt failure | Q230 mounting brackets, Q233 rear mounting bolt, Q234 rod bracket kit |
| Won't stop at the right position | Limit switch or its harness | Q029 limit switch, Q239 limit switch harness |
| Manual release won't turn | Wrong or worn release key | Q257-key (operators after 3/14/99) |
| No response at all, fuses good | Control board failure | Q222 or Q223 — both discontinued, see note above |
Control Boards & Electronics
| Q # | LiftMaster # | Description |
|---|---|---|
| Q222 | K-001A5868 | Control board, single operator (no longer available) |
| Q223 | K-001A5869 | Control board, master / secondary (no longer available) |
| Q226 | K94-50237 | Power harness, single operator |
| Q239 | K70-51094 | Limit switch harness (no longer available) |
| Q262 | K70-51063 | Motor harness / operator cord (no longer available) |
| Q310 | K74-50271 | Surge protection, Miracle 1 |
| Q404 | K29-50279 | Omni siren / alarm (no longer available) |
| — | k33-51206-315 | Radio receiver, 315 MHz (G535-315ELITE) (no longer available) |
Fuses
| Q # | Fits | Description |
|---|---|---|
| Q162 | All models | Fuse, 1.5 amp (K35-50185) |
| Q243 | Miracle 1 | Fuse, 8 amp GMA (K35-50246) |
| Q258 | Miracle 1 | Fuse, 2 amp (K35-50255) (no longer available) |
| Q259 | Miracle M/S | Fuse, 3 amp (K35-50256) |
| Q260 | Miracle M/S | Fuse, 15 amp (K35-50257) |
Traveler, Carriage & Mounting
| Q # | LiftMaster # | Description |
|---|---|---|
| Q230 | K77-50240 | Mounting brackets — fits Miracle and LA500 |
| Q232 | K77-50336 | Bottom washer and nut, traveler carriage bolt |
| Q233 | K77-50337 | Rear mounting bolt (no longer available) |
| Q234 | K75-50338 | Rod bracket kit, MIR-1 (no longer available) |
| Q300 | K75-50341 | Traveler carriage (limited availability — call to confirm) |
| Q302 | K75-50266 | End caps (no longer available) |
Limit Switch & Manual Release
| Q # | LiftMaster # | Description |
|---|---|---|
| Q029 | K23-50099 | Limit switch |
| Q257-key | — | Release key only — operators built after 3/14/99 |
Power, Battery & Wiring
| Part # | LiftMaster # | Description |
|---|---|---|
| APOW3 | K76-37251 | Transformer, 24 VAC |
| ABT12 | — | Replacement battery, 12V 7Ah, single |
| Yuasa NP7-12 | — | Replacement battery, 12V 7Ah SLA |
| ABTMIR | — | Plastic battery rack with 2 batteries |
| K94-50838 | — | 6-conductor Miracle wiring, 40 ft (no longer available) |
Elite Actuator Parts
The Elite Actuator is a separate machine from the Miracle, but its two remaining service parts are listed here. Note the release key is not the same as the Miracle's Q257-key.
| Q # | Also known as | Description |
|---|---|---|
| Q188 | — | Elite Actuator arm assembly (manufactured by FAAC) |
| Q191 | 713009 | Elite Actuator arm release key |
Related Elite Pages
For the other Elite swing operators see Elite Robo Swing (R900) parts and Elite CSW 200 parts. If the Miracle needs replacing, the LiftMaster LA500 is the closest modern equivalent and uses the same Q230 mounting brackets.
