LiftMaster 8500 & 8500W Jackshaft Parts
LiftMaster 8500 and 8500W Jackshaft Replacement Parts
The 8500 and 8500W are wall mount jackshaft openers — they drive the torsion bar directly and have no rail, trolley or overhead assembly. The 8500W is the Wi-Fi version; mechanically the two are the same opener and share the motor, travel module, transformer, chain, sprockets, lock and sensors. Everything for both is on this page, each section with its own diagram.
Door will not open and the opener beeps? On a jackshaft that is often the cable tension monitor doing its job — it stops the opener when a cable goes slack. Check the cables and springs before replacing the monitor itself. If the door is locked and will not move at all, check the power door lock.
1. Head Unit
First part of number below corresponds to diagram number above:
| Ref | Part # | Description |
|---|---|---|
| 02 | 041B8861 | Travel module with wire harness — was 41A6408 |
| 04 | 041A6095 | DC motor with bracket |
| 05 | 041B0122 | Power cord with bracket |
| 08 | 041C0168 | Transformer and harness |

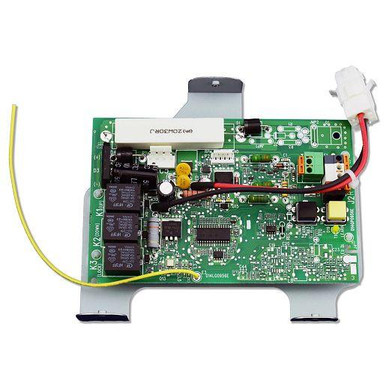

| — | 041DJ002MC | Logic board, complete with plate |

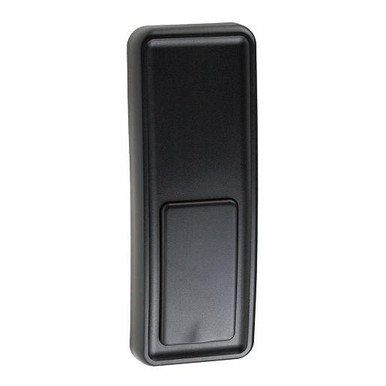

| — | 041A6348-1 | Cover |
If the number on your travel module reads 41A6408, the 041B8861 above is its replacement.
8500W owners — check the board number first. The Wi-Fi hardware on an 8500W sits on its logic board, so the board is the one part where the two models can differ. The 041DJ002MC listed above is the board we stock. Read the number printed on the board you are removing and call (866) 965-5599 with it before ordering — we will confirm it rather than have you fit a board that will not pair. Every other part on this page fits both models.
2. Drive Chain and Sprockets
The jackshaft drives the torsion bar through a short chain rather than a rail. If the door judders or the chain has jumped, check the sprockets before replacing the chain.
| Ref | Part # | Description |
|---|---|---|
| — | 041A7314 | Drive chain, #48 |

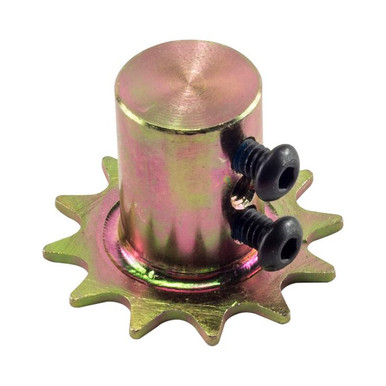

| — | 041A7278 | 12 tooth sprocket kit |
| — | 041A7279 | Live shaft sprocket kit |

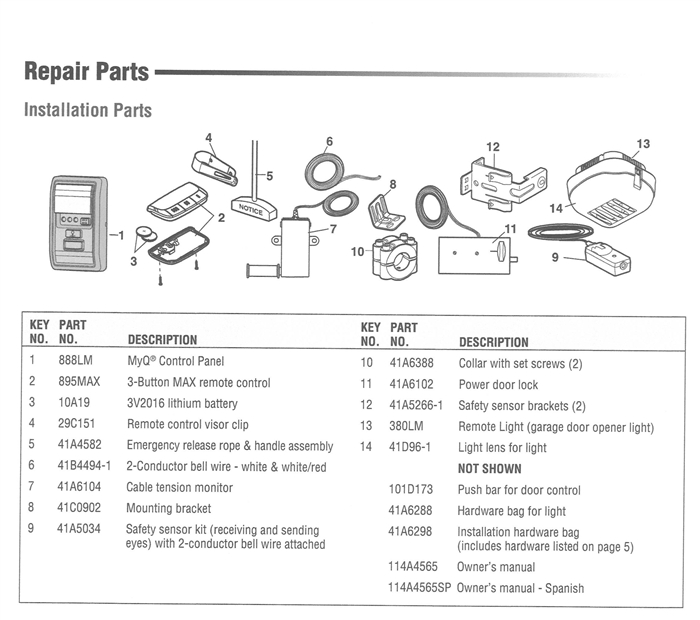

3. Mounting, Lock and Installation Parts
First part of number below corresponds to diagram number above:
| Ref | Part # | Description |
|---|---|---|
| 06 | 041B4494-1 | 2 conductor bell wire, 26 ft |

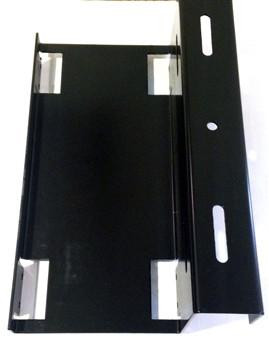

| — | 3950MB | Mounting bracket — 3950 and 8500 openers |
| — | 041B6228 | Mounting bracket |

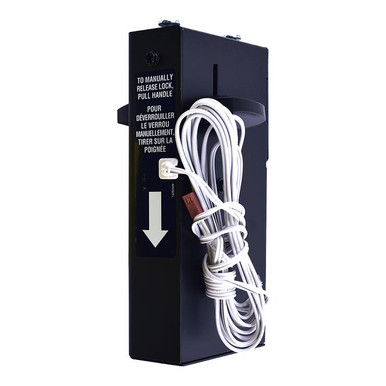

| — | 041A6102 | Power door lock |
| — | 841LM | Automatic garage door lock |
| — | 041A6104 | Cable tension monitor |

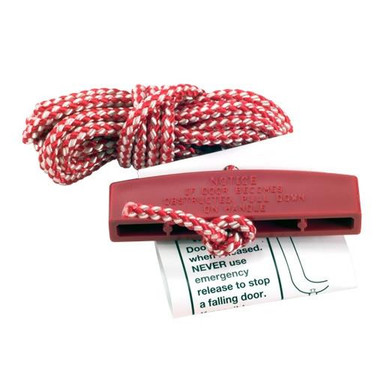

| — | 041A4582 | Emergency release rope and handle assembly |
| — | 041A6298 | Installation hardware |
| — | 041A6288 | Hardware for work light |
| — | 041D0096-1 | Light lens |
The 841LM automatic door lock is the current version; its upgrade kit and the 041D8615 split coupling are no longer available.
4. Safety Sensors and Brackets
First part of number below corresponds to diagram number above:
Current parts — order these
| Ref | Part # | Description |
|---|---|---|
| S1–S2 | 041-0136 | Safety sensor eye kit — sending and receiving eyes, supplied as a matched pair |

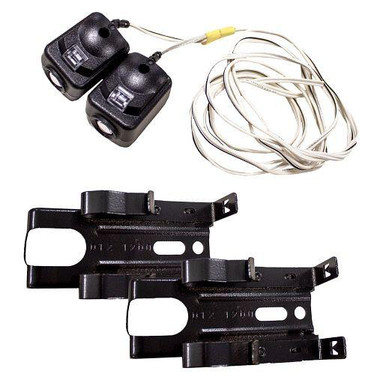

| — | 041-0365-000 | Sensor eyes and brackets, 1997 to current — the complete set |
| S3–S4 | 041A5281-1 | Sensor extension brackets |

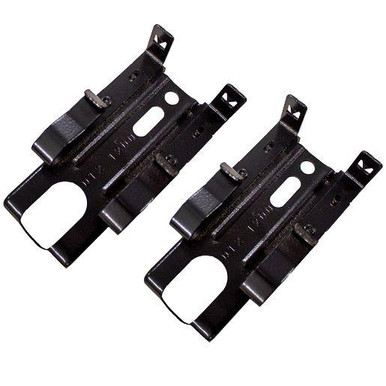

| — | 041-0155-000 | Safety sensor brackets, 2021 to present |
| — | 041B0873 | Sunblocker bracket — stops sunlight false-tripping the eye |
| — | Sensor Guards | Protective guards, sensors not included |
If you need eyes and brackets, the 041-0365-000 is the complete set and works out cheaper than buying both separately. If your brackets are sound, the 041-0136 eye kit alone is all you need.
Superseded part numbers
| Old Part # | Order Instead | Notes |
|---|---|---|
| 41A5034 | 041-0136 | Eye kit used 1997 onward, now superseded |
| 041A5266-1 | 041-0155-000 | Sensor mounting bracket, no longer available |
| 12B484 | 041A5281-1 | Square holed mounting bracket, discontinued |
| 12B485 | 041A5281-1 | Slotted mounting bracket, discontinued |
5. Wall Controls, Remotes and MyQ
Both the 8500 and 8500W are MyQ openers, so unlike the older LiftMaster models they take the current control panels and accessories.
| Ref | Part # | Description |
|---|---|---|
| — | 889LM | MyQ control panel |
| — | 828LM + 889LM | MyQ upgrade kit, basic |
| — | 837LM | MyQ smart LED garage light |

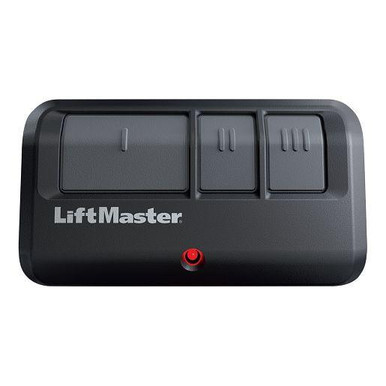

| — | 893MAX | 3 button visor remote |
| — | 10A19 | 3V CR2016 remote battery |
| — | 29C128 | Remote visor clip |
The 888LM control panel, the 827LM remote LED light, the 380LM remote light and the advanced MyQ upgrade kit are all discontinued — the 889LM and 837LM above replace them. Browse all LiftMaster remote controls.
