LiftMaster 1270, 1280, 1280R Belt Drive Parts
LiftMaster 1270, 1280 and 1280R Replacement Parts
The 1270, 1280 and 1280R are the Formula 1 Whisper Drive belt drive openers — 1/2 HP units built around the older 12 rib belt. Everything for these openers is on this page: the motor unit, the belts, the safety sensors, the door hardware, the wall control and the remote. Each section has its own diagram, and the reference numbers are specific to the diagram directly above them.
Ordering a belt? The belt is sized to your door height, not your rail. These three openers use the 12 rib 41A3589 belt, stocked in factory and lower cost aftermarket versions. See the belt table below, or use the full LiftMaster belt selector if you are not sure which you need.
1. Motor Unit
First part of number below corresponds to diagram number above:
| Ref | Part # | Description |
|---|---|---|
| 01 | 041A4371 | Belt cap retainer |
| 02 | 041A4885-2 | Gear and sprocket assembly |
| 03 | 041A2817 | Gear kit |
| 04 | 041B4245-1 | Line cord, 6 ft |
| 07 | 041A3673-1 | End panel with all labels |
| 08 | 041C0279 | Light socket |
| 09 | K108D0034 | Light lens |
| 10 | K030B0532-1 | Capacitor |
| 12 | 041A3150 | Terminal block with screws |
| 13 | 041D3058 | Universal replacement 1/2 HP motor — 1270 |
| 13 | 041C4842 | Universal replacement motor |
| 15 | 041A2818 | Limit switch drive and retainer |
| 16 | 041D3452 | Limit switch assembly |
| 18 | 041A2817 | Gear kit including bearings |

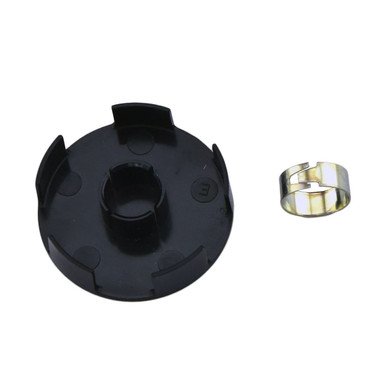

| — | 041A2822A | Interrupter cup — not shown on the diagram |
041A2817 is called out twice, at 03 and at 18. It is the same gear kit either way. Refs 05 and 06 — the wire harness and the receiver logic boards — are no longer manufactured and cannot be ordered.
2. Belts
These openers take the 12 rib 41A3589 belt. Measure your door opening height, not the rail. We stock the genuine LiftMaster belt and a lower cost aftermarket belt built to the same length, rib pitch and end fittings.
| Door Height | Belt | Factory (OEM) | Aftermarket |
|---|---|---|---|
| 7 ft | 41A3589-3 | Factory belt | Aftermarket belt |
| 8 ft | 41A3589-1 | Factory belt | Aftermarket belt |
| 10 ft | 41A3589-2 | Factory belt | Aftermarket belt |
A belt rarely fails on its own. Check the belt pulley bracket, trolley and tensioner while the rail is apart — see all belt drive rail parts.
3. Safety Sensors and Brackets
First part of number below corresponds to diagram number above:
Current parts — order these
| Ref | Part # | Description |
|---|---|---|
| S1–S2 | 041-0136 | Safety sensor eye kit — sending and receiving eyes, supplied as a matched pair |
| S3–S4 | 041A5281-1 | Sensor extension brackets |
| — | 041-0155-000 | Safety sensor brackets, 2021 to present |
| — | 041B0873 | Sunblocker bracket — stops sunlight false-tripping the eye |
| — | Sensor Guards | Protective guards, sensors not included |
| — | 041B4494-1 | 2 conductor bell wire, 26 ft |
Superseded part numbers
The current eyes and brackets replace every earlier version, so there is no need to match your old part number — order the current part. If you have an older number written down, this is what it becomes.
| Old Part # | Order Instead | Notes |
|---|---|---|
| 41A5034 | 041-0136 | Eye kit used 1997 onward, now superseded |
| 12B484 | 041A5281-1 | Square holed mounting bracket, discontinued |
| 12B485 | 041A5281-1 | Slotted mounting bracket, discontinued |
| 041A5266-1 | 041-0155-000 | Sensor mounting bracket, no longer available |
4. Remotes, Wall Controls and Door Hardware
First part of number below corresponds to diagram number above:
| Ref | Part # | Description |
|---|---|---|
| 01–02 | 893MAX | 3 button visor remote — universal replacement for all older remotes |
| 03 | 10A20 | 3V coin battery for the remote |
| 05 | 10A14 | 12V battery — 61LM series remotes |
| 06 | 041B4494-1 | 2 conductor bell wire, 26 ft |
| 07 | 041A4353 | Header bracket, 1993 to current |
| 07 | 041A4353-1 | Header bracket, black — belt drive units |
| 08 | 041A5047 | Door bracket |
| 08 | 041A5047-1 | Door bracket, black — belt drive units |
| 09 | 041A2828 | Manual release rope and handle assembly |
| 10 | 29C128 | Remote visor clip |
| 11 | 29B137 | Remote visor clip — 700 and 800 series remotes |
| 12 | 041A4166 | Lighted pushbutton, two wire |

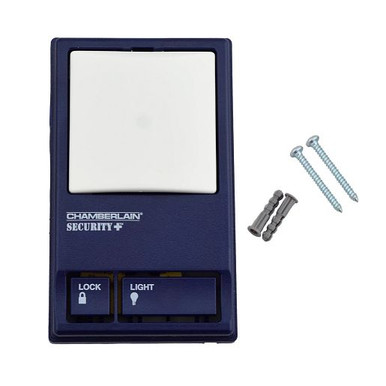

| 13–15 | 041C0494-2 | Multi-function door control panel — replaces the discontinued panels at 13, 14 and 15 on pre-1998 openers. This is the one for the 1270, 1280 and 1280R. |
| 13–15 | 889LM | MyQ control panel — the replacement on post-1998 openers |
| 16 | 041B0035B | Curved door arm |
| 17 | 4178B0034B | Straight door arm section |
| — | 041A4202-6B | Wall control panel, two wire |
| — | 041A8094 | Door arm kit — curved and straight sections together |
| — | 041A2770-17 | Installation hardware kit — bolts, staples, grease, release cord |
| — | 041A3504 | Antenna extender kit |
| — | 041A3504-1 | Antenna extender kit with adapter |
| — | L6950 | Multi purpose spray lube, green |
| — | L6960 | Multi purpose spray lube, blue |
Remote controls
Every original remote for these openers is discontinued. The 893MAX is the universal replacement and works with all the older LiftMaster, Chamberlain and Craftsman openers. It covers 371LM, 971LM, 973LM and 893LM, and is the listed substitute for 81LM, 83LM, 63LM, 753CB, 850CB, 853CB, 953CB, 953EV and Craftsman 53680, 53859 and 53879. Browse all LiftMaster remote controls.
Wall controls — superseded part numbers
There are two replacements, split by the age of your opener. For pre-1998 units — which includes the 1270, 1280 and 1280R — order the 041C0494-2. For 1998 and newer units, order the 889LM. Not sure which you have? Call (866) 965-5599 and we will check it with you.
| Old Part # | Order Instead | Notes |
|---|---|---|
| 041C0494-1 | 041C0494-2 | Multi-function door control panel, superseded |
| 41C494 | 041C0494-2 | Soft glow wall control panel, ref 15, no longer available |
| 98LM | 889LM | Motion detecting control panel, discontinued, 1998 and newer |
| 398LM | 889LM | Control panel, discontinued, 1998 and newer |
| 888LM | 889LM | Control panel, discontinued, 1998 and newer |
