Genuine replacement parts for the LiftMaster 8165 chain drive garage door opener. Each section below has its own diagram and its own numbering starting at 1, so match the section name as well as the reference number. Click any part number to order.

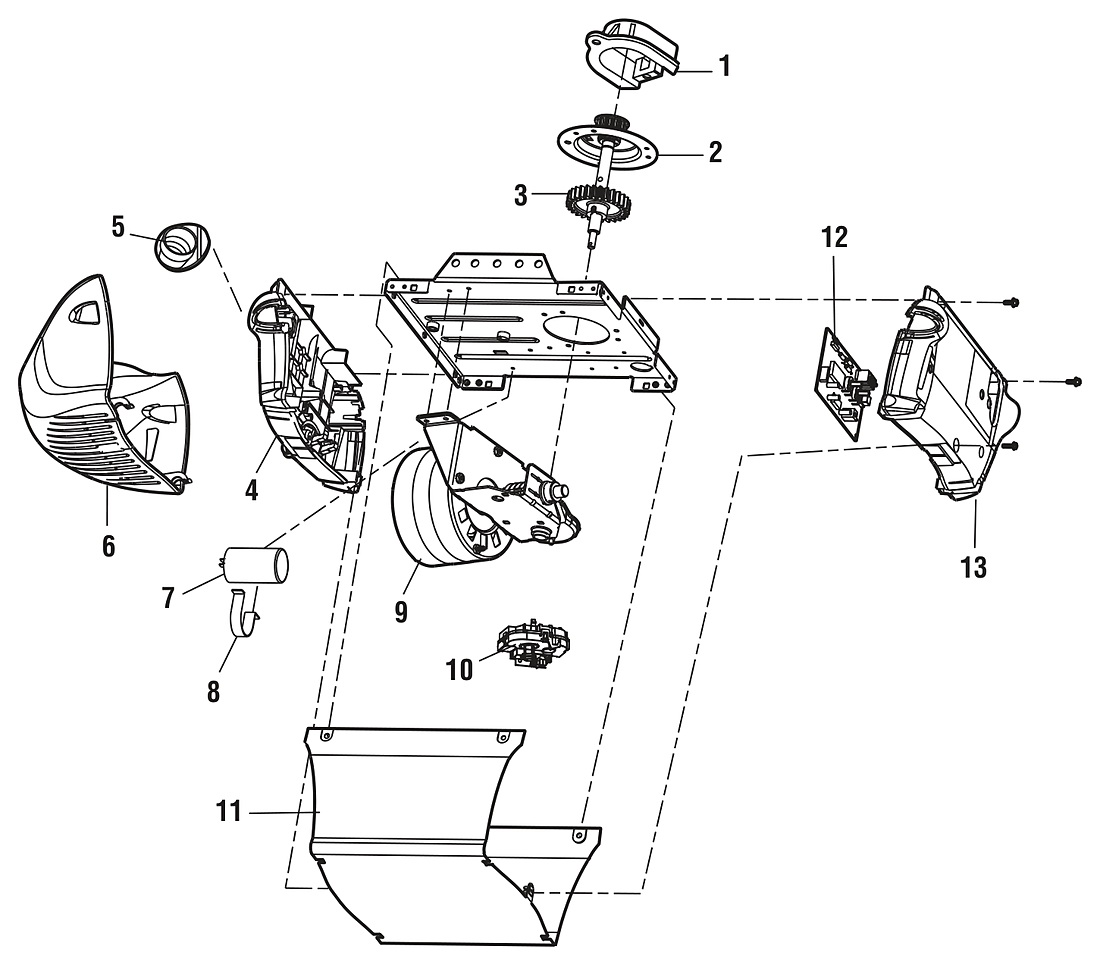

Garage Door Opener Repair Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 31D380 | Sprocket cover |
| 2 | 41C4220A | Gear and sprocket assembly (aka 41A2827). Aftermarket version also available: 41C4220A aftermarket |
| 3 | 41A2817 | Drive and worm gear kit — the most common chain drive failure |
| 4 | 41A5484-1 | Front end panel with all labels |
| 5 | 041C0279 | Light socket |
| 6 | 108D79 | Light lens |
| 7 | 30B532 | Capacitor |
| 8 | 12A373 | Capacitor bracket |
| 9 | 041D7440 | Universal motor |
| 10 | 041D7742-7 | Travel module |
| 11 | 041D8140 | Cover |
| 12 | 045ACT | Logic board (045ACTMC) |
| 13 | 041D0239-1 | Logic board end panel — current version. The 041D0239 printed on the diagram is no longer available |
| — | 041A3150 | Terminal block with screws (not shown) |
| — | 041B4245-1 | Line cord, 6 ft (not shown) |
| — | 041A7946 | Wire harness (not shown) |

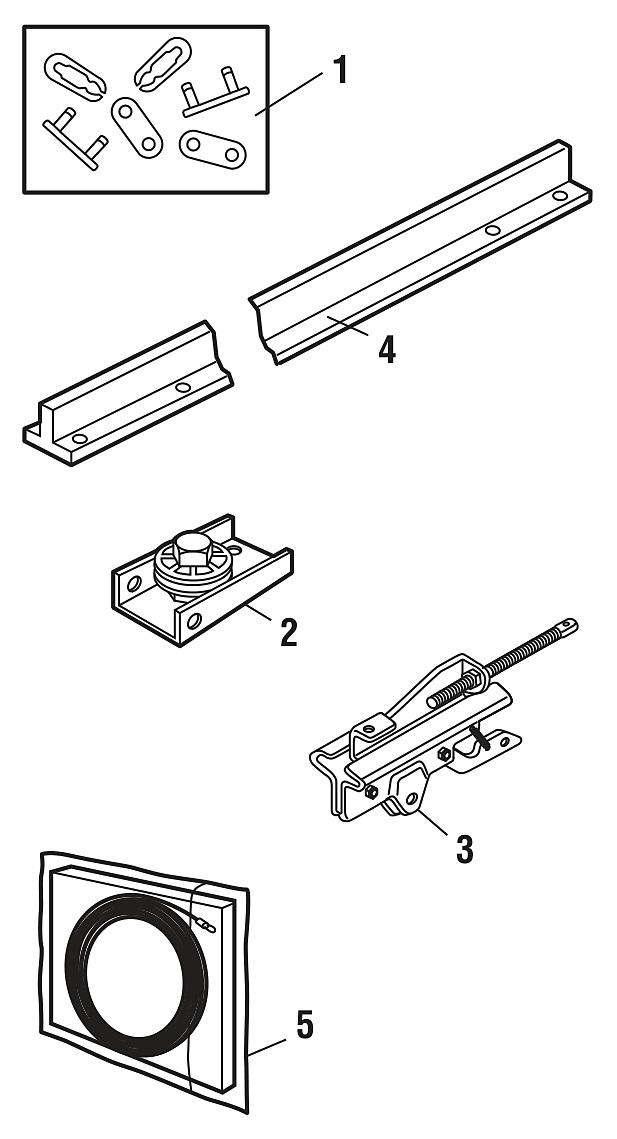

Rail Assembly Parts
The rail and chain both come in three lengths. Match the length to your door height — a 7 ft door takes the 7 ft rail and the 7 ft chain.
| Ref | Part Number | Description |
|---|---|---|
| 1 | 004A1008 | Master link kit |
| 2 | 41A4813 | Chain pulley bracket |
| 3 | 041A3489 | Complete trolley assembly |
| 4 | 1707LM | One-piece rail — 7 ft (2.1 m) door |
| 4 | 1708LM | One-piece rail — 8 ft (2.4 m) door |
| 4 | 1710LM | One-piece rail — 10 ft (3 m) door |
| 5 | 41D3484 | Full chain assembly — 7 ft (2.1 m) door |
| 5 | 41D3483 | Full chain assembly — 8 ft (2.4 m) door |
| 5 | 41D3485 | Full chain assembly — 10 ft (3 m) door |
| — | 83A11-2 | Rail grease (not shown) |

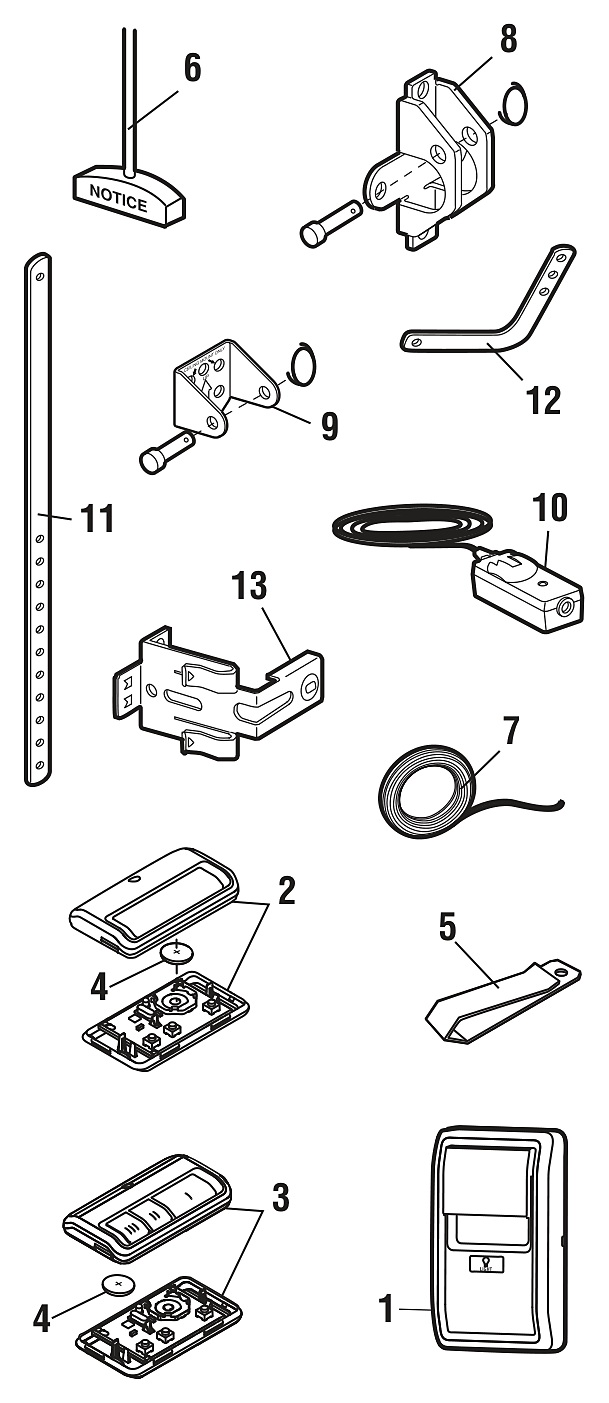

Installation Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 882LMW | Multi-function door control. A motion-detecting version, the 886LMW, also fits |
| 2 | 891LM | 1-button remote control — this is the 8165's remote |
| 3 | 893LM | 3-button remote control — shipped with the Model 8160, shown here because the two models share this drawing. The 893MAX is the universal 3-button replacement |
| 4 | 10A20 | 3V CR2032 lithium battery |
| 5 | 29B137 | Remote control visor clip |
| 6 | 41A2828 | Emergency release rope and handle assembly |
| 7 | 41B4494-1 | 2-conductor bell wire, white and white/red |
| 8 | 41A5047 | Door bracket with clevis pin and fastener |
| 9 | 41A4353 | Header bracket with clevis pin and fastener |
| 10 | 041-0136 | Safety sensor kit, sending and receiving sensors with 3 ft bell wire. Replaces the 41A5034 shown on the diagram |
| 11 | 178B34 | Straight door arm section |
| 12 | 178B35 | Curved door arm section |
| 13 | 041-0155-000 | Safety reversing sensor brackets, pair. Replaces the 41A5266-1 shown on the diagram |
| — | 41A2770-6 | Installation hardware bag (not shown) |
Superseded Part Numbers
The diagrams print the original numbers. These parts are now supplied under new numbers — order the current part.
| Ref | Number on diagram | Order this instead |
|---|---|---|
| Opener 13 | 041D0239 | 041D0239-1 logic board end panel |
| Install 10 | 41A5034 | 041-0136 safety sensor kit |
| Install 13 | 41A5266-1 | 041-0155-000 sensor brackets |
8165 or 8065? Both are chain drives on the same rail, but the 8165 has a different cover, end panel and light lens. Check the model number on the front panel before ordering refs 4, 6, 11 or 13.
