LiftMaster 8160W Chain Drive Replacement Parts
LiftMaster 8160W Replacement Parts
Genuine replacement parts for the LiftMaster 8160W chain drive garage door opener — a DC unit with a Wi-Fi receiver board. Each section below has its own diagram and its own numbering starting at 1, so match the section name as well as the reference number. Click any part number to order.
Read this before ordering an electrical part. The 8160W is a later revision of the 8160, and LiftMaster changed most of the electrical part numbers between them. The numbers below are the current 8160W parts. If your unit is an early 8160 rather than an 8160W, check the number printed on the old part before ordering refs 2, 5, 6, 7, 8 or 9.

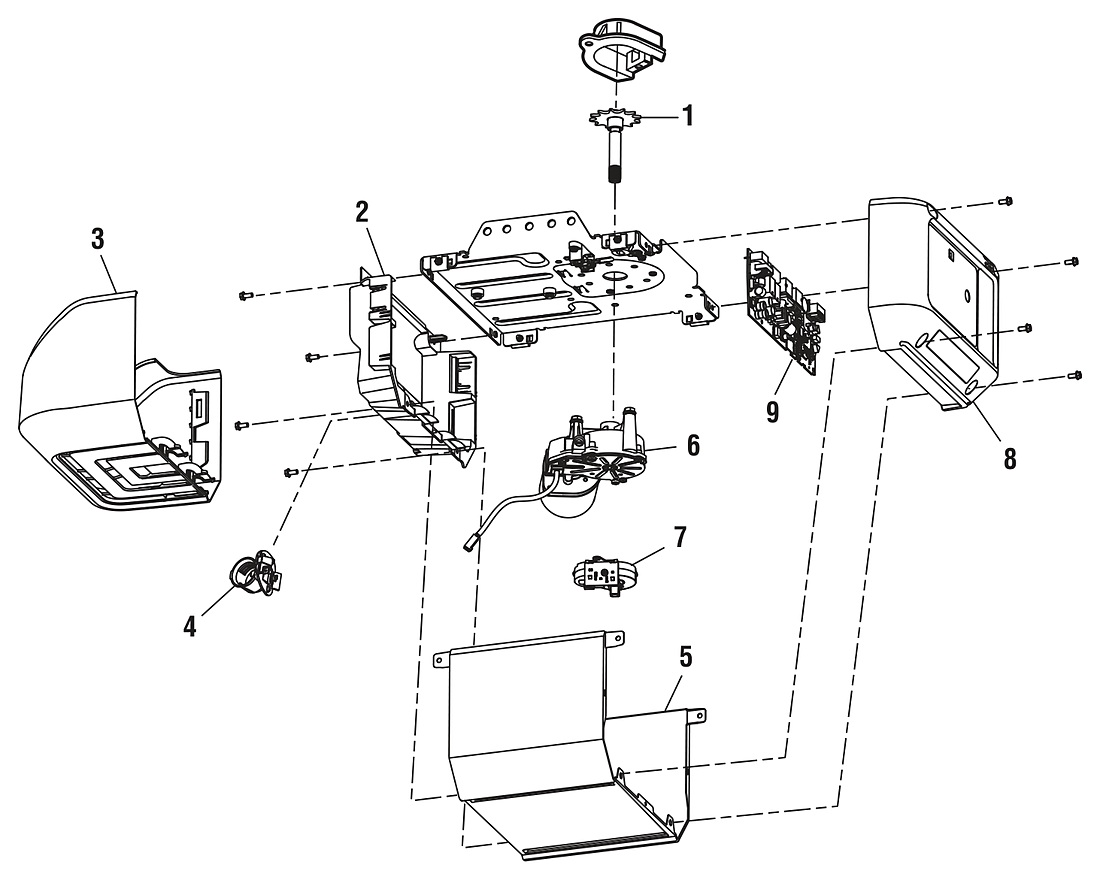

Garage Door Opener Repair Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041B5348-2 | Sprocket and sprocket cover |
| 2 | 041A7756-1 | End panel with light socket |
| 3 | 041A7562 | Light lens |
| 4 | 041C0279 | Light socket |
| 5 | 041D0644-31 | Cover |
| 6 | 041-0236-000 | DC motor with travel module. Current number — supersedes 041D8006-1 and 041D1739-1 |
| 7 | 041D8071-4 | Travel module (also numbered 041A7114-7) |
| 8 | 041D0233-3 | Logic board end panel |
| 9 | 050DCTBFMC | Receiver logic board, current version. Supersedes the 050DCTWF. A lock-capable version, the 050DCTBFLKMC, is also available |
| — | 041D9069 | Wire harness (not shown) |
| — | 041A7635-1 | Transformer (not shown) |
| — | 041B4245-1 | Line cord, 6 ft (not shown) |
| — | 041A3150 | Terminal block with screws (not shown) |

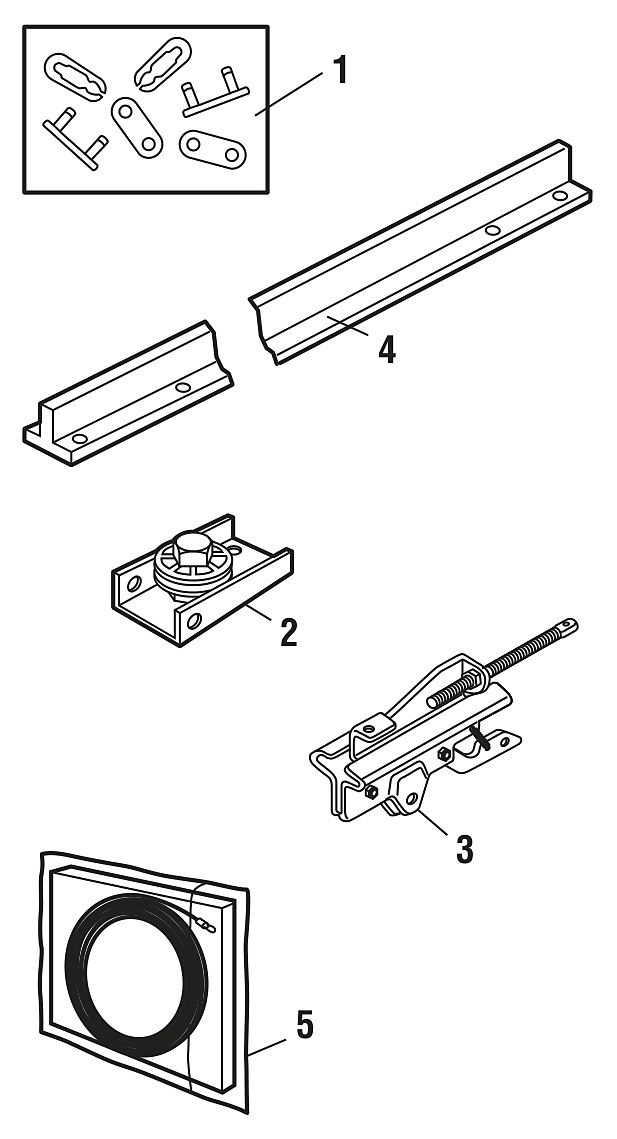

Rail Assembly Parts
The rail and chain both come in three lengths. Match the length to your door height — a 7 ft door takes the 7 ft rail and the 7 ft chain.
| Ref | Part Number | Description |
|---|---|---|
| 1 | 004A1008 | Master link kit |
| 2 | 41A4813 | Chain pulley bracket |
| 3 | 041A3489 | Complete trolley assembly |
| 4 | 1707LM | One-piece rail — 7 ft (2.1 m) door |
| 4 | 1708LM | One-piece rail — 8 ft (2.4 m) door |
| 4 | 1710LM | One-piece rail — 10 ft (3 m) door |
| 5 | 41D3484 | Full chain assembly — 7 ft (2.1 m) door |
| 5 | 41D3483 | Full chain assembly — 8 ft (2.4 m) door |
| 5 | 41D3485 | Full chain assembly — 10 ft (3 m) door |
| — | 83A11-2 | Rail grease (not shown) |

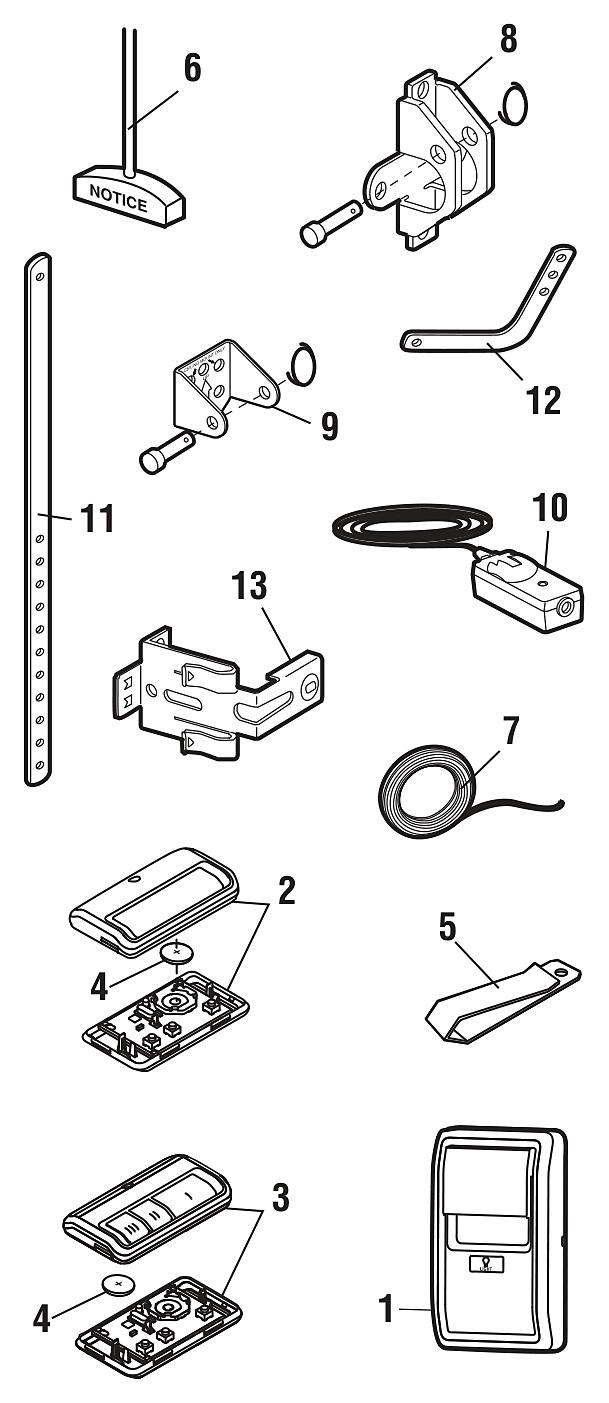

Installation Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 882LMW | Multi-function door control. A motion-detecting version, the 886LMW, also fits |
| 2 | 891LM | 1-button remote control — shipped with the Model 8165, shown here because the two models share this drawing |
| 3 | 893LM | 3-button remote control — this is the 8160's remote. The 893MAX is the universal 3-button replacement |
| 4 | 10A20 | 3V CR2032 lithium battery |
| 5 | 29B137 | Remote control visor clip |
| 6 | 41A2828 | Emergency release rope and handle assembly |
| 7 | 41B4494-1 | 2-conductor bell wire, white and white/red |
| 8 | 41A5047 | Door bracket with clevis pin and fastener |
| 9 | 41A4353 | Header bracket with clevis pin and fastener |
| 10 | 041-0136 | Safety sensor kit, sending and receiving sensors with 3 ft bell wire. Replaces the 41A5034 shown on the diagram |
| 11 | 178B34 | Straight door arm section |
| 12 | 178B35 | Curved door arm section |
| 13 | 041-0155-000 | Safety reversing sensor brackets, pair. Replaces the 41A5266-1 shown on the diagram |
| — | 41A2770-6 | Installation hardware bag (not shown) |
Superseded Part Numbers
The diagram prints the numbers used on the original 8160. These are the current parts — order these.
| Ref | Number on diagram | Order this instead |
|---|---|---|
| Opener 6 | 041D1739-1 / 041D8006-1 | 041-0236-000 DC motor and travel module |
| Opener 7 | 041A7114-7 | 041D8071-4 travel module |
| Opener 9 | 045DCT / 050DCTWF | 050DCTBFMC receiver logic board |
| Install 10 | 41A5034 | 041-0136 safety sensor kit |
| Install 13 | 41A5266-1 | 041-0155-000 sensor brackets |
