LiftMaster 4690L Replacement Parts

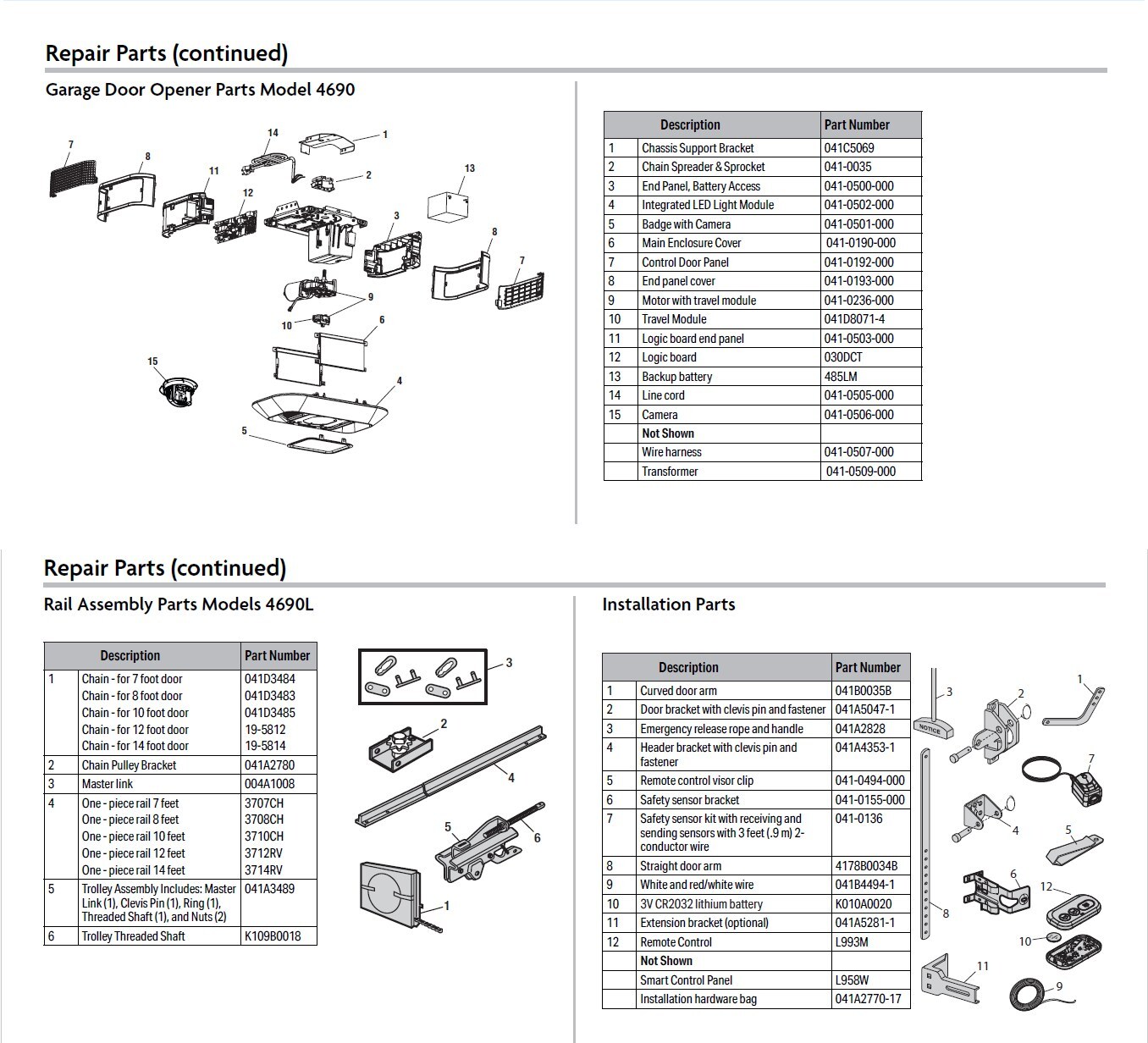

Genuine replacement parts and repair components for the LiftMaster 4690L chain drive garage door opener. Use the diagram above and the part-number tables below to identify the exact component you need. Click any part number to view or order that part.
Garage Door Opener Assembly Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041C5069 | Chassis Support Bracket |
| 2 | 041-0035 | Chain Spreader & Sprocket |
| 3 | 041-0500-000 | End Panel, Battery Access |
| 4 | 041-0502-000 | Integrated LED Light Module |
| 5 | 041-0501-000 | Badge with Camera |
| 6 | 041-0190-000 | Main Enclosure Cover |
| 7 | 041-0192-000 | Control Door Panel |
| 8 | 041-0193-000 | End panel cover |
| 9 | 041-0236-000 | Motor with travel module |
| 10 | 041D8071-4 | Travel Module |
| 11 | 041-0503-000 | Logic board end panel |
| 12 | 030DCT | Logic board |
| 13 | 485LM | Backup battery |
| 14 | 041-0505-000 | Line cord |
| 15 | 041-0506-000 | Camera |
| — | 041-0507-000 | Wire harness |
| — | 041-0509-000 | Transformer |
Rail Assembly Parts (4690L)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041D3484 | Chain - for 7 foot door |
| 1 | 041D3483 | Chain - for 8 foot door |
| 1 | 041D3485 | Chain - for 10 foot door |
| 1 | 19-5812 | Chain - for 12 foot door |
| 1 | 19-5814 | Chain - for 14 foot door |
| 2 | 041A2780 | Chain Pulley Bracket |
| 3 | 004A1008 | Master link |
| 4 | 3707CH | One-piece rail 7 feet |
| 4 | 3708CH | One-piece rail 8 feet |
| 4 | 3710CH | One-piece rail 10 feet |
| 4 | 3712RV | One-piece rail 12 feet |
| 4 | 3714RV | One-piece rail 14 feet |
| 5 | 041A3489 | Trolley Assembly (Master Link, Clevis Pin, Ring, Threaded Shaft, Nuts) |
| 6 | K109B0018 | Trolley Threaded Shaft |
Installation Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041B0035B | Curved door arm |
| 2 | 041A5047-1 | Door bracket with clevis pin and fastener |
| 3 | 041A2828 | Emergency release rope and handle |
| 4 | 041A4353-1 | Header bracket with clevis pin and fastener |
| 5 | 041-0494-000 | Remote control visor clip |
| 6 | 041-0155-000 | Safety sensor bracket |
| 7 | 041-0136 | Safety sensor kit with receiving and sending sensors with 3 feet (.9 m) 2-conductor wire |
| 8 | 4178B0034B | Straight door arm |
| 9 | 041B4494-1 | White and red/white wire |
| 10 | K010A0020 | 3V CR2032 lithium battery |
| 11 | 041A5281-1 | Extension bracket (optional) |
| 12 | L993M | Remote Control |
| — | L958W | Smart Control Panel |
| — | 041A2770-17 | Installation hardware bag |
