Chamberlain PD210D & PD212D Chain Drive Parts
Chamberlain PD210D and PD212D Replacement Parts
These are chain drive openers. Each section below has its own diagram and its own reference numbers — the numbers in a table match the diagram directly above it, not the other sections.
Motor runs but the door does not move? On these openers that is almost always the chain drive gear and sprocket kit at ref 2 — the nylon gear strips. Grease the worm before fitting the new one; running it dry is what strips the next.

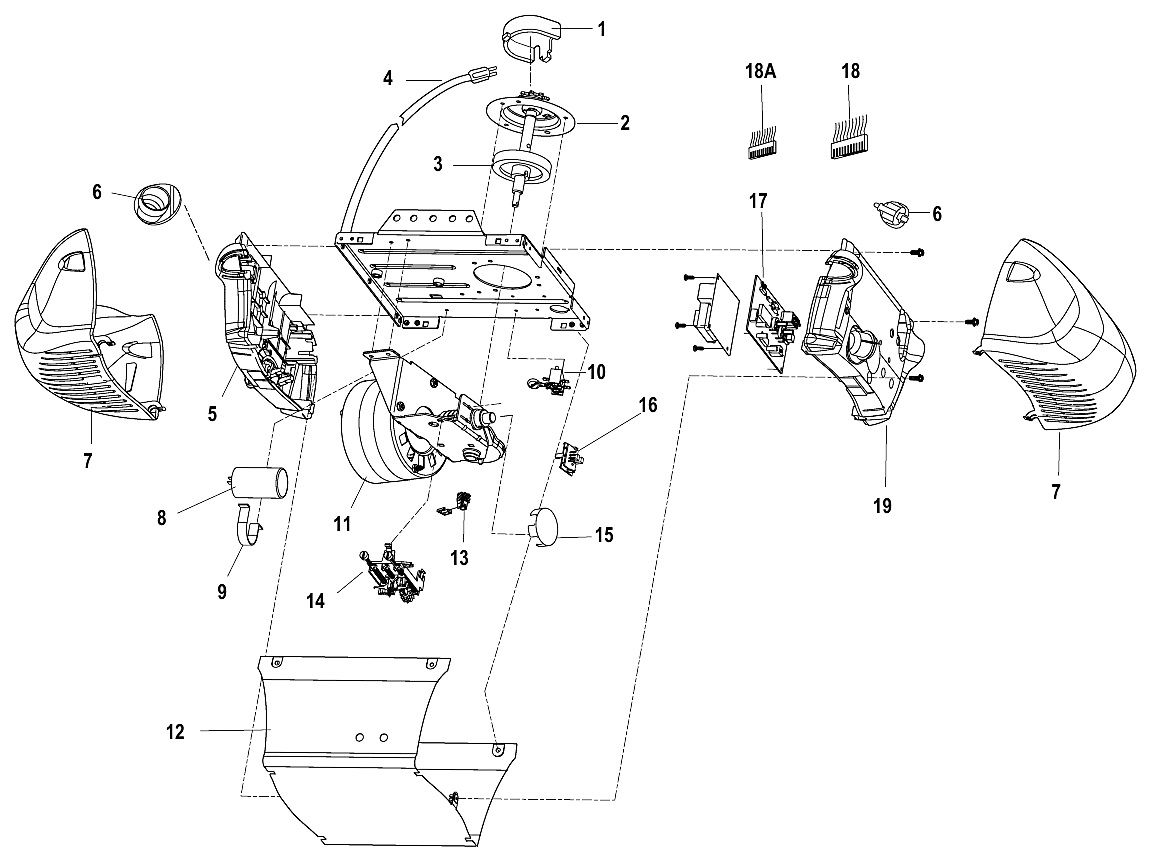

1. Garage Door Opener Repair Parts
First part of number below corresponds to diagram number above:
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041A5615 | Chain spreader kit |
| 2 | 041C4220A | Chain drive gear and sprocket kit |
| 3 | 041A2817 | Drive gear and worm kit |
| 4 | 041B4245-1 | AC power cord, 6 ft |
| 5 | 041A5484 | End panel |
| 6 | 041C0279 | Light socket |
| 7 | K108D0079M | Light lens |
| 8 | K030B0532-1 | Capacitor, 56µF 220V |
| 9 | K012A0373 | Capacitor bracket |
| 10 | 041A3150 | Terminal block kit |
| 11 | 041D3058 | Motor and bracket kit |
| 12 | 041A5525-5 | Cover |
| 13 | 041A2818 | Limit switch drive gear |
| 14 | 041D3452 | Limit switch kit |
| 15 | 041A2822-1 | Interrupter cup |
| 16 | 041C4398A | RPM sensor kit |
| 17 | 041AC050-1M | Receiver logic board, AC chain |
| 18 | 041C5497 | Wire harness kit, high voltage |
| 18A | 041A5498 | Wire harness kit, low voltage |
| 19 | 041D0180-1 | End panel |
| — | 041A2825 | Hardware kit — not shown on diagram |
The 041AC050-1M is the receiver logic board for these openers. Read the number printed on the board you are removing before ordering — if it is not this one, call (866) 965-5599 with it and we will confirm the right replacement.

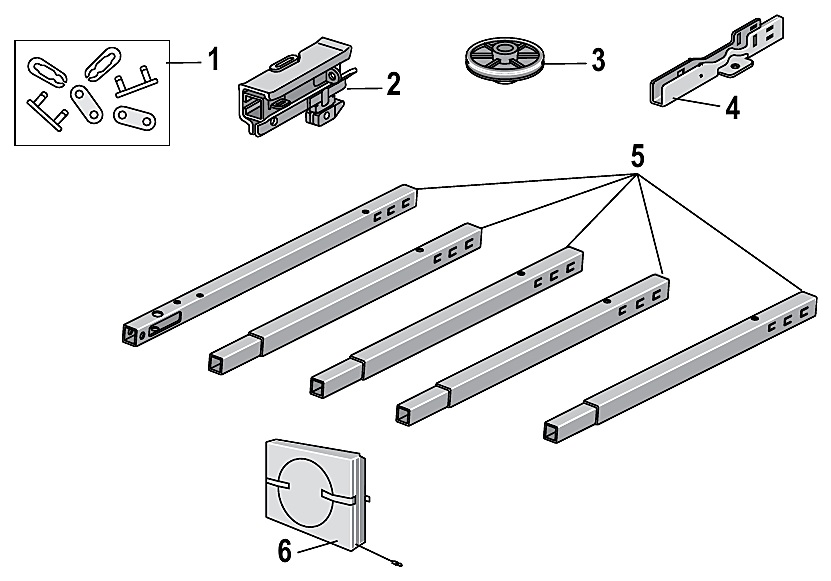

2. Rail Assembly Parts
First part of number below corresponds to diagram number above:
| Ref | Part Number | Description |
|---|---|---|
| 1 | 004A1008 | Chain, #48, with master link |
| 2 | 041C5141-1 | Trolley kit, T rail |
| 3 | K144C0056 | Square rail idler pulley |
| 4 | 041D0598-1 | U bracket adapter |
| 5 | 041A5665 | Rail kit, 7 ft |
| 6 | 041A3473 | Chain and cable kit, 7 ft |
| — | 041A7276 | Trolley wear pad kit — not shown on diagram |
The chain and rail are sized to your door height. Measure the door opening, not the rail. Check the wear pads and trolley while the rail is apart — worn pads let the trolley rock and will chew a new chain.

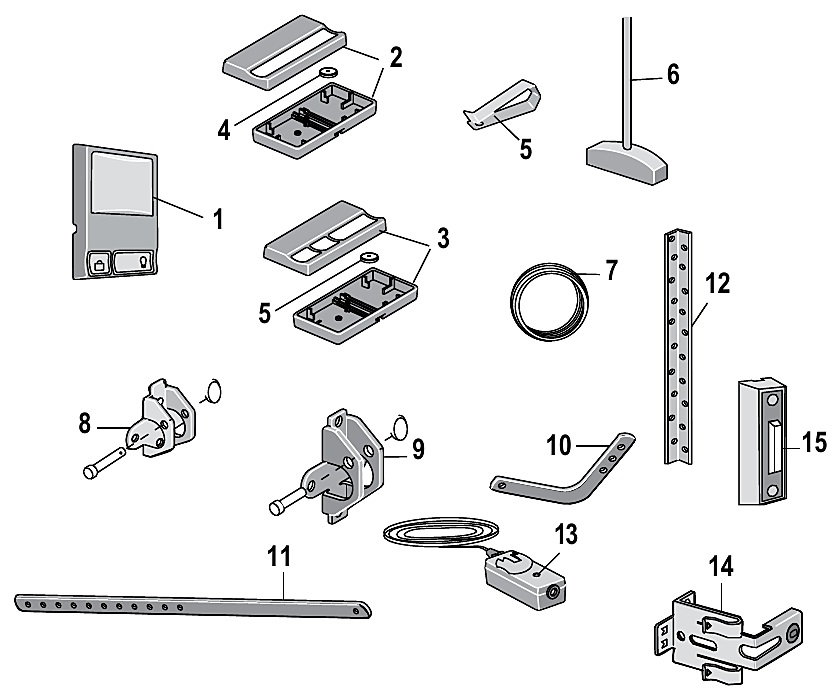

3. Installation Parts
First part of number below corresponds to diagram number above:
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041C0494-2 | Wall mounted door control |
| 2 | 893MAX | Remote control — universal replacement for the 950ESTD |
| 3 | 893MAX | 3 button remote control — replaces the 953EV-P2 |
| 4 | K010A0020 | 3V CR2032 lithium battery |
| 5 | K029B0137 | Remote control visor clip |
| 6 | 041A2828 | Emergency manual release rope and handle |
| 7 | 041B4494-1 | White and red/white bell wire |
| 8 | 041A5047-2 | Header bracket |
| 9 | 041A5047-1 | Door bracket |
| 10 | 041B0035B | Curved door arm |
| 11 | 4178B0034B | Straight door arm |
| 12 | K012B0776 | Hanging bracket kit |
| 13 | 041-0136 | Safety sensor kit |
| 14 | 041-0155-000 | Safety sensor bracket |
| 15 | 041A4166 | Lighted push button |
| — | 041A7920-1 | Hardware kit — not shown on diagram |
| — | 041-0365-000 | Sensor eyes and brackets — the complete set |
The original 950ESTD and 953EV-P2 remotes are discontinued. The 893MAX is the universal replacement and works with all the older Chamberlain, LiftMaster and Craftsman openers. If your sensor brackets are bent or missing as well as the eyes, the 041-0365-000 includes both and works out cheaper than buying them separately.
