Chamberlain HD920EV Replacement Parts
Genuine replacement parts for the Chamberlain HD920EV 3/4 HP square rail belt drive opener. Each section below has its own diagram and its own reference numbers — the numbers in one table match the diagram directly above it, not the other sections.
Openers built before and after October 2012 use different parts. The line cord, filter board, terminal block and wire harness all changed at that point. Both versions are listed below — check the date on your motor unit label, or compare against the part you are removing.
Ordering a belt? The HD920EV is a square rail opener and takes the 41A5250 belt, sized to your door height. It will not take the T-rail belts used on most other openers.

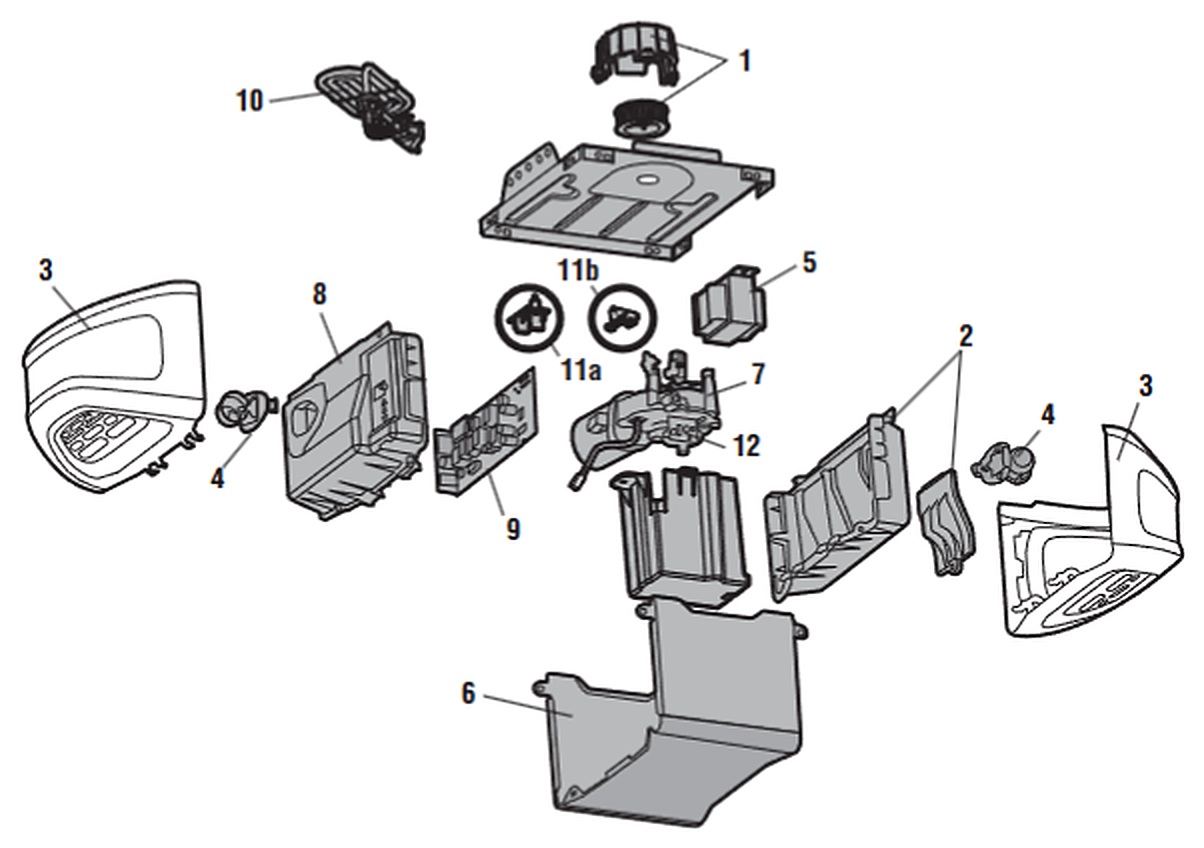

1. Garage Door Opener Parts
First part of number below corresponds to diagram number above:
| Ref | Part Number | Description |
|---|---|---|
| 1 | 41C589-2 | Sprocket and sprocket cover with screws — no longer available |
| 2 | 41D7639 | End panel with light socket |
| 3 | 41D7572 | Light lens |
| 4 | 41C279 | Light socket |
| 5 | 41A7635 | Transformer |
| 6 | 41A7620-3 | Cover |
| 7 | 041D8006-1 | Motor with travel module |
| 8 | 41D7638 | End panel for receiver logic board, with light socket |
| 9 | 45DCT | Receiver logic board |
| 10 | 41B135-1 | Line cord — built before October 2012, no longer available |
| 10 | 41B4245-1 | Line cord — built after October 2012 |
| 11a | 41B7611 | Filter board with screws — built before October 2012 |
| 11b | 41A3150 | Terminal block — built after October 2012 |
| 12 | 041D8071-4 | Travel module |
| — | 41B7418 | Wire harness with screws — built before October 2012 |
| — | 041B7610-1 | Wire harness with screws — built after October 2012 |
The 45DCT is the receiver logic board for the HD920EV. The 045DCT125 fits the HD930EV only — read the number printed on the board you are removing before ordering. The ref 1 sprocket and cover (41C589-2) is discontinued; the 041C1751 that superseded it fits the HD930EV only and will not fit this opener. Call (866) 965-5599 if you need one.

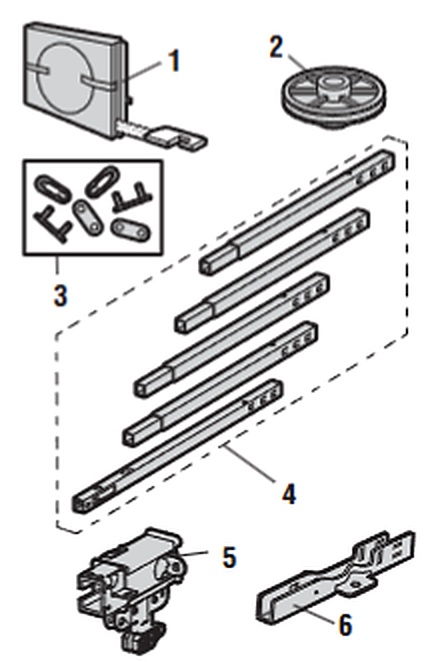

2. Rail Assembly Parts
First part of number below corresponds to diagram number above:
| Ref | Part Number | Description |
|---|---|---|
| 1 | 41A5250 | Belt — 7 ft door |
| 2 | 144C54 | Pulley kit |
| 3 | 4A1008 | Master link |
| 4 | 41A5665 | Square rail |
| 5 | 41C5141-2 | Trolley assembly |
| 6 | 12D598-1 | "U" bracket |
| — | 183A163 | Wear pads — not shown on diagram |
| — | 041B4103 | Spring retainer and tensioner — not shown on diagram |
| — | 041A7920-2 | Hardware bag — not shown on diagram |
A belt rarely fails on its own. Check the pulley, trolley and wear pads while the rail is apart — worn pads let the trolley rock in the rail and will chew through a new belt in months.

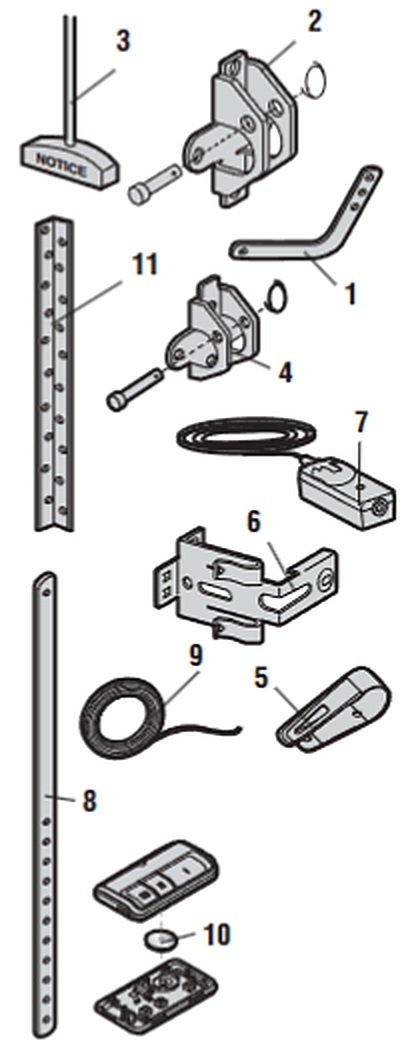

3. Installation Parts
First part of number below corresponds to diagram number above:
| Ref | Part Number | Description |
|---|---|---|
| 1 | 178B35 | Curved door arm |
| 2 | 41A5047-1 | Door bracket with clevis pin and fastener |
| 3 | 41A2828 | Emergency release rope and handle |
| 4 | 41A5047-2 | Header bracket with clevis pin and fastener |
| 5 | 29B137 | Remote control visor clip |
| 6 | 041-0155-000 | Safety sensor bracket — replaces 041A5266-3 |
| 7 | 041-0136 | Safety sensor kit — replaces 41A5034 |
| 8 | 178B34 | Straight door arm |
| 9 | 41B4494-1 | White and red/white sensor wire |
| 10 | 10A20 | 3V CR2032 lithium battery |
| 11 | 12B776 | Hanging brackets |
| — | 041-0365-000 | Sensor eyes and brackets — the complete set |
The manual lists the 41A5034 sensor kit and the 041A5266-3 bracket. Both are superseded — order the 041-0136 eye kit and the 041-0155-000 brackets above, or the 041-0365-000 which includes both.

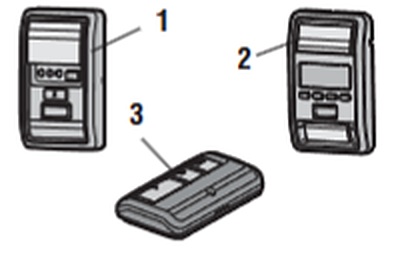

4. Accessories
First part of number below corresponds to diagram number above:
| Ref | Part Number | Description |
|---|---|---|
| 1 | 41A7327-1 | Motion-detecting control panel |
| 2 | 41A7305-1 | Smart control panel |
| 3 | 893MAX | Remote control — universal replacement for the 953ESTD |
The original 953ESTD remote is discontinued. The 893MAX is the universal replacement and works with all the older Chamberlain, LiftMaster and Craftsman openers. Browse all Chamberlain remote controls.
