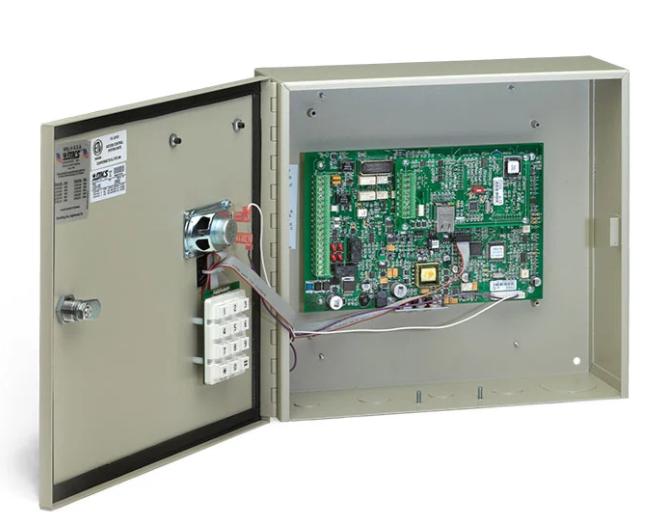

Genuine DoorKing replacement parts for the 1838 multi-door access controller, covering both the standard 1838-081 (3000 codes) and the 1838-095 Access Plus (100 codes). The two units share the same control box, keypad, locks and hardware — the differences are the board, the speaker and the transformer count, and every one of those is called out below.
Which 1838 Do You Have?
| Model | Version | Control Board | Speaker | Transformers |
|---|---|---|---|---|
| 1838-081 | Multi-Door Access Controller, 3000 codes | 1838-010 | 1817-190 oval | Two 1804-060 |
| 1838-095 | Access Plus, 100 codes, networked | 1970-010 | 1804-075 2 watt | One 1804-060 |
• The keypad shown as 1818-030 is no longer supplied. The current part is the 1838-030 keypad and ribbon assembly.
• The memory chip shown as 1830-402 is superseded by the 1830-404 memory module. See the note under the memory section — there is a second 3000-code chip and they are not interchangeable on every build.

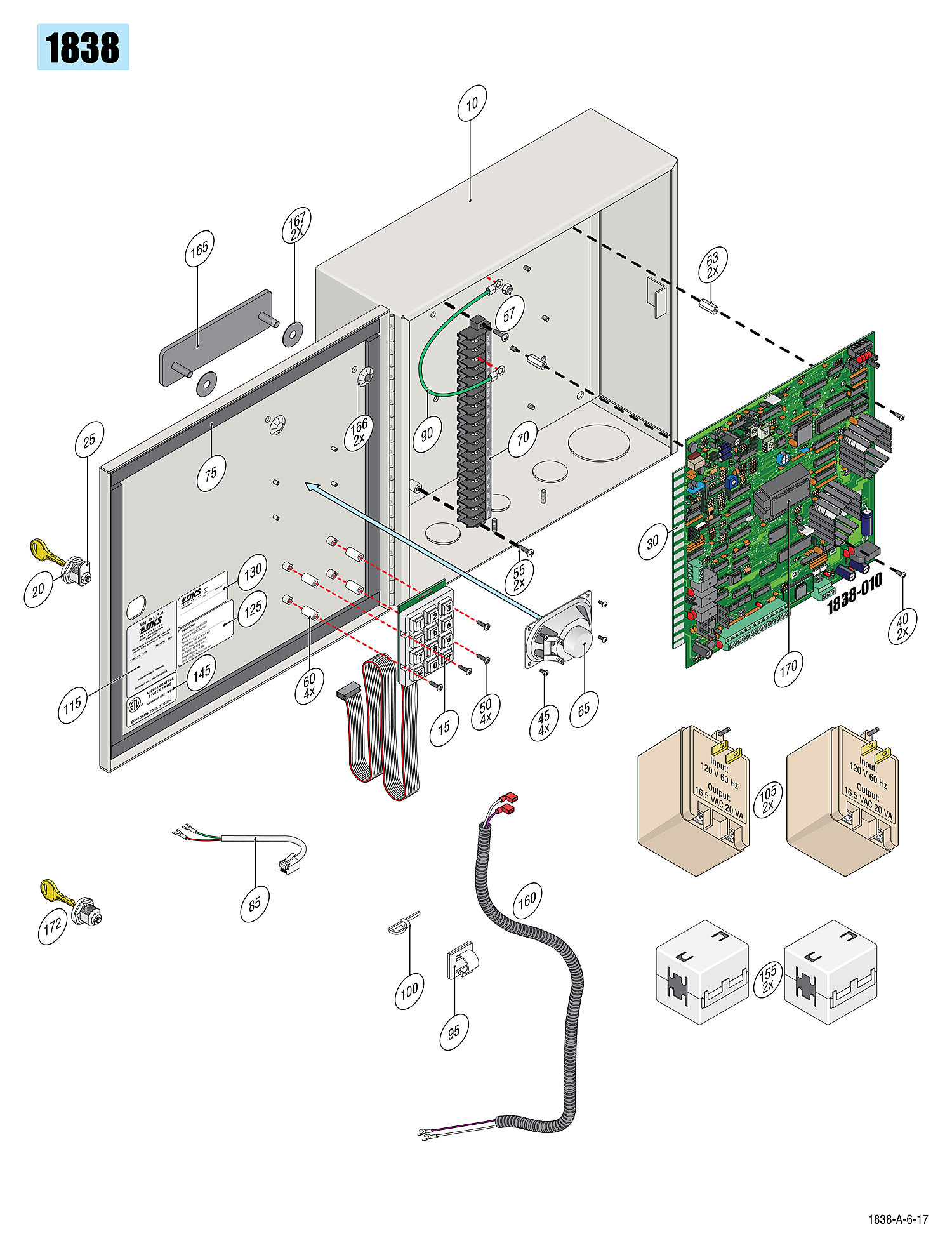

1838-081 Access Controller

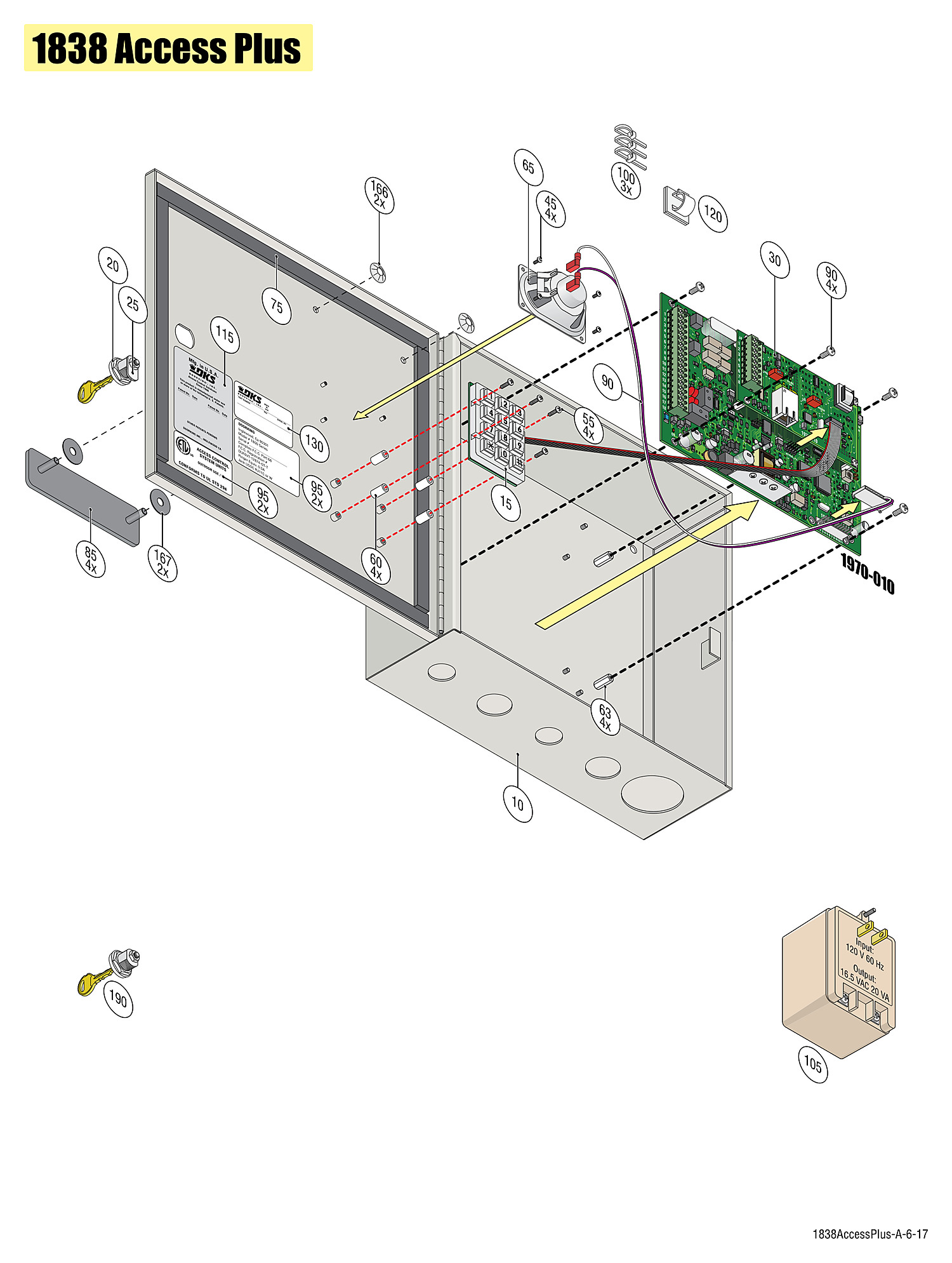

1838-095 Access Plus Controller
Parts List — Both Models
The “Fits” column tells you which unit each part belongs to. Where a reference number is used on both drawings for different parts, both rows are shown.
| Ref | Part Number | Description | Qty | Fits |
|---|---|---|---|---|
| 10 | 4001-201 | Box, Control Beige — the enclosure | 1 | Both |
| 15 | 1838-030 | Keypad / Ribbon Assembly — current part, replaces the 1818-030 on the drawing | 1 | Both |
| 20 | 4001-035 | Lock, N16058BDxSF with 2 keys, 16120 keyway | 1 | Both |
| 25 | 1702-501 | Cam, 7/8 in. | 1 | Both |
| 30 | 1838-010 | PCB, Modem Card Reader — no memory chip supplied | 1 | 081 only |
| 30 | 1970-010 | PCB, Access Plus — with modem | 1 | 095 only |
| 40 | 2616-002 | Screw, Phillips Head 6-32 x 1/2 in. | 2 | 081 only |
| 45 | 2616-000 | Screw, Phillips Head 6-32 x 1/4 in. | 4 | Both |
| 50 | 1894-006 | Screw, Round Head 2-56 x 3/8 in. | 4 | 081 only |
| 55 | 2904-002 | Screw, Round Head 4-40 x 3/8 in. | 2 / 4 | Both |
| 57 | 2902-002 | Nut, Nylon Lock 4-40 | 4 | Both |
| 60 | 1894-008 | Standoff, Nylon 3/16 x 7/16 x 2-56 — not currently available from DoorKing | 4 | Both |
| 63 | 2900-907 | Standoff, Aluminum 9/16 in. 6-32 | 2 / 4 | Both |
| 65 | 1817-190 | Speaker Assembly, Oval | 1 | 081 only |
| 65 | 1804-075 | Speaker, 2 watt Oval 41 x 71 mm | 1 | 095 only |
| 70 | 1814-049 | Terminal, 20 Pin | 1 | 081 only |
| 75 | 4001-018 | Weather Stripping | 4 ft | Both |
| 85 | 1804-040 | Wire, Telephone Line Cord | 1 | 081 only |
| 90 | 7082-059 | Wire, Green 18 AWG stranded — ground | 1 | 081 only |
| 90 | 1971-192 | Wire Harness, 1838AP Box — not currently available from DoorKing | 1 | 095 only |
| 95 | 1804-028 | Mount, Wire Clip | 1 | 081 only |
| 100 | 1804-031 | Tie Wrap, 4 in. | 1 / 3 | Both |
| 105 | 1804-060 | Transformer, 16.5 VAC 20 VA plug-in — two on the 081, one on the 095 | 2 / 1 | Both |
| 115 | 2599-008 | Label, Patent | 1 | Both |
| 120 | 2600-619 | Wire Clip, 5/8 in. Concord 770-1209 | 1 | 095 only |
| 125 | 1804-023 | Decal, FCC — not currently available from DoorKing | 1 | 081 only |
| 125 | 2902-003 | Nut, Nylon Lock 6-32 | 1 | 095 only |
| 130 | 1400-009 | Decal, Identification — not currently available from DoorKing | 1 | 081 only |
| 130 | 3140-045 | Label, New Wiring | 1 | 095 only |
| 145 | 2600-884 | Label, E.T.L. Separable — not currently available from DoorKing | 1 | Both |
| 155 | 1876-025 | Ferrite, Snap-On Filter (Steward) | 2 | 081 only |
| 160 | 9402-053 | Tubing, Flex/Slit 1/4 in. OD | 18 in. | 081 only |
| 165 | 2600-732 | Nameplate, Plastic DKS Big | 1 | Both |
| 166 | 2802-040 | Washer, Push-on Clamp | 2 | Both |
| 167 | 1897-050 | Rubber O Tensioner for Logo | 2 | Both |
| 170 | 1830-404 | Memory Module, 3000 APB — current part, replaces the 1830-402 on the drawing | 1 | 081 only |
| 172 / 190 | 4001-034 | Lock, N16058BDxSF with 2 keys, randomly keyed | 1 | Both |
Memory Chips — Read Before Ordering
DoorKing lists two different 3000-code APB memory parts for the 1838 and the factory drawing names only the older one. If you are replacing a chip, check what is fitted and call us if it does not match either of these.
| Part Number | Description |
|---|---|
| 1830-404 | Memory Module 3000 APB — the current replacement for the 1830-402 shown on the drawing |
| 1838-147 | Replacement Memory Chip, 1838, 3000 APB — DoorKing’s 1838-specific part |
Manuals and Programming Software
| Part Number | Description | Fits |
|---|---|---|
| 1838-065 | Manual — not currently available from DoorKing | 081 only |
| 1838-066 | Manual, 1838 Access Plus — not currently available from DoorKing | 095 only |
| 1815-025 | Remote Program Pac for Windows — not currently available from DoorKing | 081 only |
Common 1838 Problems and the Parts That Fix Them
| Symptom | Likely Part |
|---|---|
| Unit completely dead | Transformers first — the 081 runs two 1804-060, the 095 runs one. Then the board. |
| Keypad worn, sticky or vandalised | 1838-030 keypad and ribbon assembly |
| Codes lost or will not program | 1830-404 memory module — see the memory chip note above |
| No audio at the unit | 1817-190 on the 081, 1804-075 on the Access Plus |
| Access Plus will not connect to the network | 1970-010 Access Plus board — the modem is on the board |
| Field wiring will not seat or hold | 1814-049 20-pin terminal |
| Water inside the control box | 4001-018 weather stripping |
| Door will not lock or key spins | 4001-035 keyed alike, or 4001-034 randomly keyed, plus the 1702-501 cam |
1838 Upgrades and Accessories
1838-220 LCD Display Kit · 1838-120 Remote Call Station with keypad · 1838-124 DK Prox card reader station · 1838-134 ProxPlus card reader station · 1838-123 HID card reader station · 1838-122 AWID card reader station · 1838-500 assembly, no board
