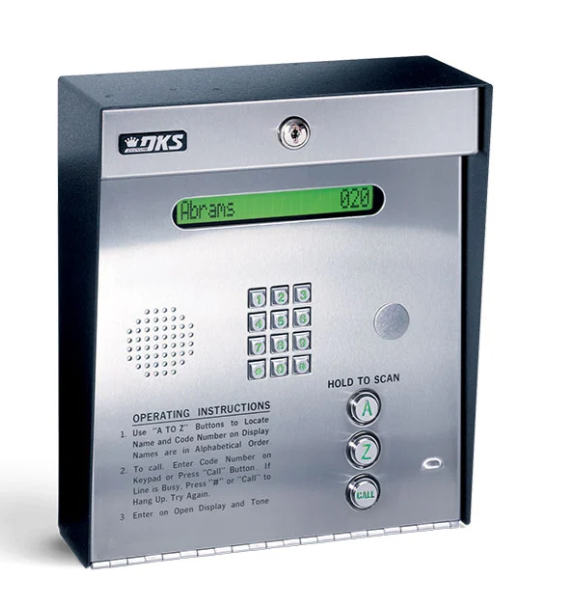

Genuine DoorKing replacement parts for the 1835 surface mount telephone entry system, taken from the factory Illustrated Parts Breakdown for the 1835-080. Find your part on the diagram, match the number in the table below it, and click the part number to order.
The 1835 sits between the 1834 and the 1837. It uses the same stainless faceplate, subplate and slant box as the 1834, and the same single-line 20-character 1891-010 display — but its own 1835-010 board and the 3000-number 1835-147 APB memory chip. The board ships with no memory chip; the chip is a separate part.

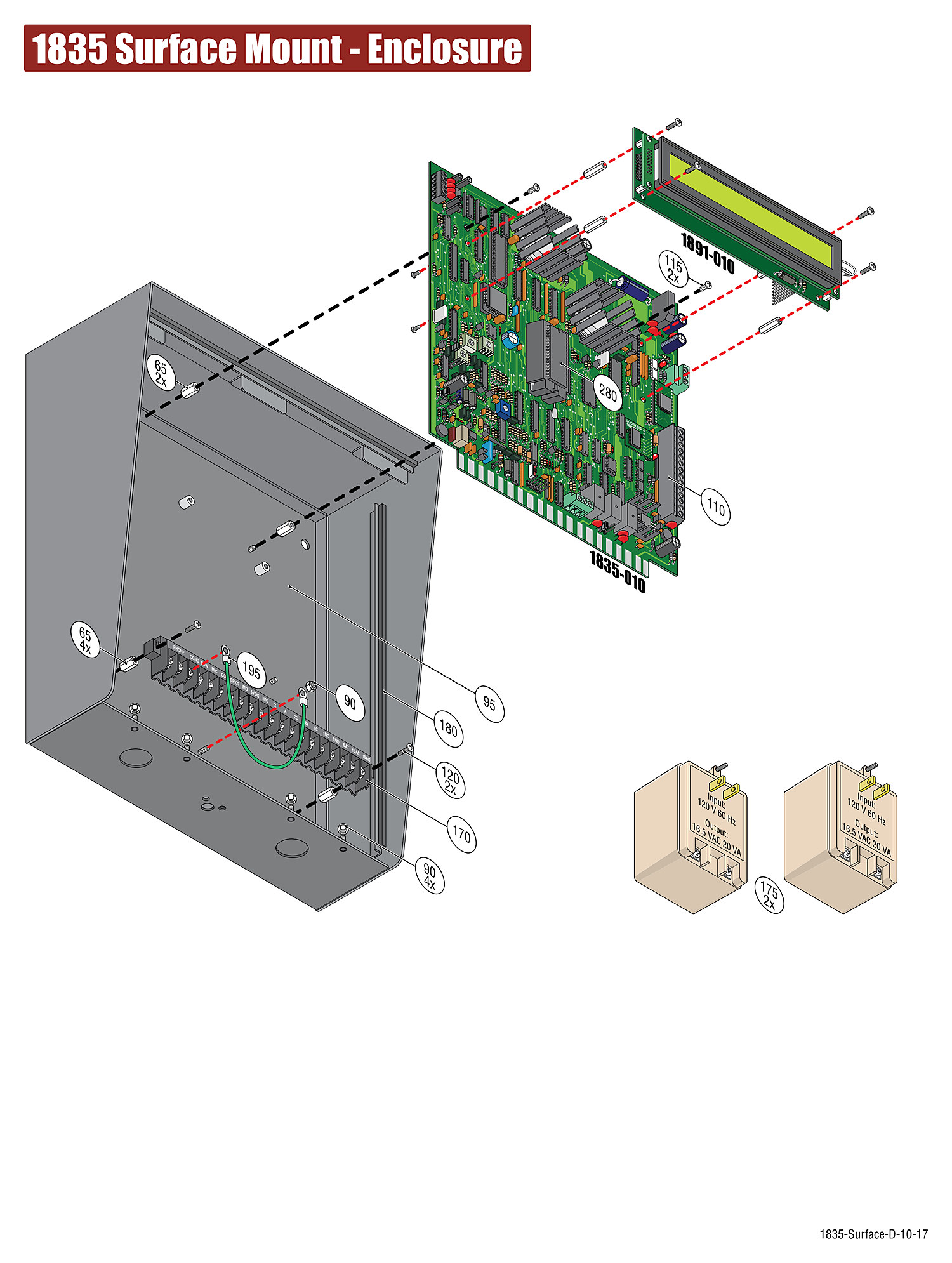

1835 Surface Mount — Enclosure
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 65 | 2900-905 | Standoff, Aluminum 7/16 in. 6-32 | 4 |
| 90 | 2902-003 | Nut, Nylon Lock 6-32 — 19 used across the whole unit | 19 |
| 95 | 1810-101 | Box, Phone Slant — the surface mount enclosure | 1 |
| 110 | 1835-010 | PCB, Modem Programmable Electronic Directory — the main board, no memory chip | 1 |
| 115 | 2905-001 | Screw, Round Head 6-32 x 1/4 in. | 2 |
| 120 | 2905-003 | Screw, Round Head 6-32 x 1/2 in. | 6 |
| 170 | 1814-049 | Terminal, 20 Pin | 1 |
| 175 | 1804-060 | Transformer, 16.5 VAC 20 VA plug-in — two fitted | 2 |
| 180 | 1800-018 | Weather Strip, .125 in. x .187 in. | 2.91 ft |
| 195 | 7082-059 | Wire, Green 18 AWG stranded — enclosure ground | 1 |
| 280 | 1835-147 | Memory chip, 3000 phone numbers APB — holds the directory | 1 |
| — | 1891-010 | LCD Display, single line 20 character — shown on the drawing, missing from DoorKing’s parts list | 1 |

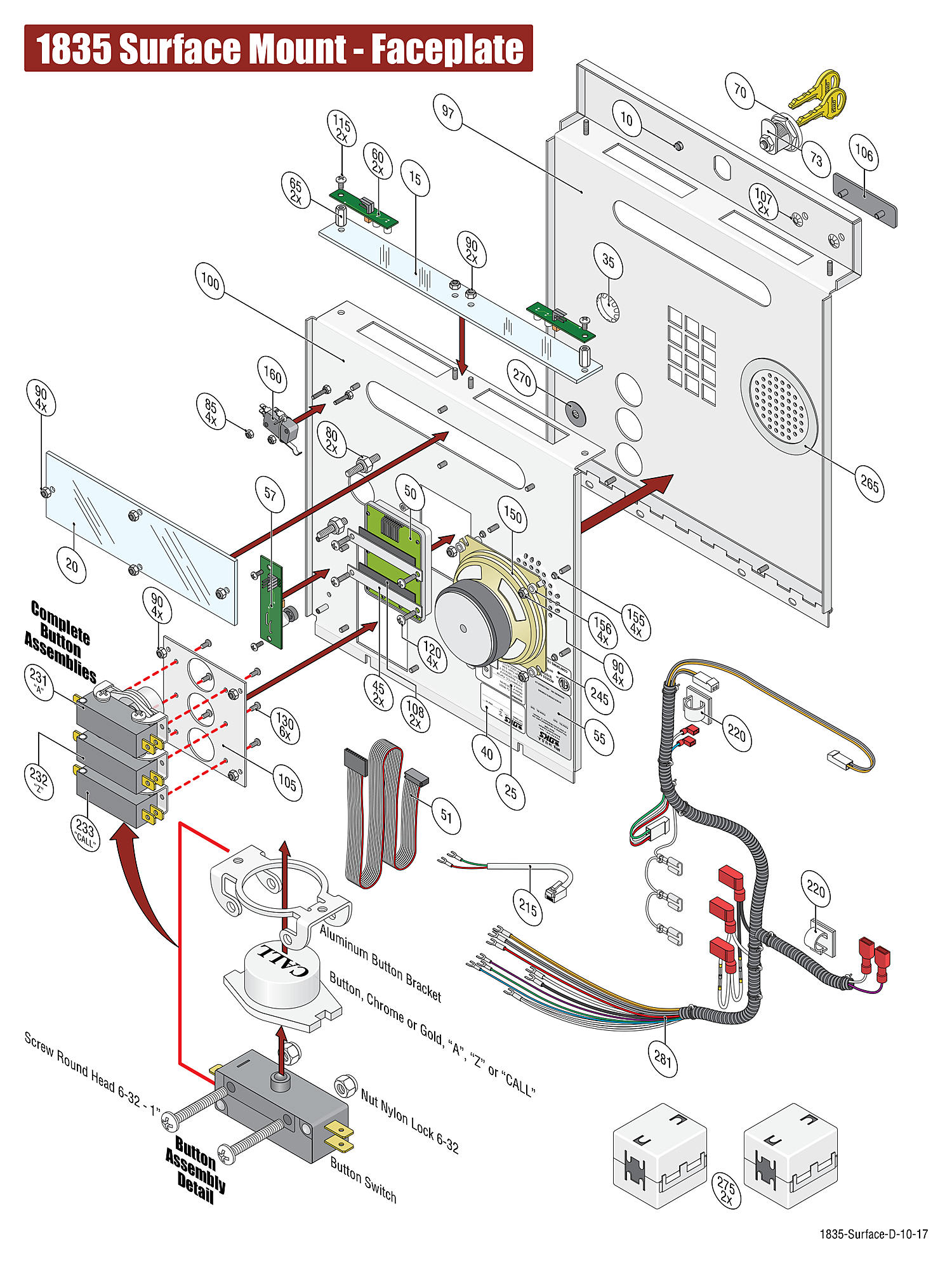

1835 Surface Mount — Faceplate
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 10 | 2600-735 | Hole Plug, Black Nylon .250 in. dia. | 1 |
| 15 | 1814-004 | Cover, Plastic Light | 1 |
| 20 | 1814-003 | Cover, Plastic Display | 1 |
| 25 | 1804-023 | Decal, FCC — not currently available from DoorKing | 1 |
| 35 | 1804-042 | Hole Plug, 7/8 in. stainless | 1 |
| 40 | 1400-009 | Decal, Identification — not currently available from DoorKing | 1 |
| 45 | 1804-039 | Retaining Strip, Keypad | 2 |
| 50 | 1895-016 | Keypad, 10 Pin Alphanumeric Header — discontinued, see the note below | 1 |
| 51 | 1804-038 | Wire, Ribbon Cable Assembly 10 Conductor | 1 |
| 55 | 2599-008 | Label, Patent | 1 |
| 57 | 1998-010 | PCB, Microphone Short SMT — fit when the visitor cannot be heard | 1 |
| 60 | 2356-010 | PCB, LED Light Straight — two fitted | 2 |
| 70 | 4001-035 | Lock, N16058BDxSF with 2 keys, 16120 keyway | 1 |
| 73 | 1702-501 | Cam, 7/8 in. | 1 |
| 80 | 2902-006 | Nut, Nylon Lock 10-32 | 2 |
| 85 | 2902-002 | Nut, Nylon Lock 4-40 | 4 |
| 97 | 1814-053 | Faceplate, Phone Surface 3 Button — stainless | 1 |
| 100 | 1814-036 | Subplate, Surface 3 Button | 1 |
| 105 | 1814-032 | Plate, Switch 3 Button | 1 |
| 106 | 2600-734 | Nameplate, Plastic DKS Small | 1 |
| 107 | 2802-040 | Washer, Push-on Clamp | 2 |
| 108 | 1897-050 | Gasket, Support Thick 1/16 in. | 2 |
| 130 | 1804-016 | Screw, Truss Head 6-32 x 3/16 in. | 6 |
| 150 | 1804-290 | Speaker Assembly, 10 watt square — fit when the resident cannot be heard | 1 |
| 155 | 1860-126 | Washer, Nylon Shoulder | 4 |
| 156 | 1860-032 | Washer, Nylon Retaining #6 | 4 |
| 160 | 1804-024 | Switch, Micro NO NC C | 1 |
| 215 | 1804-040 | Wire, Telephone Line Cord | 1 |
| 220 | 1804-028 | Mount, Wire Clip | 3 |
| 225 | 1804-031 | Tie Wrap, 4 in. | 7 |
| 231 | 1814-140 | Button Assembly, Chrome “A” | 1 |
| 232 | 1814-141 | Button Assembly, Chrome “Z” | 1 |
| 233 | 1814-142 | Button Assembly, Chrome “CALL” | 1 |
| 245 | 2600-884 | Label, E.T.L. Separable — not currently available from DoorKing | 1 |
| 265 | 1804-196 | Speaker Gasket, 1/16 in. thick | 1 |
| 270 | 1897-053 | Gasket, Microphone | 1 |
| 275 | 1876-025 | Ferrite, Snap-On Filter (Steward) — two fitted | 2 |
| 281 | — | Wire Harness, 1835 Front Panel — DoorKing prints no part number for this; call us | 1 |
About the keypad (ref 50). The 1895-016 alphanumeric keypad originally fitted to the 1835 has been discontinued by DoorKing, and the numeric 1895-017 is not a straight swap. If your keypad is worn or vandalised, call us before ordering and we will confirm the current retrofit for your serial number.
Manuals and Programming Software
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 235 | 1815-025 | Remote Program Pac for Windows — not currently available from DoorKing | 1 |
| 237 | 1835-065 | Manual, Owner’s — not currently available from DoorKing | 1 |
| — | 1835-066 | Manual, User’s — not currently available from DoorKing | 1 |
Common 1835 Problems and the Parts That Fix Them
| Symptom | Likely Part |
|---|---|
| Panel completely dead | Check both 1804-060 transformers — the 1835 runs two — then the 1835-010 board |
| Display blank, dim or garbled | 1891-010 LCD display, then the 2356-010 LED backlight boards |
| Resident names lost or will not program | 1835-147 3000-number APB memory chip |
| Resident cannot hear the visitor | 1998-010 microphone PCB and 1897-053 gasket |
| Visitor cannot hear the resident | 1804-290 speaker and 1804-196 gasket |
| A, Z or CALL button stuck or vandalised | 1814-140, 1814-141, 1814-142 |
| Display window crazed or yellowed | 1814-003 display cover and 1814-004 light cover |
| Water inside the enclosure | 1800-018 weather strip and 1897-050 support gaskets |
| Front panel damaged or corroded | 1814-053 faceplate and 1814-036 subplate |
| Door will not lock or key spins | 4001-035 lock and 1702-501 cam |
