Genuine DoorKing replacement parts for the 1833 surface mount telephone entry system, taken from the factory Illustrated Parts Breakdown for the 1833-080. Find your part on the diagram, match the number in the table below it, and click the part number to order.

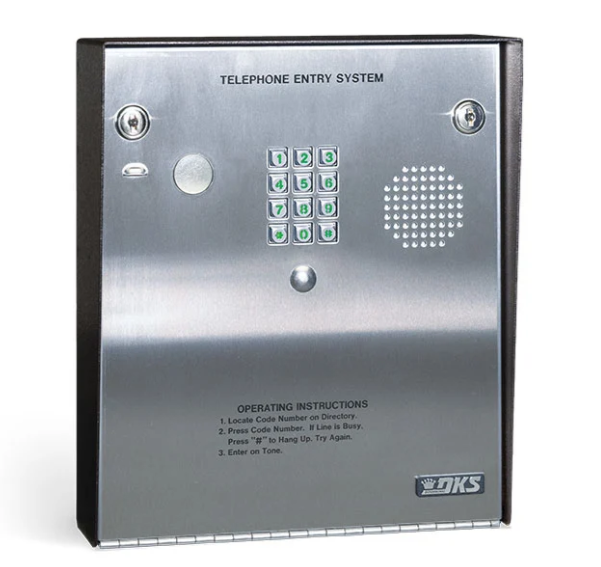

The 1833 is the no-display model. Its board is the 1833-010 — “Modem Programmable, No Display” — so there is no LCD to fail and no scroll buttons on the faceplate. It uses the numeric 1895-017 keypad, which is still available, unlike the discontinued alphanumeric keypad on its 1834 and 1835 siblings. The board ships with no memory chip; the 1835-147 3000-number APB chip is a separate part.

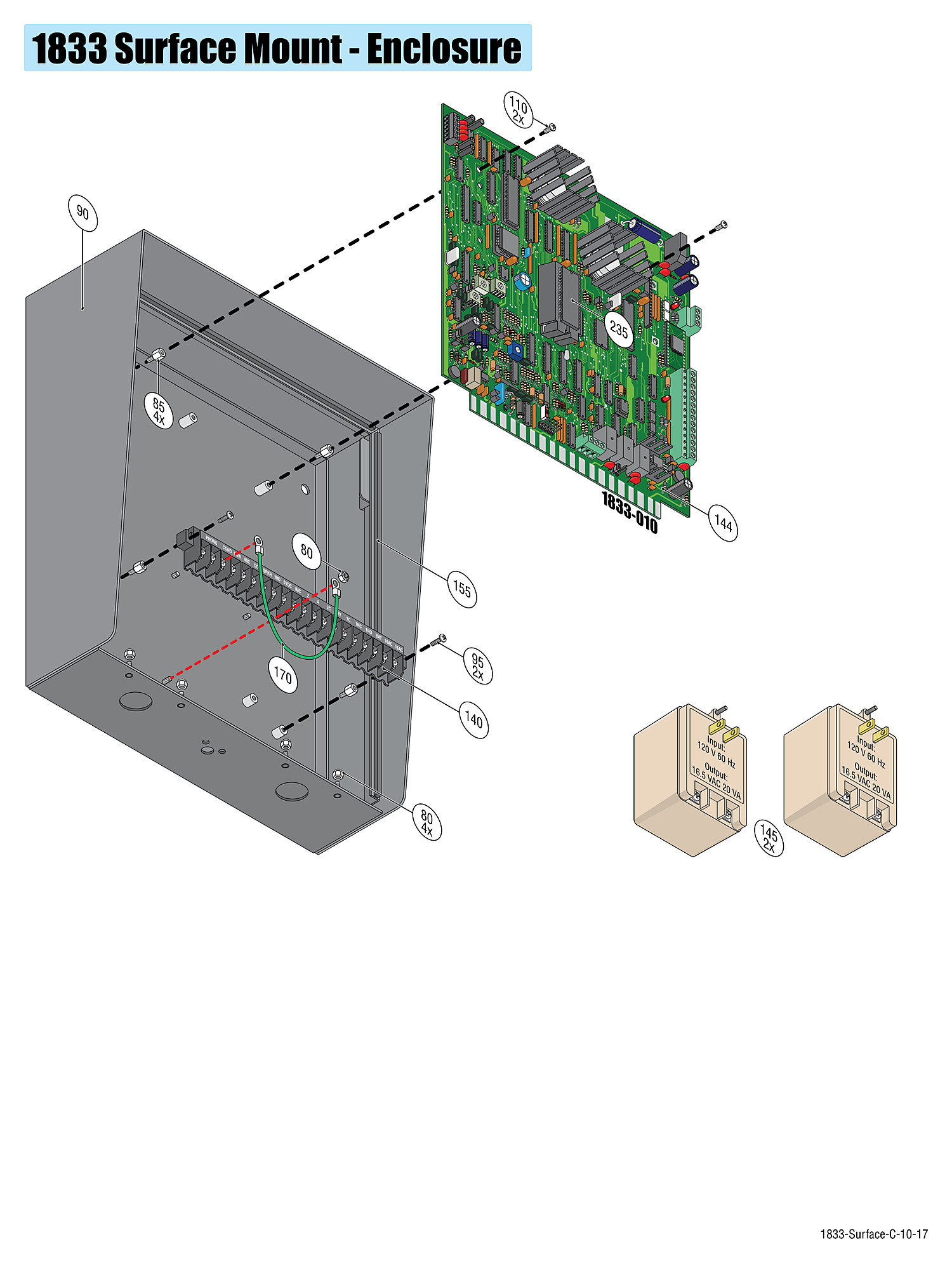

1833 Surface Mount — Enclosure
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 80 | 2902-003 | Nut, Nylon Lock 6-32 — 11 used across the whole unit | 11 |
| 85 | 2900-928 | Standoff, Steel Male/Female 1/4 in. | 4 |
| 90 | 1810-100 | Box, Phone — the surface mount enclosure | 1 |
| 95 | 2905-003 | Screw, Round Head 6-32 x 1/2 in. | 2 |
| 110 | 2905-001 | Screw, Round Head 6-32 x 1/4 in. | 2 |
| 140 | 1814-049 | Terminal, 20 Pin | 1 |
| 144 | 1833-010 | PCB, Modem Programmable / No Display Phone — the main board | 1 |
| 145 | 1804-060 | Transformer, 16.5 VAC 20 VA plug-in — two fitted | 2 |
| 155 | 1800-018 | Weather Strip, .125 in. x .187 in. | 2.41 ft |
| 170 | 7082-059 | Wire, Green 18 AWG stranded — enclosure ground | 1 |
| 235 | 1835-147 | Memory chip, 3000 phone numbers APB — holds the directory | 1 |

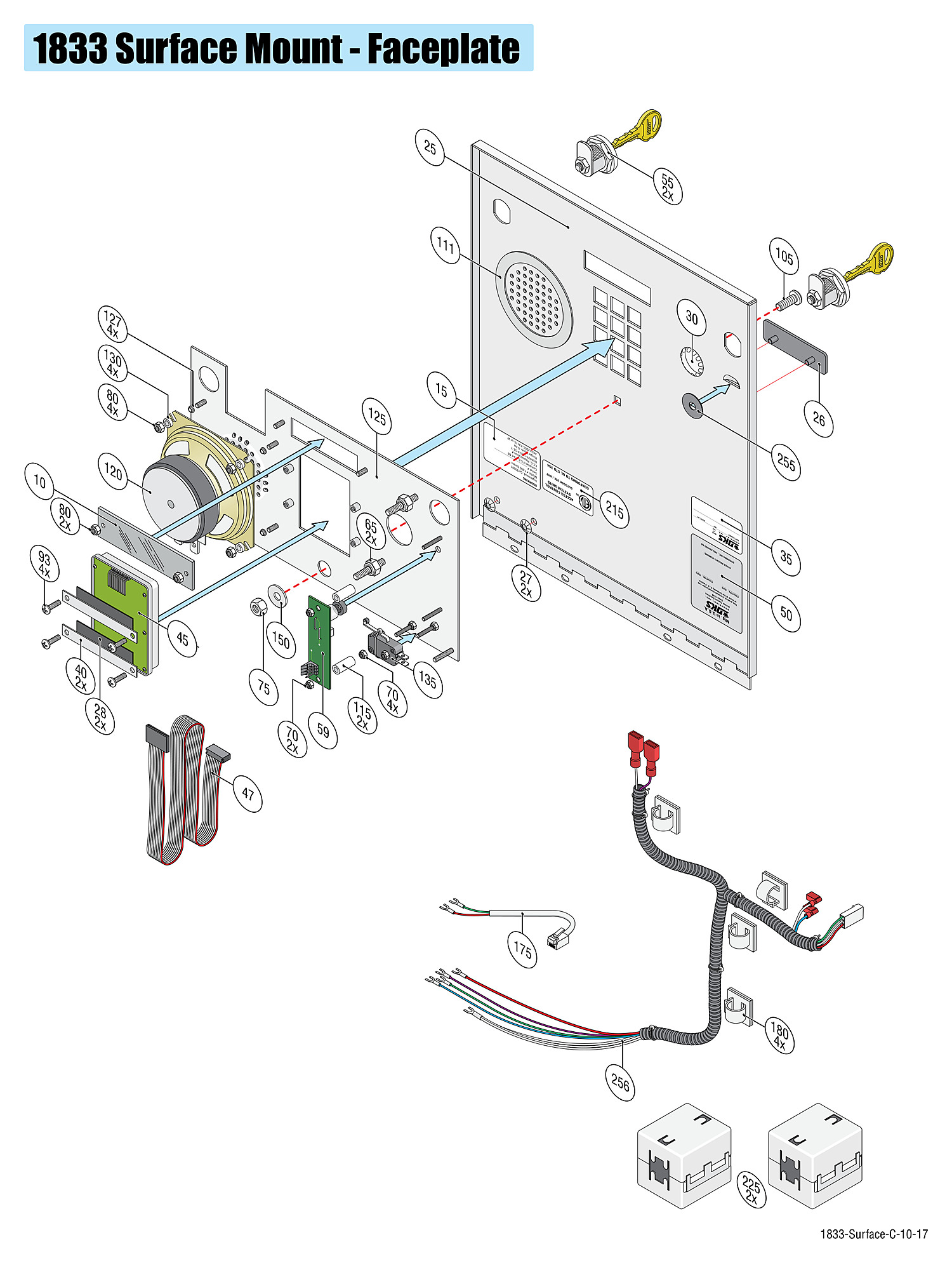

1833 Surface Mount — Faceplate
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 10 | 1804-007 | Cover, Plastic Small Gray | 1 |
| 15 | 1804-023 | Decal, FCC — not currently available from DoorKing | 1 |
| 25 | 1803-053 | Faceplate, Phone — stainless | 1 |
| 26 | 2600-734 | Nameplate, Plastic DKS Small | 1 |
| 27 | 2802-040 | Washer, Push-on Clamp | 2 |
| 28 | 1897-050 | Gasket, Support Thick 1/16 in. | 2 |
| 30 | 1804-042 | Hole Plug, 7/8 in. stainless | 1 |
| 35 | 1400-009 | Decal, Identification — not currently available from DoorKing | 1 |
| 40 | 1804-039 | Retaining Strip, Keypad | 2 |
| 45 | 1895-017 | Keypad, 10 Pin Numeric Header | 1 |
| 47 | 1804-038 | Wire, Ribbon Cable Assembly 10 Conductor | 1 |
| 50 | 2599-008 | Label, Patent | 1 |
| 55 | 4001-035 | Lock, N16058BDxSF with 2 keys — two locks on this panel | 2 |
| 59 | 1998-010 | PCB, Microphone Short SMT — fit when the visitor cannot be heard | 1 |
| 65 | 2902-006 | Nut, Nylon Lock 10-32 | 2 |
| 70 | 2902-002 | Nut, Nylon Lock 4-40 | 6 |
| 75 | 2620-411 | Nut, Hex Flange Lock 5/16-18 | 1 |
| 93 | 2616-000 | Screw, Phillips Head 6-32 x 1/4 in. | 4 |
| 105 | 2615-663 | Bolt, Carriage Stainless 5/16 x 18 x 3/4 in. — not currently available from DoorKing | 1 |
| 111 | 1804-196 | Speaker Gasket, 1/16 in. thick | 1 |
| 115 | 3002-004 | Spacer, Nylon 6 x 7/16 in. | 2 |
| 120 | 1804-290 | Speaker Assembly, 10 watt square — fit when the resident cannot be heard | 1 |
| 125 | 1804-027 | Subplate, Phone — not currently available from DoorKing | 1 |
| 127 | 1860-126 | Washer, Nylon Shoulder | 4 |
| 130 | 1860-032 | Washer, Nylon Retaining #6 | 4 |
| 135 | 1804-024 | Switch, Micro NO NC C | 1 |
| 150 | 2620-028 | Washer, 5/16 in. USS | 1 |
| 175 | 1804-040 | Wire, Telephone Line Cord | 1 |
| 180 | 1804-028 | Mount, Wire Clip | 4 |
| 215 | 2600-884 | Label, E.T.L. Separable — not currently available from DoorKing | 1 |
| 225 | 1876-025 | Ferrite, Snap-On Filter (Steward) — two fitted | 2 |
| 255 | 1897-053 | Gasket, Microphone | 1 |
| 256 | — | Wire Harness, 1833 Front Panel — DoorKing prints no part number for this; call us | 1 |
Manuals and Programming Software
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 205 | 1815-025 | Remote Program Pac for Windows — not currently available from DoorKing | 1 |
| 210 | 1835-065 | Manual, Owner’s — not currently available from DoorKing | 1 |
| — | 1835-066 | Manual, User’s — not currently available from DoorKing | 1 |
Common 1833 Problems and the Parts That Fix Them
| Symptom | Likely Part |
|---|---|
| Panel completely dead | Check both 1804-060 transformers — the 1833 runs two — then the 1833-010 board |
| Resident names lost or will not program | 1835-147 3000-number APB memory chip |
| Resident cannot hear the visitor | 1998-010 microphone PCB and 1897-053 gasket |
| Visitor cannot hear the resident | 1804-290 speaker and 1804-196 gasket |
| Keypad worn, sticky or vandalised | 1895-017 keypad, plus 1804-038 ribbon cable and 1804-039 strips |
| Gate will not trigger on a valid code | 1814-049 20-pin terminal, then the board |
| Water inside the enclosure | 1800-018 weather strip and 1897-050 support gaskets |
| Front panel damaged or corroded | 1803-053 faceplate |
| Door will not lock or key spins | 4001-035 lock with keys — two fitted |
