Liftmaster RSL12V Parts

Before you order — three things to check.

1. The RSL12V is not the RSL12U, and they share very little. The V is chain drive with a separate wall-mounted control box; the U is belt drive with the electronics built into the operator. Their control boards, chassis, covers and drive components are all different. If your operator has its board inside the housing rather than in a separate box, you have a U — use the RSL12U parts page instead.

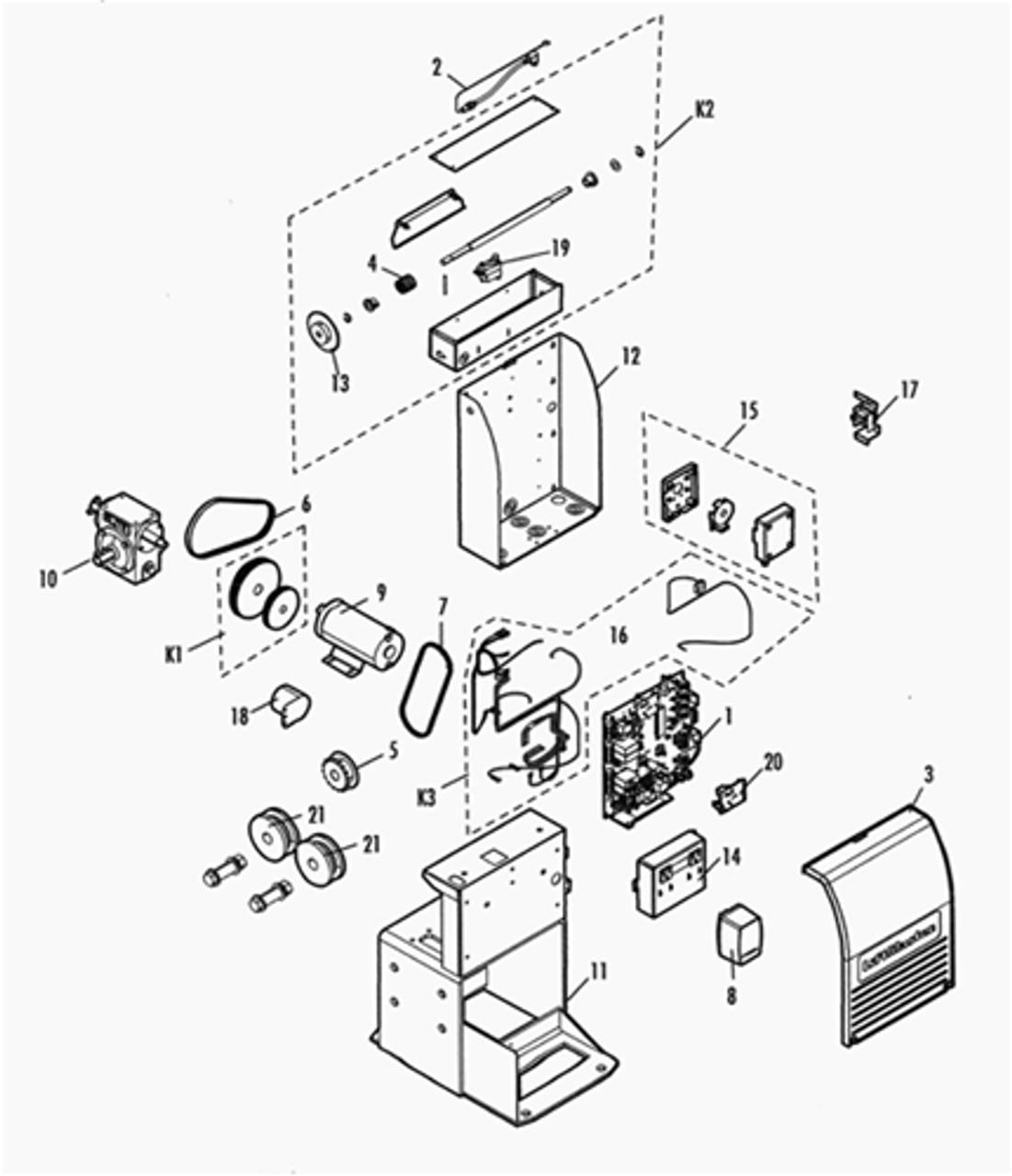

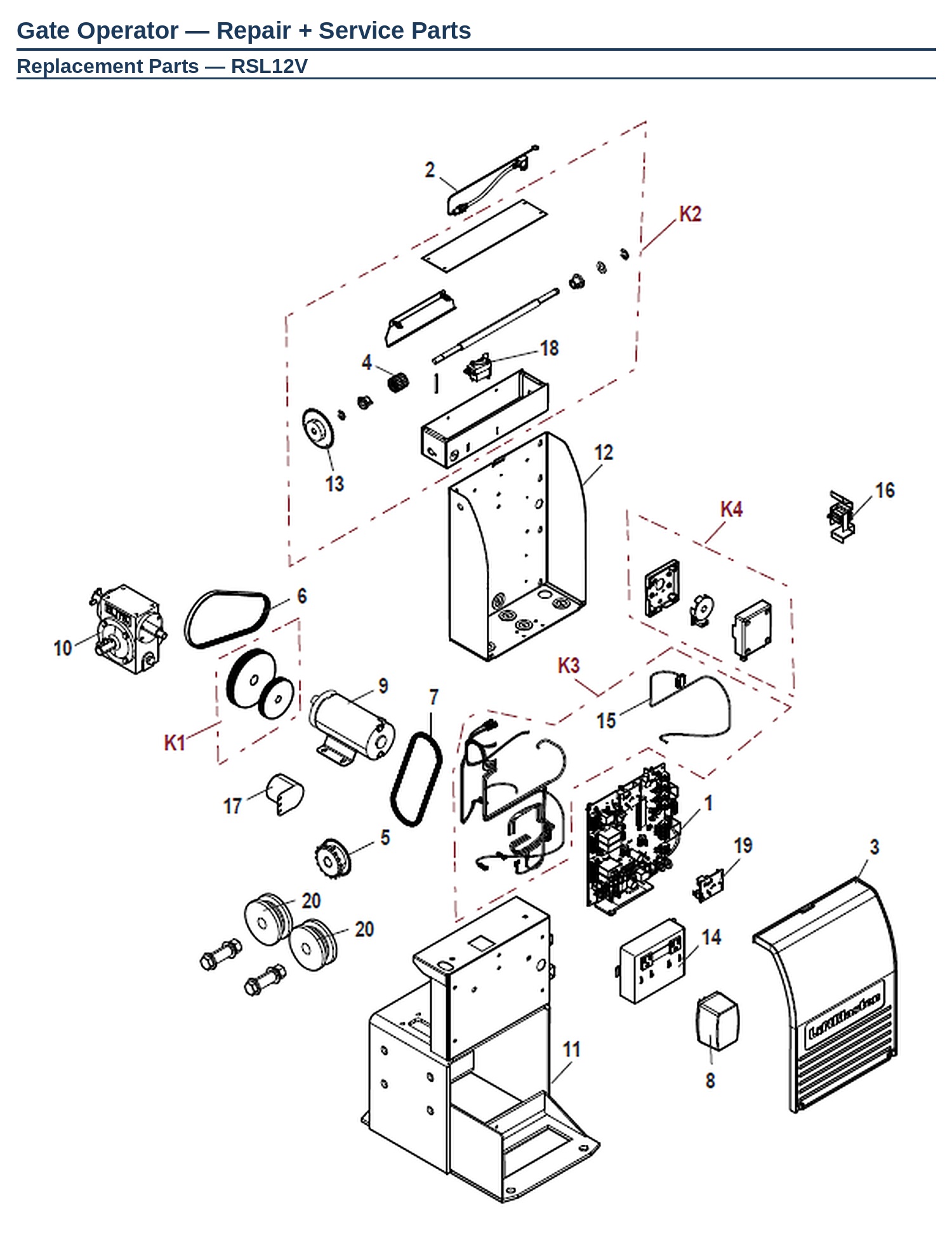

2. There are two boards on this operator and they do different jobs. K001A6426-2 at reference 1 is the main control board, shared with the RSW12V. K001A6636 at reference 19 is the low power RF board at 315MHz; K001A6636-1 is the 390MHz version. Check the frequency on your receiver before ordering — they are not interchangeable.

3. This operator uses two chains and they are not the same. The #25 x 87 link chain (reference 7) is the internal drive chain. The #41 chain sold by the foot is the gate chain that runs along the fence. Ordering one for the other is a wasted trip.

Part numbers shown as plain text rather than links are no longer available from the manufacturer. They are listed so you can identify what you have.
