Liftmaster EL2000SS Access Control Parts
LiftMaster EL2000SS Replacement Parts

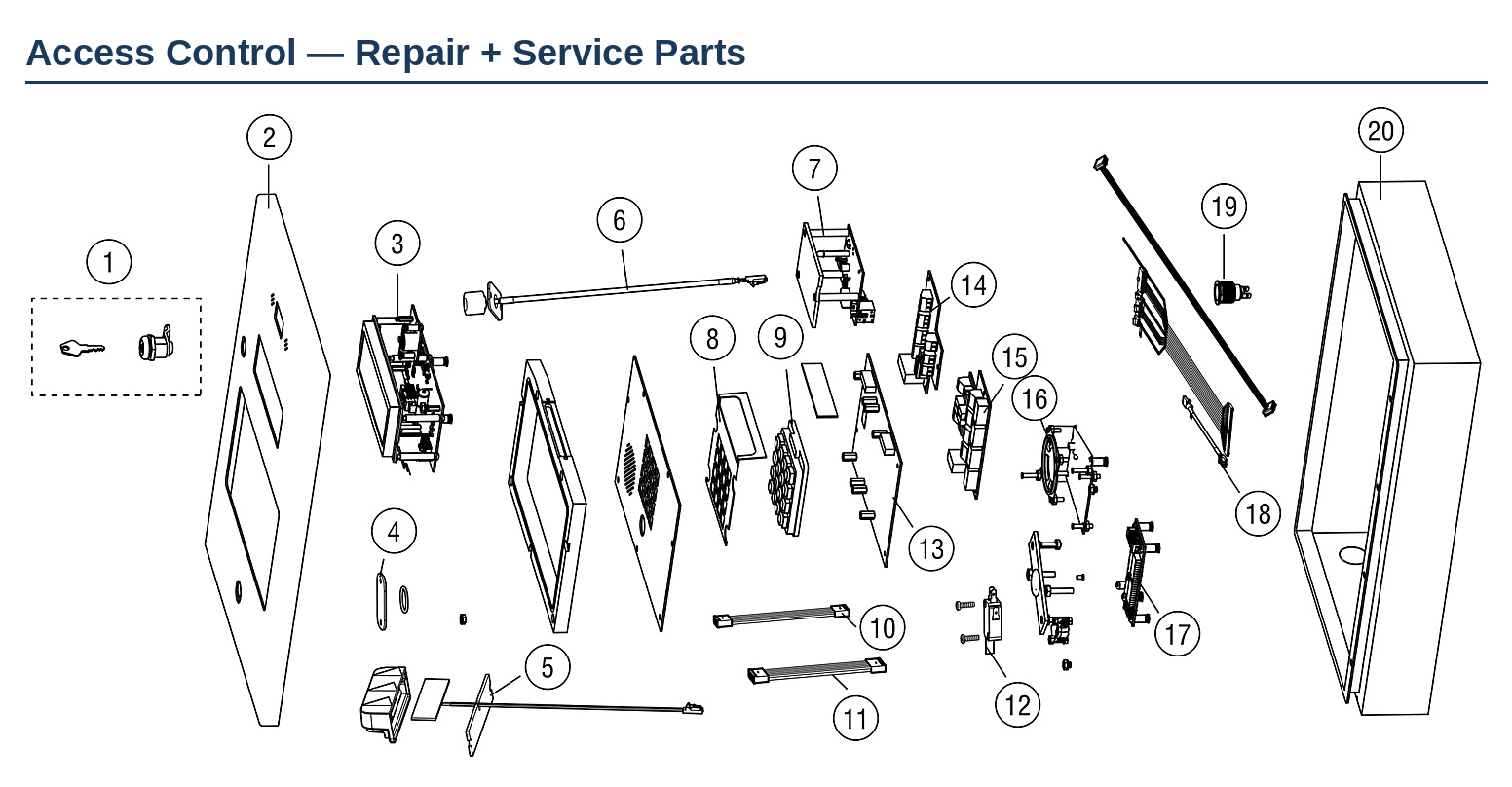

Genuine LiftMaster replacement parts for the EL2000SS telephone entry system — the stainless steel version of the EL2000, with display, 16-button keypad, camera and postal lock. Use the exploded diagram above to find the key number for the part you need, then click any part number in the table below.
The EL2000SS shares its electronics with the EL2000 — main, input, output and interconnect boards, keypad, speaker, display assembly and cables are the same. What differs is the enclosure: K75-37369 faceplate, K75-37503 rear housing, K75-37500 cable kit and K75-37505 camera and display kit are EL2000SS-specific.
Worth knowing if your enclosure is damaged: the standard EL2000 housings and faceplates are discontinued in every finish. The EL2000SS is the only version of this system with an enclosure still available.
The LED board is stocked as 2B721. That is the correct current part for 041B0773-1.
Common EL2000SS Faults
| Symptom | Usual cause | Parts to check |
|---|---|---|
| Display blank or garbled | Display assembly, or the camera and display kit | 041B0989 display and board, K75-37505 camera and display kit |
| Keys unresponsive or intermittent | Keypad or input board | 041D0236 keypad, 041B0736 input board |
| Gate relay not firing on a valid code | Output board | 041B0737 output board |
| No audio, or visitor cannot be heard | Speaker or mic cable | 041B0639 speaker, 041B0692 mic cable |
| Erratic behaviour or intermittent boards | Internal cabling | K75-37500 cable kit, 041B0705 and 041B0704 cables |
| Water inside the enclosure | Keypad gasket perished | 041C0087 keypad gasket |
| Faceplate or housing corroded or damaged | Enclosure | K75-37369 faceplate, K75-37503 rear housing |
| Lock seized or keys lost | Lock and key kit, or cam and lock kit | 041B0999 lock and key kit, K002B0799-3 cam and lock kit |
Entry System Repair & Service Parts
| Ref | Part # | Description |
|---|---|---|
| 1 | 041B0999 | Lock and Key Kit |
| 2 | K75-37369 | Faceplate, EL2000SS |
| 3 | 041B0989 | Assembly, Display and Board |
| 4 | K75-37505 | Camera and Display Kit, EL2000SS |
| 5 | 041B0773-1 | LED Board — stocked as 2B721 |
| 6 | 041B0692 | Mic Cable |
| 7 | 041B0998 | Entry LED Board — no longer available |
| 8 | 041C0087 | Keypad Gasket |
| 9 | 041D0236 | Keypad, 16 Button |
| 10 | 041B0705 | Cable, 20 Pin |
| 11 | 041B0704 | Cable, 14 Pin |
| 12 | 041B0996 | Postal Lock Switch Kit — no longer available |
| 13 | 041B0735 | Main Board |
| 14 | 041B0736 | Input Board |
| 15 | 041B0737 | Output Board |
| 16 | 041B0639 | Speaker |
| 17 | 041B0997 | Interconnect Board |
| 18 | K75-37500 | Cable Kit, EL2000SS |
| 19 | K002B0799-3 | Cam and Lock Kit |
| 20 | K75-37503 | Rear Housing, EL2000SS |
Accessories
| Ref | Part # | Description |
|---|---|---|
| — | KPR2000 | Wired Keypad and Proximity Reader |
