GTO PRO 3000XLS Replacement Parts
Genuine GTO / Linear PRO replacement parts for the GTO PRO SW3000XLS and SW3200XLS swing gate operators. Use the factory parts drawing and the tables below to identify your part, then click the part number to order.

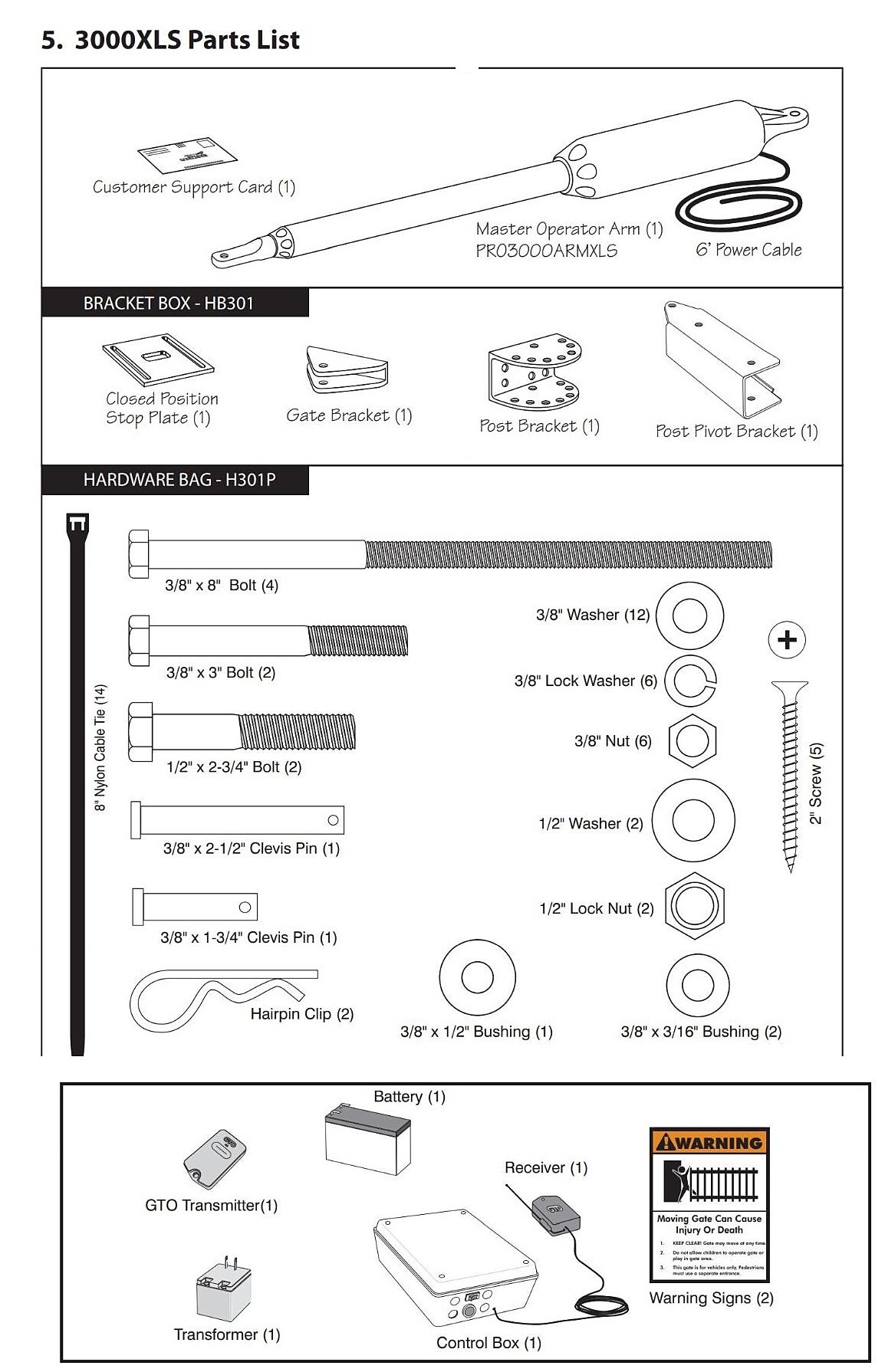

The drawing above is GTO’s own parts-identification page from the 3000XLS installation manual and shows every factory-supplied component: the operator arm, bracket box, hardware bag and electronics. The tables below list the current replacement part numbers for this operator — click any linked part number to view pricing and buy. Part numbers shown in gray are factory numbers that are no longer available; where GTO issued a replacement it is noted in the description.
Control Boards & Rev Counters
| Part Number |
Description |
Fits |
| R4211 |
Logic Control Board — no longer available |
2000/3000/4000XLS |
| R4884 |
Magnetic Rev Counter Wheel (now R4880) |
3000/4000XLS |
| R4918 |
Rev Counter Board (SW3000XLS, SW4000XLS) |
3000/4000XLS |
| R5211 |
Logic Control Board (SW2000XL, SW3000XL(S), SW4000XL(S)) |
3000/4000XLS |
| RVCTBD3040 |
Rev Counter Board (SW3000, SW4000) |
2000/3000/4000XLS |
| RVCTBDXL |
Rev Counter Board (SW3000XL, SW4000XL) |
3000/4000XLS |
| RVCCUP3040 |
Rev Counter Cup — no longer available |
3000/4000XLS |
| RVCCUPXL |
Rev Counter Cup — no longer available |
3000/4000XLS |
Control Boxes
| Part Number |
Description |
Fits |
| R5500 |
Loaded Hinged Control Box, 3000/4000XLS |
3000/4000XLS |
| R5501 |
Empty Hinged Control Box |
3000/4000XLS |
Operator Arms & Gear
| Part Number |
Description |
Fits |
| PRO3000ARMXLS |
Replacement Arm (PRO3000ARMXLS) |
3000XLS |
| FEA30 |
Front End Assembly — no longer available |
3000XLS |
| FEA30B |
Front End Assembly, Black — no longer available |
3000XLS |
| FEA30XLS |
Front End Assembly (SW3000XLS/3200XLS) — no longer available |
3000XLS |
| R4200XLS |
Gear Motor — no longer available |
3000/4000XLS |
Power: Transformer & Cables
| Part Number |
Description |
Fits |
| RB570 |
Transformer, 18 VAC |
2000/3000/4000XLS |
| PCK30406 |
Power Cable 6' w/Strain Relief |
3000/4000XLS |
| R4887 |
Power Cable 6' w/Strain Relief |
3000/4000XLS |
Brackets, Mounts & Hardware
| Part Number |
Description |
Fits |
| FTMT5030 |
Front Mount, Silver |
3000XLS |
| HB100 |
Silver Bracket Set w/Captured Gate Bracket |
2000/3000/4000XLS |
| HB301 |
Black 3000XL/4000XL Bracket Set w/Captured Gate Bracket — listing currently hidden |
3000/4000XLS |
| R4388 |
3000 Black Push-to-Open Bracket |
3000XLS |
| R4886 |
Front Mount (SW2000XLS, SW3000XLS series) |
2000/3000XLS |
| RP1011 |
Mounting Hardware (MM37X/57X operators) |
3000/4000XLS, Mighty Mule |
| H301P |
Hardware Bag for Black Brackets — no longer available |
3000/4000XLS |
| R4KGATE |
Gate Bracket — no longer available |
2000/3000/4000XLS |
| R4KSTOP |
Positive Stop Plate, Powder Coated Black — no longer available |
3000/4000XLS |
Housing, Covers & Seals
| Part Number |
Description |
Fits |
| R4708 |
Black Scraper Seal Kit |
2000/3000/4000XLS |
| R4404 |
Scraper Seal Kit, Black — no longer available |
2000/3000/4000XLS |
| R4414 |
Aluminum Housing Kit — no longer available |
3000/4000XLS |
Complete Operators
| Part Number |
Description |
Fits |
| PRO SW3000XLS |
GTO PRO SW3000XLS Automatic Gate Opener |
— |
| MM571W |
Mighty Mule MM571W Smart Gate Opener |
— |
Looking for a different model? See GTO 2000XLS parts · GTO 4000XLS parts · GTO SL2000B slide gate parts · Mighty Mule MM371/MM372/MM571W/MM572W parts · all GTO & Mighty Mule parts.
