Genie 1022, 1024, 1042, 2022, 2024, 2027 and 2042 Replacement Parts
Genuine Genie replacement parts for ChainLift 600 and 800, ReliaG 600 and 800, BeltLift 600, ChainLift 700 and QuietLift 800 garage door openers — models 1022, 1024, 1042, 2022, 2022-700, 2024, 2027 and 2042. Each section below has its own diagram directly above its own table. Find your part on the diagram, match the reference number in the table beneath it, then click the part number to order.
Which motor do I need? The 600-series models (1022, 1024, 1042) and the 800-series models (2022, 2022-700, 2024, 2027, 2042) share almost every part. The motor is the exception — check your model number on the powerhead label before ordering. Rail note: retail rails are 3-piece, Pro rails are 1-piece. The chain version is shown in the diagram; belt models use the same layout.

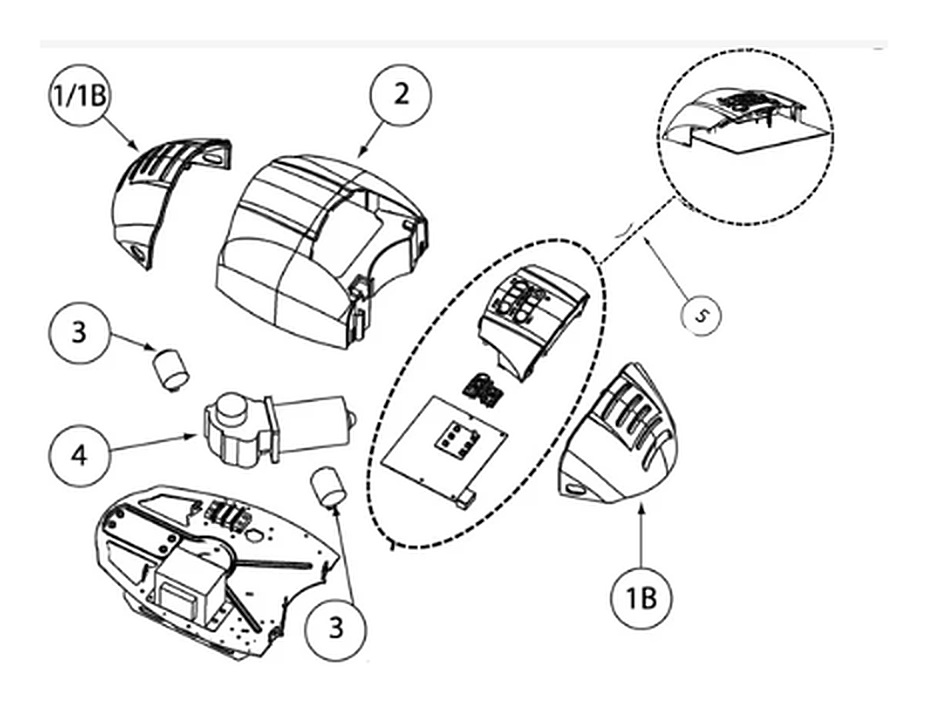

Powerhead Parts
| Ref |
Part Number |
Description |
| 1 |
Obsolete |
Light Lens Cover |
| 1B |
Obsolete |
Light Lens Cover, alternate style |
| 2 |
36454A.S |
Powerhead Cover, Black (1024) |
| 2 |
36454C.S |
Powerhead Cover, Blue (1022, 1042) |
| 3 |
Obsolete |
Light Socket |
| 4 |
36447A.S |

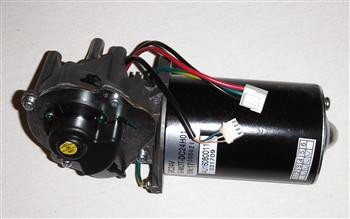

Motor Assembly — 600 series (1022, 1024, 1042) |
| 4 |
37030A.S |
Motor Assembly — 800 series (2022, 2022-700, 2024, 2027, 2042) |
| 5 |
39537R.S |

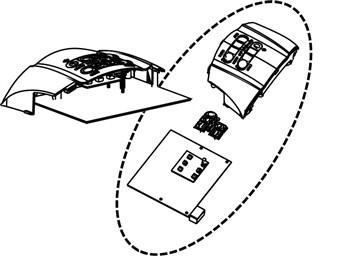

Circuit Board (board only, no plastic cover) |

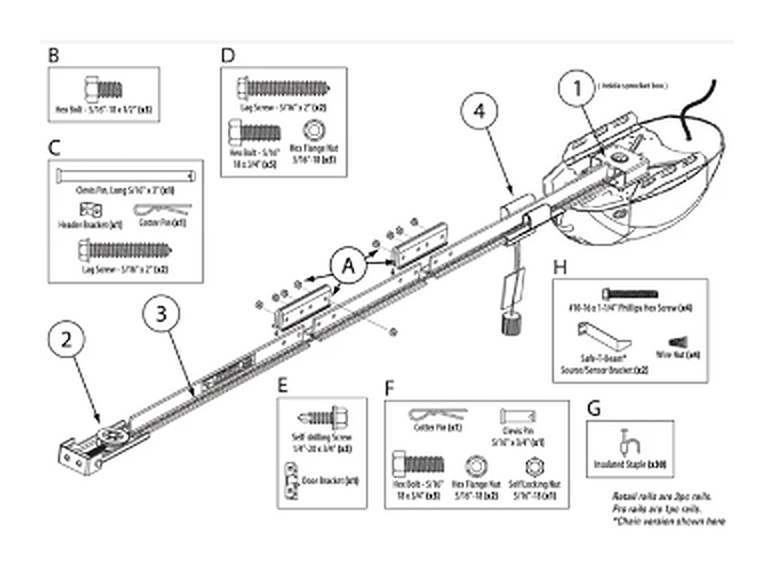

Rail, Carriage and Hardware Parts
| Ref |
Part Number |
Description |
| 1 |
36608A.S |

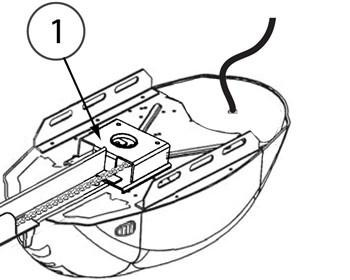

Sprocket Guard |
| 2 |
Obsolete |
Pulley, Belt / Chain — see 36605A.S below for the belt pulley |
| 3 |
Obsolete |
Chain / Belt |
| 4 |
36453A.S |
Carriage, Belt / Chain Drive |
| A |
36436A.S |

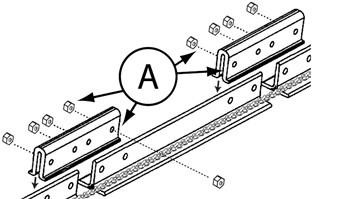

Parts Pack, Rail Hardware (Bag #0) |
| B |
36437A.S |
Parts Pack, Rail Hardware (Bag #1) |
| C |
36438A.S |
Parts Pack, Hardware & Header Bracket (Bag #2) |
| D |
36439A.S |

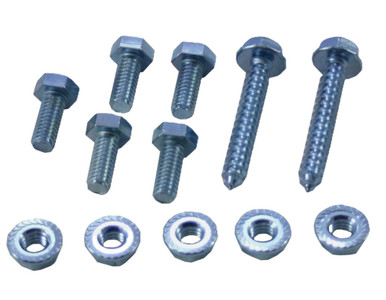

Parts Pack, Powerhead & Mounting Hardware (Bag #3) |
| E |
36440A.S |
Parts Pack, Hardware & Door Bracket (Bag #4) |
| F |
36441A.S |
Parts Pack, Hardware for Arms & Carriage (Bag #5) — call for availability |
| G |
36443A.S |
Parts Pack, Insulated Staples (Bag #7) |
| H |
36444A.S |

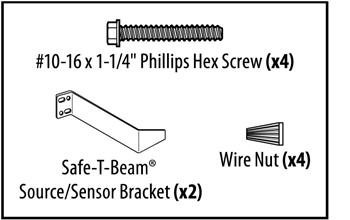

Parts Pack, Safe-T-Beam Source / Sensor Brackets (Bag #8) |
| — |
38416A.S |
Sprocket, 14 Tooth — Belt Drive (not shown) |
| — |
38415A.S |
Sprocket, 8 Tooth — Chain Drive (not shown) |
| — |
36605A.S |
Pulley Assembly, Belt (not shown) |
| — |
36445A.S |
Straight Door Arm (not shown) |
| — |
36446A.S |
Curved Door Arm (not shown) |
| — |
20060A.S |
Master Link, Chain (not shown) |
Accessories, Safety Beams & Controls
| Ref |
Part Number |
Description |
| — |
37220R |
Safe-T-Beam Safety Sensor Pair (source + sensor) |
| — |
39165R |
Wall Console, Series II (GBWCSL2-BX) |
| — |
42368R |
GK2-P Wireless Keyless Entry Keypad |
| — |
LMLED1 |
LED Light Bulb, garage-door rated — universal, replaces Genie 40655R |
