Genie 3164H, 4063 and 4164 Replacement Parts
Parts and exploded-view diagrams for Genie's Connected screw drive openers — 3164H (Connected Pro Series), 4063 (MachForce Connect) and 4164 (Pro Connected). All three run the same 140V DC screw drive power head with the integrated Aladdin Connect Wi-Fi module, and the same enclosed C-channel screw rail.
This is not the same platform as the earlier screw drives. The Connected models use their own power head with a Wi-Fi board and mounting bracket built in. Parts are not interchangeable with the 3062, 3064, 4062 or 4064, and not with the AC screw drives such as the H4000, H6000, PRO95 or 2060L.
The rail is fully stocked. Every part on the screw drive channel below is in stock — carriage, shuttle, bearing block, coupler, door arms, drive screws, release cords and all four hardware bags.
The Connected electronics are not. The main board, Wi-Fi module, its bracket and harness, and the battery backup set are Genie-only items we do not stock. They are listed with their part numbers so you can identify them, and we can order them in — call us.

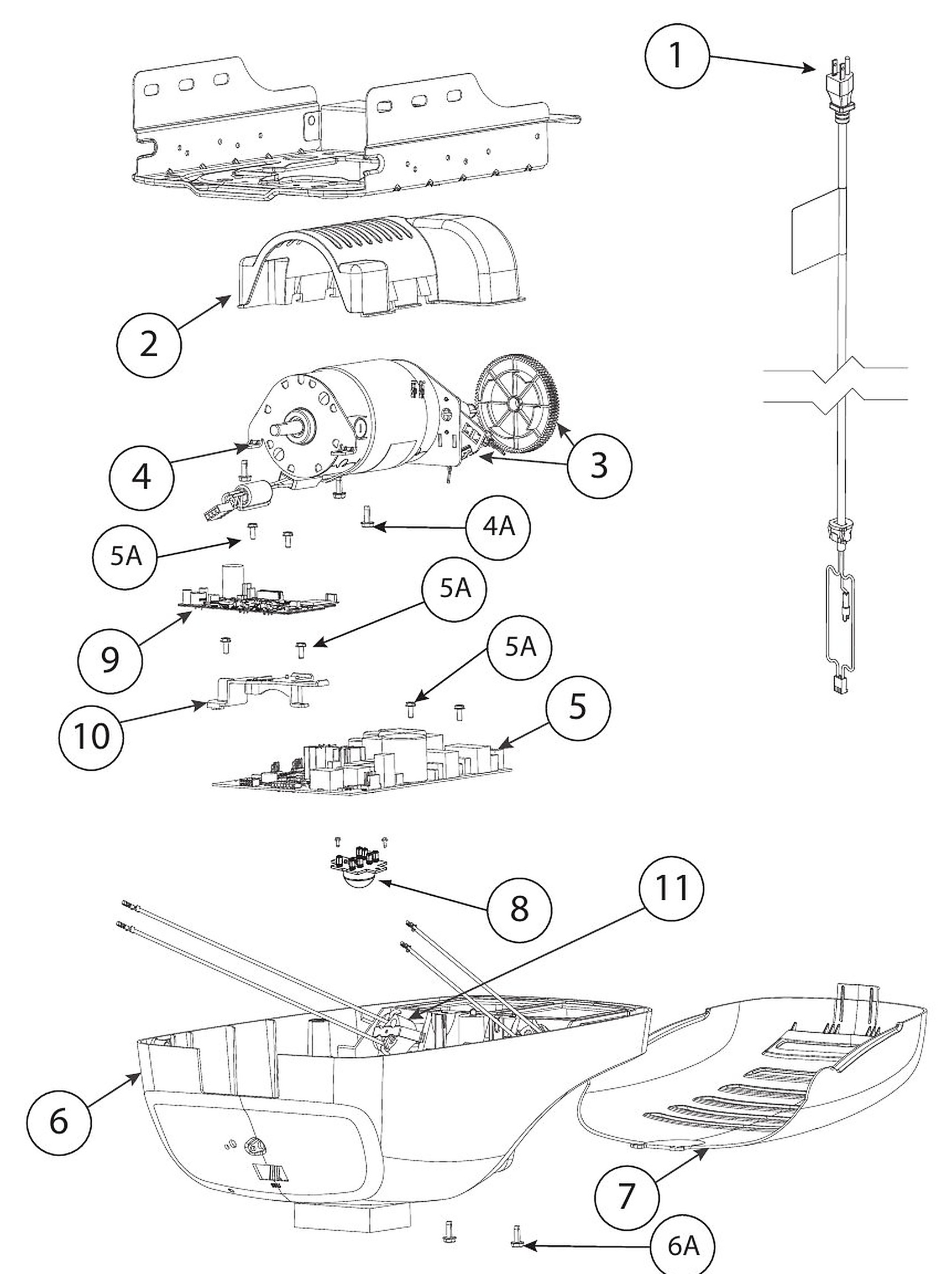

Power Head Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 38240A.S | Power Cord Assembly, 4 ft |
| 1 | 38240B.S | Power Cord Assembly, 6 ft |
| 2 | 36639A.S | Motor Cover Assembly |
| 3 | 39155R.S | Optical Dual Encoder Replacement Assembly |
| 4 | 38631A.S | Motor Assembly with Opto-Luctor |
| 4A | 086575.0808.S | Screw, motor, #10-32 x 1/2 |
| 5 | 39992R.S | Main Circuit Board Assembly — call for availability |
| 5A | 27255C04.S | Screw, 6-18 x 3/8, self-tapping |
| 6 | 41016S.S | Power Head Cover — 4164 — call for availability |
| 6 | — | Genie lists no separate power head cover for the 3164H or 4063 |
| 6A | 086575.0808.S | Screw, motor, #10-32 x 1/2 |
| 7 | 38425A.S | Light Lens Cover |
| 8 | 37560R.S | Motion Detector Module with screws |
| 9 | 39732R.S | Integrated Aladdin Connect Wi-Fi Circuit Board — call for availability |
| 10 | 39993R.S | Wi-Fi Circuit Board Mounting Bracket — call for availability |
| 11 | — | Light Socket Assembly — supplied with the power head cover, see ref 6 |
| — | 39613A.S | Wi-Fi Board Harness (not shown) — call for availability |
| A | 36959A.S | Battery Backup, battery only — call for availability |
| B | 36953R.S | Battery Backup Circuit Board — call for availability |
| — | 36747R.S | Battery Backup Cable Assembly (not shown) — call for availability |

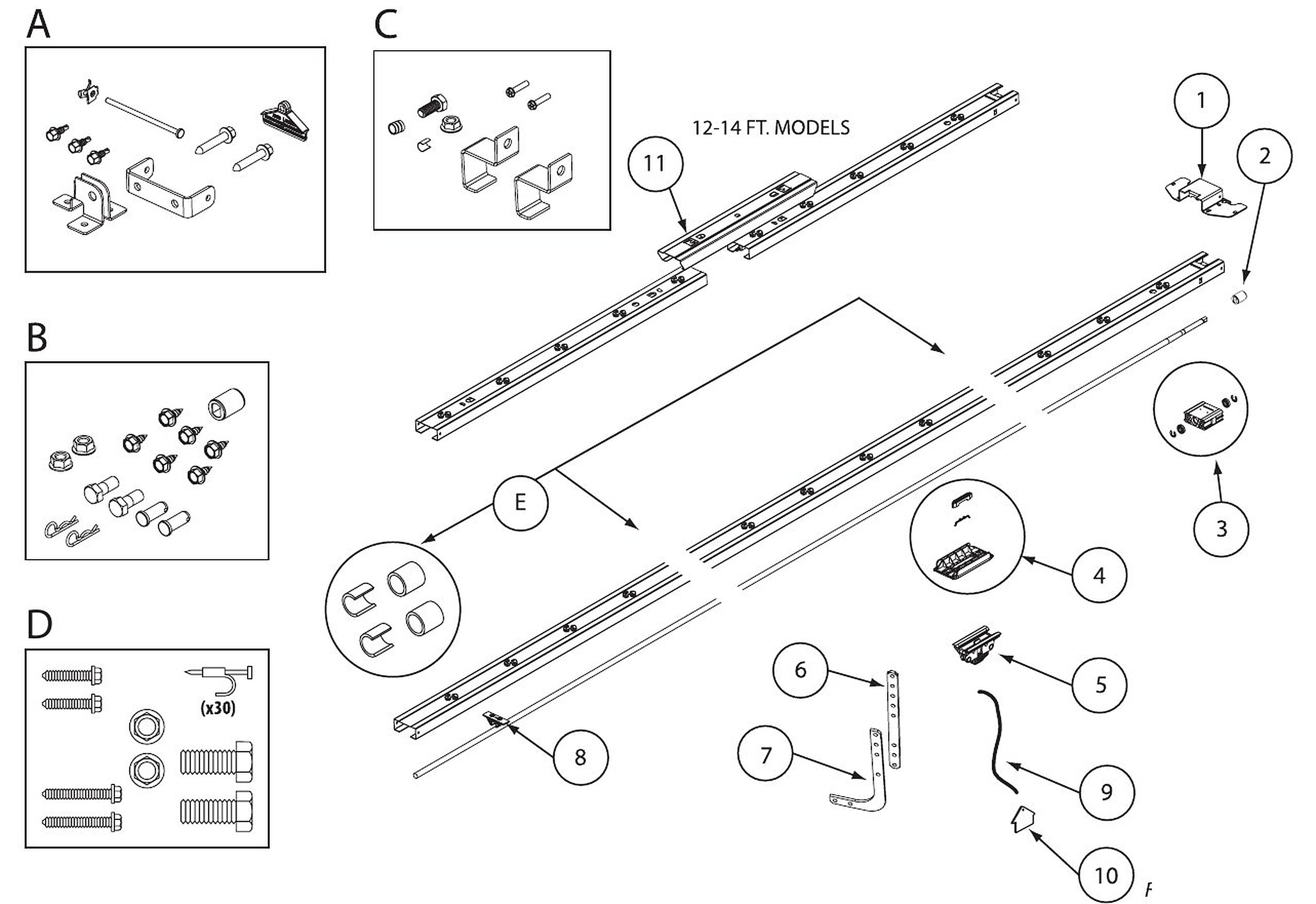

Screw Drive Channel Rail Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 38123A.S | Mounting Flange, Rail |
| 2 | 36645R.S | Coupler |
| 3 | 37844R.S | Bearing Block Assembly |
| 4 | 37845R.S | Carriage Assembly, Screw Drive |
| 5 | 36664R.S | Shuttle Assembly, Screw Drive |
| 6 | 37475A.S | Straight Door Arm |
| 7 | 37476A.S | Curved Door Arm |
| 8 | 38159A.S | Mount Drive Screws — 13 for 7 ft, 15 for 8 ft, 17 for 10 ft, 20 for 12 ft, 24 for 14 ft doors |
| 9 | 21123F.S | Emergency Release Cord — 7, 8 and 10 ft models |
| 9 | 21123G.S | Emergency Release Cord — 12 and 14 ft models |
| 10 | 37107C.S | Carriage Release Handle |
| 11 | 38178R.S | Parts Pack, Rail Connector — 12 to 14 ft models |
| A | 37047R.S | Mounting Parts Pack (Orange Bag) |
| B | 37048R.S | Installation Parts Pack (Blue Bag) |
| C | 37216R.S | Rail Support Kit — 12 to 14 ft only |
| D | 37105R.S | Hanging Hardware Parts Pack (Green Bag) |
| E | 19807A04.S | Retaining Clip — 2 required |
| E | 19806A04.S | Collar — 2 required |
| — | 37714S.S | Wire Clips (50 pieces) |
| — | 37303R | Rail Extender Kit, 8 ft (for a 7 ft retail rail) |
| — | 38244R.S | 3-Piece Service Rail, C-Channel Screw Drive |
Retail rails are 3-piece rails. Pro rails are 1-piece rails.
Accessories, Safety Sensors, Remotes and Wall Controls
| Part Number | Description |
|---|---|
| 37220R | Safe-T-Beam Photo Eye Set (source and sensor) |
| 39165R | Series II Wired Wall Console (GBWCSL2-BX) |
| GK-BX | Intellicode Wireless Keypad (37224R) |
| 42368R | GK2-P Wireless Keypad |
| G3T-BX | 3-Button Intellicode Remote (37218R) |
| G1T-BX | 1-Button Intellicode Remote (38501R) |
| LMLED1 | Universal Garage Door Opener LED Bulb |
Call us with the model number from the power head label if you need help identifying a part before you order.
