Genie 2033 3053 3155 7053 7135 7155 Parts
Genie Connect Series Replacement Parts — 7155, 7135, 7053, 3155, 3053 and 2033
Parts and exploded-view diagrams for the Genie Wi-Fi Connect belt and chain drive platform: 7053, 7135, 7155, 7155L, 7155D, 3155, 3155L, 3155D, 3155LD, 3053 and 2033. Sold as StealthDrive Connect, SilentMax Connect, SilentMax LED Connect, QuietLift Connect and Chain Glide Connect. All of them run the same power head and the same 5-piece tube rail.
Check the colour of your main board before you order one. These models shipped with either a green or a blue main board and the two are not interchangeable. The green-board replacement is 39731R.S, listed below. Blue-board units need 41923R.S, which we do not stock — call and we will source it.
Running a 3120H or 3020H? Those models use the NGX channel rail, not the 5-piece tube rail on this page. Their parts are on the Genie 1028 / 2028 / 3020H / 3022 / 3042 / 3120H / 4022 parts page.
D models and L models differ. D models take a two-piece lens and their own battery hardware. L models take the LED light module instead of a bulb socket. The rows below are labelled so you can match yours.
Chain or belt decides four parts. Rail, sprocket support, drive assembly and extender kit all come in a chain version and a belt version. Everything else on the rail is shared.
Several power head parts on this platform are Genie-only and not stocked here — they are listed with their part numbers so you can identify them, and we can order them in.

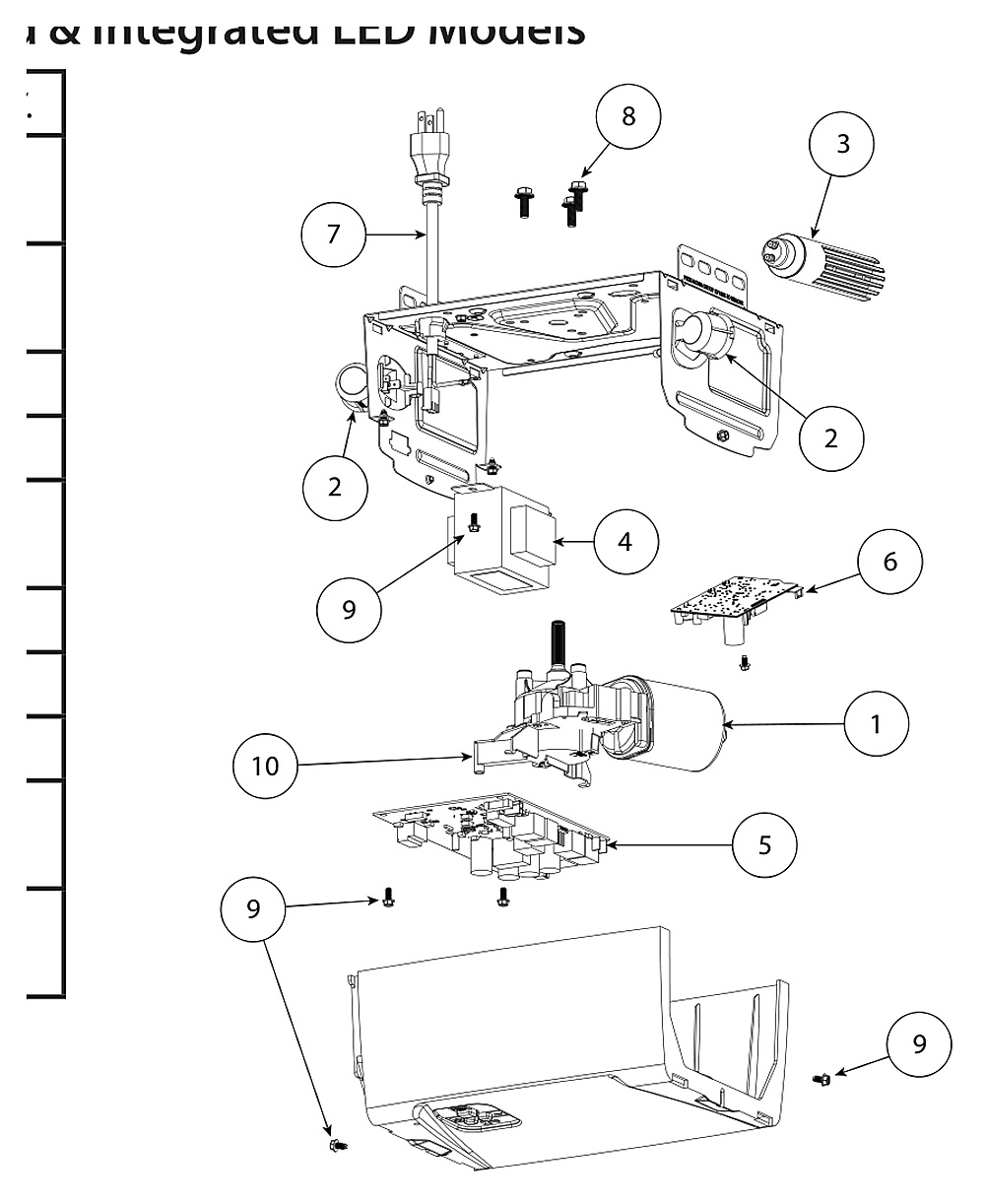

Power Head Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 39356Y.S | Power Head Cover — 7155, 7135, 7053 (not stocked, call for availability) |
| 1 | 41308R.S | Power Head Cover — 3155 (not stocked, call for availability) |
| 1 | 39279R.S | Power Head Cover — 3053 (not stocked, call for availability) |
| 1 | 39356X.S | Power Head Cover — 2033 (not stocked, call for availability) |
| 1 | 41717R.S | Power Head Cover — all D models (not stocked, call for availability) |
| 2 | 38911A.S | Light Lens Cover — non-D models |
| 2 | 41689R.S | Light Lens Cover, two-piece — D models (not stocked, call for availability) |
| 3 | 41182T.S | Motor Assembly, includes encoder and wire (not stocked, call for availability) |
| 4 | 39344R.S | Light Socket Assembly — non-L models |
| 4 | 39719A.S | Light Socket Assembly — L models (not stocked, call for availability) |
| 4 | 39718A.S | LED Light Module — L models (not stocked, call for availability) |
| 5 | 39342R.S | Transformer, 120V |
| 6 | 39731R.S | Main Circuit Board Assembly — green-board units only |
| 6 | 41923R.S | Main Circuit Board Assembly — blue-board units (not stocked, call for availability) |
| 7 | 38240A.S | Power Cord Assembly, 4 ft — 7053, 7135, 7155 |
| 7 | 39346R.S | Power Cord Assembly — 2033, 3053, 3155 |
| 8 | 38437A.S | Screws, motor — M6-1 x 12, 3 pack |
| 9 | 8706G04.S | Screws, cover and transformer — #8 x 5/16, 3 pack |
| 10 | 39732R.S | Wi-Fi Circuit Board, integrated DCM (not stocked, call for availability) |
| 11 | 39735R.S | Optical Encoder replacement — NIDEC motor (not stocked, call for availability) |
| 11 | 41263R.S | Optical Encoder replacement — RIDE motor (not stocked, call for availability) |
| A | 111658.0002.S | Battery Backup, 12V replacement battery only |
| B | 39577R.S | Battery Backup case and hardware — non-D models (not stocked) |
| B | 41095R.S | Battery Backup case and hardware — D models (not stocked) |
| — | 38936A.S | Battery Backup harness (not stocked, call for availability) |
5-Piece Tube Rail Parts
| Ref | Part Number | Description |
|---|---|---|
| A | 39410R.S | 5-Piece Rail Assembly complete, chain, 7 ft |
| A | 39411R.S | 5-Piece Rail Assembly complete, belt, 7 ft (Genie's manual prints this as 39400R.S) |
| B | 39277R.S | Sprocket Support Assembly, chain |
| B | 39278R.S | Sprocket Support Assembly, belt |
| C | 38893R.S | Carriage Assembly, belt and chain |
| D | 39276R.S | Idler Pulley Assembly |
| E | 39352R.S | Chain Assembly, 7 ft doors |
| E | 39354R.S | Belt Assembly, 7 ft doors |
| E | 39352S.S | Chain Assembly, 8 ft doors |
| E | 39354S.S | Belt Assembly, 8 ft doors |
| F | 37476A.S | Curved Door Arm |
| G | 37475A.S | Straight Door Arm |
| H | 21243B.S | Hanging Strap, 3/4 x 25 — 2 required (also listed by Genie as 39761A.S) |
| — | 39027R | Rail Extender Kit, chain — converts a 7 ft rail to 8 ft |
| — | 39026R | Rail Extender Kit, belt — converts a 7 ft rail to 8 ft |
| — | 37714S.S | Wire Clips, 50 pieces |
Hardware Parts Packs
Genie supplies the installation hardware in colour-coded bags. Order the bag rather than chasing individual fasteners.
| Ref | Part Number | Description |
|---|---|---|
| A | 39010R.S | Mounting Parts Pack, orange bag — turnbuckle, clevis and cotter pins, rail strap, header bracket, lag screws |
| B | 39011R.S | Installation Parts Pack, blue bag — door bracket, release handle and cord, clevis and cotter pins, bolts |
| C | 39012R.S | Belt Retainer Parts Pack, clear bag — belt models only |
| D | 37105S.S | Hanging Hardware Pack, green bag — lag screws, bolts, lock nuts, insulated staples |
Accessories, Safety Sensors and Controls
| Part Number | Description |
|---|---|
| 37220R | Safe-T-Beam Set — source, sensor, brackets and screws |
| 39165R | Wall Console, Series II GBWCSL2-BX — wired |
| G3T-BX | Intellicode 3-Button Remote Control, dual frequency |
| G1T-BX | Intellicode 1-Button Remote Control |
| 42368R | GK2-P Wireless Keypad |
| LMLED1 | LED Bulb, vibration-rated for garage door openers |
Call us with the model number from the power head label if you need help identifying a part before you order.
