Chamberlain Chain Drive model HD200D parts
Chamberlain HD200D Replacement Parts

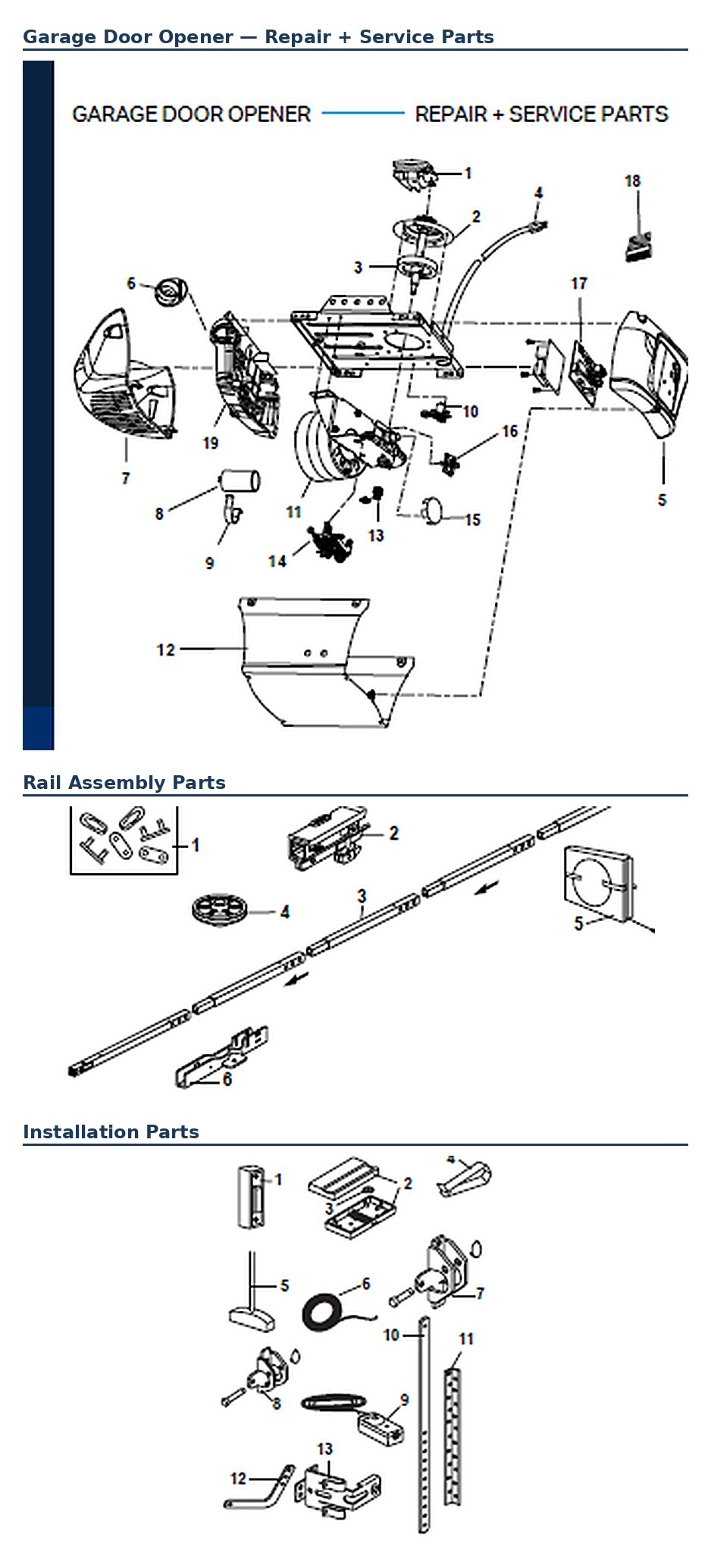

Genuine replacement parts and repair components for the Chamberlain HD200D and HD200DM chain drive garage door opener. Use the diagram above and the part-number tables below to identify the exact component you need. Click any part number to view or order that part.
Garage Door Opener Repair Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041A5615 | Chain Spreader Kit |
| 2 | 041C4220A | Chain Drive Gear and Sprocket Kit |
| 3 | 041A2817 | Drive Gear and Worm Kit |
| 4 | 041B4245-1 | AC Power Cord, 6' |
| 5 | 041D0181 | End Panel |
| 6 | 041C0279 | Light Socket Kit |
| 7 | K108D0079M | Light Lens |
| 8 | K030B0532-1 | Capacitor, 56µF, 220V |
| 9 | K012A0373 | Capacitor Bracket |
| 10 | 041A3150 | Terminal Block Kit |
| 11 | 041D3058 | Motor and Bracket Kit |
| 12 | 041A5525-5 | Cover |
| 13 | 041A2818 | Limit Switch Drive Gear Kit |
| 14 | 041D3452 | Limit Switch Kit |
| 15 | 041A2822-1 | Interrupter Cup |
| 16 | 041C4398A | RPM Sensor Kit |
| 17 | 041AC050-1M | Receiver Logic Board, AC Chain |
| 18 | 041C5497 | Wire Harness Kit, High Voltage |
| 18 | 041C5498 | Wire Harness Kit, Low Voltage |
| 19 | 041A5484-1 | End Panel |
| — | 041A2825 | Hardware Kit |
Rail Assembly Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 004A1008 | Chain, #48, with Master Link |
| 2 | 041C5141-1 | Square Rail Trolley Kit |
| 3 | 041A5665 | Rail Kit, 7' |
| 4 | K144C0056 | Square Rail Idler Pulley |
| 5 | 041A5807 | Chain and Cable Kit, 7' |
| 5 | 041A5807-4 | Chain and Cable Kit, 8' |
| 5 | 041A5807-2 | Chain and Cable Kit, 10' |
| 6 | 041D0598-1 | U Bracket Adapter |
| — | 041A7276 | Trolley Wear Pad Kit |
| — | K083A0011-1 | Lithium Rail Grease |
Installation Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041A4166 | Lighted Push Button |
| 2 | G950ESTD | 1-Button Remote Control |
| 3 | K010A0020 | 3V CR2032 Lithium Battery |
| 4 | K029B0137 | Remote Control Visor Clip |
| 5 | 041A2828 | Emergency Manual Release Rope |
| 6 | 041B4494-1 | White/Red Bell Wire |
| 7 | 041A5047 | Door Bracket |
| 8 | 041A5047-2 | Header Bracket |
| 9 | 4178B0034B | Straight Door Arm |
| 10 | K012B0776 | Hanging Bracket Kit |
| 11 | 041B0035B | Curved Door Arm |
| 12 | 041-0136 | Safety Sensor Kit |
| 13 | 041-0155-000 | Safety Sensor Bracket Kit |
| — | 041A7920-1 | Hardware Kit, HD200D |
| — | 041A7920-2 | Hardware Kit, HD200DM |
