Chamberlain C2202 Chain Drive Parts
Chamberlain C2202 Replacement Parts

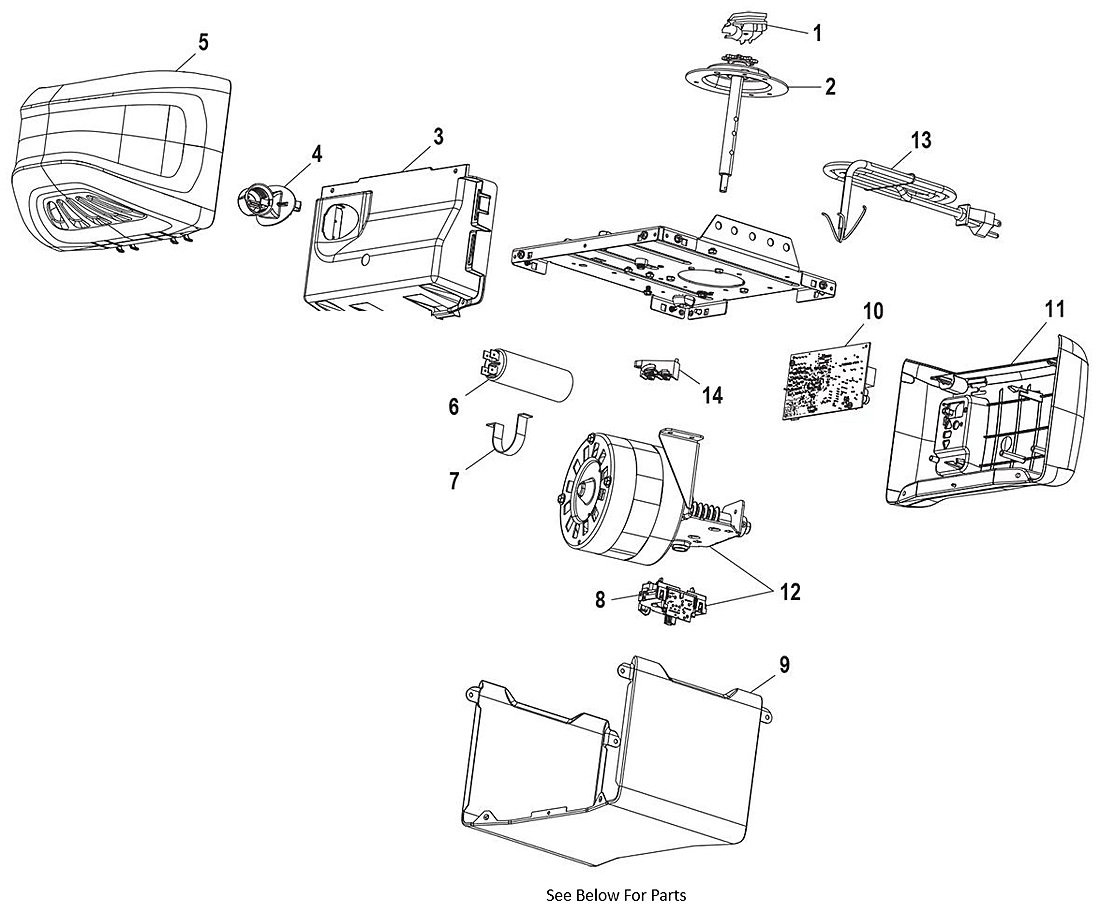

Genuine replacement parts for the Chamberlain C2202 chain drive garage door opener with Wi-Fi. Find your part on the diagram, then click the part number in the table below.
Garage Door Opener Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 41A5615 | Chain spreader kit |
| 2 | 41C4220 | Gear and sprocket kit. Aftermarket version also available: 41C4220A aftermarket |
| 3 | 41D0207 | End panel with light socket |
| 4 | 41C0279 | Light socket kit |
| 5 | 041-0144 | Light lens |
| 6 | K030B0532-1 | Motor capacitor |
| 7 | K012A0373 | Capacitor bracket |
| 8 | 41D7742-7 | AC travel module kit |
| 9 | 041-0229-000 | Cover |
| 10 | 50ACTWF | Logic board, Wi-Fi |
| 11 | 041-0025-000 | End panel |
| 12 | 41D7440 | 1/2 HP motor with travel module |
| 13 | 41B4245-1 | Power cord kit, 6 ft |
| 14 | 41A3150 | Terminal block kit |
| — | 41A7946 | Wire harness (not shown) |
Rail Assembly Parts
Chain and rail are sold by door height. Match the length to your door.
| Part Number | Description |
|---|---|
| 41A5807 | Chain and cable — 7 ft door |
| 41A5807-4 | Chain and cable — 8 ft door |
| 41A5807-2 | Chain and cable — 10 ft door |
| 41A5665 | Square rail assembly |
| 4A1008 | Master link #48 |
| K144C0056 | Square rail idler pulley |
| 41C5141-1 | Square rail trolley kit |
| 41A7276 | Trolley wear pad kit |
| 041D0598-1 | "U" bracket |
| K083A0011-1 | Lithium rail grease |
Installation Parts
| Part Number | Description |
|---|---|
| 041B0035B | Curved door arm section |
| 4178B0034B | Straight door arm section |
| 041A8094 | Door arm kit — curved and straight together |
| 41A5047 | Door bracket kit |
| 41A5047-2 | Header bracket kit |
| 41A2828 | Emergency release rope and handle |
| 41B4494-1 | Bell wire kit |
| 041-0136 | Safety sensor kit |
| 041-0155-000 | Safety sensor brackets |
| 041-0365-000 | Sensor eyes and brackets together |
| 12B776 | Hanging bracket |
| 41A7920-1 | Hardware kit, chain drive |
| 29B137 | Remote control visor clip |
| 10A20 | 3V CR2032 lithium battery |
| 893MAX | 3-button remote control |
Chamberlain and LiftMaster share parts. Both brands are made by the same manufacturer and most C2202 components carry LiftMaster part numbers. A LiftMaster-branded part with the correct number is the right part.
