Genuine DoorKing replacement parts for the 9050 slide gate operator (model 9050-080, 1/2 HP 115V, drawing 9050-880 Rev K). The reference numbers in the tables below match the callout numbers on each diagram, so find the number on the drawing first, then click the part number in the matching row to go straight to that product page.
The 9050 shares its housing and door with the DoorKing 9100 and the 9070 — part numbers 2600-985 and 2600-933 cover all three. The 4702-010 control board and the 2600-989 wire set are shared with the 9070. If a part is not listed here, check the 9100 page.
Circuit Board — the most replaced part on the 9050
4702-010 — PCB Slide Gate Operator
The 4702-010 runs the 9050 and the 9070. It is not the same board as the 9100 and 9150 (those use the 4602-010), so check the model on your cabinet label before ordering. Replace it when the operator is dead with power confirmed at the terminals, when it powers up but ignores every input (radio, keypad, loop, push button), when only one direction works, or after a lightning or surge event.
Check your date of manufacture before you order. DoorKing revised this board in January 2016. The base part number is 4702-010 and the suffix identifies the version:
- -018 — operators built January 2016 or later (current board, UL325 monitored device input)
- -012 — operators built prior to January 2016
You do not order those numbers separately. Open the 4702-010 product page and choose your Date of Manufacture from the dropdown — one choice covers units built before January 2016, the other covers units built after, with the UL325 monitored device input. If you are unsure, read the number printed on the board currently fitted; it will end in -012 or -018.
Replace the 4001-093 MOV assembly (ref 6) at the same time. A surge big enough to kill the board almost always takes the varistor with it, and a spent varistor leaves the new board unprotected. Check the 2600-826 12-pin terminal for heat damage while the board is out.

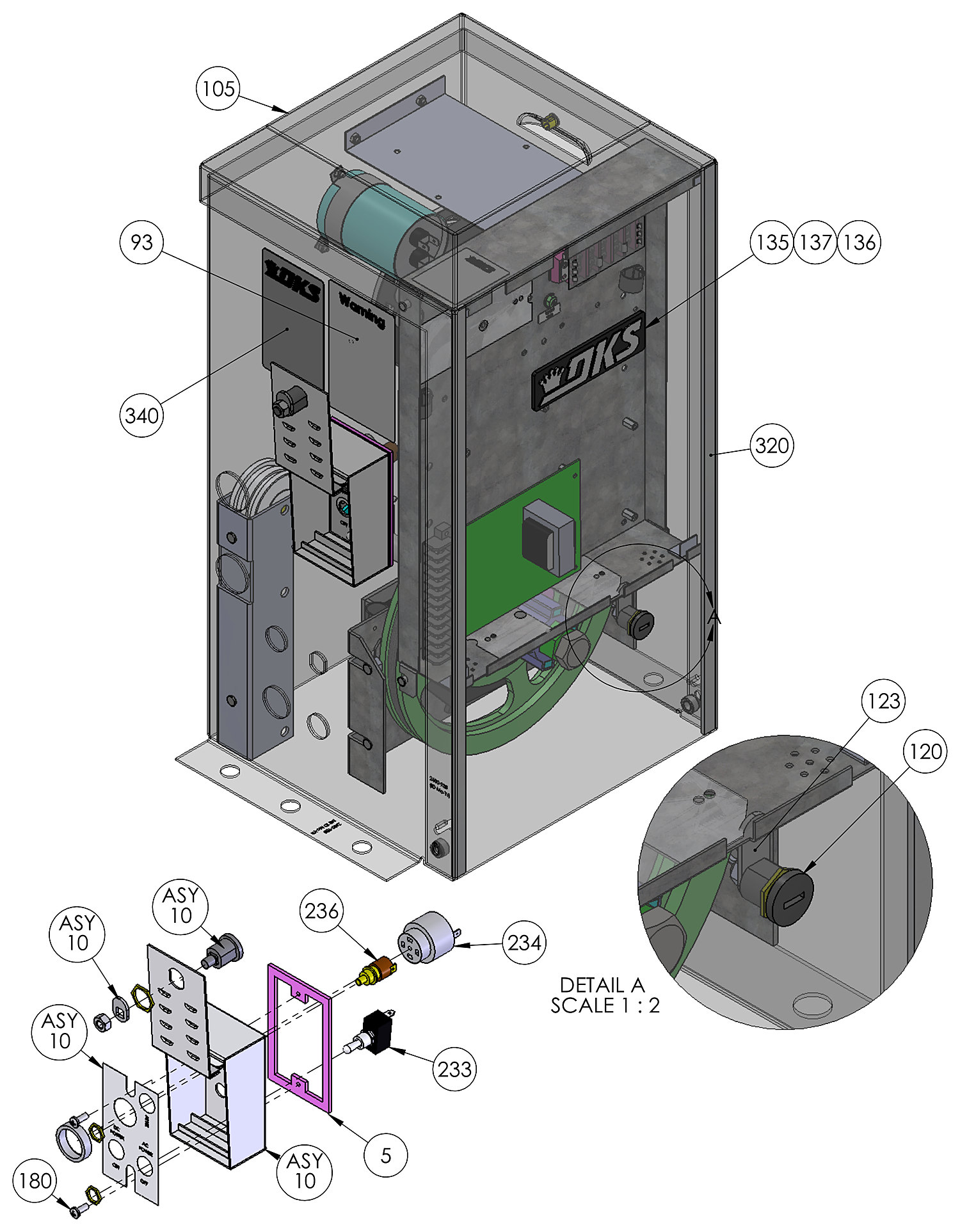

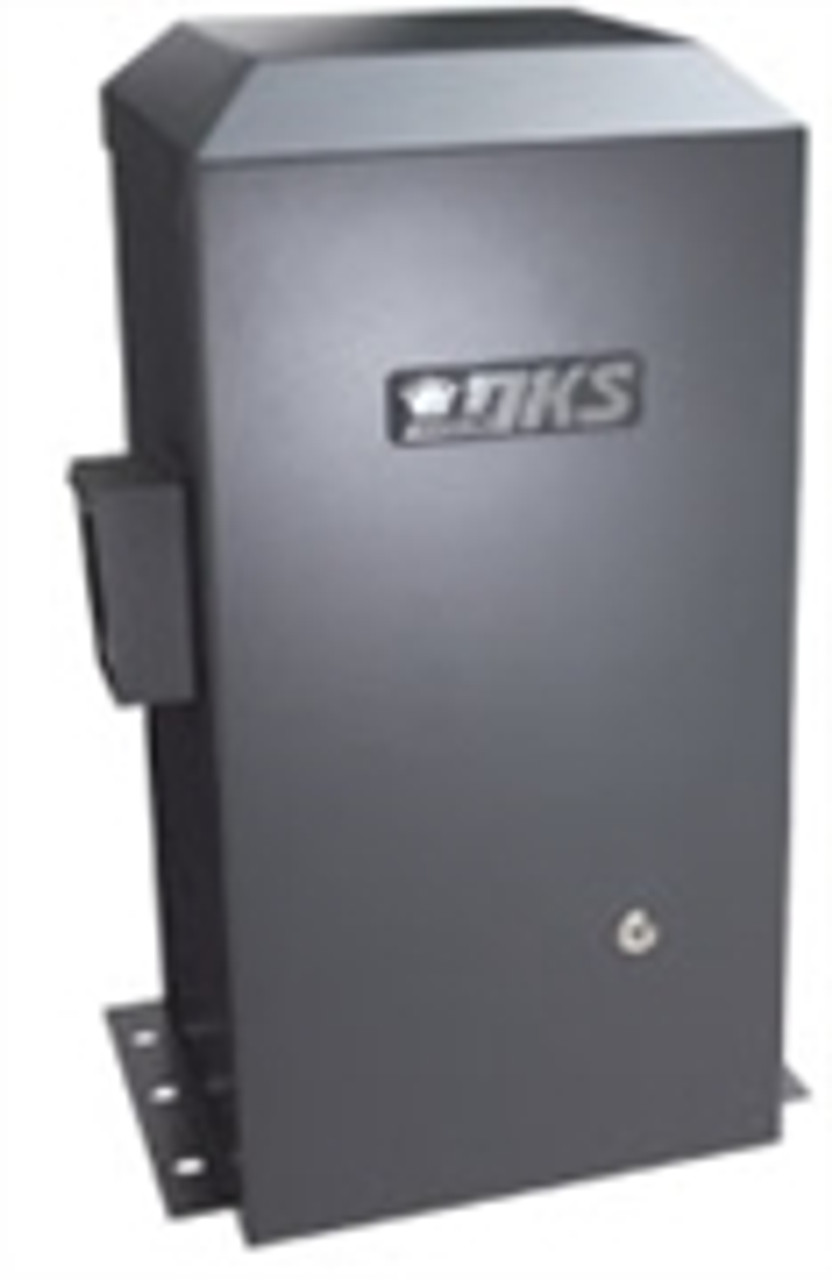

Exterior — Door, Housing Panel, Switch Box & Labels
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 5 | 2600-731 | Gasket, switch cover | 1 |
| 10 | 2600-533 | Switch cover, lockable | 1 |
| 93 | 2599-034 | Label, gate operator | 1 |
| 105 | 2600-933 | Door, model 9050 / 9070 / 9100 | 1 |
| 120 | 4001-035 | Lock cylinder with 2 keys | 1 |
| 123 | 1702-503 | Cam, 1-1/4 in. | 1 |
| 135 | 2600-732 | Nameplate, plastic DKS | 1 |
| 136 | 2802-040 | Push-on washer | 2 |
| 137 | 1897-050 | Gasket support, thick 1/16 in. | 2 |
| 233 | 1601-041 | Toggle switch, SPST 2 position | 1 |
| 234 | 1506-071 | Tone generator, loud | 1 |
| 236 | 1812-005 | Push button switch, N.O. | 1 |
| 320 | 4001-018 | Weather stripping (ft) | 7 |
| 340 | 2599-199 | Label, universal | 1 |

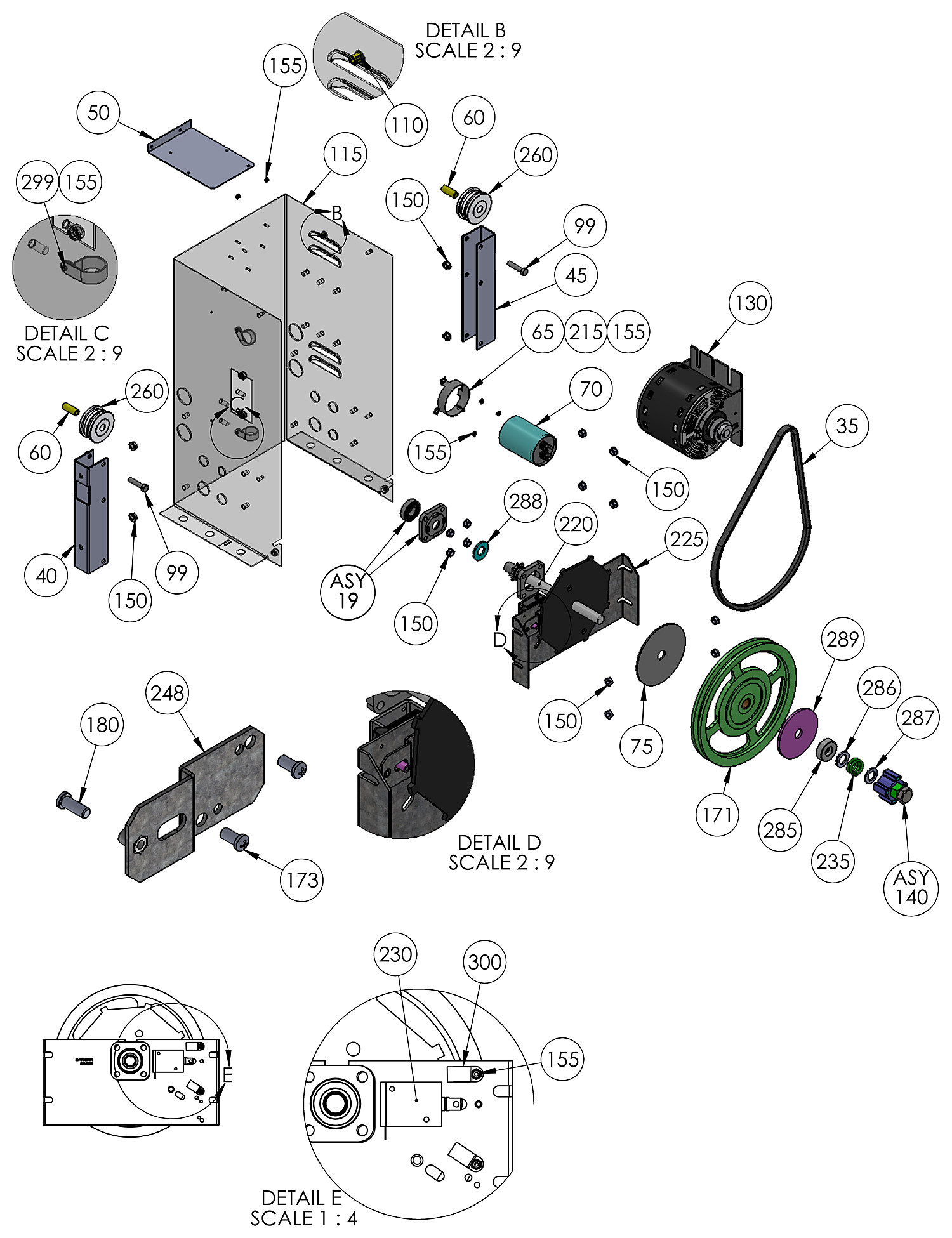

Housing, Motor, Belt Drive & Main Shaft
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 19 | 2600-466 | Rear bearing assembly kit (was 2600-440 + 2600-453) | 1 |
| 35 | 2600-429 | Belt, cogged AX-35 | 1 |
| 40 | 2600-921 | Idler bracket, left | 1 |
| 45 | 2600-922 | Idler bracket, right | 1 |
| 50 | 2600-938 | Radio tray | 1 |
| 60 | 2600-871 | Bushing, 1/2 in. OD x 5/16 in. ID x 1-5/16 in. L | 2 |
| 65 | 2600-875 | Capacitor mounting clamp | 1 |
| 70 | 2600-102 | Capacitor, 50 uF 370 VAC | 1 |
| 75 | 2600-342 | Clutch pad, 4 in. OD | 1 |
| 99 | 2615-155 | Hex head bolt, 5/16-18 x 1-3/4 in. | 2 |
| 110 | 2600-880 | Hole plug, plastic for 3/8 in. hole | 1 |
| 115 | 2600-985 | Housing, model 9050 / 9070 / 9100 | 1 |
| 130 | 2600-129 | Motor assembly, 1/2 HP | 1 |
| 140 | 2600-917 | Jam nut, magnet subassembly | 1 |
| 150 | 2620-411 | Hex flange lock nut, 5/16-18 | 16 |
| 155 | 2902-003 | Nylon lock nut, 6-32 | 12 |
| 171 | 2600-957 | Pulley, 10 in. aluminium assembly | 1 |
| 173 | 2616-051 | Phillips head screw, 10-32 x 3/8 in. | 2 |
| 180 | 2616-052 | Phillips head screw, 10-32 x 1/2 in. | 1 |
| 215 | 2616-001 | Phillips head screw, 6-32 x 3/8 in. | 4 |
| 220 | 2600-903 | Main shaft assembly | 1 |
| 225 | 2600-930 | Bracket, shaft support | 1 |
| 230 | 2600-860 | Solenoid lock assembly | 1 |
| 235 | 2600-446 | Spring, compression | 1 |
| 248 | 2600-487 | Bracket, solenoid support | 1 |
| 260 | 2600-886 | Idler wheel, UHMW | 2 |
| 285 | 2600-053 | Thrust bearing, 3/4 in. ID | 1 |
| 286 | 2600-345 | Hardened washer, 1-1/4 x 3/4 in. ID | 1 |
| 287 | 2600-344 | Washer, 1-1/8 in. OD x 3/4 in. ID | 1 |
| 288 | 2600-990 | Neoprene washer, 1.5 x .725 x .125 in. | 1 |
| 289 | 2620-035 | Washer, 4 in. OD x 3/4 in. ID | 1 |
| 299 | 2600-639 | Wire clamp, 1 in. | 4 |
| 300 | 2600-619 | Wire clip, 5/8 in. | 4 |

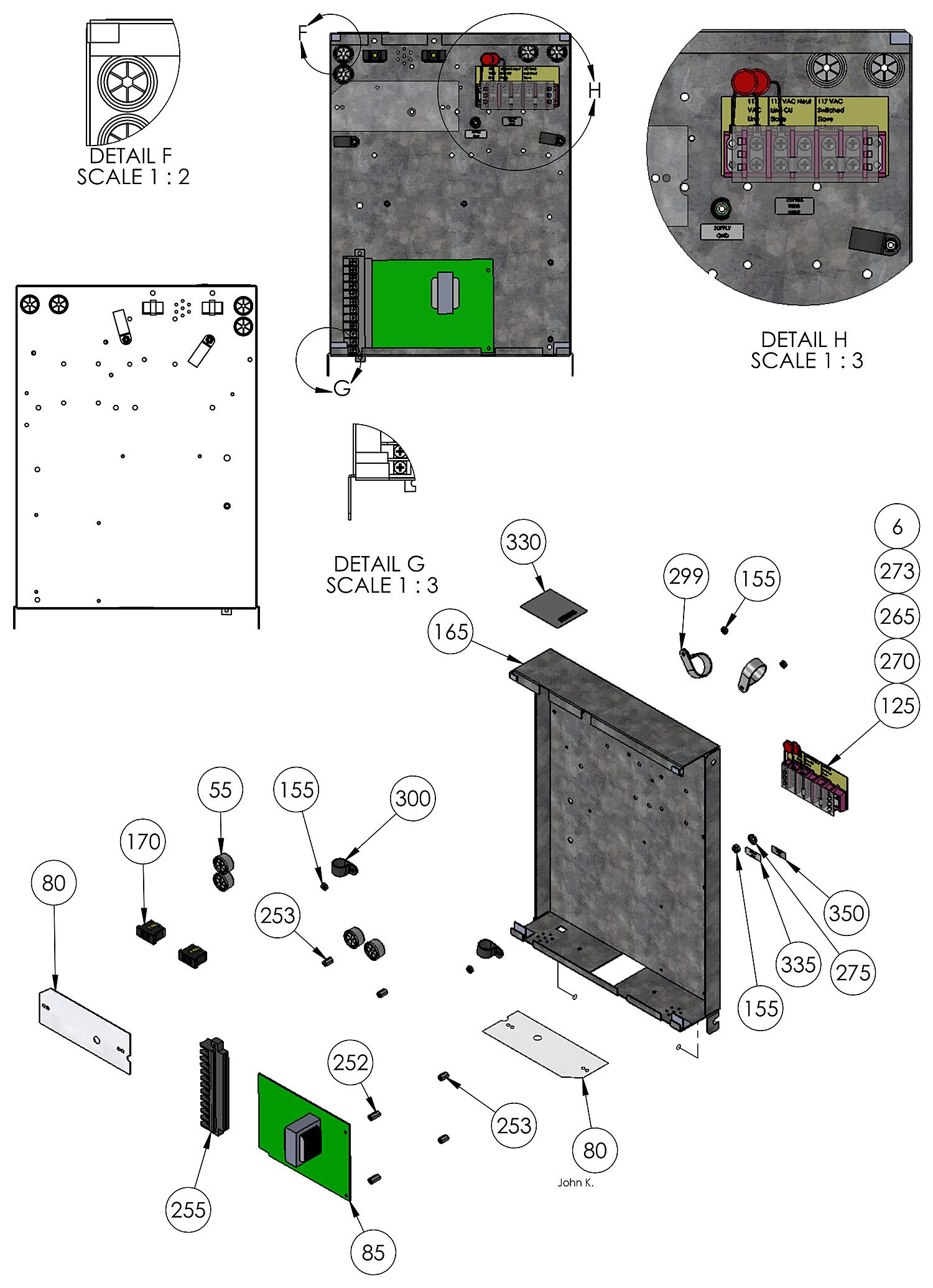

Control Panel — Board, Terminals & Standoffs
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 6 | 4001-093 | MOV assembly, 130 VAC | 1 |
| 55 | 2600-810 | Bushing, 7/8 in. poke thru flaps | 4 |
| 80 | 2600-945 | Cover, plastic insulator | 2 |
| 85 | 4702-010 | PCB, slide gate operator (control board) — see the control board box above and choose your date of manufacture | 1 |
| 125 | 2600-431 | Marker strip, silkscreened | 1 |
| 165 | 2600-911 | Mount plate, PC board | 1 |
| 170 | 1200-028 | Snap-in outlet (Leviton 1306) | 2 |
| 252 | 1894-110 | Standoff, nylon 1/2 in. height 6-32 | 2 |
| 253 | 2900-905 | Standoff, aluminium 7/16 in. 6-32 | 4 |
| 255 | 2600-826 | Terminal, 12 pin | 1 |
| 265 | 2600-840 | Jumper, ring tongue #8 screw | 2 |
| 270 | 3130-008 | Terminal block, 5 pin | 1 |
| 273 | 3129-005 | Terminal block cover, 5 position | 1 |
| 275 | 2600-439 | Cup washer, brass | 1 |
| 330 | 2599-008 | Label, patent | 1 |
| 335 | 2599-006 | Decal, supply ground | 1 |
| 350 | 2599-014 | Decal, copper wire only | 1 |
Not Shown on the Diagrams
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 9050-066 | Installation manual | 1 |
| 15 | 2600-852 | Accessory box | 1 |
| 100 | 2615-153 | Hex head bolt, 5/16-18 x 3/4 in. | 4 |
| 134 | 7082-137 | Wire, 5 in. green stranded 14 AWG | 1 |
| 143 | 2620-409 | Hex flange lock nut, 1/4-20 | 4 |
| 145 | 2902-006 | Nylon lock nut, 10-32 | 2 |
| 147 | 2902-004 | Nylon lock nut, 8-32 | 1 |
| 185 | 2616-019 | Phillips head screw, 8-32 x 3/4 in. | 1 |
| 190 | 2616-002 | Phillips head screw, 6-32 x 1/2 in. | 2 |
| 195 | 2616-003 | Phillips head screw, 6-32 x 3/4 in. SS | 1 |
| 200 | 2616-000 | Phillips head screw, 6-32 x 1/4 in. | 10 |
| 205 | 2616-007 | Phillips head screw, 6-32 x 5/8 in. | 2 |
| 210 | 2600-887 | Nylon Phillips screw, 6-32 x 1/4 in. | 4 |
| 280 | 2620-053 | Lock washer, 5/16 in. | 2 |
| 298 | 2600-989 | Wire set, 9050 / 9070 | 1 |
| 315 | 1804-031 | Tie wrap, 4 in. | 10 |
| 317 | 2600-749 | Wire connector, STA-KON RC6 | 2 |
| 355 | 2560-047 | Information packet | 1 |
| 360 | 2599-100 | Warning sign | 2 |
Superseded Part Numbers
| Old Part Number | Current Part Number | Notes |
|---|---|---|
| 2600-440 + 2600-453 | 2600-466 | Ref 19 — Rev K replaced the separate rear bearing and holder with the 2600-466 bearing assembly kit |
| 2600-126 | 2600-129 | Ref 130 — motor superseded in Rev J |
| 2600-234 | 2600-102 | Ref 70 — capacitor superseded in Rev J |
| 2600-239 | 2600-875 | Ref 65 — capacitor clamp superseded in Rev J |
Common 9050 Problems and the Parts That Fix Them
| Symptom | Usual Cause | Parts |
|---|---|---|
| Motor hums but the gate will not move | Failed run capacitor | 2600-102 capacitor, 2600-875 clamp |
| Gate slips, will not hold position, or stalls | Worn clutch pad or weak clutch spring | 2600-342 clutch pad, 2600-446 compression spring |
| Squealing on start, or motor runs and the gate barely moves | Glazed or stretched cogged belt | 2600-429 belt, 2600-957 pulley |
| Rumble or play in the main shaft | Worn rear bearing or thrust bearing | 2600-466 bearing kit, 2600-053 thrust bearing, 2600-903 shaft |
| Chain jumping or chattering | Worn idler wheels | 2600-886 idler wheels (2), 2600-921 / 2600-922 brackets |
| Gate will not lock, or the solenoid buzzes | Failed solenoid lock | 2600-860 solenoid assembly, 2600-487 support bracket |
| Operator powers up but ignores every input — radio, keypad, loop and push button all dead | Failed control board logic | 4702-010 board (choose your date of manufacture), 2600-826 12-pin terminal |
| Dead operator after a storm, no response to any input | Surge-damaged control board | 4702-010 board, 4001-093 MOV assembly, 2600-826 terminal |
| Water getting into the cabinet, rust on the panel | Perished weather stripping or missing hole plug | 4001-018 weather stripping, 2600-880 hole plug |
