DoorKing 9100 Slide Gate Operator Parts
DoorKing 9100 Slide Gate Operator Replacement Parts
Genuine DoorKing replacement parts for the 9100 slide gate operator (model 9100-080, 1/2 HP 115V, drawing 9100-880 Rev I). The reference numbers in the tables below match the callout numbers on each diagram, so find the number on the drawing first, then click the part number in the matching row to go straight to that product page.
The 9100 is the same chassis as the DoorKing 9050 and the 9070 — housing 2600-985, door 2600-933, motor 2600-129, clutch pad 2600-342, belt 2600-429, pulley 2600-957, main shaft 2600-903 and bearing kit 2600-466 are all shared. What is specific to the 9100: the 4602-010 control board (the 9050 uses 4702-010), the 9100-006 plastic cover, the 2901-002 18-pin terminal (the 9050 uses a 12-pin 2600-826), the 2600-988 wire set, and two 2600-848 power resistors. If a part is not listed here, check the 9050 page.
Circuit Board — the most replaced part on the 9100
4602-010 — PCB Slide Gate Operator
The 4602-010 runs the 9100 and the 9150. It is not the board used by the 9050 or 9070 — those take the 4702-010, and the two are not interchangeable even though the operators share a housing. Check the model on your cabinet label before ordering. Replace the board when the operator is dead with power confirmed at the terminals, when it powers up but ignores every input (radio, keypad, loop, push button), when only one direction works, or after a lightning or surge event.
Check your date of manufacture before you order. DoorKing revised this board in January 2016. The base part number is 4602-010 and the suffix identifies the version:
- -018 — operators built January 2016 or later (current board, UL325 monitored device input)
- -012 — operators built prior to January 2016
You do not order those numbers separately. Open the 4602-010 product page and choose your Date of Manufacture from the dropdown — the two choices read "Unit manufactured before Jan 2016" and "Unit manufactured after Jan 2016 with UL325 monitored device input". If you are unsure, read the number printed on the board currently fitted; it will end in -012 or -018.
Check the two 2600-848 power resistors and the 2901-002 18-pin terminal while the board is out. Both sit in the same circuit, both take the same surge, and a scorched terminal will cook a new board within weeks.

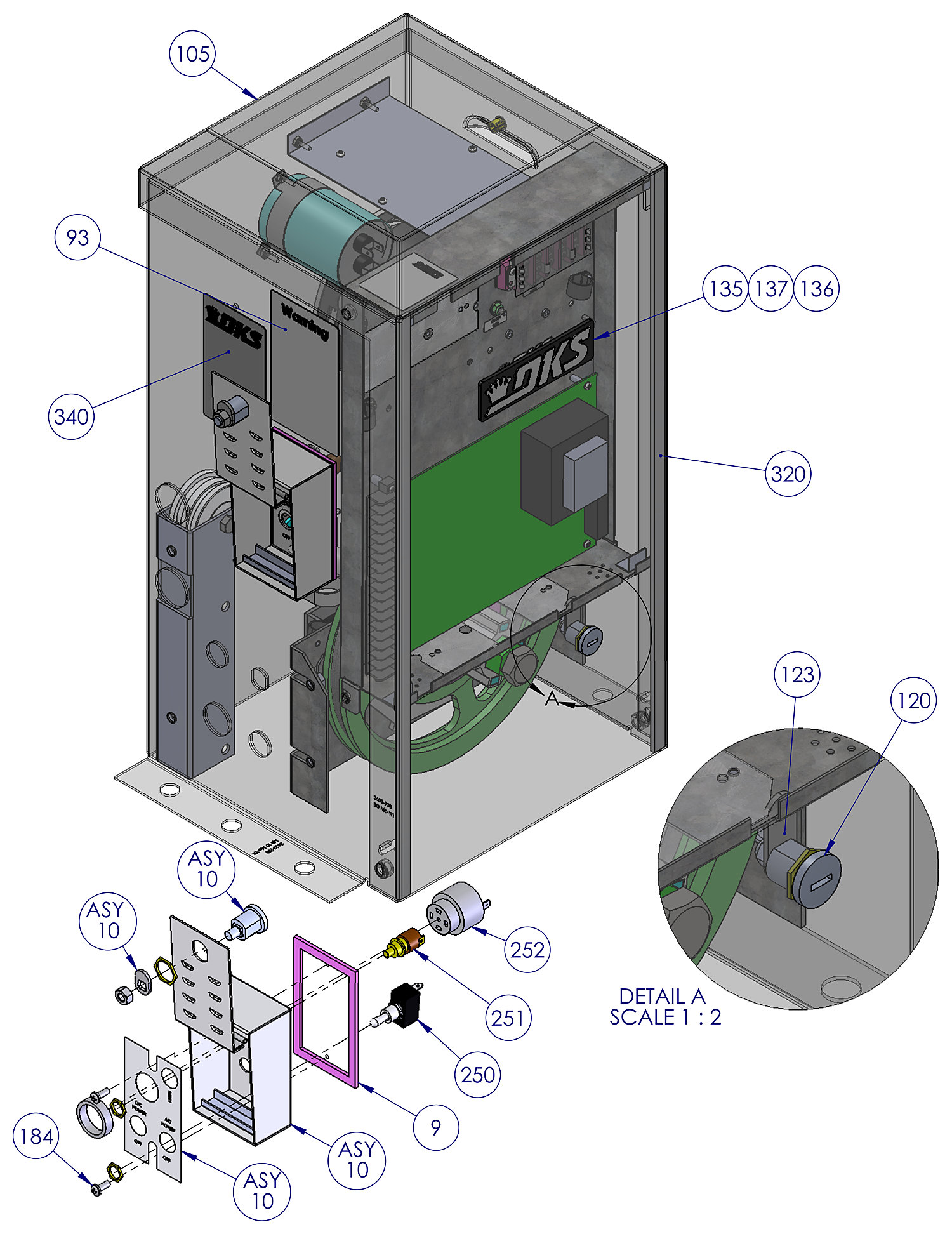

Exterior — Door, Switch Box & Labels
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 9 | 2600-731 | Gasket, switch cover | 1 |
| 10 | 2600-533 | Switch cover, lockable | 1 |
| 93 | 2599-034 | Label, gate operator | 1 |
| 105 | 2600-933 | Door, model 9050 / 9070 / 9100 | 1 |
| 120 | 4001-035 | Lock cylinder with key | 1 |
| 123 | 1702-503 | Cam, 1-1/4 in. | 1 |
| 135 | 2600-732 | Nameplate, plastic DKS | 1 |
| 136 | 2802-040 | Push-on washer | 2 |
| 137 | 1897-050 | Gasket support, thick 1/16 in. | 2 |
| 250 | 1601-041 | Toggle switch, SPST 2 position | 1 |
| 251 | 1812-005 | Push button switch, N.O. | 1 |
| 252 | 1506-071 | Tone generator, loud | 1 |
| 320 | 4001-018 | Weather stripping (ft) | 7 |
| 340 | 2599-199 | Label, universal | 1 |

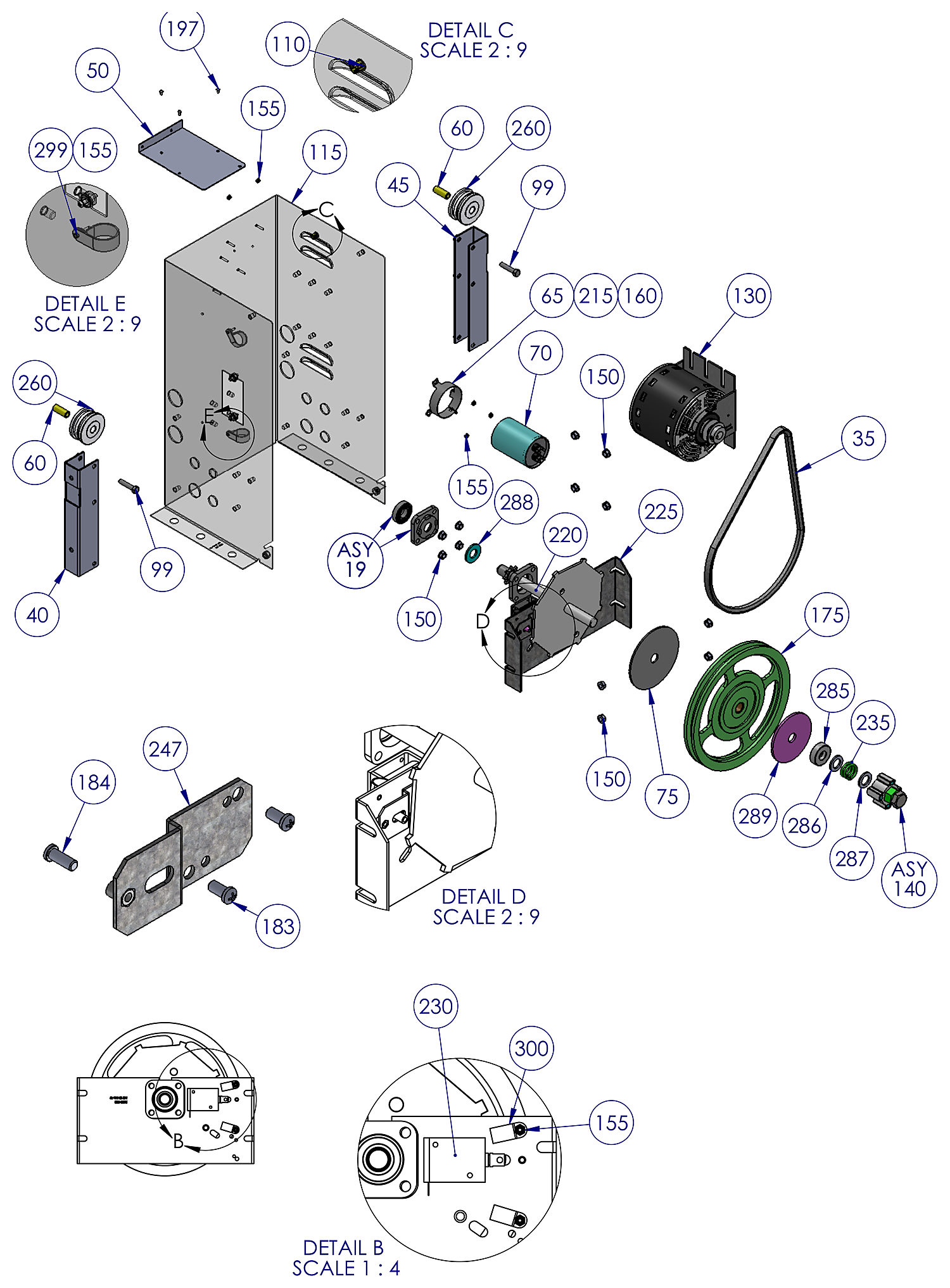

Housing, Motor, Belt Drive & Main Shaft
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 19 | 2600-466 | Rear bearing assembly kit (was 2600-440 + 2600-453) | 1 |
| 35 | 2600-429 | Belt, cogged AX-35 | 1 |
| 40 | 2600-921 | Idler bracket, left | 1 |
| 45 | 2600-922 | Idler bracket, right | 1 |
| 50 | 2600-938 | Radio tray | 1 |
| 60 | 2600-871 | Bushing, 1/2 in. OD x 5/16 in. ID x 1-5/16 in. L | 2 |
| 65 | 2600-875 | Capacitor mounting clamp | 1 |
| 70 | 2600-102 | Capacitor, 50 uF 370 VAC | 1 |
| 75 | 2600-342 | Clutch pad, 4 in. OD | 1 |
| 99 | 2615-155 | Hex head bolt, 5/16-18 x 1-3/4 in. | 2 |
| 110 | 2600-880 | Hole plug, plastic for 3/8 in. hole | 1 |
| 115 | 2600-985 | Housing, model 9050 / 9070 / 9100 | 1 |
| 130 | 2600-129 | Motor assembly, 1/2 HP | 1 |
| 140 | 2600-917 | Jam nut, magnet subassembly | 1 |
| 150 | 2620-411 | Hex flange lock nut, 5/16-18 | 16 |
| 155 | 2902-003 | Nylon lock nut, 6-32 | 12 |
| 160 | 2902-004 | Nylon lock nut, 8-32 | 1 |
| 175 | 2600-957 | Pulley, 10 in. aluminium assembly | 1 |
| 183 | 2616-051 | Phillips head screw, 10-32 x 3/8 in. | 2 |
| 184 | 2616-052 | Phillips head screw, 10-32 x 1/2 in. | 1 |
| 197 | 2616-001 | Phillips head screw, 6-32 x 3/8 in. | 4 |
| 215 | 2616-019 | Phillips head screw, 8-32 x 3/4 in. | 1 |
| 220 | 2600-903 | Main shaft assembly | 1 |
| 225 | 2600-930 | Bracket, shaft support | 1 |
| 230 | 2600-860 | Solenoid lock assembly | 1 |
| 235 | 2600-446 | Spring, compression | 1 |
| 247 | 2600-487 | Bracket, solenoid support | 1 |
| 260 | 2600-886 | Idler wheel, UHMW | 2 |
| 285 | 2600-053 | Thrust bearing, 3/4 in. ID | 1 |
| 286 | 2600-345 | Hardened washer, 1-1/4 x 3/4 in. ID | 1 |
| 287 | 2600-344 | Washer, 1-1/8 in. OD x 3/4 in. ID | 1 |
| 288 | 2600-990 | Neoprene washer, 1.5 x .725 x .125 in. | 1 |
| 289 | 2620-035 | Washer, 4 in. OD x 3/4 in. ID | 1 |
| 299 | 2600-639 | Wire clamp, 1 in. | 4 |
| 300 | 2600-619 | Wire clip, 5/8 in. | 4 |

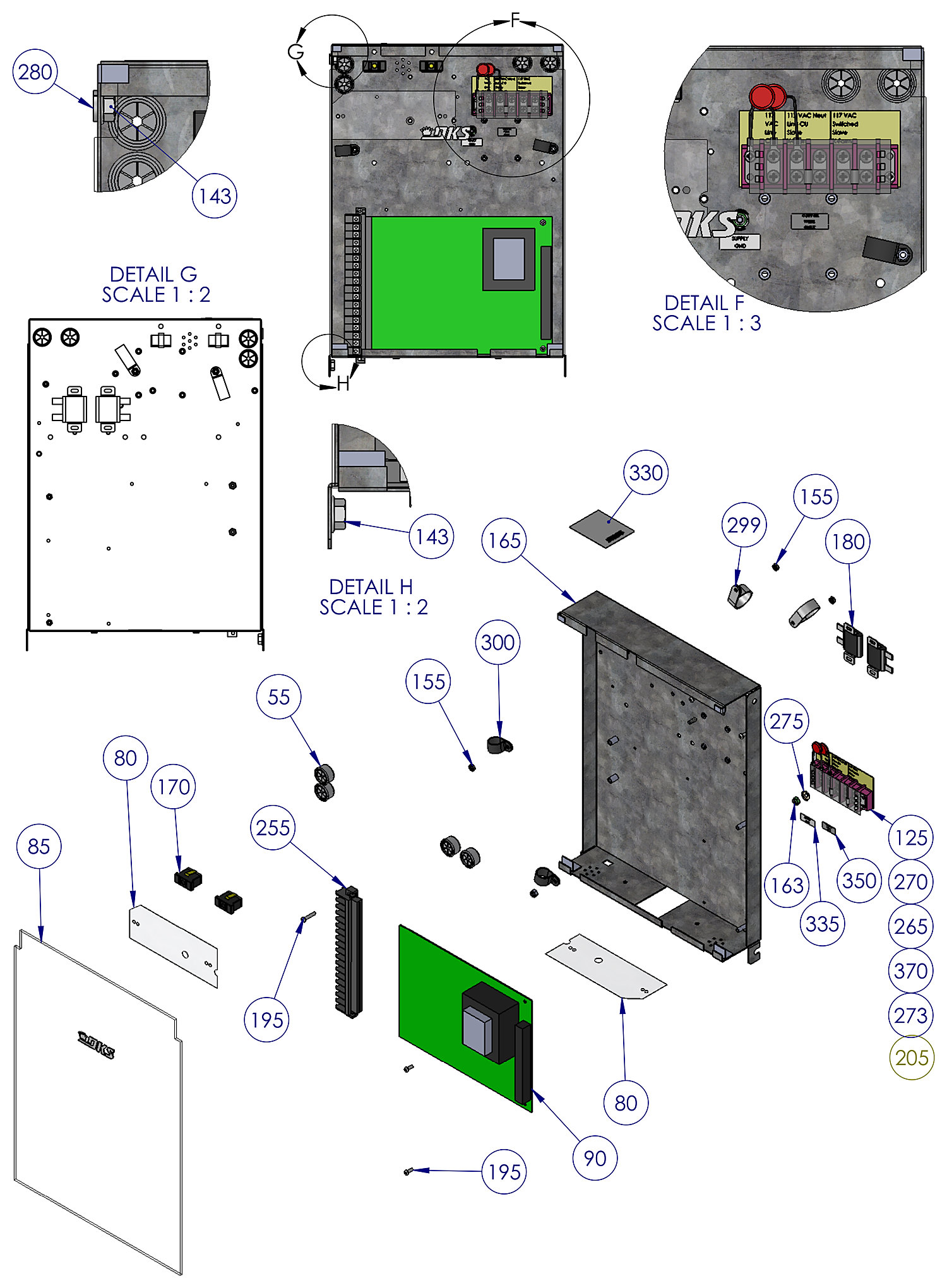

Control Panel — Board, Terminals & Resistors
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 55 | 2600-810 | Bushing, 7/8 in. poke thru flaps | 4 |
| 80 | 2600-945 | Cover, plastic insulator | 2 |
| 85 | 9100-006 | Cover, plastic model 9100 | 1 |
| 90 | 4602-010 | PCB, slide gate operator (control board) — see the control board box above and choose your date of manufacture | 1 |
| 125 | 2600-431 | Marker strip, silkscreened | 1 |
| 143 | 2620-409 | Hex flange lock nut, 1/4-20 | 4 |
| 163 | 2902-010 | Nylon lock nut, 8-32 green | 1 |
| 165 | 2600-911 | Mount plate, PC board | 1 |
| 170 | 1200-028 | Snap-in outlet (Leviton 1306) | 2 |
| 180 | 2600-848 | Power resistor, 1 ohm 30 watt | 2 |
| 195 | 2616-003 | Phillips head screw, 6-32 x 3/4 in. SS | 1 |
| 205 | 2616-007 | Phillips head screw, 6-32 x 5/8 in. | 2 |
| 255 | 2901-002 | Terminal, 18 pin | 1 |
| 265 | 2600-840 | Jumper, ring tongue #8 screw | 2 |
| 270 | 3130-008 | Terminal block, 5 pin | 1 |
| 273 | 3129-005 | Terminal block cover, 5 position | 1 |
| 275 | 2600-439 | Cup washer, brass | 1 |
| 280 | 2620-053 | Lock washer, 5/16 in. | 2 |
| 330 | 2599-008 | Label, patent | 1 |
| 335 | 2599-006 | Decal, supply ground | 1 |
| 350 | 2599-014 | Decal, copper wire only | 1 |
Not Shown on the Diagrams
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 9100-065 | Installation manual | 1 |
| 5 | 9100-066 | Installation manual (quick start) | 1 |
| 15 | 2600-852 | Accessory box | 1 |
| 100 | 2615-153 | Hex head bolt, 5/16-18 x 3/4 in. | 4 |
| 145 | 2902-006 | Nylon lock nut, 10-32 | 2 |
| 185 | 2616-006 | Phillips head screw, 6-32 x 3/16 in. | 4 |
| 190 | 2616-002 | Phillips head screw, 6-32 x 1/2 in. | 8 |
| 200 | 2616-000 | Phillips head screw, 6-32 x 1/4 in. | 4 |
| 210 | 2600-887 | Nylon Phillips screw, 6-32 x 1/4 in. | 4 |
| 290 | 2600-988 | Wire set, 9100 | 1 |
| 315 | 1804-031 | Tie wrap, 4 in. | 12 |
| 317 | 2600-749 | Wire connector, STA-KON RC6 | 2 |
| 352 | 9200-190 | Resistor kit, UL325 | 1 |
| 355 | 2599-100 | Warning sign | 2 |
Superseded Part Numbers
| Old Part Number | Current Part Number | Notes |
|---|---|---|
| 2600-440 + 2600-453 | 2600-466 | Ref 19 — Rev H replaced the separate rear bearing and holder with the 2600-466 bearing assembly kit |
Common 9100 Problems and the Parts That Fix Them
| Symptom | Usual Cause | Parts |
|---|---|---|
| Motor hums but the gate will not move | Failed run capacitor | 2600-102 capacitor, 2600-875 clamp |
| Gate slips, will not hold position, or stalls | Worn clutch pad or weak clutch spring | 2600-342 clutch pad, 2600-446 compression spring |
| Squealing on start, or motor runs and the gate barely moves | Glazed or stretched cogged belt | 2600-429 belt, 2600-957 pulley |
| Rumble or play in the main shaft | Worn rear bearing or thrust bearing | 2600-466 bearing kit, 2600-053 thrust bearing, 2600-903 shaft |
| Chain jumping or chattering | Worn idler wheels | 2600-886 idler wheels (2), 2600-921 / 2600-922 brackets |
| Gate will not lock, or the solenoid buzzes | Failed solenoid lock | 2600-860 solenoid assembly, 2600-487 support bracket |
| Operator powers up but ignores every input — radio, keypad, loop and push button all dead | Failed control board logic | 4602-010 board (choose your date of manufacture), 2901-002 18-pin terminal |
| Dead operator after a storm, no response to any input | Surge-damaged control board | 4602-010 board, 2901-002 terminal, 2600-848 resistors (2) |
| Water getting into the cabinet, rust on the panel | Perished weather stripping or missing hole plug | 4001-018 weather stripping, 2600-880 hole plug |
