The MC271 sensing edge is custom manufactured to your exact specifications
for length and outlet location. When touched lightly or at an angle, MC271 will
send an immediate electrical signal to operator controls to stop, and/or reverse

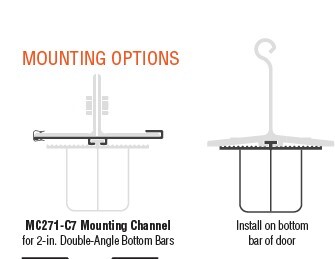

operations. Made with a vinyl wrapping and an extruded T, it is designed to slide
into applicable door’s bottom retainer. The exterior of the MC271 is highly flexible
and can conform to irregularities in the floor.
APPLICATIONS · Commercial & industrial sectional doors · Commercial & industrial rolling doors · Commercial rolling grilles
FEATURES ·
Flexible and will conform to floor irregularities
Optimum size for 2+ inch thick surfaces
Custom manufactured to user specifications for
color, length, and outlet location
5 inch end flaps create a complete seal and can
be trimmed for a custom fit
Sealed assembly impervious to dust and debris
Patented Alumaglas™ for superior performance
(electric option)
UL 325 Recognized Component
3-year warranty
Made in USA
Monitored Devices Guidelines For UL325 Listed Operators Built After August 29th, 2010 that have a Monitored Circuit
For older units Prior and other applications in most cases a Non Monitored edge is used
Please confirm with manufacture before ordering as edges are all edges are custom made and Not returnable
Monitored Sensing Edge Designator
T1 is a 8.2K Ohm Resistor Green Color Code Typically used for European Operators
T2 is a 10K Ohm Resistor Blue Color Code Typically used by the Following Manufactures
Cornell / US Gear, Liftmaster / Chamberlain, Linear, Manaras, Micanan / Napoleon Lynx,
Raynor, VE Power Door, Cookson,, Lawrence
T3 Diode Capacitor Red Color Code Used for Overhead Door Corporation units
T4 Capacitor White Color Code for Linear (Transmitter)
T5 6.8K Ohm Resistor Orange Color Code Custom Applications
T6 270K Ohm Resistor Violet Color Code Liftmaster CPS Board
Complete Ordering Guide for Monitored Openers (Click Here)
