LiftMaster LGJ Replacement Parts — Light-Duty Gear Reduced Jackshaft Operator
Genuine replacement parts for the LiftMaster LGJ light-duty gear-reduced jackshaft commercial door operator.
Electrical box parts are on a separate page. The transformer, terminal blocks, logic board standoff and limit switch for this operator are listed on the LGJ electrical box page. This page covers the mechanical assembly.

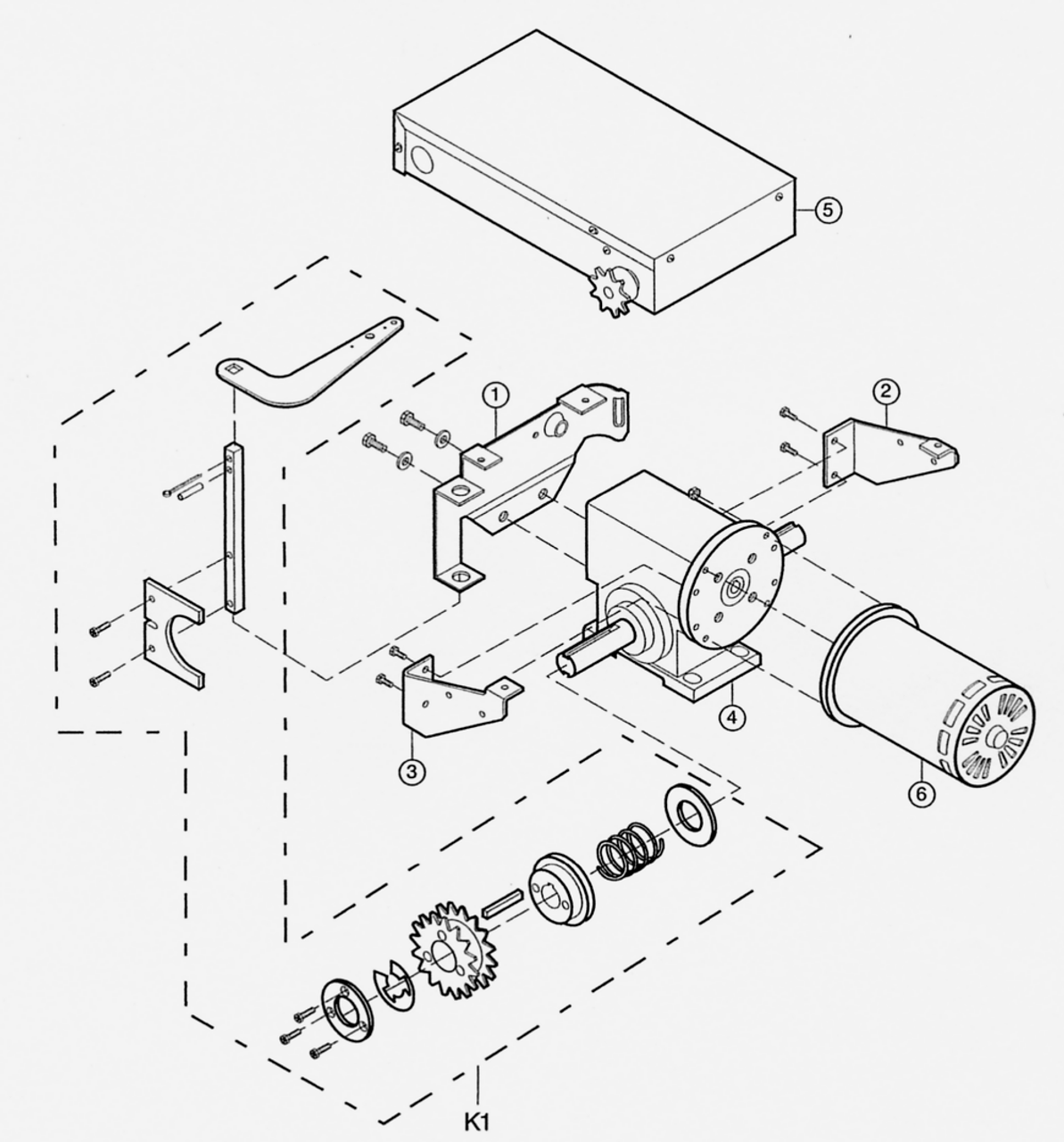

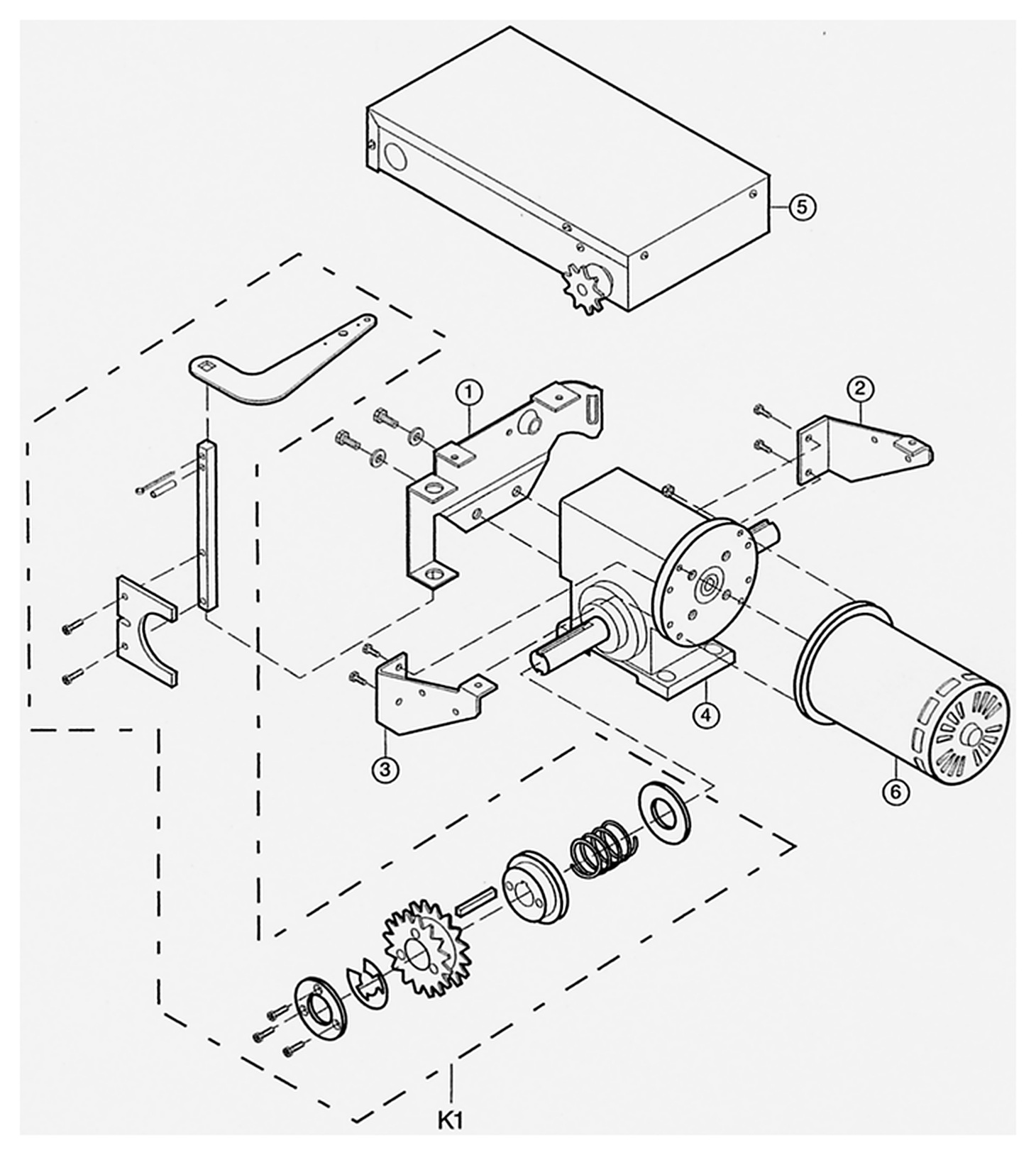

Operator Assembly
| Ref | Part # | Description |
|---|---|---|
| 1 | 10-11397 | Support Bracket |
| 2 | 10-11398-1 | Mounting Bracket, left hand |
| 3 | 10-11398-2 | Mounting Bracket, right hand |
| 4 | 32-11435 | Gear Reducer, 40:1 |
The mounting brackets are handed — check whether yours is a left or right hand mount before ordering ref 2 or 3.
Electrical Box Parts
Listed separately on the LGJ electrical box page: electrical box, terminal blocks, logic board standoff and limit switch.
Safety Sensors & Options
| Part # | Description |
|---|---|
| CPICARD | CPI interface box |
| CPS-U | Commercial photo eye |
| CPSUN4G | Monitored through-beam photo eyes |
| CPS | Safety eye sensors — mechanical operators |
| CPS-UN4 | Safety eye sensors — commercial doors |
| K77-16011 | Mounting hardware, CPS N4 |
| 65-5302 | Pneumatic sensing edge, 22 ft, with take-up reel |
| LC-36A | Safety eye sensors (no longer available) |
