LC-36A safety eye sensors [NO LONGER AVAILABLE]


Product Price: $403.93

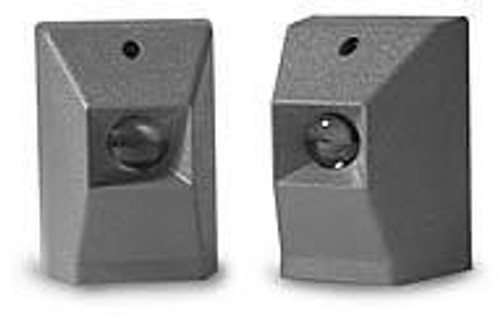

LC-36A safety eye sensors for Liftmaster Commercial Mechanical Operators.
LiftMaster LC-36A Light Curtains provide 36 in. of coverage to keep your
customers, employees and equipment safe. The LC-36A must be used with a
primary entrapment device and be installed along the vertical plane of the door.
The light curtains are NEMA 4 rated which provides protection against direct
water spray and makes the LC-36A ideal for use in auto dealerships, fire stations,
municipal garages and commercial storage facilities.

• Color-coded transmitter and receiver for easy identification.
• Provides 36 in. of effective height coverage to increase the area
of protection.
• Multiple sets of LC-36A curtains can be mounted on a door providing
coverage flexibility*.
• Maximum door width of 33 ft. ensures coverage for most
commercial doors.
• Eight (8) LEDs per side and 22 cross-beams produce an invisible
curtain of infrared light for maximum detection capability.
• Solid LED lights indicate correct sensor alignment,
simplifying installation.
• Green LED on receiver flashes when interrupted, providing visible
interrupt detection.
* See instruction manual for requirements.
The LiftMaster LC-36A is an ancillary device and must be used with a
primary monitored entrapment device to maintain compliance with UL 325.
The LiftMaster CPS-UN4, CPS-RPEN4, CPS-OPEN4 and CPS-U meet this
requirement. Failure to use the appropriate sensor or failure to install the
sensors properly, may expose the installer and customer to liability, should
an accident occur.
