GT5011 & All GT Series Gear-Reduced Trolley Parts

LiftMaster GT5011 Replacement Parts — GT Series Gear-Reduced Trolley Operator

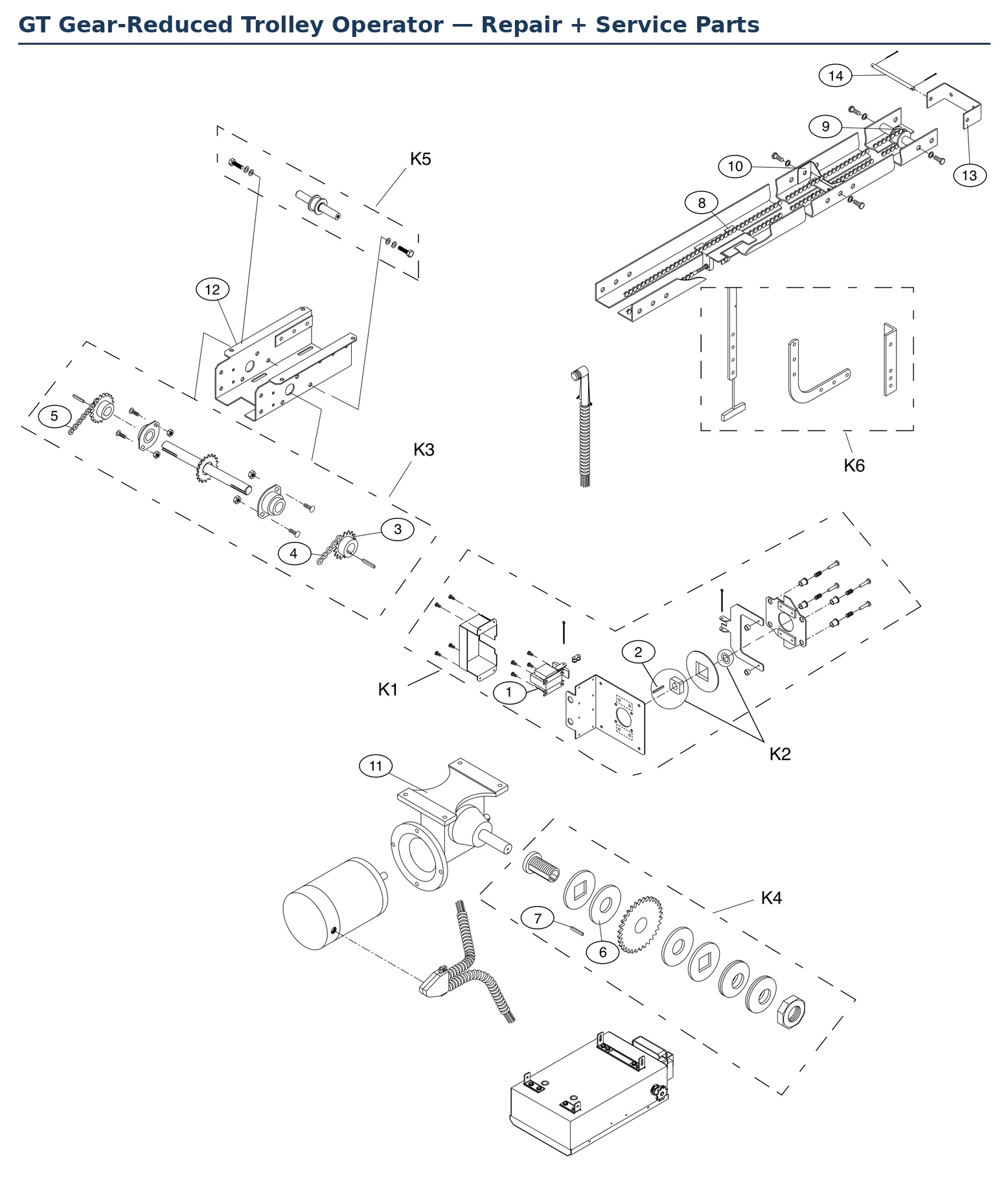

Genuine LiftMaster replacement parts for the GT series gear-reduced trolley operator. The GT5011 is the most common version — 1/2 HP, 115V, single phase. Use the exploded diagram to identify your part by its key number, then match it to the tables below.

Your model number is on the operator’s data label. The first two digits after the letters are horsepower and the last two are voltage and phase, so GT5011 is 1/2 HP at 115V single phase and GT5023 is 1/2 HP at 208/230V three phase. The GT replaces the T’s belt-and-clutch drive with a 20:1 gear reducer and torque limiter, so drive-train parts are not interchangeable with the T. Parts marked no longer available have been discontinued by the manufacturer and are listed for identification only.

Models Covered

1/2 HP — most common: GT5011 (115V, 1PH), GT5021 (230V, 1PH), GT5023 (208/230V, 3PH), GT5043 (460V, 3PH), GT5053 (575V, 3PH), GT5025 (230V, 50Hz), GT5038 (380V, 3PH, 50Hz)

3/4 HP: GT7511, GT7521, GT7523, GT7525, GT7538, GT7543, GT7553

1 HP: GT1011, GT1021, GT1023, GT1025, GT1038, GT1043, GT1053

1-1/2 HP: GT1511, GT1521, GT1523, GT1525, GT1538, GT1543, GT1553

Logic 5.0 units: GT501L5, GT503L5, GT505L5, GT751L5, GT753L5, GT755L5, GT101L5, GT103L5, GT105L5

Replacement Parts

Service Kits & Brake Kits

Motor Replacement Kits

Find your model number on the operator’s data label, then pick the column that matches your motor. The GT5011 uses the 1/2 HP 115V motor in the first row. GT motors are C-face gear-reduced units and do not interchange with the T series belt motors. TEFC motors are the NEMA 4/12 enclosure versions.

Motor Replacement Kits — Logic 5.0

Note: LiftMaster’s 2023 parts guide repeats the 3/4 HP part numbers under its 1-1/2 HP Logic 5.0 heading, so we have not listed motors for GT151L5, GT153L5 or GT155L5. Contact us with your serial number and we will confirm the correct motor.

Electrical box parts. The GT uses the same control boxes as the T, SD, GSD, APT and GH. Use the section that matches your unit’s control generation.

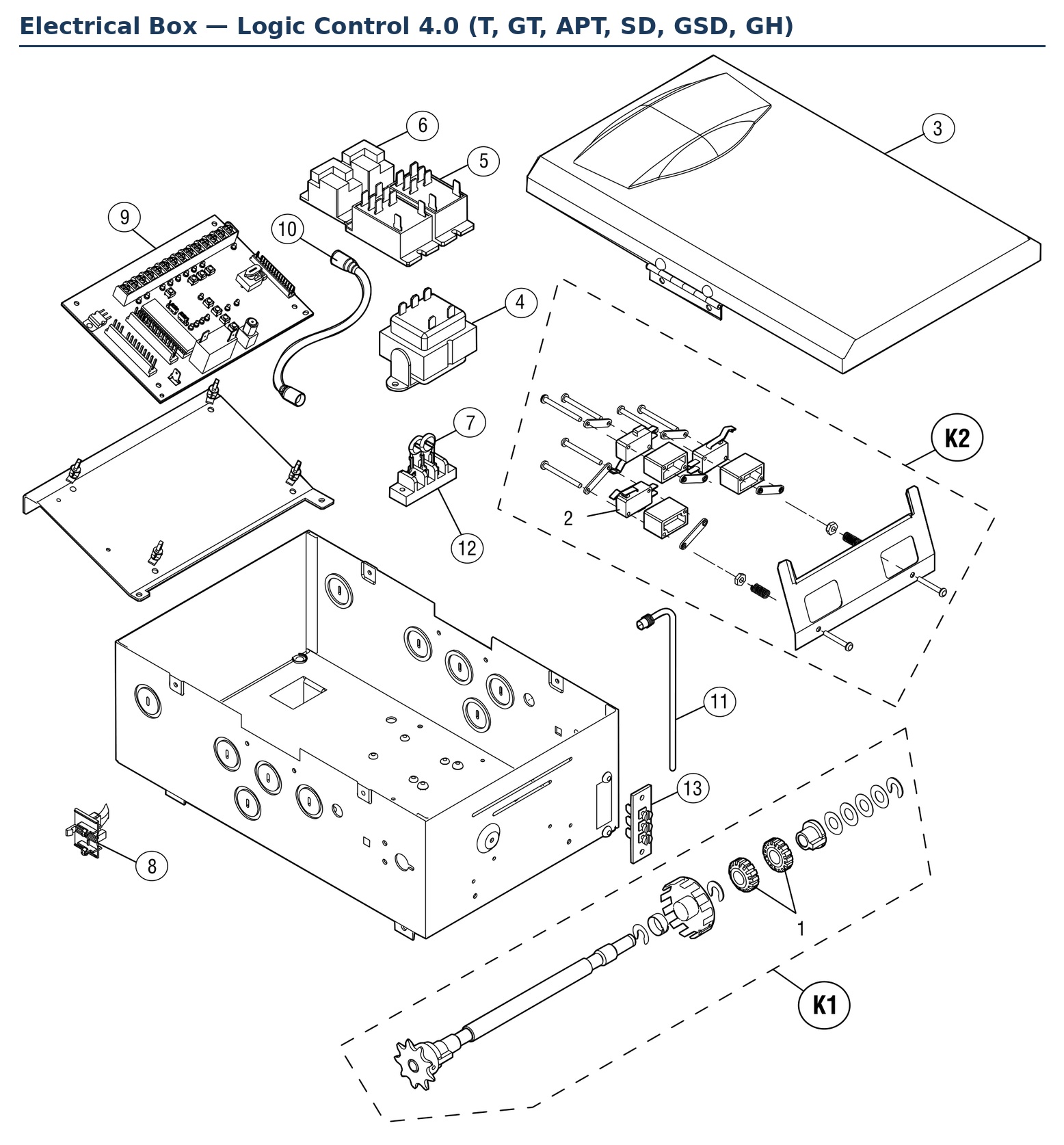

Electrical Box — Logic Control 4.0

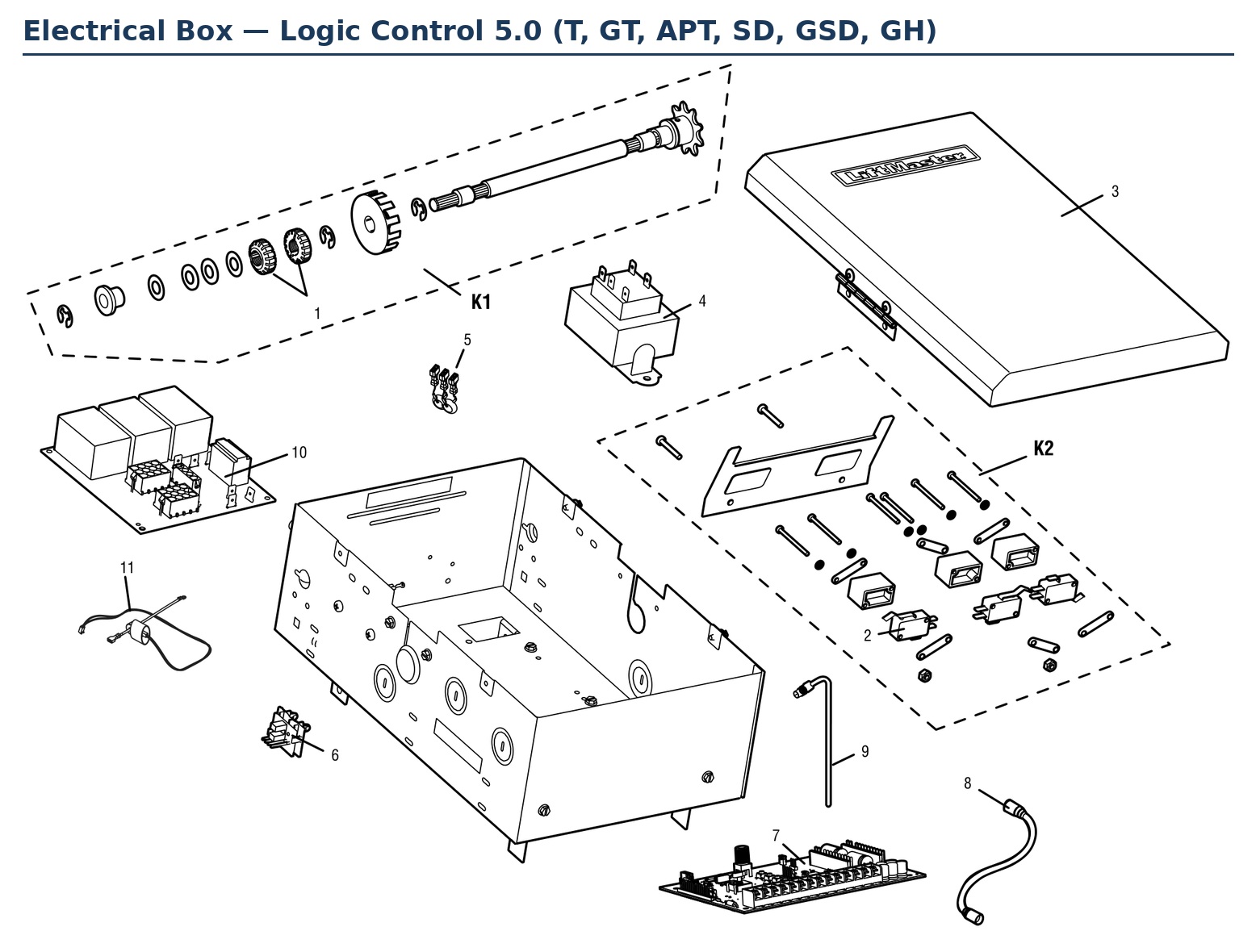

Electrical Box — Logic Control 5.0

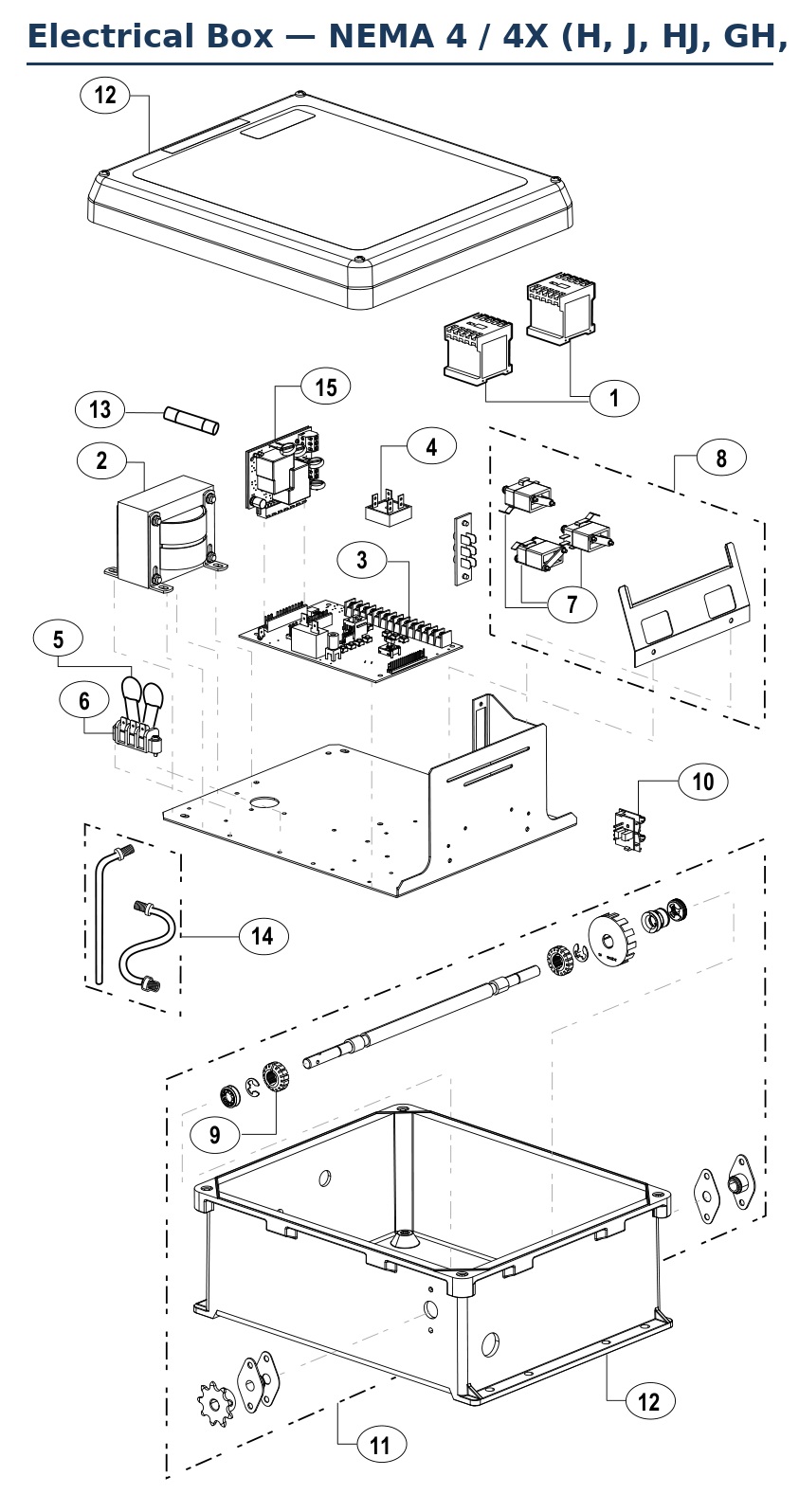

Electrical Box — NEMA 4 / 4X

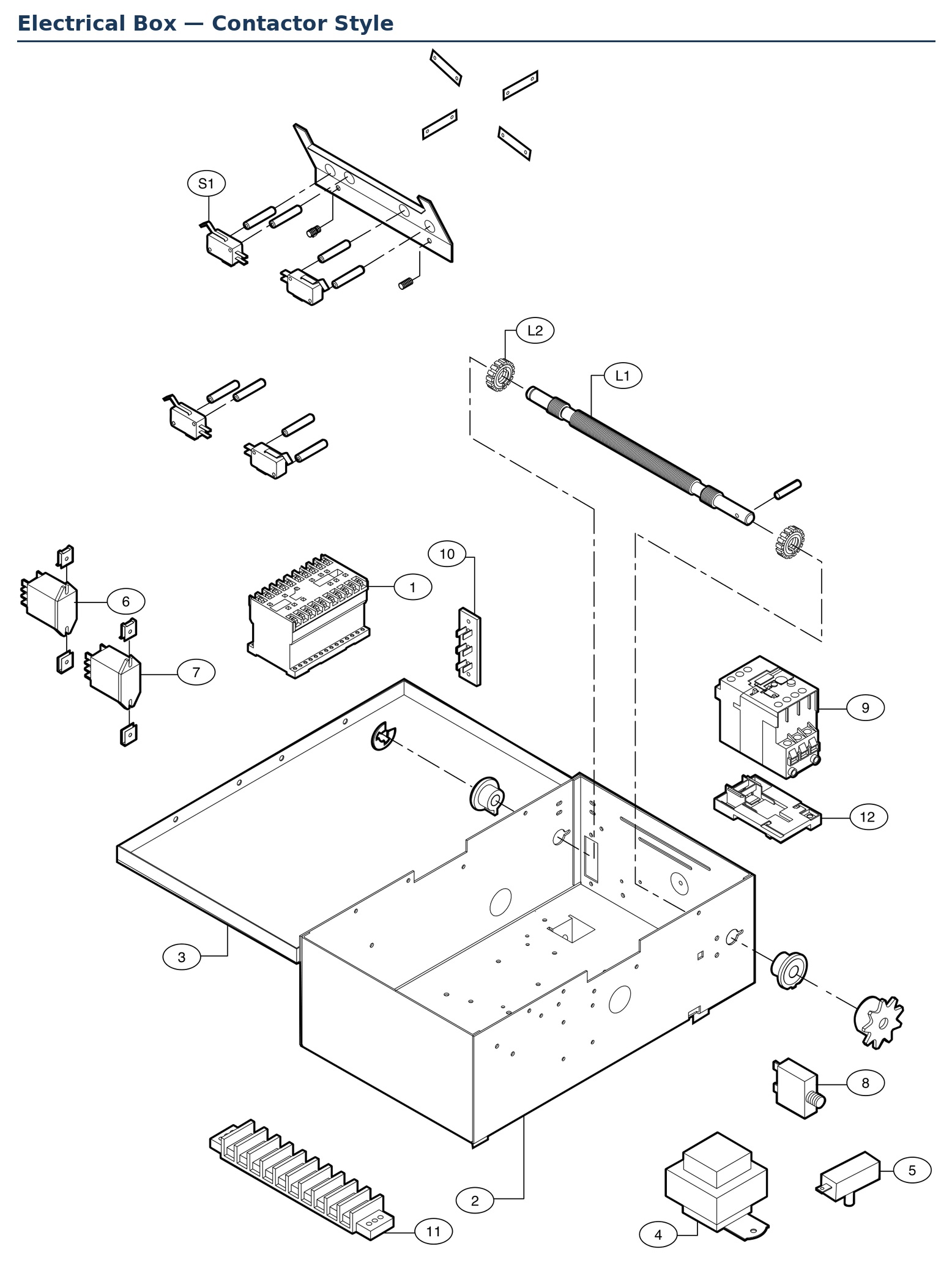

Electrical Box — Contactor Style
