Electrical Box: GH 5HP Operators

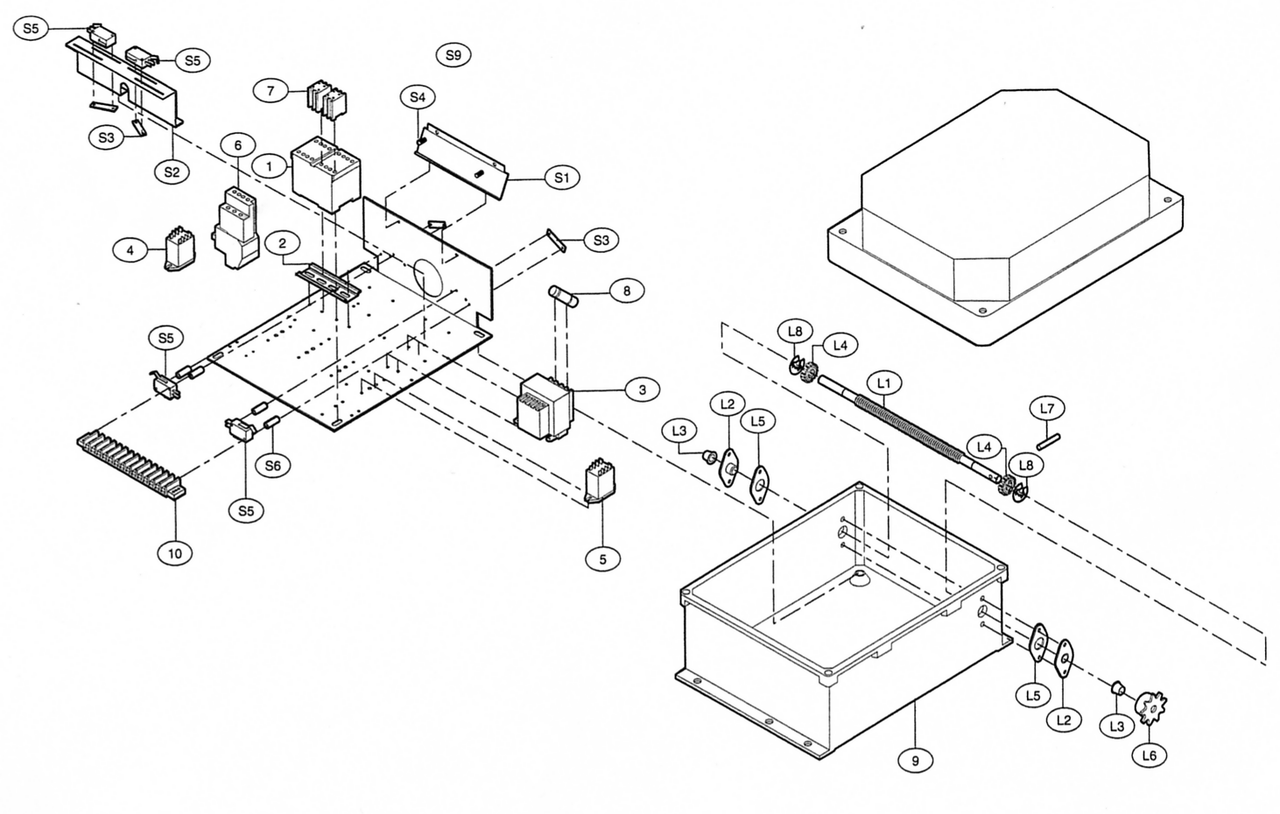

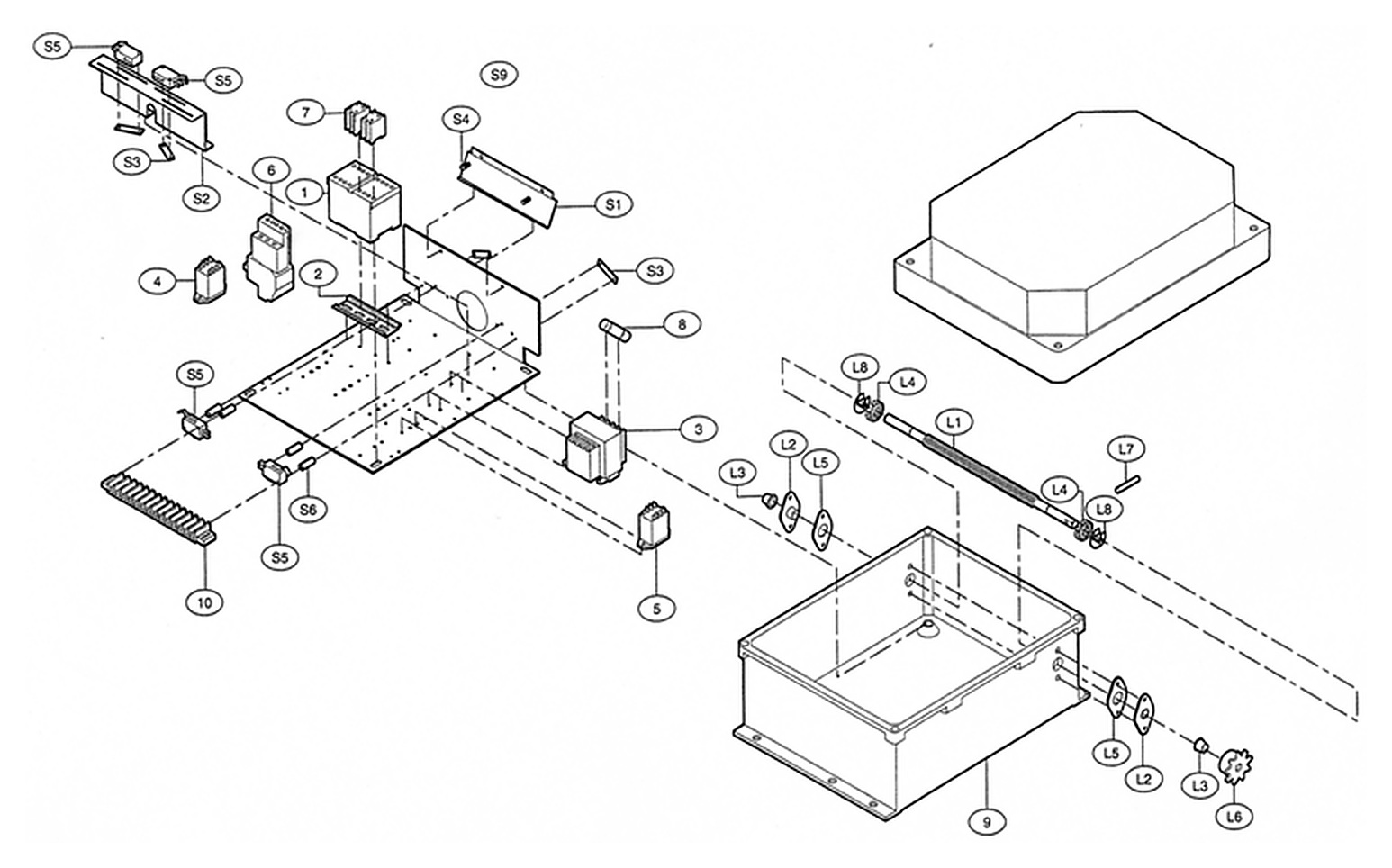

LiftMaster GH 5HP operator electrical box parts diagram

LiftMaster Electrical Box Parts — GH 5HP Operators

Genuine replacement parts for the electrical box fitted to the LiftMaster GH 5 HP gear-reduced hoist operator. These are three-phase machines, so the transformer and the overload are both specific to your supply voltage and motor.

Identify your model first. The GH5HP number encodes the voltage — GH5HP23M is 230V, GH5HP43M is 460V and GH5HP53M is 575V. Ordering the wrong transformer or overload for the voltage is the most common mistake on this box. Parts marked no longer available have been discontinued and are listed for identification only.

Which Model Do I Have?

Model Supply Transformer Overload
GH5HP23M 230V 3 phase K21-3460-1 25-4018-D (12–18 A)
GH5HP43M 460V 3 phase K21-3460-1 25-4010-D (7–10 A)
GH5HP53M 575V 3 phase 21-3575-1 25-4008-D (5.5–8 A)

Complete Electrical Box

Model Part # Description
GH5HP43M K-GH5HP43M Electrical Box, GH5 460V 3 phase
GH5HP23M K74-17965 Electrical Box, 230V 3 phase (no longer available)
GH5HP53M K74-18081 Electrical Box, 575V 3 phase (no longer available)

Box Components

Ref Part # Description
2 03-ABDIN-4 DIN Rail (no longer available)
3 K21-3460-1 Transformer, 230/460V 3 phase
3 21-3575-1 Transformer, 575V 3 phase
4 24-24-1 Relay, 24VAC DPDT (K24-24-1)
5 24-264-1 Relay, 24VDC DPDT
— K24-264-4 Relay, 24V 10A
7 27-8002-D Contact Book
8 35-204 Fuse, 4 Amp 125V
10 42114 Terminal Block, 14 position

Overloads

Ref Part # Rating Model
6 25-4008-D 5.5 – 8 Amp GH5HP53M
6 25-4010-D 7 – 10 Amp GH5HP43M
6 25-4018-D 12 – 18 Amp GH5HP23M
— K25-4025-D 16 – 24 Amp Higher current applications

Limit Shaft & Switches

Ref Part # Description
L1 11-10480 Limit Shaft (K11-10480)
L4 13-10024 Limit Nut (K13-10024)
S5 K23-10041 Limit Switch
— K74-18346 Limit Shaft Kit — complete assembly
— K72-18345 Limit Switch Kit (no longer available)

Options & Safety

Part # Description
CPICARD CPI interface box
CPS-U Commercial photo eye
CPSUN4G Monitored through-beam photo eyes
CPS Safety eye sensors — mechanical operators
CPS-UN4 Safety eye sensors — commercial doors
K77-16011 Mounting hardware, CPS N4
65-5302 Pneumatic sensing edge, 22 ft, with take-up reel
LC-36A Safety eye sensors (no longer available)
