LiftMaster EGJ Replacement Parts — Carwash Gear-Reduced Jackshaft Operator
Genuine replacement parts for the LiftMaster EGJ carwash-duty gear-reduced jackshaft operator. These are the wash-bay machines, built for constant wet exposure, so the motor is the part that most often needs replacing.
The motor is model specific. Six different motors cover the EGJ range and they are not interchangeable — the model number on the data label tells you which one you need. Use the table below rather than matching by appearance; several look identical.
Which Motor Do I Need?
| Models |
Part # |
Supply |
| EGJ5011M, EGJ5021M |
20-1050C-2T |
1 phase, 1/2 HP |
| EGJ7511M, EGJ7521M |
20-1075C-2T |
1 phase, 3/4 HP |
| EGJ1011M, EGJ1021M |
20-1100C-2T |
1 phase, 1 HP |
| EGJ5023M, EGJ5043M |
20-3050C-4T |
3 phase, 1/2 HP |
| EGJ5023M, EGJ7543M |
20-3075C-4T |
3 phase, 3/4 HP |
| EGJ1023M, EGJ1043M |
20-3100C-4T |
3 phase, 1 HP |

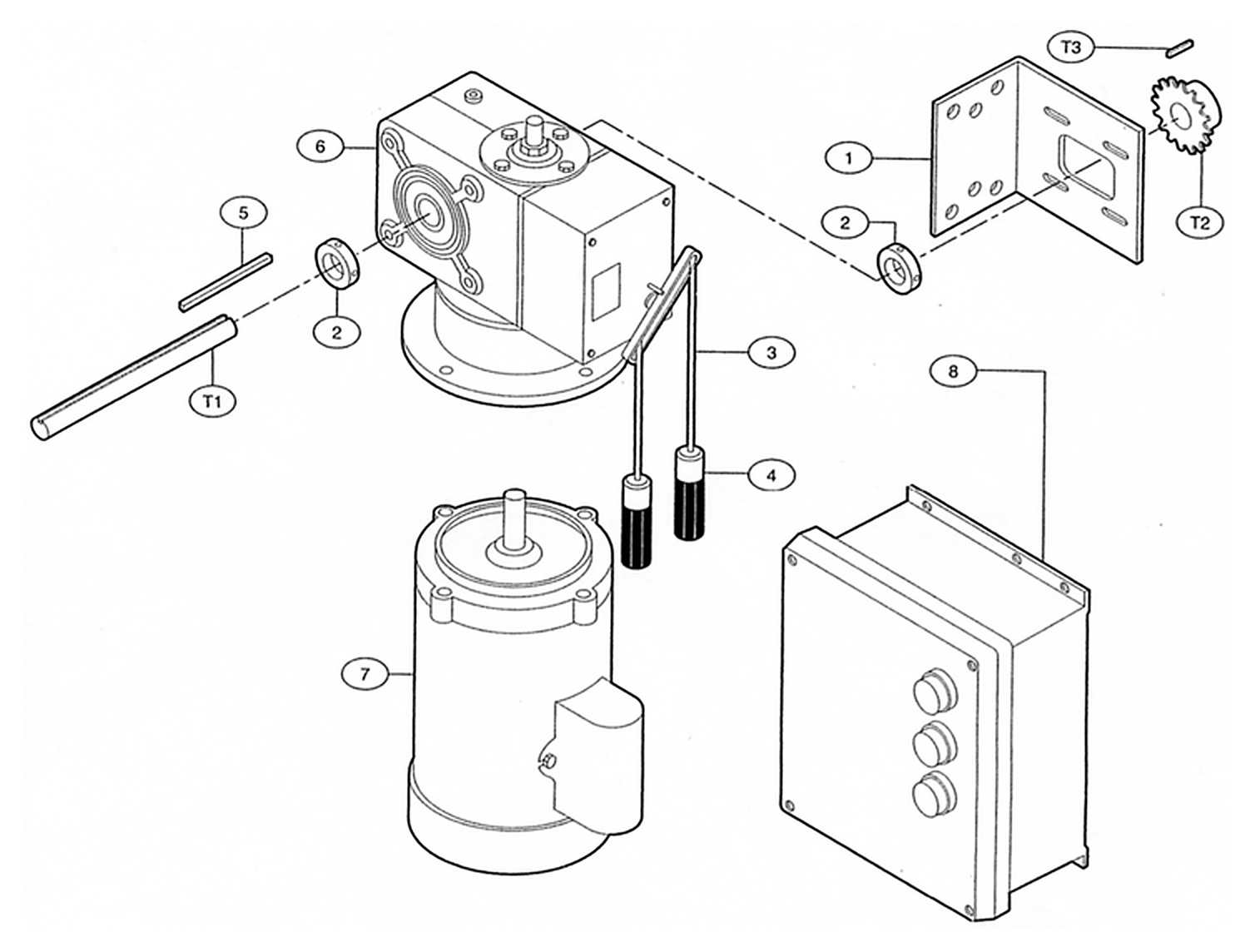

Operator Assembly
| Ref |
Part # |
Description |
| 1 |
10-9097 |
Mounting Bracket (no longer available) |
| 2 |
13-10465 |
Shaft Collar |
| 3 |
19-02411 |
Pull Cord |
| 4 |
50-13507 |
Pull Switch Handle (no longer available) |
| 7 |
Motor — see the fitment table above |
| T2 |
15-50B12LGH |
Sprocket, 50B12, 1" bore |
| T3 |
80-207-19 |
Key, 1/4" x 1-1/2" |
| — |
17-13716 |
Through Shaft Kit |
| — |
19-50106MN |
Chain, #50 nickel plated, 5-1/2 ft — corrosion resistant for wash bays |
| — |
K75-17138 |
Housing Service Kit (no longer available) |
Safety Sensors & Options
| Part # |
Description |
| CPICARD |
CPI interface box |
| CPS-U |
Commercial photo eye |
| CPSUN4G |
Monitored through-beam photo eyes |
| CPS |
Safety eye sensors — mechanical operators |
| CPS-UN4 |
Safety eye sensors — commercial doors |
| K77-16011 |
Mounting hardware, CPS N4 |
| 65-5302 |
Pneumatic sensing edge, 22 ft, with take-up reel |
| LC-36A |
Safety eye sensors (no longer available) |
