APT5011 & APT501L5 Apartment Trolley Parts

LiftMaster APT5011 Replacement Parts — Low Profile Apartment Trolley Operator

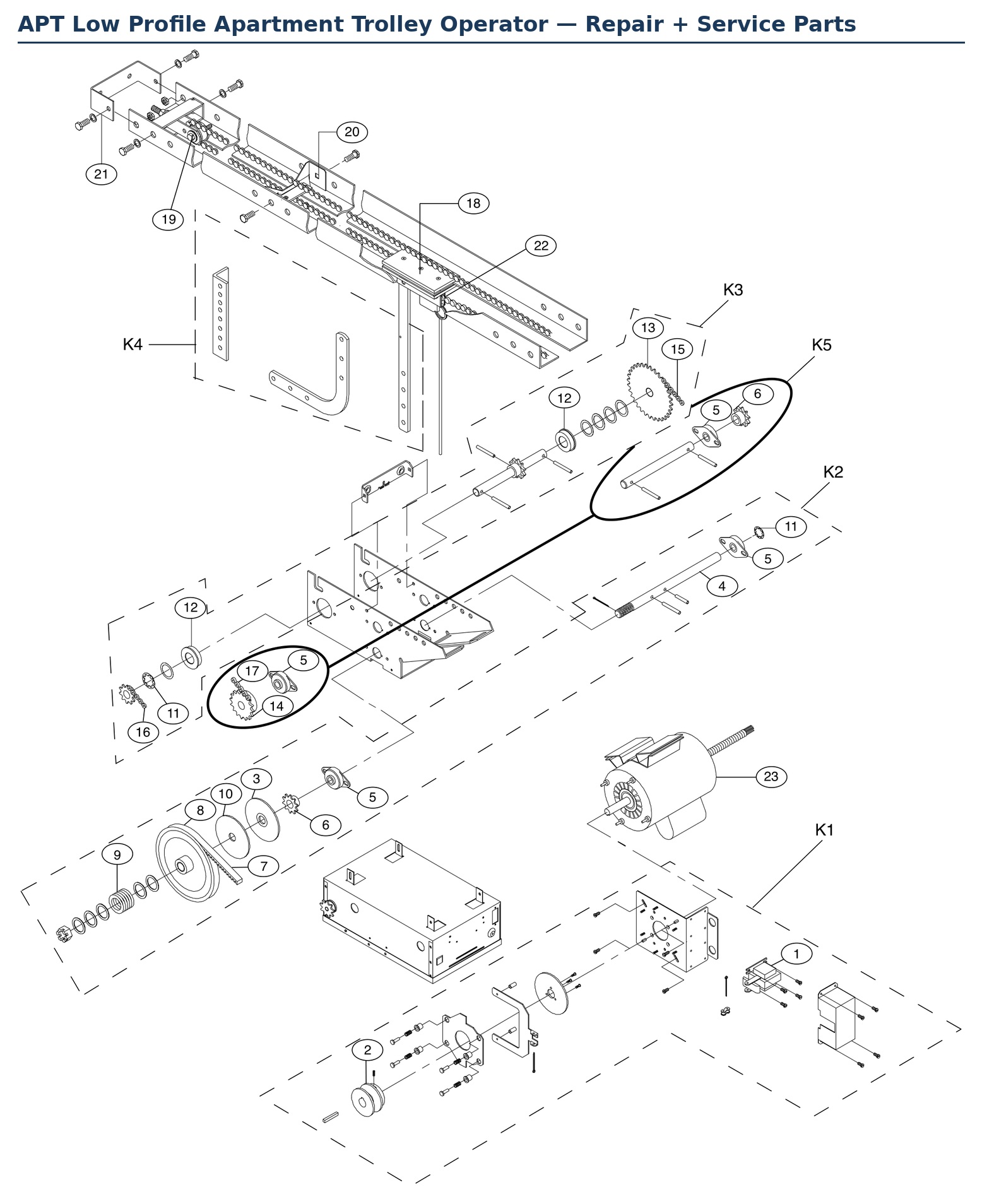

Genuine LiftMaster replacement parts for the APT low profile apartment trolley operator. The APT5011 is the standard version — 1/2 HP, 115/230V, single phase. Use the exploded diagram to identify your part by its key number, then match it to the tables below.

Unlike the T and GT series, the APT is built in one horsepower only, so there is no voltage or phase variation to sort out — the differences between units are the control generation and the intermediate shaft drive. The APT’s low-profile chassis uses its own chain tension kit, slider assembly and intermediate shaft kit, none of which interchange with the standard-duty T.

Models Covered

APT5011 (1/2 HP, 115/230V, 1PH), APT5011L3 (Logic 3.0 / 4.0 control), APT501L5 (Logic 5.0 control)

Replacement Parts

Service Kits

Motor Replacement Kits

The motor’s part number is printed on the motor’s own data label. If you can reach it, read the number straight off the label and match it below — that is the most reliable way to order the right motor. If the label is unreadable, use your operator model number instead.

Electrical box parts. The APT shipped with Logic Control 4.0 and later Logic Control 5.0, and was also offered in a NEMA 4/4X enclosure for wash-down and outdoor installations. It was never built with the contactor-style box. Use the section that matches your unit.

Electrical Box — Logic Control 4.0

Electrical Box — Logic Control 5.0

Electrical Box — NEMA 4 / 4X
