LiftMaster 98022 Replacement Parts

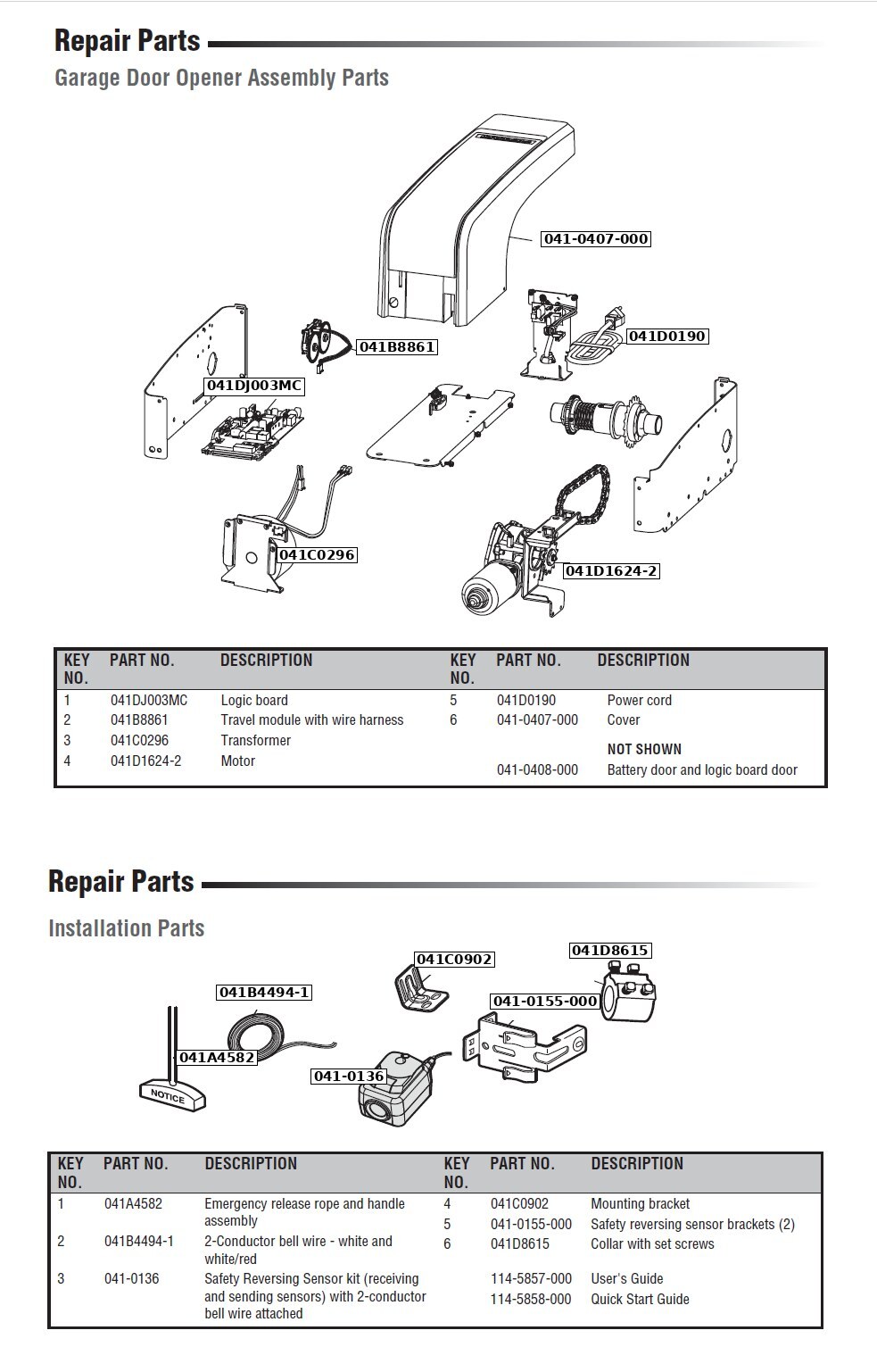

Genuine replacement parts and repair components for the LiftMaster 98022 Elite/Premium Series DC Battery Backup Wall Mount Wi-Fi jackshaft garage door opener — the model that replaced the LiftMaster 8500 and 8500W. Use the diagram above and the part-number tables below to identify the exact component you need. Click any part number to view or order that part.

Garage Door Opener Assembly Parts

Ref	Part Number	Description
1	041DJ003MC	Logic board
2	041B8861	Travel module with wire harness
3	041C0296	Transformer
4	041D1624-2	Motor
5	041D0190	Power cord
6	041-0407-000	Cover
—	041-0408-000	Battery door and logic board door (not shown on diagram)

Installation Parts

Ref	Part Number	Description
1	041A4582	Emergency release rope and handle assembly
2	041B4494-1	2-conductor bell wire — white and white/red
3	041-0136	Safety Reversing Sensor kit (sending & receiving sensors) with 2-conductor bell wire
4	041C0902	Mounting bracket
5	041-0155-000	Safety reversing sensor brackets (2)
6	041D8615	Collar with set screws
—	114-5857-000	User's Guide
—	114-5858-000	Quick Start Guide

Accessories for the 98022

From the LiftMaster wall mount owner's manual. Every accessory below is compatible with the 98022 as shipped — it uses Security+ 2.0 radio and myQ, and MAX remotes and keypads work with every LiftMaster opener made since 1993. Part numbers link to the product page.

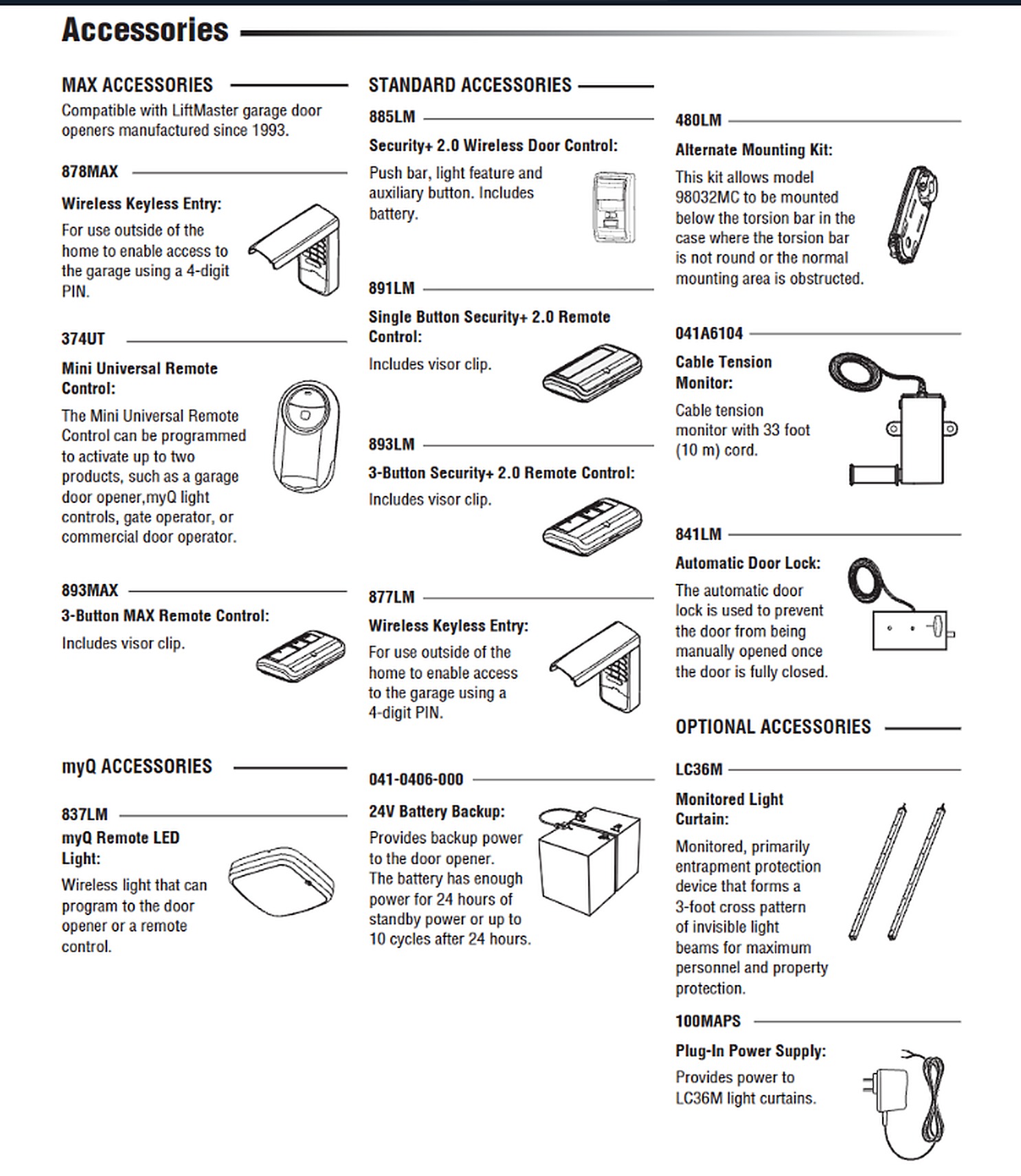

LiftMaster wall mount opener accessories page from the owner's manual: 878MAX, 374UT, 893MAX, 837LM, 885LM, 891LM, 893LM, 877LM, 041-0406-000 battery backup, 480LM, 041A6104, 841LM, LC36M, 100MAPS

Part	Accessory	What it does
Remotes and keypads
878MAX	Wireless keyless entry	Mounts outside the door; opens the garage with a 4-digit PIN. Works with every LiftMaster opener since 1993.
877LM	Wireless keyless entry, Security+ 2.0	Same job as the 878MAX. The 877LM has been replaced by the L979S — the link goes to the current part.
893MAX	3-button MAX remote	Three doors or devices from one remote. Visor clip included.
893LM	3-button Security+ 2.0 remote	Discontinued by LiftMaster — the 893MAX is the current replacement and the link goes there.
891LM	Single-button Security+ 2.0 remote	One door, one button. Visor clip included.
374UT	Mini universal remote	Programs to up to two products — the 98022 plus a gate operator, a commercial door operator or myQ light controls.
Controls and myQ
885LM	Security+ 2.0 wireless door control	Wall button with push bar, light control and auxiliary button. Wireless, so no wire run from the opener. Battery included.
837LM	myQ remote LED light	Wireless garage light that programs to the opener or a remote — the 98022 has no light head on the ceiling, so this puts the light where you want it.
841LM	Automatic garage door lock	Deadbolts the door every time it closes, so it cannot be forced up by hand. Included with the 98022 — order here only if you need a replacement.
Installation
480LM	Alternate mounting kit	Mounts the 98022 below the torsion bar when the bar is not round or the normal mounting area is obstructed.
041A6104	Cable tension monitor	33 ft (10 m) cord. Not required on the 98022 (the 8500 and 8500W it replaces did need one), but available where the installation calls for one.
041-0406-000	24V battery backup	Replacement battery for the integrated backup — 24 hours of standby or up to 10 cycles. Call us to order.
Optional safety
LC36M	Monitored light curtain	Forms a 3-foot cross pattern of invisible beams across the opening for entrapment protection beyond the standard photo eyes. Call us to order.
100MAPS	Plug-in power supply	Powers the LC36M light curtain. Call us to order.
