Genie PMX700 PMX1200 GPS700IC GPS1200IC Parts
Genie PMX700, PMX1200, GPS700IC and GPS1200IC Replacement Parts
Genuine Genie replacement parts for ProMax PMX700 and PMX1200 and Stealth GPS700IC and GPS1200IC garage door openers. Each section below has its own diagram directly above its own table. Find your part on the diagram, match the reference number in the table beneath it, then click the part number to order. These reference numbers are the ones printed on the Genie parts drawing.
These models use the channel rail. Remotes, keypads, wall controls and Safe-T-Beam safety sensors are listed in the last section.

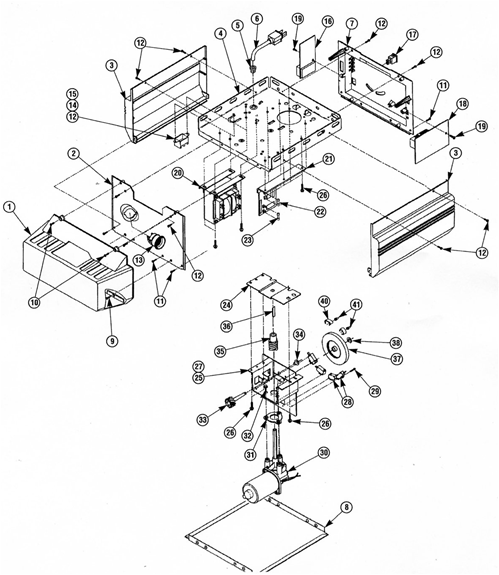

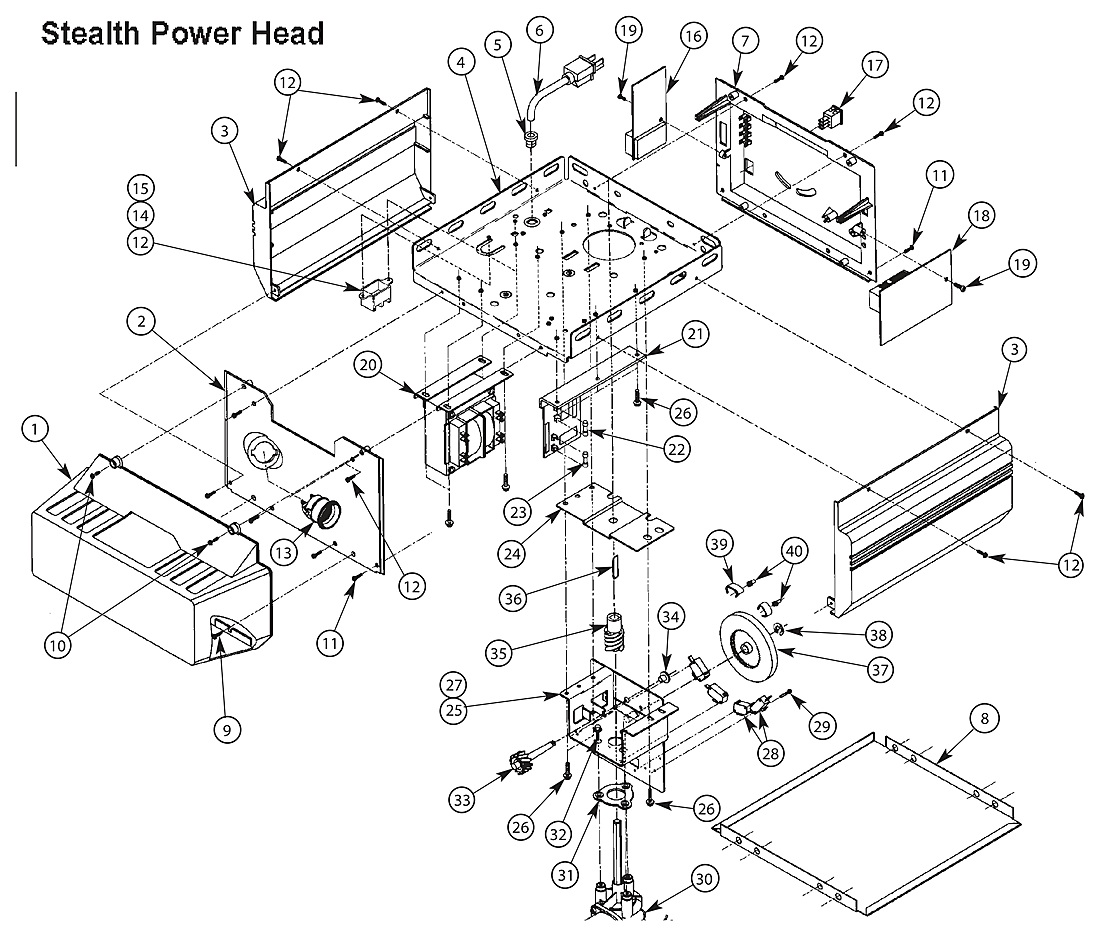

Power Head — Repair + Service Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | Obsolete | Lens Cover |
| 2 | 27332R.S | Front Cover / Wrapper |
| 3 | Obsolete | Side Cover / Wrapper |
| 4 | Obsolete | Top Plate Assembly |
| 5 | 9541C.S | Strain Relief |
| 6 | 24567R.S | Cord & Plug Assembly |
| 7 | Obsolete | Component Panel / Rear Panel |
| 8 | Obsolete | Bottom Cover / Wrapper |
| 9 | 24501D04.S | Screw, #8 x 3/4 Self Tap Hex Head |
| 10 | 27293A04.S | Screw, #8-11 x 5/8 |
| 11 | 27250A30.S | Screw, #8-18 x 1/2 |
| 12 | 8706E04.S | Screw, #8-32 x 3/8 Slot Hex Head |
| 13 | Obsolete | Light Socket |
| 14 | Obsolete | Terminal Block & Lug |
| 15 | 30073R.S | M.O.V. Assembly |
| 16 | 36521S.S | Receiver Assembly, Intellicode |
| 16 | 20285R.S | Receiver Assembly, 12 Switch |
| 17 | 27221A.S | Limit Set / Override Switch |
| 18 | 20399R.S | Sequencer Assembly (GPS1200IC) |
| 19 | 8706E04.S | Screw, #6 x 3/8 Slot Hex Head |
| 20 | 29058A.S | Transformer Assembly (GPS1200) |
| 21 | 20424S.S | Rectifier Board Assembly (PMX1200 / GPS1200IC) |
| 22 | 29672A15.S | Fuse (F1), 15A UL |
| 23 | 29672B3.S | Fuse (F2), 3A Type T (GPS) |
| 23 | 29672B8.S | Fuse (F2), 8A (PMX700) |
| 24 | 29067A.S | Limit Gear Shroud |
| 25 | 29068A.S | Motor Bracket |
| 26 | 8062C04.S | Screw, #10-24 x 3/8 Hex Head — call for availability |
| 27 | Obsolete | Limit Plate / Pin Assembly |
| 28 | 27220A.S | Limit Switch |
| 29 | 24173B04.S | Screw, #4-40 x 5/8 Self Tap |
| 30 | 29056R.S | Motor Assembly |
| 31 | 29033A.S | Motor Adapter Plate |
| 33 | 27091A.S | Limit Worm Gear |
| 34 | 29030A.S | Limit Gear Bushing |
| 35 | 27092A.S | Limit Worm Drive |
| 36 | 29034A.S | Limit Worm Shim |
| 37 | 27093A.S | Limit Wheel |
| 38 | 24311A17.S | Retaining Ring |
| 39 | 27095A.S | Limit Cam |
| 40 | 27094A.S | Limit Pinion, 8 Tooth |
Channel Rail Parts
| Ref | Part Number | Description |
|---|---|---|
| 66 | Obsolete | Belt & Bullet Assembly (belt models) |
| 67 | Obsolete | Sprocket Bushing |
| 68 | 27191A.S | Sprocket, 10 Tooth (chain models) |
| 68 | 36220A.S | Drive Sprocket, 18 Tooth (belt models) — call for availability |
| 69 | 8094C04.S | Screw, #10-24 x 1/2 Hex Head |
| 70 | 27080B.S | Sprocket Bracket (chain models) |
| 70 | 28770R.S | Sprocket Bracket (belt models) |
| 71 | 8062C04.S | Screw, #10-24 x 3/8 Hex Head — call for availability |
| 72 | Obsolete | Channel (by door height) |
| 73 | 26966A.S | Pulley (chain models) |
| 73 | 28773A.S | Pulley (belt models) |
| 74 | 27254A04.S | Carriage Bolt, 5/16-18 x 4 |
| 75 | 27291A04.S | Carriage Pin, 5/16 x 1-1/4 |
| 76 | 27360R.S | Pulley Bracket Assembly |
| 77 | 27127A.S | End Bracket |
| 78 | 24121C05.S | Hex Flange Nut, 5/16-18 (chain) |
| 78 | 22679A04.S | Hex Jam Nut, 5/16-18 (belt) |
| 79 | 8091B04.S | Lag Screw, 1/4 x 2 Hex Head |
| 80 | 18295A04.S | Header Bracket |
| 81 | 8115B17.S | Speed Nut |
| 82 | 18586A04.S | Cold Header Pin |
| 83 | 27140A.S | Carriage Stop |
| 84 | 27335A.S | Roller Chain, 7'6" door |
| 84 | 27335B.S | Roller Chain, 8' door |
| 84 | 27335C.S | Roller Chain, 10' door |
| 85 | 27150A.S | Chain Bullet |
| 85 | 28018A.S | Belt Bullet |
| 86 | 27175B.S | Carriage Slide |
| 87 | 21123F.S | Emergency Release Cord |
| 88 | 21122A | Emergency Release Knob (red) — supersedes 35227A.S |
| 89 | 606E04.S | Cotter Pin, 3/4" |
| 90 | 5987F04 | Clevis Pin — supersedes 5987J04.S |
| 91 | 5973Q04.S | Screw, 3/8-16 x .87 Hex Head |
| 92 | 24121D05.S | Hex Nut, 3/8-16 |
| 93 | 26013D.S | Curved Door Arm |
| 94 | 26012D.S | Straight Door Arm |
| 95 | 19792A04.S | Door Bracket |
| 96 | 605879.0001.S | Screw, 1/4-20 x 3/4 Self-Drilling |
| 97 | Obsolete | Carriage Assembly |
| 98 | 27190A.S | Carriage Cap |
| — | 20060A.S | Chain Master Link (not shown) |
Accessories, Safety Beams & Controls
| Ref | Part Number | Description |
|---|---|---|
| 100 | 39165R | Wall Console, Series II (GBWCSL2-BX) — current version |
| 100 | 34299R-GWC2 | Wall Console, earlier GWC2 — now replaced by 39165R |
| 101 | — | Wall Button, Series II (lit primary / unlit secondary) |
| 103 | Not sold separately | Safety & Maintenance Guide |
| 104 | Not sold separately | Emergency Release Tag |
| 105 | Not sold separately | Entrapment Warning Label |
| 106 | 109150.0001 | Wire Clips (bag of 500) |
| 124 | 37220R | Safe-T-Beam Sensor & Source Pair (green LED / red LED) |
| 125 | 37220R | Safe-T-Beam Source, red LED — supplied as the pair above |
| 126 | — | Safe-T-Beam Mounting Brackets (2) |
| 128 | 36443A | Insulated Staples |
| — | G3T-BX | 3-Button Remote (37218R) — Intellicode |
| — | 42368R | GK2-P Wireless Keypad |
| — | 20437R | Receiver, Rolling Code — replaced by 36521S.S |
