Chamberlain Wall Mount model RJO70 parts
Chamberlain RJO70 Replacement Parts

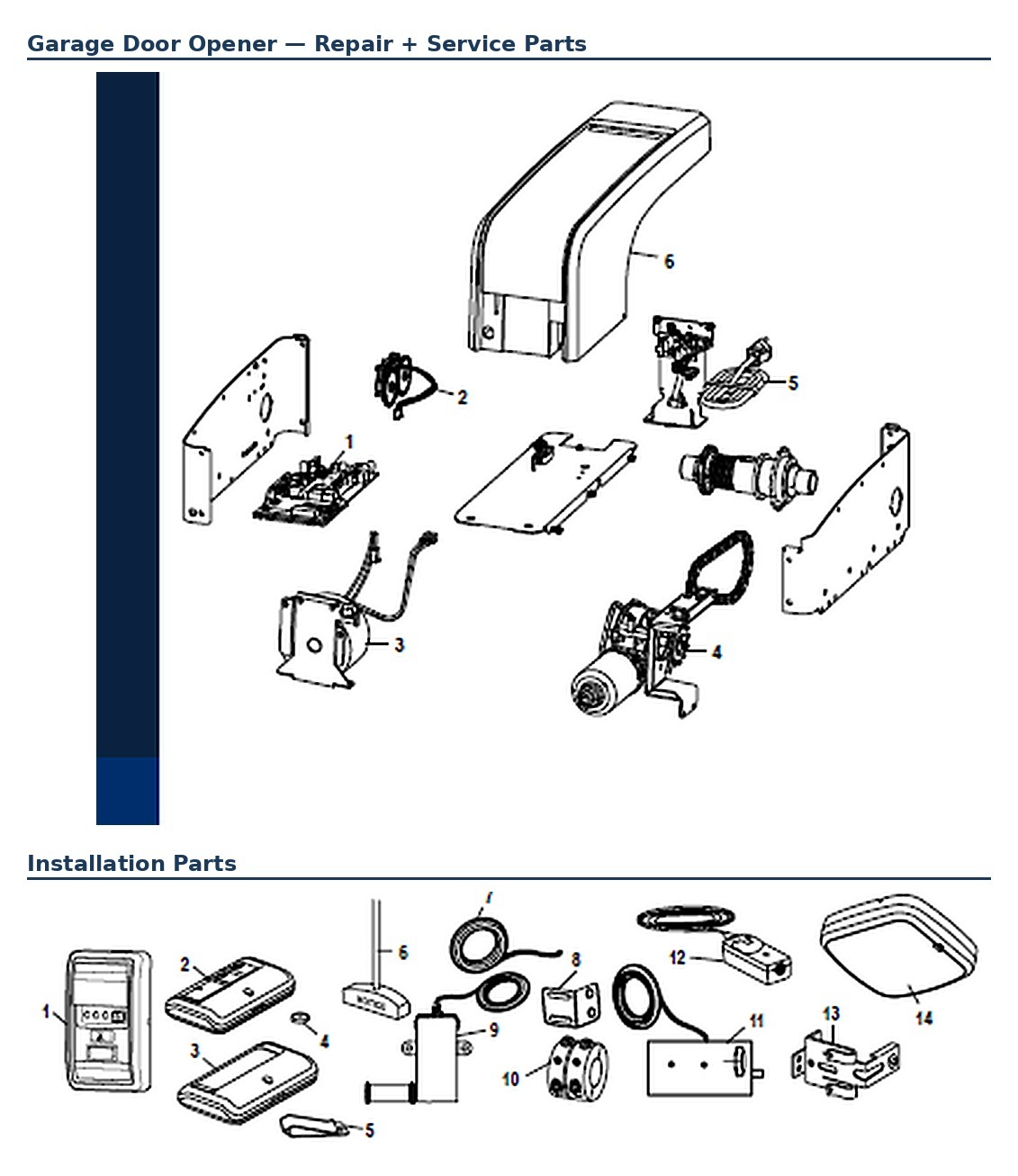

Genuine replacement parts and repair components for the Chamberlain RJO70 and RJO70C wall mount garage door opener with battery backup and Wi-Fi. Use the diagram above and the part-number tables below to identify the exact component you need. Click any part number to view or order that part.
Garage Door Opener Repair Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 050DCRJWFMC | Receiver Logic Board, Wi-Fi, RJO |
| 2 | 041B8861 | Travel Module with Wire Harness |
| 3 | 041C0296 | Transformer, 12V, RJO |
| 4 | 041D1624-2 | Motor Kit, DC, 12V, RJO |
| 5 | 041D0190 | Power Cord Kit, RJO |
| 6 | 041-0017-000 | Cover, RJO |
| — | 4228 | Battery Backup, 12V |
Installation Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041A7327-1 | Premium Motion-Detecting Control Panel |
| 2 | 953EV-P2 | 3-Button Remote Control |
| 3 | G950ESTD | 1-Button Remote Control |
| 4 | K010A0020 | 3V CR2032 Lithium Battery |
| 5 | K029B0137 | Remote Control Visor Clip |
| 6 | 041A4582 | Rope and Handle Kit, RJO |
| 7 | 041B4494-1 | Bell Wire Kit |
| 8 | 041B6228 | Mounting Bracket Kit, RJO |
| 9 | 041A6104 | Cable Tension Monitor Kit |
| 10 | 041D8615 | Door Shaft Collar, RJO |
| 11 | 041A6102 | Power Door Lock Kit |
| 12 | 041-0136 | Safety Sensor Kit |
| 13 | 041-0155-000 | Safety Sensor Bracket Kit |
| 14 | MYQLED1 | Smart LED Light |
| — | 041A5281-1 | Safety Sensor Extension Bracket Kit |
| — | 041A6298 | Installation Hardware Kit |
