Chamberlain Chain Drive model D2101 parts
Chamberlain D2101 Replacement Parts

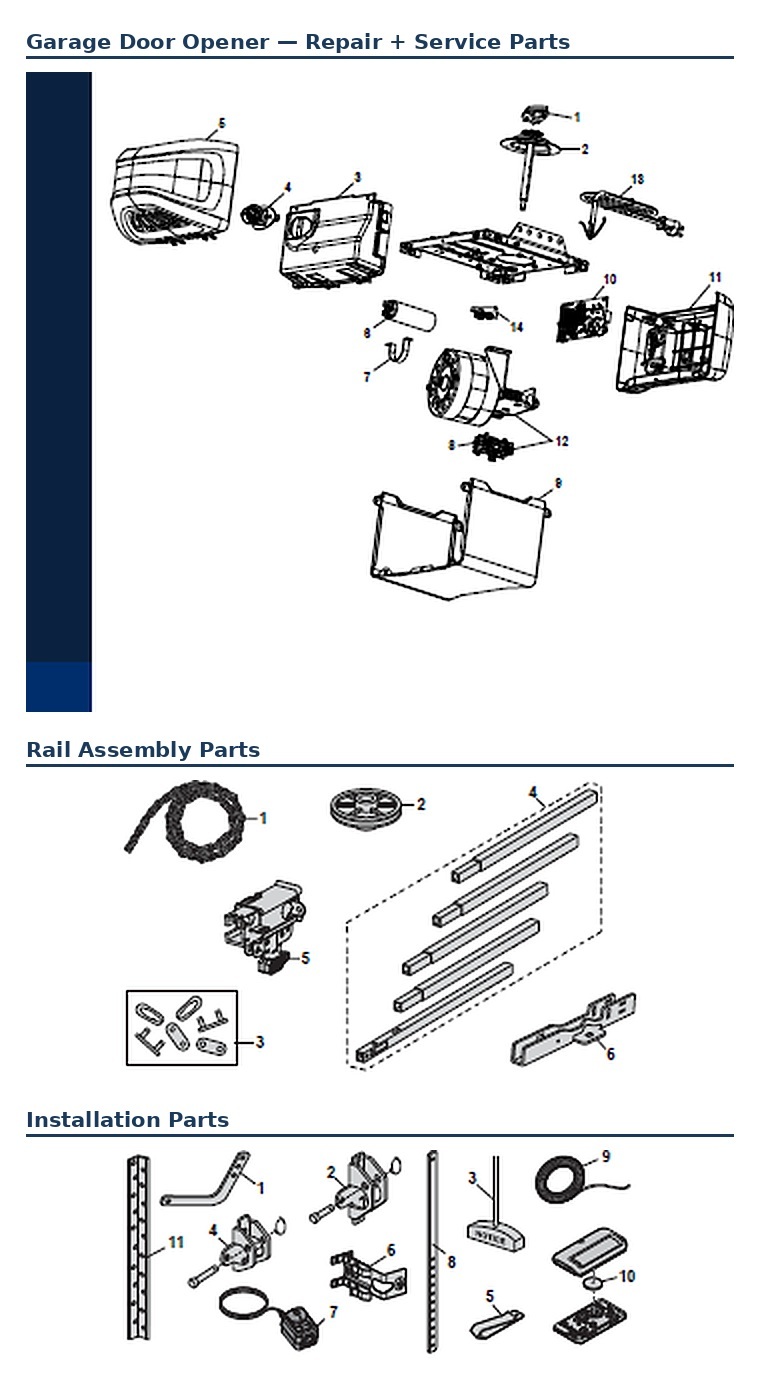

Genuine replacement parts and repair components for the Chamberlain D2101 and D2101C chain drive garage door opener. Use the diagram above and the part-number tables below to identify the exact component you need. Click any part number to view or order that part.
Garage Door Opener Repair Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041A5615 | Chain Spreader Kit |
| 2 | 041C4220A | Chain Drive Gear and Sprocket Kit |
| 3 | 041D8129 | End Panel |
| 4 | 041C0279 | Light Socket Kit |
| 5 | 041-0144 | Light Lens |
| 6 | K030B0532-1 | Capacitor, 56µF, 220V |
| 7 | K012A0373 | Capacitor Bracket |
| 8 | 041D7742-7 | Travel Module, 1/2 HP |
| 9 | 041-0228-000 | Cover |
| 10 | 045ACTMC | Receiver Logic Board, 2.0 |
| 11 | 041D8374 | End Panel |
| 12 | 041D7440 | Motor with Travel Module, 1/2 HP |
| 13 | 041B4245-1 | Power Cord Kit, 6' |
| 14 | 041A3150 | Terminal Block Kit |
| — | 041A7945 | Wire Harness Kit, Dual Light |
Rail Assembly Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041B1986-07 | Chain Kit, 7' |
| 2 | 041A8910 | Idler Pulley, Chain |
| 3 | 004A1008 | Chain, #48, with Master Link |
| 4 | 041A5665 | Rail Kit, 7' |
| 5 | 041C5141-1 | Square Rail Trolley Kit |
| 6 | 041D0598-1 | U Bracket Adapter |
| — | 041A7276 | Trolley Wear Pad Kit |
| — | K083A0011-1 | Lithium Rail Grease |
Installation Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041B0035B | Curved Door Arm |
| 2 | 041A5047-1 | Door Bracket |
| 3 | 041A2828 | Emergency Manual Release Rope |
| 4 | 041A5047-2 | Header Bracket |
| 5 | K029B0137 | Remote Control Visor Clip |
| 6 | 041-0155-000 | Safety Sensor Bracket Kit |
| 7 | 041-0136 | Safety Sensor Kit |
| 8 | 4178B0034B | Straight Door Arm |
| 9 | 041B4494-1 | White/Red Bell Wire |
| 10 | K010A0020 | 3V CR2032 Lithium Battery |
| 11 | K012B0776 | Hanging Bracket Kit |
