Chamberlain Chain Drive model C273 parts
Chamberlain C273 Replacement Parts

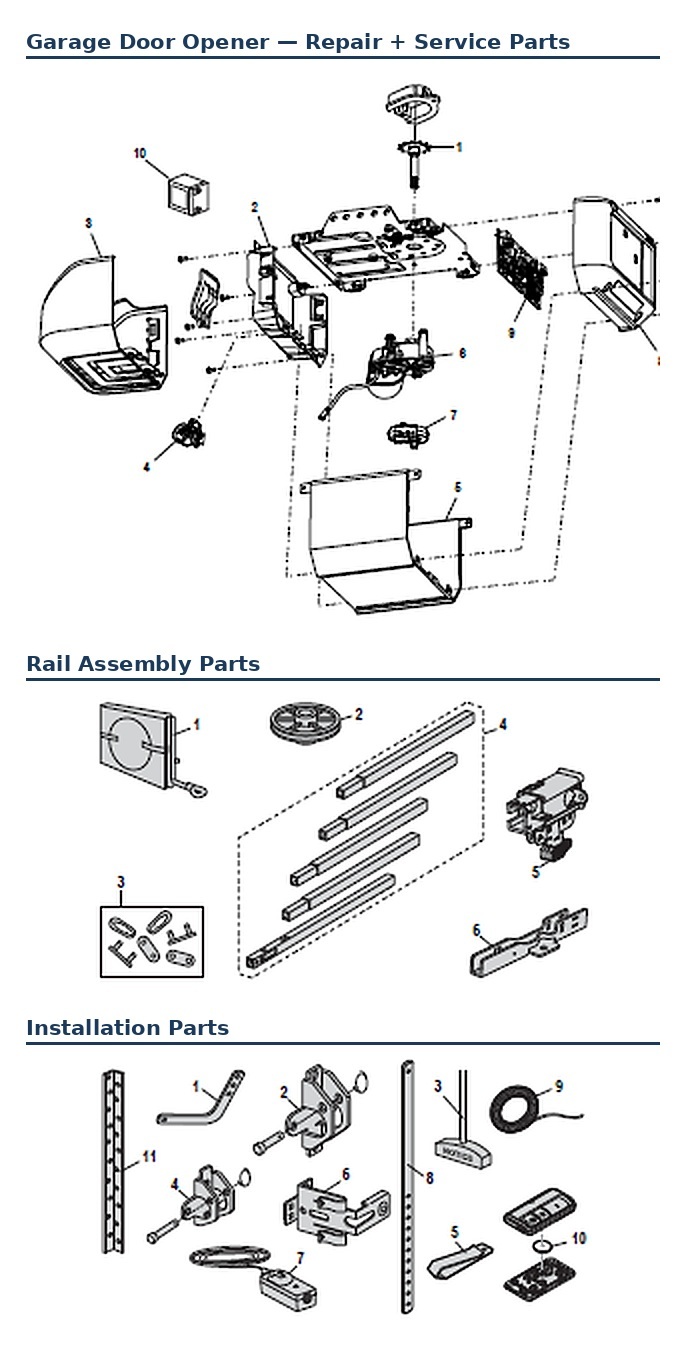

Genuine replacement parts and repair components for the Chamberlain C273 and C273C chain drive garage door opener with battery backup. Use the diagram above and the part-number tables below to identify the exact component you need. Click any part number to view or order that part.
Garage Door Opener Repair Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041B5348-2 | Sprocket and Hub Kit |
| 2 | 041A7618 | End Panel |
| 3 | 041D0145-1 | Light Lens |
| 4 | 041C0279 | Light Socket Kit |
| 5 | 041D0646-2 | Cover, C273 |
| 6 | 041-0236-000 | Motor with Travel Module |
| 7 | 041D8071-4 | Travel Module Kit, Universal DC |
| 8 | 041D0233-3 | End Panel |
| 9 | 050DCTBMC | Receiver Logic Board |
| 10 | 4228 | Battery, 12V |
| — | 041D9069 | Wire Harness |
| — | 041D0277-1 | Transformer, Wi-Fi Battery Backup |
| — | 041B4245-1 | AC Power Cord, 6' |
| — | 041A3150 | Terminal Block |
Rail Assembly Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041A5807 | Chain and Cable Kit, 7' |
| 2 | K144C0056 | Square Rail Idler Pulley |
| 3 | 004A1008 | Chain, #48, with Master Link |
| 4 | 041A5665 | Rail Kit, 7' |
| 5 | 041C5141-1 | Square Rail Trolley Kit |
| 6 | 041D0598-1 | U Bracket Adapter |
| — | 041A7276 | Trolley Wear Pad Kit |
| — | 041A7920-1 | Hardware Kit |
| — | K083A0011-1 | Lithium Rail Grease |
Installation Parts
| Ref | Part Number | Description |
|---|---|---|
| 1 | 041B0035B | Curved Door Arm |
| 2 | 041A5047 | Door Bracket |
| 3 | 041A2828 | Emergency Manual Release Rope |
| 4 | 041A5047-2 | Header Bracket |
| 5 | K029B0137 | Remote Control Visor Clip |
| 6 | 041-0155-000 | Safety Sensor Bracket Kit |
| 7 | 041-0136 | Safety Sensor Kit |
| 8 | 4178B0034B | Straight Door Arm |
| 9 | 041B4494-1 | White/Red Bell Wire |
| 10 | K010A0020 | 3V CR2032 Lithium Battery |
| 11 | K012B0776 | Hanging Bracket Kit |
